Porsche Diagramas 996 (911) (1997-2005) Motor Colector de admisión / Adaptador de válvula de mariposa / Carcasa de guía de aire (Modelo: CNCC,CNC, CYPA,CYP) 95B.1 Macan 2.0L 2014-18
Ingrese criterios de búsqueda válidos antes de continuar con la solicitud
➜
101-00
replacement engine for 996 TURBO M96.70 2001-05, 996 TURBO X50 M96.70E 2002-05 and 996 GT2 M96.70S 2002-05
101-00
replacement engine ready for installation 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
101-00
replacement engine: without drive plate tiptronic, without flywheel manual transmission, without compressor for 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
101-05
crankcase 996 Carrera 2/4/4S M96.01/02/03/04 1998-05
101-05
crankcase left 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
101-05
crankcase left 996 TURBO 2001-05
101-10
belt tensioner and belt drive for 996 CARRERA 2/4/4S 1998-05
101-10
crankcase right 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
101-10
crankcase right 996 TURBO 2001-05
101-15
belt tensioner, belt drive 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
101-15
belt tensioner, belt drive 996 TURBO 2001-05
102-00
crankshaft 996 Carrera 2/4/4S M96.01/02/03/04 1998-05
102-00
crankshaft 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
102-00
crankshaft 996 TURBO 2001-05
102-05
cylinder with piston (see workshop manual) 996 TURBO 2001-05
102-05
cylinder with piston 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
102-05
piston 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
103-00
cylinder head 996 CARRERA 2/4 M96.01/02/04 UPTO 2001
103-00
cylinder head 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
103-00
cylinder head 996 TURBO 2001-05
103-01
cylinder head 996 CARRERA 2/4/4S M96.03 2002 ONWARDS
103-05
chain case, chain adjuster 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
103-05
chain case, chain adjuster 996 TURBO 2001-05
103-10
camshaft driving mechanism 996 CARRERA 2/4/4S M96.01/02/04 UPTO 2001
103-10
camshaft housing 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
103-10
camshaft housing 996 TURBO 2001-05
103-11
camshaft driving mechanism 996 CARRERA 2/4/4S M96.03 2002 ONWARDS
103-15
valve control 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
103-15
valve control 996 TURBO 2001-05
104-00
oil pump 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
104-00
oil pump 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
104-00
oil pump 996 TURBO 2001-05
104-05
engine lubrication 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
104-05
engine lubrication oil tank 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
104-05
engine lubrication, oil tank 996 TURBO 2001-05
104-10
crankcase bleeding 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
104-10
oil filter bracket 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
104-10
oil filter bracket 996 TURBO 2001-05
104-20
oil supply return line 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT RS M96.79 2004-05
104-20
oil supply, return line 996 TURBO 2001-05
105-00
connection piece 996 TURBO 2001-05
105-00
water pump, thermostat housing 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
105-00
water pump, water pump housing 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
105-03
lines heating 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
105-03
lines heating 996 TURBO 2001-05
105-05
water cooling - 1 - for 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
105-05
water cooling - 1 - for 996 TURBO 2001-05
105-05
water cooling 1 for 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
105-10
water cooling - 2 - for 996 CARRERA 2 M96.01/02/03/04 1998-05
105-10
water cooling 2 for 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
105-12
water cooling - 2 - for 996 CARRERA M339 (all-wheel drive) M96.01/02/03/04 1998-05
105-12
water cooling - 2 - for 996 TURBO 2001-05
105-15
water cooling - 3 - for 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
105-15
water cooling - 3 - for 996 TURBO 2001-05
105-15
water cooling 3 for 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
105-17
radiator centre 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
105-17
radiator centre 996 TURBO 2001-05
105-17
radiator centre for 996 CARRERA 2/4/4S M96.01/02/03/04 Tirptonic (M249) 1998-05 and 996 CARRERA 2/4/4S M96.03 6-speed Manual (M480) / Powerkit 250 kW (IX51) 2002-05
105-20
water cooling - 4 - for 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
105-20
water cooling - 4 - for 996 TURBO 2001-05
105-20
water cooling 4 for 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
106-00
air cleaner 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
106-00
air cleaner 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
106-00
air cleaner 996 TURBO 2001-05
107-00
throttle body 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
107-00
throttle body 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
107-00
throttle body 996 TURBO 2001-05
107-05
fuel collection pipe 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
107-05
fuel collection pipe 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
107-05
fuel collection pipe 996 TURBO 2001-05
107-10
intake distributor 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
107-10
intake distributor 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
107-10
intake distributor 996 TURBO 2001-05
107-20
turbocharging 996 TURBO/GT2 2001-05
108-05
air injection 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
108-05
air injection 996 GT3-1/GT3 RS M96.79 2004-05
108-05
air injection 996 TURBO 2001-05
109-00
engine suspension 996 CARRERA 2/4/4S M96.01/02/03/04 1998-05
109-00
engine suspension 996 GT3-1 M96.76 2000-01 and 996 GT3-1/GT3 RS M96.79 2004-05
109-00
engine suspension 996 TURBO 2001-05
➜

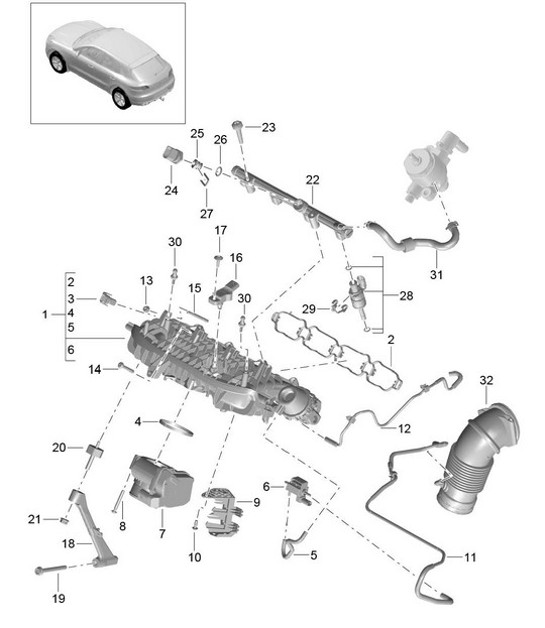

Colector de admisión / Adaptador de válvula de mariposa / Carcasa de guía de aire (Modelo: CNCC,CNC, CYPA,CYP) 95B.1 Macan 2.0L 2014-18 - PORSCHE
Haga clic sobre los números de la imagen para ver la información del producto
SKU: PAC133201E, colector de admisión
SKU: 95812971700, sello
SKU: 95890738610, sensor de ángulo de giro
SKU: 95813307300, sello
SKU: 95813359500, manguera
SKU: 95890628300, válvula de cambio
SKU: 9A7133062, adaptador de válvula de mariposa
SKU: N10626101, hexágono interior plano perno de cabeza
SKU: 95897149700, soporte sensor de golpe
SKU: N90925202, perno con collar de cabeza hueca hexagonal, formación de hilo
SKU: 95813358320, manguera de conexión
SKU: 95813224111, manguera de conexión
SKU: PAF015082, tuerca hexagonal
SKU: N91097301, perno de cabeza plana con casquillo hexagonal
SKU: N10770201, pasador roscado
SKU: PAB906051, sensor de presión
SKU: N90732103, perno de cabeza ovalada con hexágono interior
SKU: 95812972310, apoyo colector de admisión
SKU: N91170301, perno con collar de cabeza hueca con cabeza multipunto interior
SKU: 95812127300, montaje
SKU: N10609203, tuerca hexagonal m 8
SKU: PAC133681, tubo de recogida de combustible m >> cnc 133 508 sólo en conj. con: 958 127 813 00,SKU: PAC133681, tubo de recogida de combustible cnc 133 509>> sólo en conj. con: 958 127 813 10 910 568 01
SKU: N10582102, perno de cabeza plana con casquillo hexagonal
SKU: PAC906051B, sensor de presión
SKU: 95812781300, adaptador sólo en conj. con: tubo de recogida de combustible 958 133 681 00,SKU: 95812781310, adaptador sólo en conj. con: tubo de recogida de combustible 958 133 681 10 pac133681
SKU: WHT005568, junta tórica sólo en conj. con: 958 133 681 00 tubo de recogida de combustible,SKU: N91056801, junta tórica sólo en conj. con: tubo de recogida de combustible 95813368110
SKU: PAC133047, clip de retención
SKU: PAC906031, válvula de inyección
SKU: 95890303700, clip de retención
SKU: WHT005593, pasador de bola
SKU: WHT005593, pasador de bola
SKU: -, manguera de combustible ver ilustración: 107-050, artículo: 26
SKU: -, tubo de presión ver ilustración: 106-020, artículo: 5
+
−
↺
107-067
