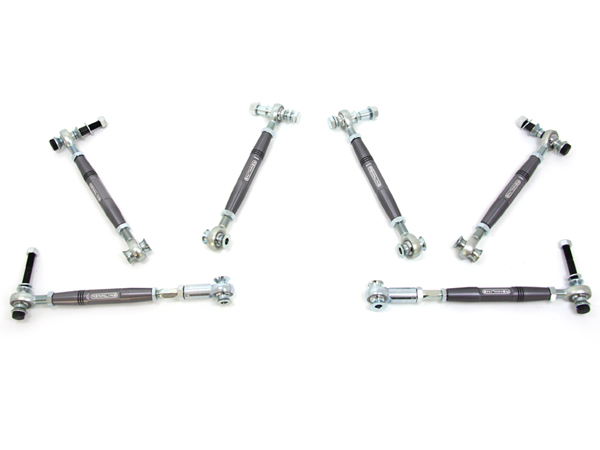

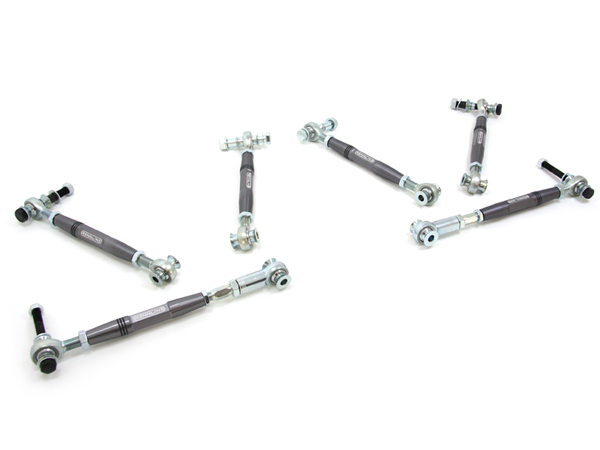

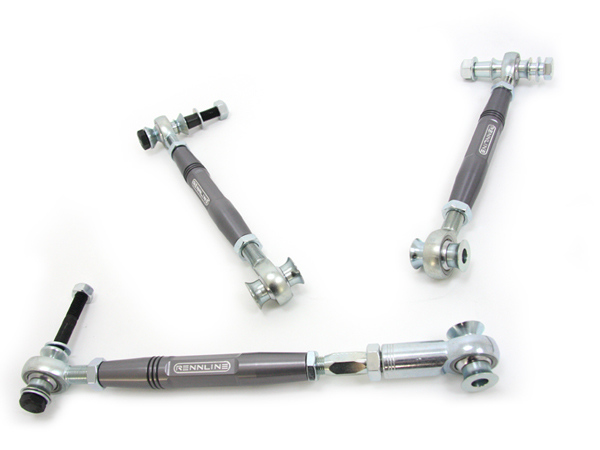

Track Control Arm REAR

Rear Toe, Camber, and Kinematic Control Arms.


Kit Includes :
(4) Upper Control Arms, (2) Toe Control Arms

Fits:
Porsche 993

If you're serious about how your 993, 996, 997, Cayman, or Boxster handles, you should upgrade the rear suspension with adjustable control arm links. There are two major drawbacks to the factory links:
1) You can't lower your car and maintain proper suspension geometry. The factory links create too much toe-in, which cannot be adjusted out, creating handling problems and excessive tire wear.
2) The factory links have rubber bushings, which make handling imprecise, especially in performance driving when suspension loads are highest.

Rennline adjustable control arm links solve both these problems. Manufactured from 6061 aluminum and feature a turnbuckle design that allows each arm to be lengthened or shortened as needed to restore proper suspension geometry on a lowered Porsche. The FK Teflon-lined rod end bearings ensure precision handling and lock in your car's alignment settings, ensuring predictable cornering under all conditions. Rennline arms come with all required bolts and machined bushings to get the job done. Rubber Boots not included but available separately.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

S7273741012415

The product you are viewing cross references to these numbers

Suspension arm kit - Rear


Fits:
Porsche 993 - 1994 to 1997
Porsche 993 turbo - 1994 to 1997

Kit includes:
2 x Lower wishbone

6 x Control arms
2 x Suspension side member bush kit
2 x Rear anti roll bar drop link

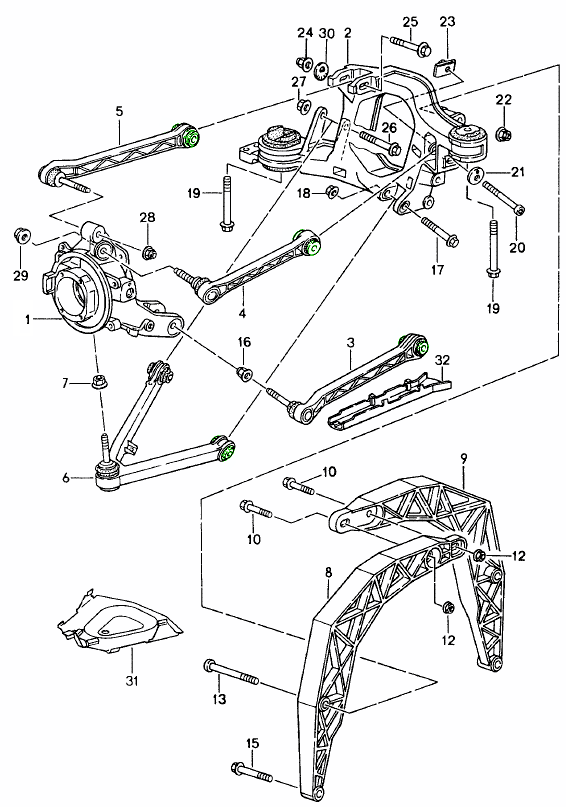

Diagram ref No 3, 4, 5, 6 and bushes for number 2

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

SUSPENSIONKIT993

The product you are viewing cross references to these numbers

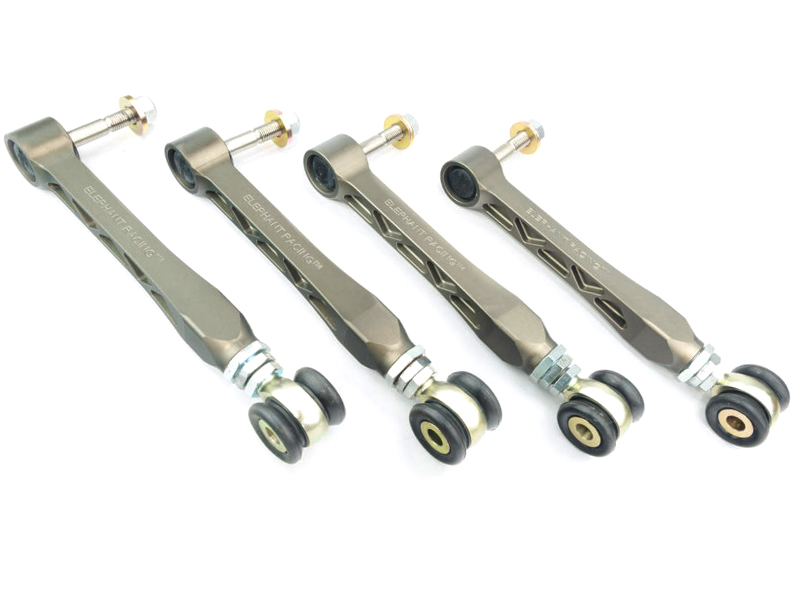

Adjustable upper control arm kit.
4 pcs in kit - 1 kit required per car



Fits
Porsche 993 - All 1994 - 1998

Adjustable Upper Control Arm set replaces the stock upper wishbone (KT) and camber arms.

Adjustable length makes it easy to achieve aggressive camber settings.

These have spherical bearings in place of the compliant factory rubber bushings for increased precision and control. The bearings are fully weather sealed to keep out dirt, water and contaminants that wear out unprotected bearings.

Machined from aluminum billet, the are arms are attractive and sturdy.

Sold as a set of 4 and includes 2 each KT and camber arms

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2180035

The product you are viewing cross references to these numbers

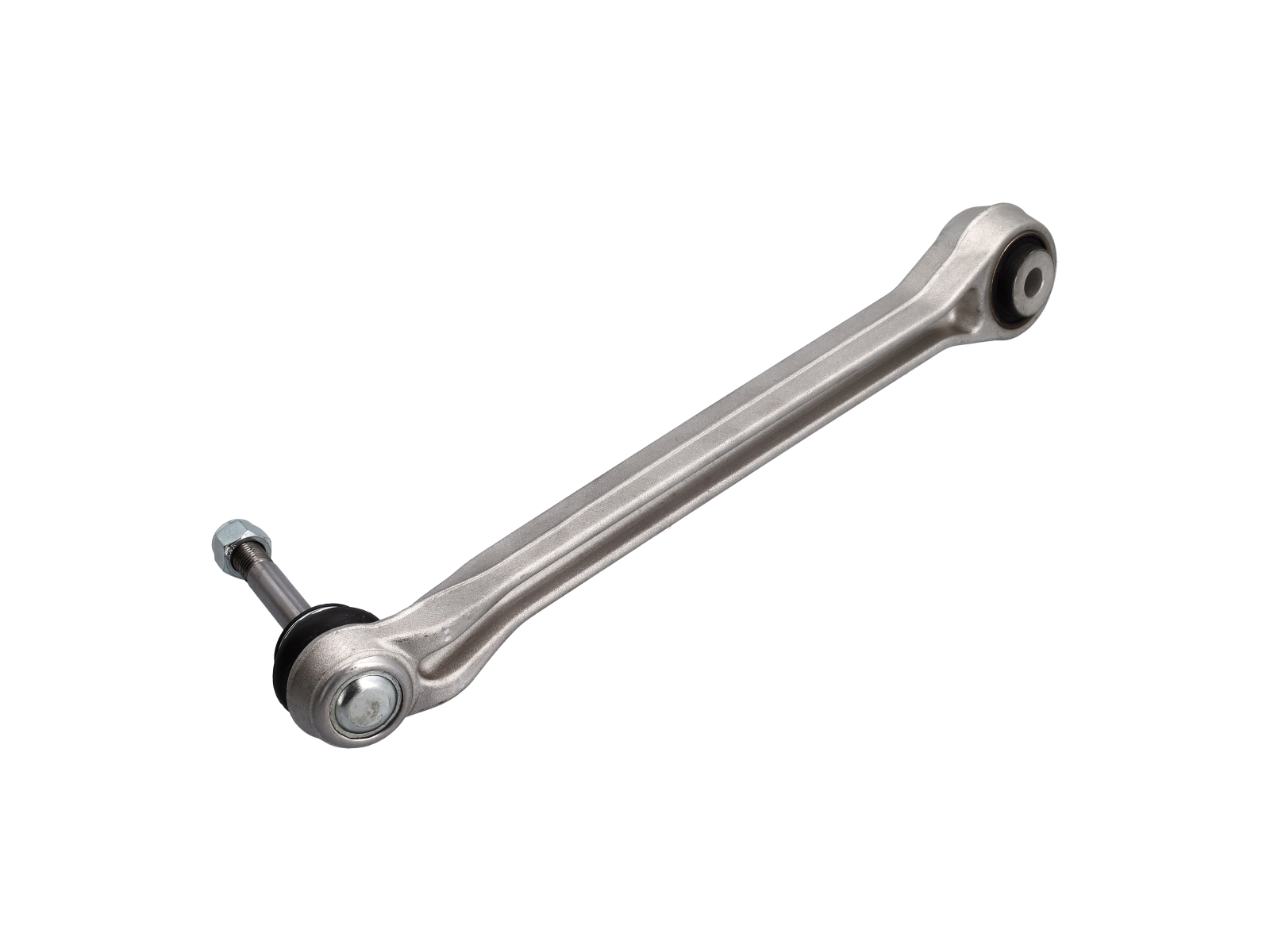

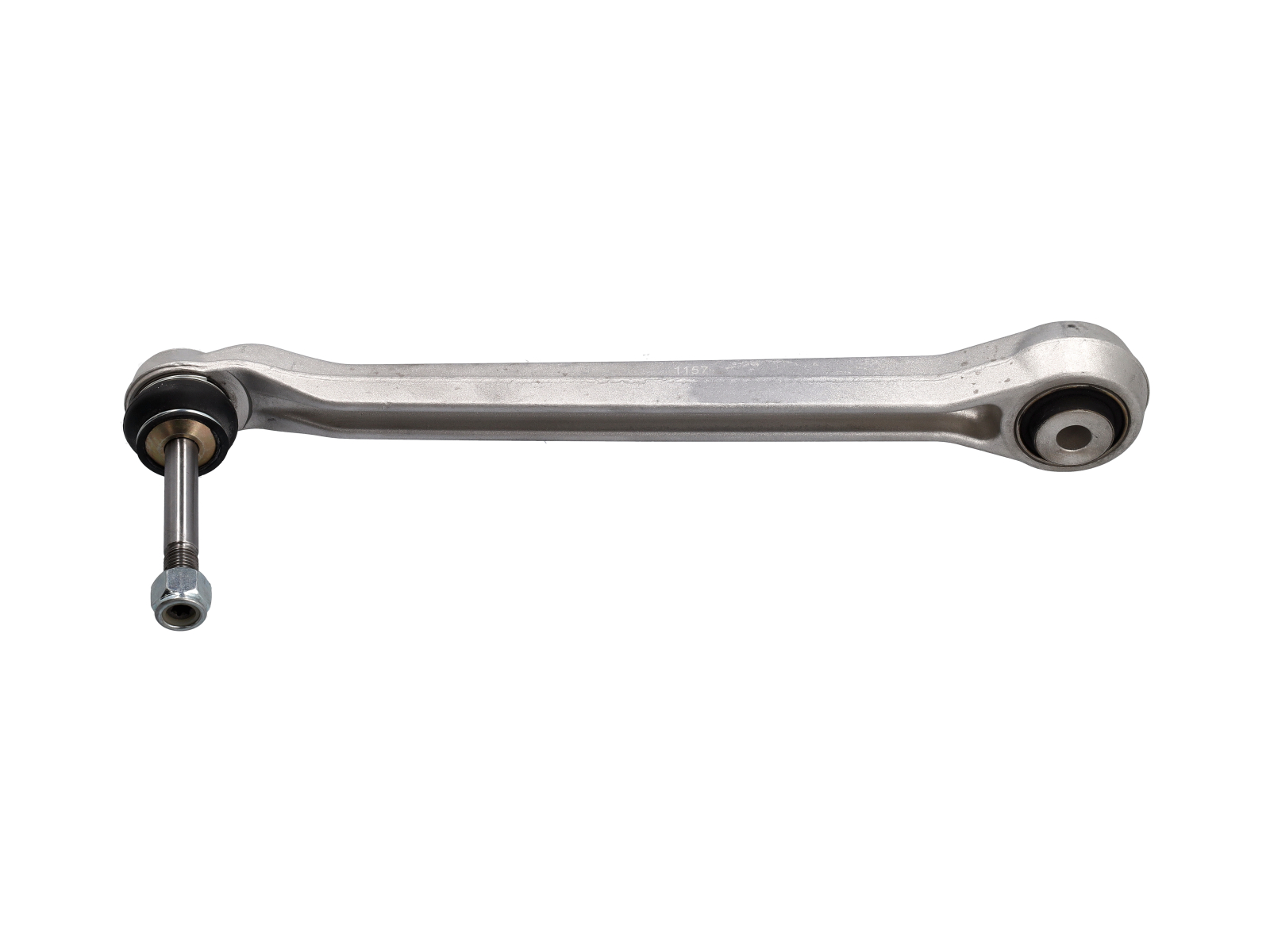

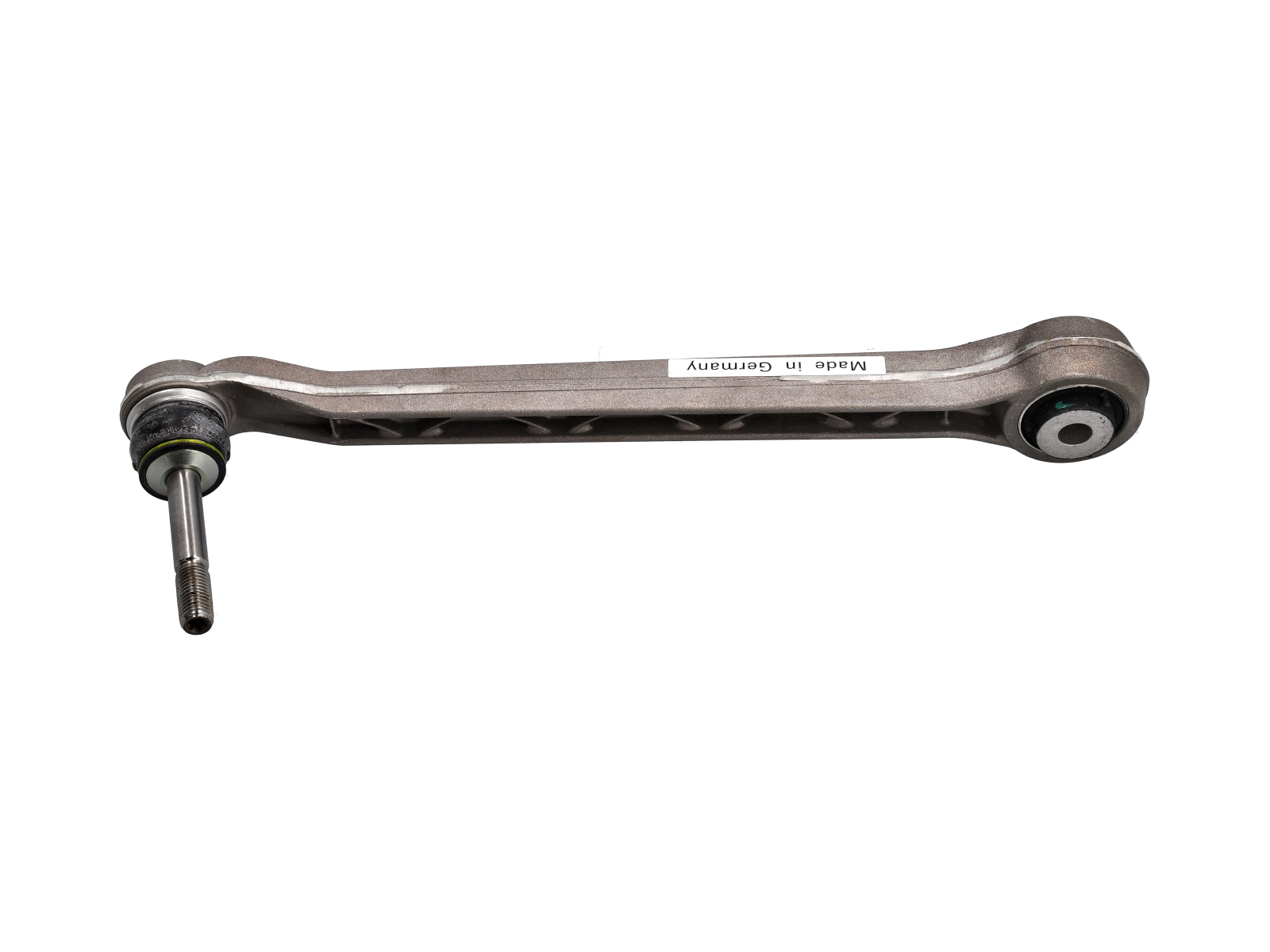

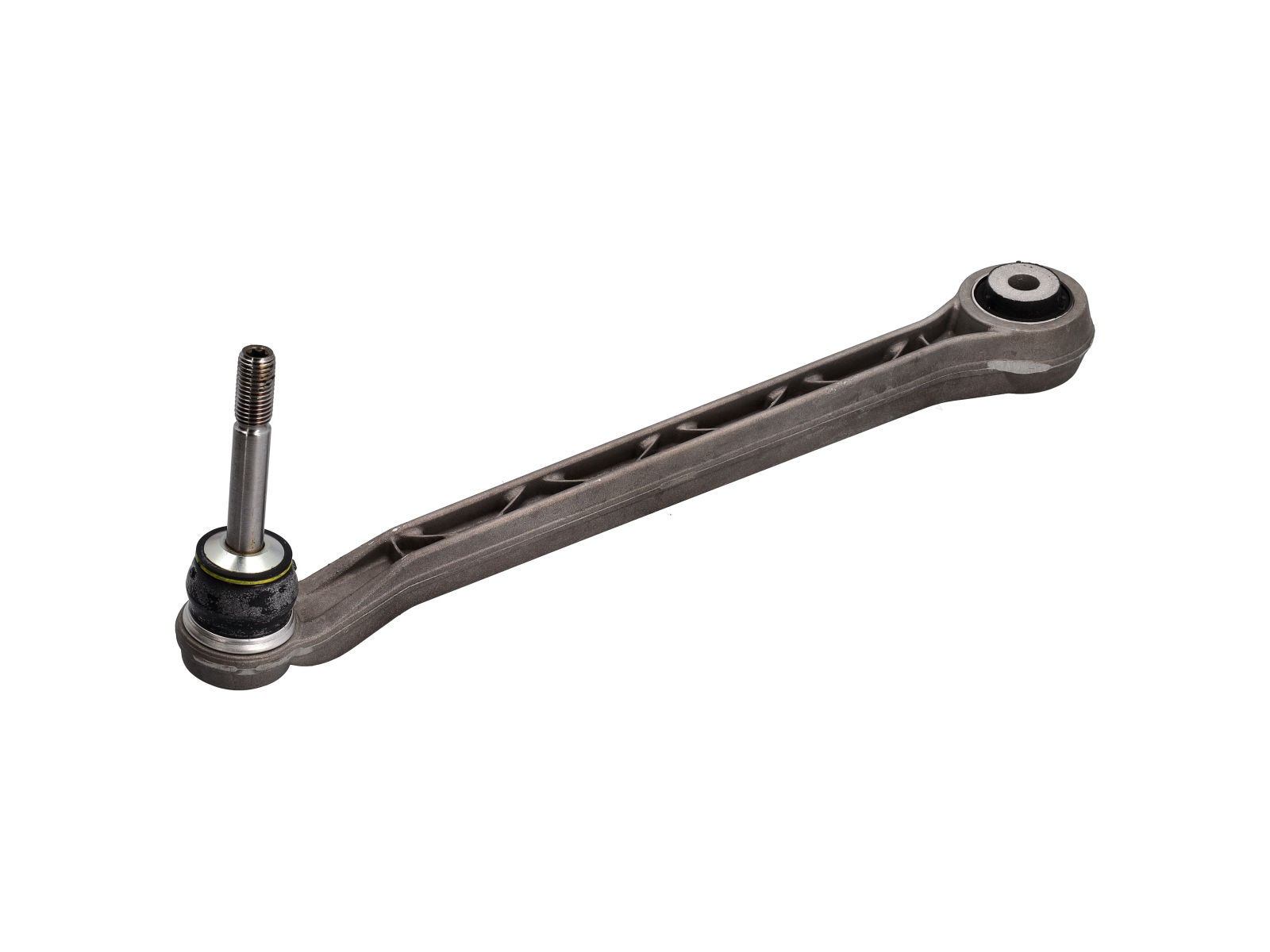

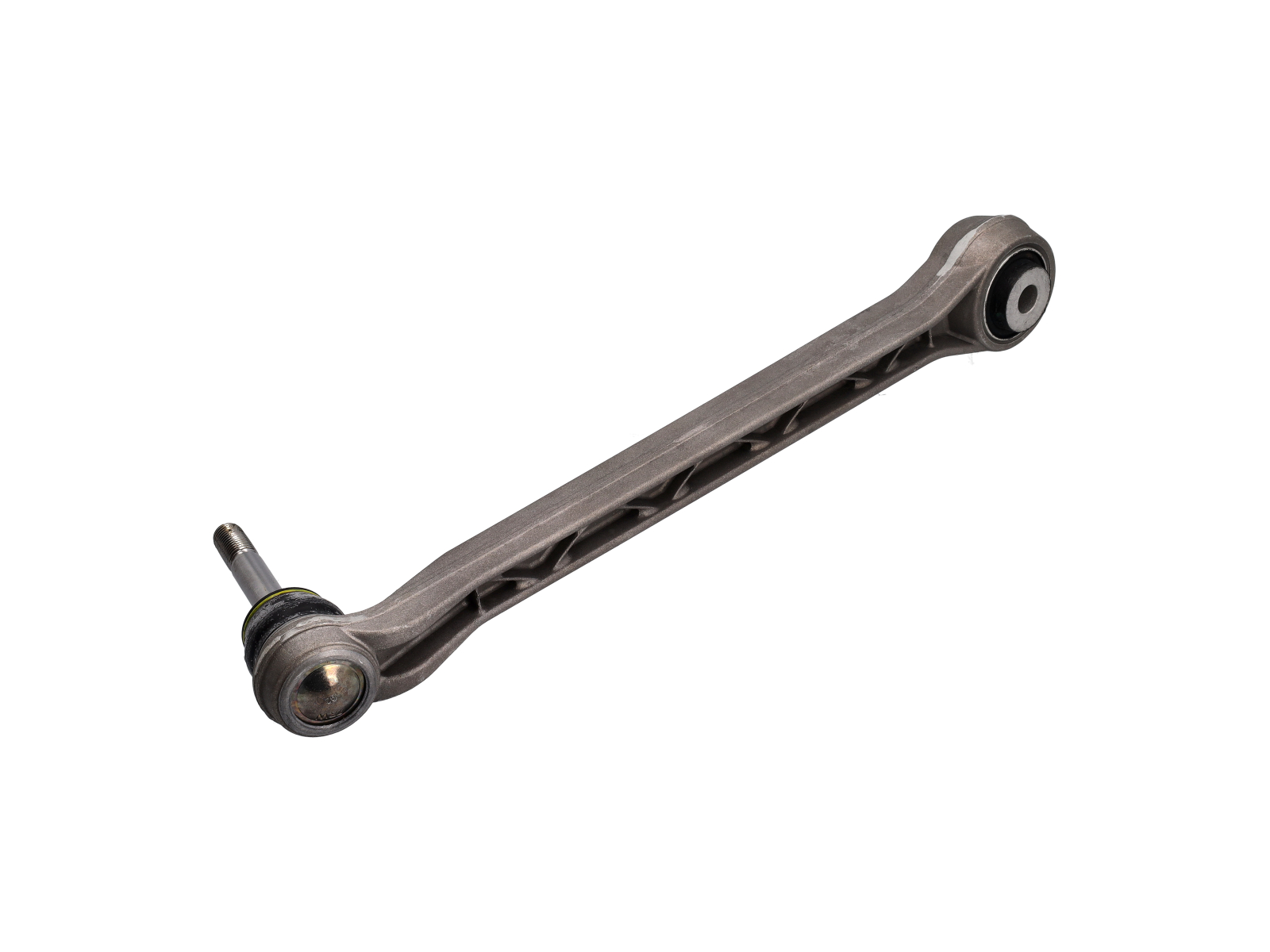

Control arm lower, Rear.


Porsche 993 1994-97 joins with cross member

Diagram ref no 3

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99333104301

The product you are viewing cross references to these numbers

Control arm lower, Rear.


Porsche 993 1994-97 joins with cross member

Diagram ref no 3

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99333104301

The product you are viewing cross references to these numbers

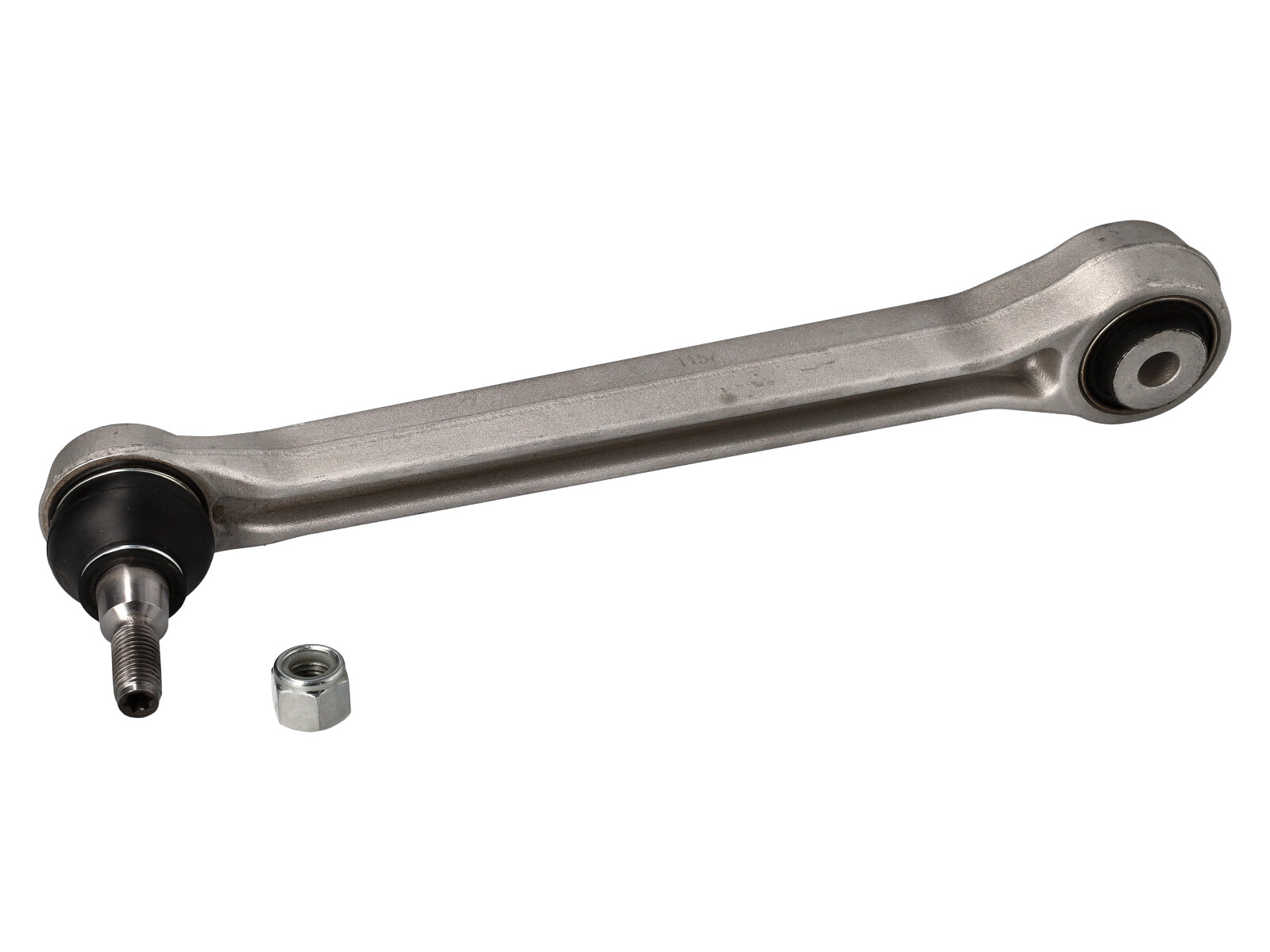

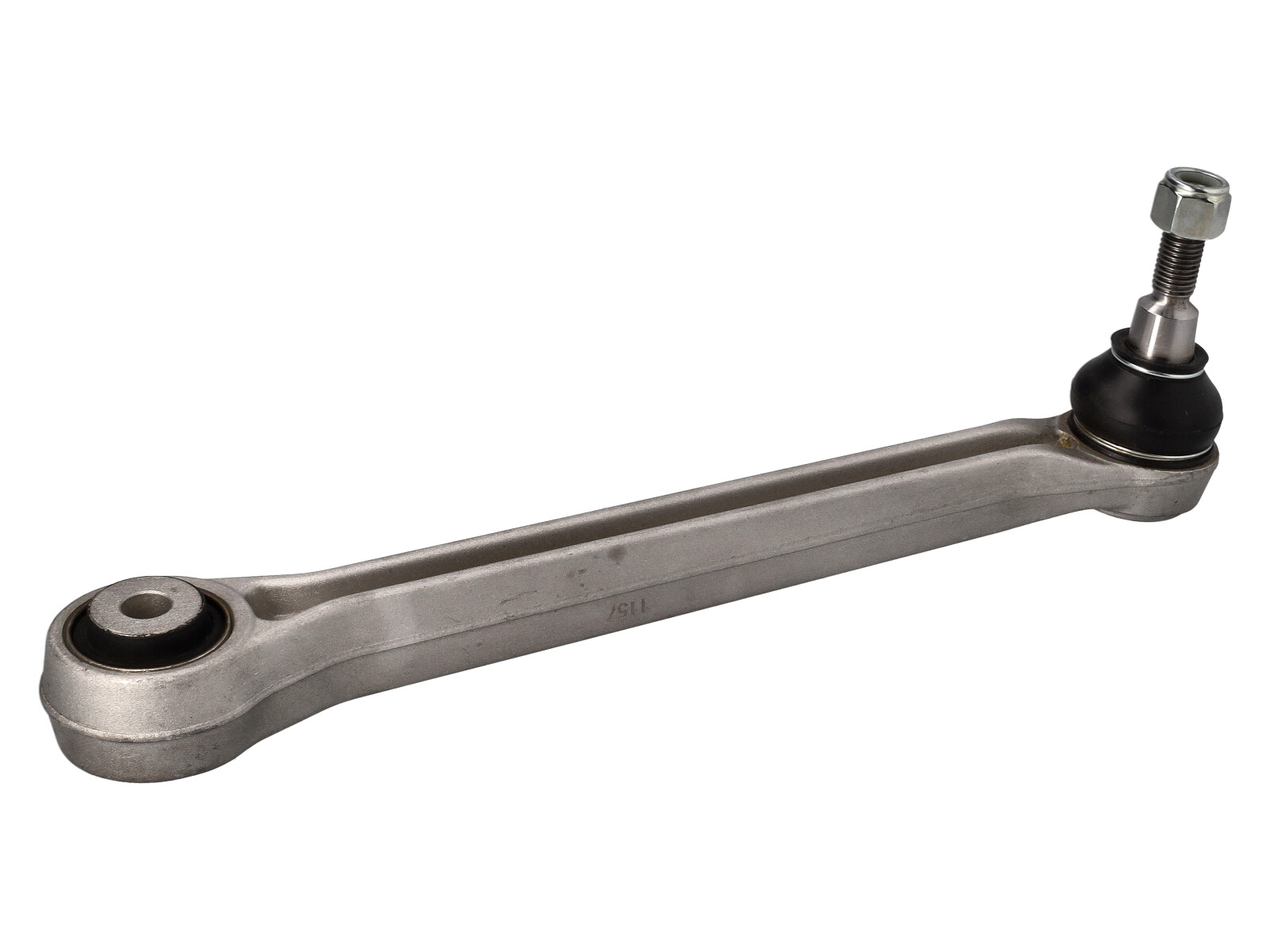

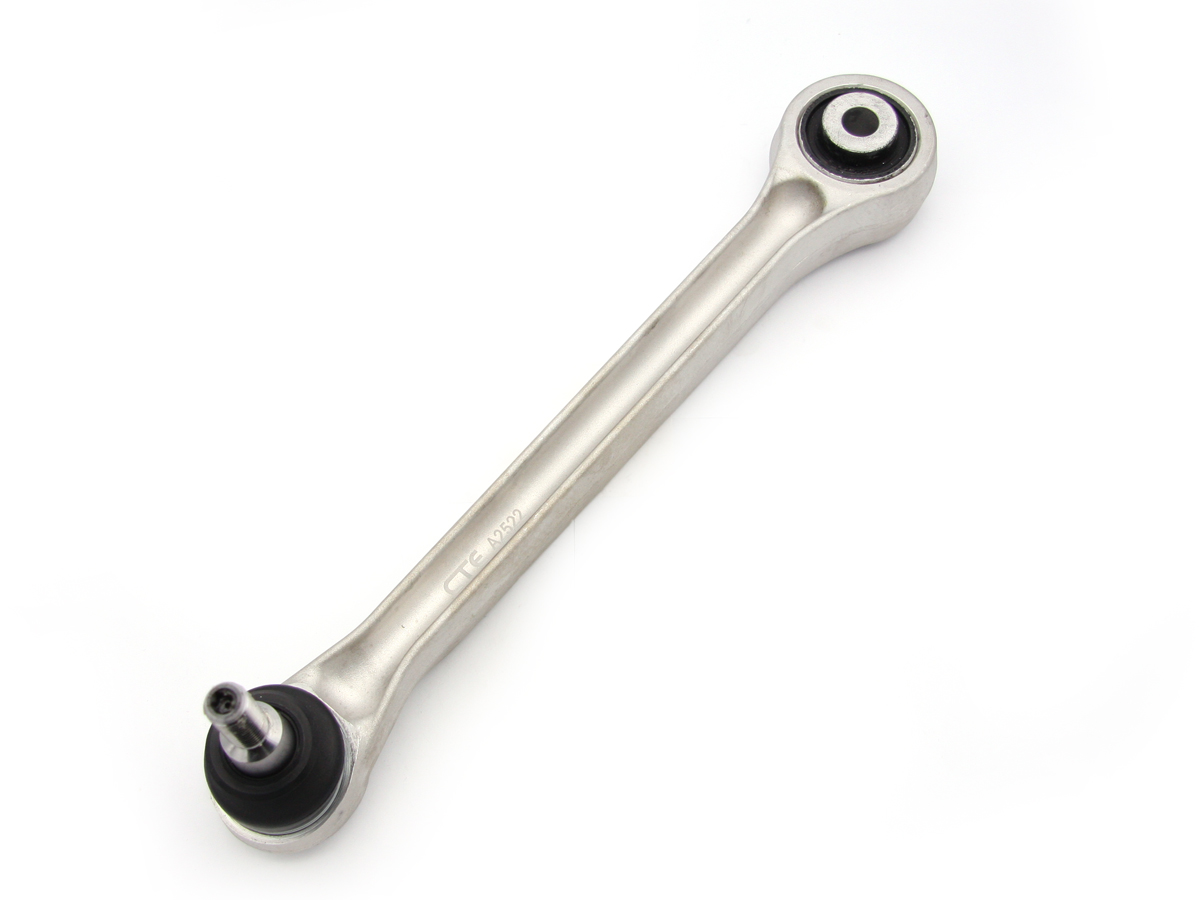

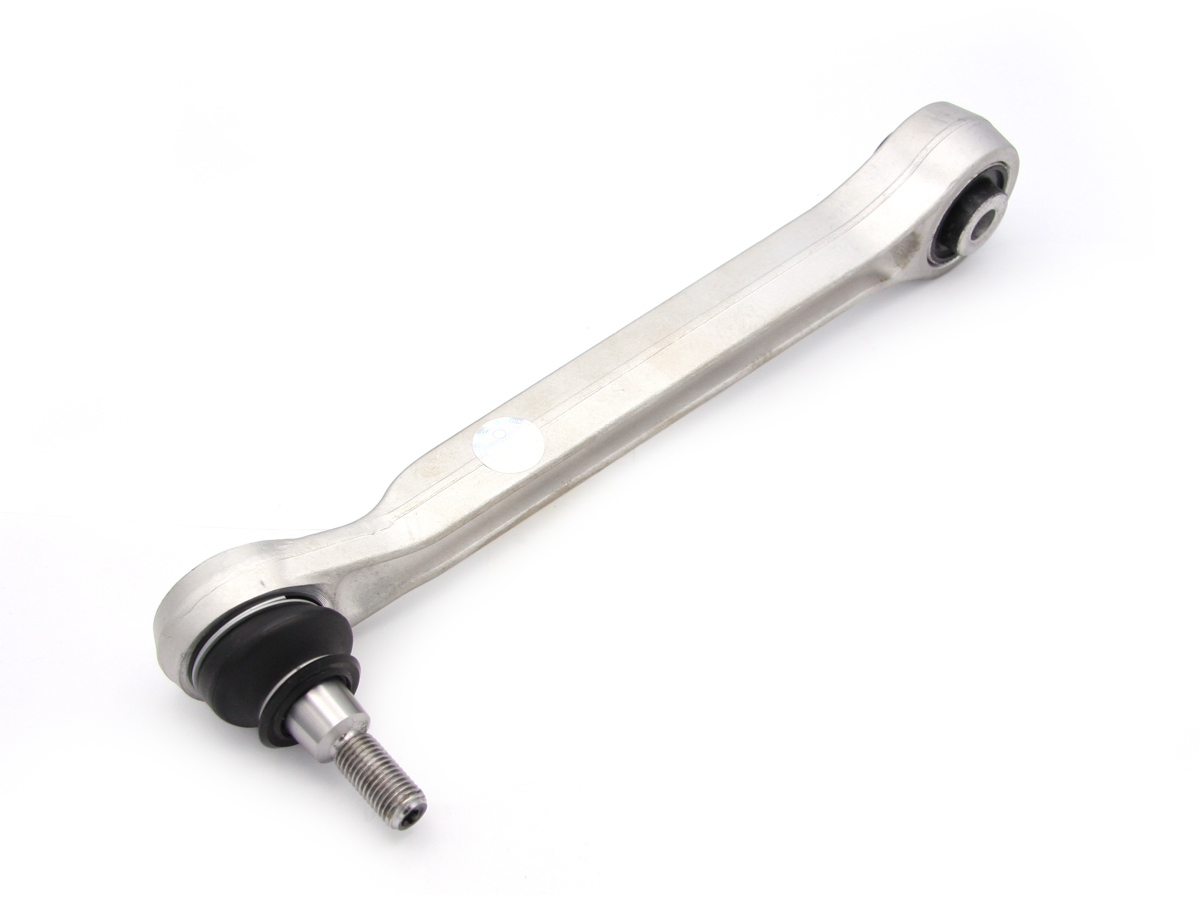

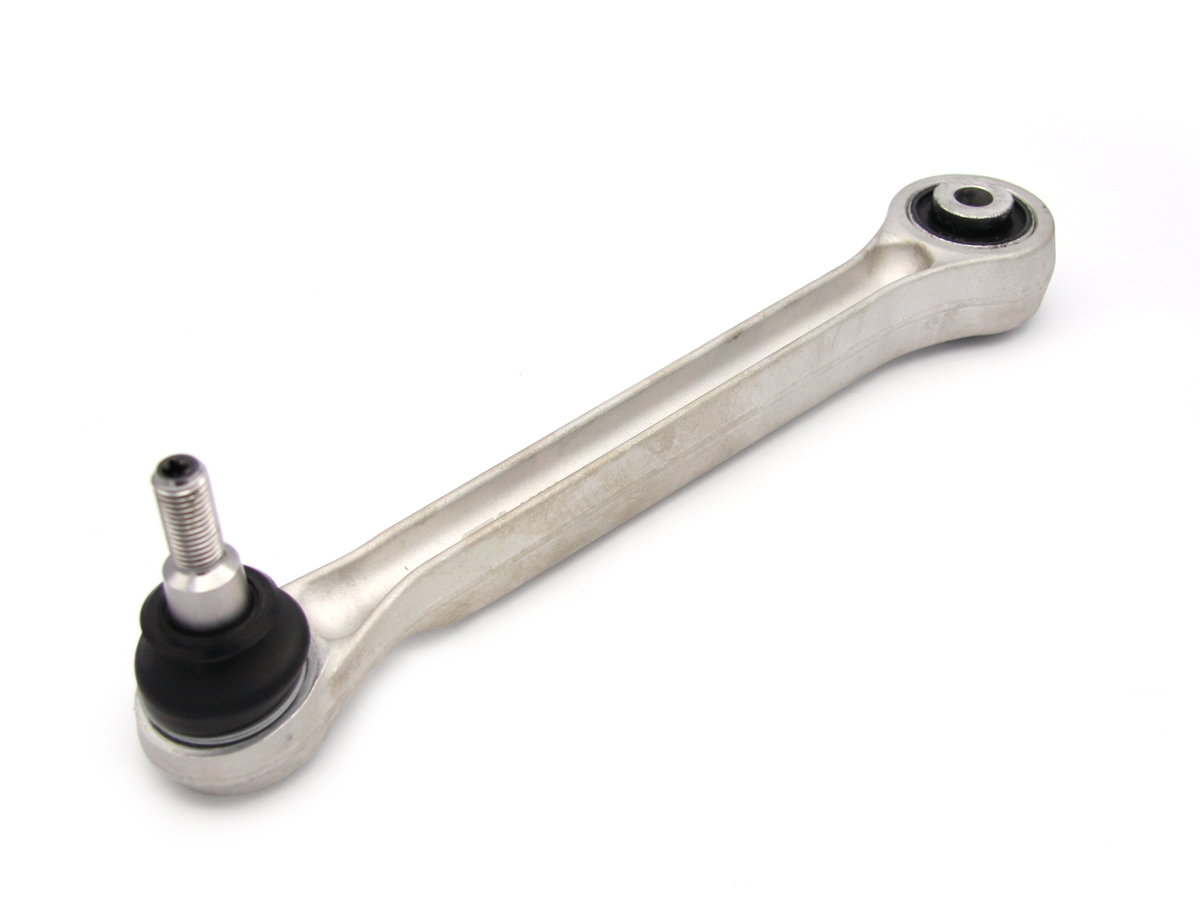

Control Arm Upper Rear




Porsche 993 1994-97 joins wheel carrier and side section

Please click 'Zoom in' to view the diagram.
Diagram ref No 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99333104503

The product you are viewing cross references to these numbers

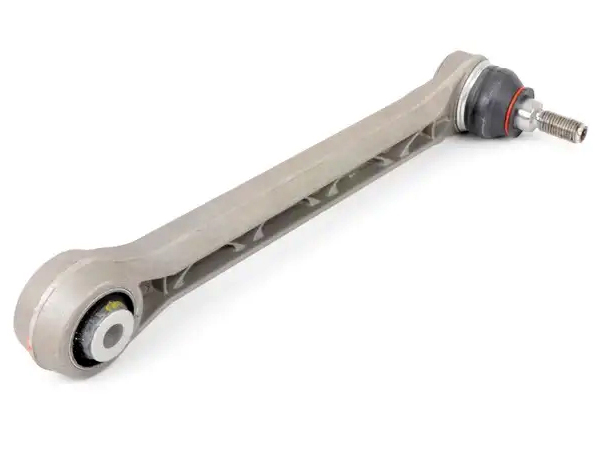

Control arm upper, Rear.




Porsche 993 1994-97 joins wheel carrier and side section

Please click 'Zoom in' to view the diagram.
Diagram ref No 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99333104503

The product you are viewing cross references to these numbers

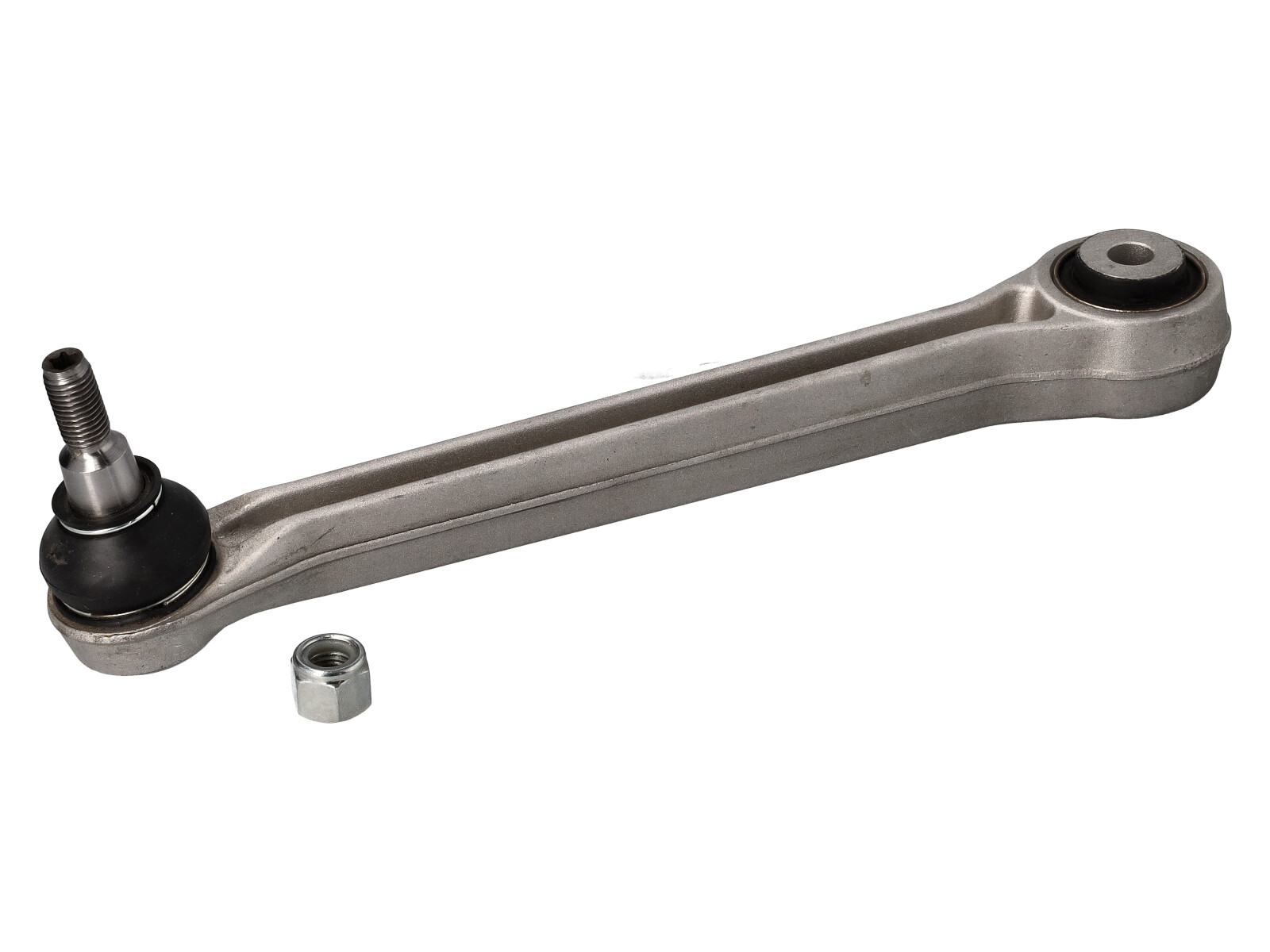

Control arm upper, Rear.




Porsche 993 1994-97 joins wheel carrier and side section

Please click 'Zoom in' to view the diagram.
Diagram ref No 4

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99333104503

The product you are viewing cross references to these numbers

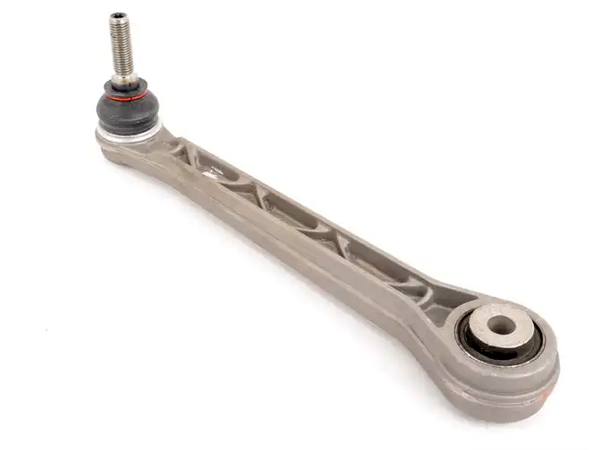

Control arm upper, Rear.




Porsche 993 1994-97 joins wheel carrier and side section

Please click 'Zoom in' to view the diagram.
Diagram ref no 5.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99333104703

The product you are viewing cross references to these numbers

Control arm upper, Rear.




Porsche 993 1994-97 joins wheel carrier and side section

Please click 'Zoom in' to view the diagram.
Diagram ref no 5.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99333104703

The product you are viewing cross references to these numbers

Eccentric adjuster locking kit.
6pcs in kit - 1 kit required per car



Fits
Porsche 993 - All

Prevent Alignment Settings From Slipping

Losing on the track is bad enough, but losing the alignment on the track is even worse. Prevent your eccentric adjuster bolts from slipping under heavy cornering loads with our Eccentric Adjuster Locking Kit.

Complete kit includes four lockout plates. Two plates are used to lock the rear toe adjusters and two plates to lock the camber settings.

Retain convenience and functionality of the eccentric adjuster. The original functionality of the adjuster is completely preserved. The plate can be set in any position.

Retain full range of the adjuster. These lockout plates do not limit adjustment range in any way, maximum toe and negative camber can be achieved with these plates in place.

Works with OEM fixed length arms and our adjustable length control arms as well.The unique design features a slotted hole that counters the slot provided for the adjuster. The plate can be moved up and down to reach any camber or toe setting desirable.

The Locking plates function by increasing the friction that holds the factory eccentric adjusters in place. These plates are guaranteed to prevent any adjuster slip even under aggressive driving conditions.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2180019

The product you are viewing cross references to these numbers

Bushing & monoball installation tool. 1 req'd per lifetime.



Fits:
Porsche 964 1989-94 front lower control arms, rear bushing
Porsche 993 1995-98 front lower control arms, rear bushing
Porsche 994 1976-95 front lower control arms, front bushing

This tool allows installation of lower control arm bushings without a shop press. It can be used for installation rubber bushings as well as our monoball cartridges.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2201702

The product you are viewing cross references to these numbers

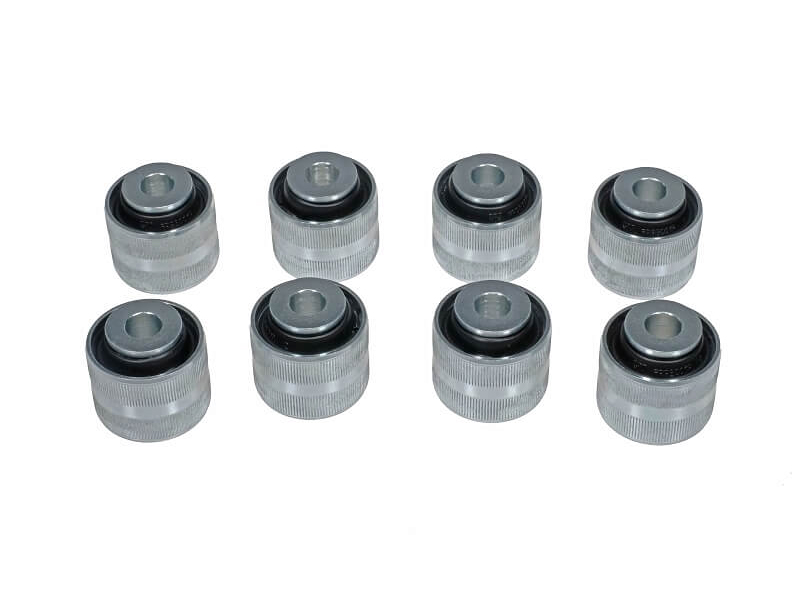

Mono ball track rear control arm bushing.
Price is SET OF 8

Fits:
Porsche 993 1995-98 all REAR

Rear Monoball bushings feature Precision Teflon-lined bearings to increase the performance of your suspension setup. Track Rods are one of the most critical pieces of a 993 rear suspension as these rods locate the rear spindle assembly. This means a worn bushing can not only cause an even twitchier rear end, but they can negatively affect camber and caster throughout the suspension's range of motion. These are a great solution on your street or track car so you can enjoy knowing your alignment settings will stay true even under heavy load and use.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99333104301

The product you are viewing cross references to these numbers

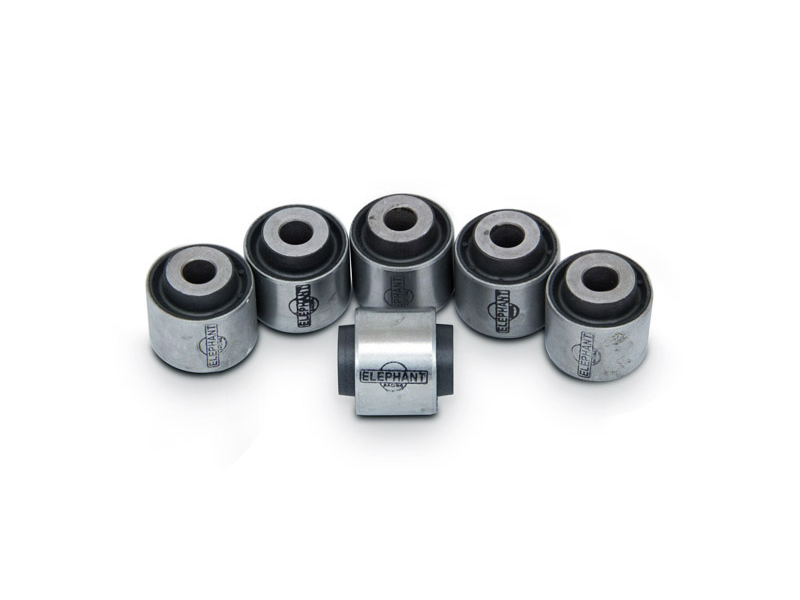

Rear control arm bushing kit.
Price is for kit. 1 kit req'd per car.

Fits:
Porsche 993 1995-98 Sport Hardness

Replaces the rubber bushing on each of the rear 993 lower wishbone, camber control arm, and KT control arm. Each arm has 1 rubber bushing, for a total of 6 bushings per kit… enough to do one car.

Stock-hardness – Restores performance and ride quality to original.

Sport-Hardness – Similar to the 993 RS bushing, sport hardness rubber is about 25% firmer. Deflects less under cornering loads and thereby maintains alignment more precisely.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2290009

The product you are viewing cross references to these numbers

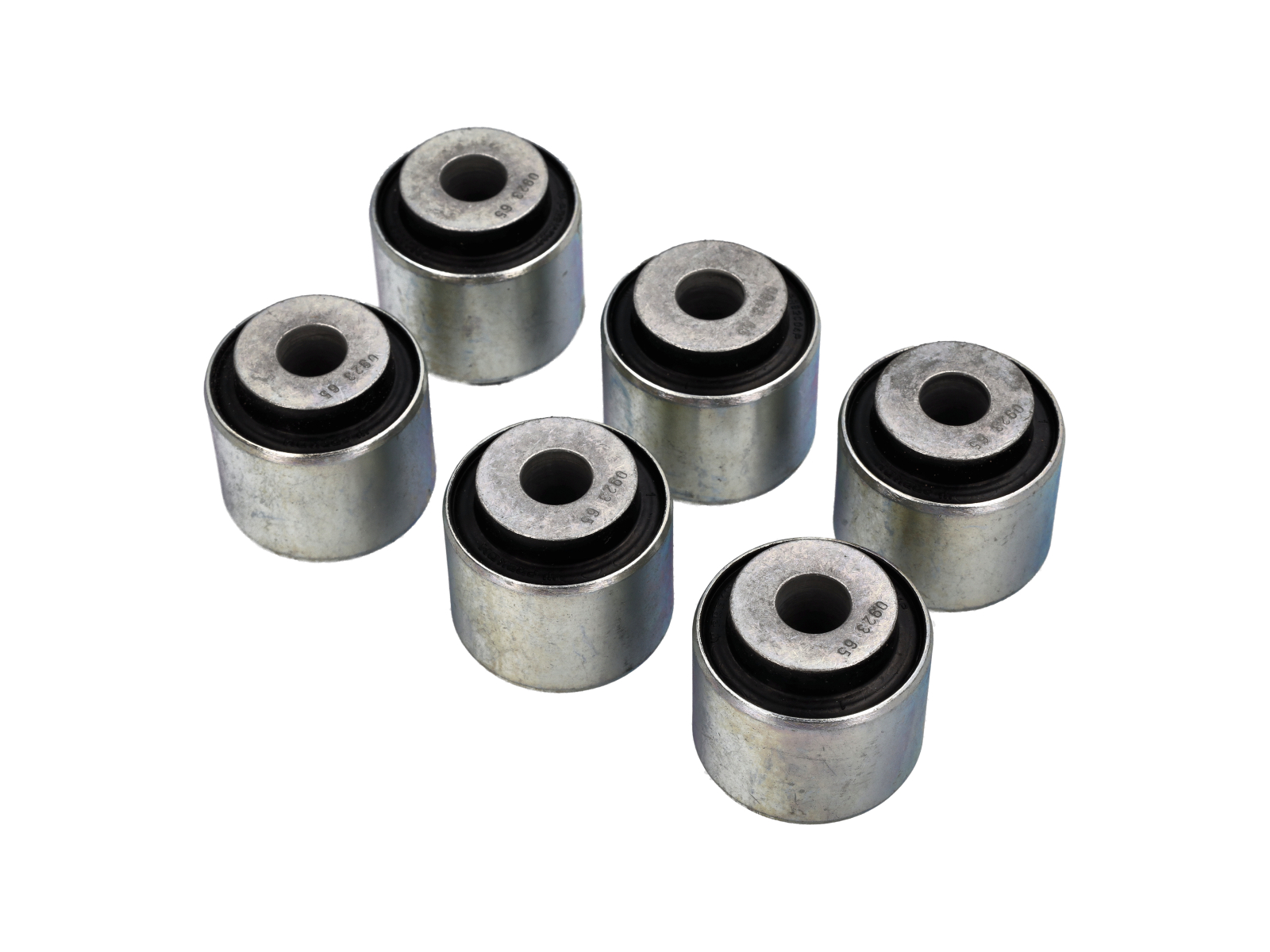

Rear control arm bushing kit.
Price is for kit. 1 kit req'd per car.

Fits:
Porsche 993 1995-98 Stock Hardness

Replaces the rubber bushing on each of the rear 993 lower wishbone, camber control arm, and KT control arm. Each arm has 1 rubber bushing, for a total of 6 bushings per kit… enough to do one car.

Stock-hardness – Restores performance and ride quality to original.

Sport-Hardness – Similar to the 993 RS bushing, sport hardness rubber is about 25% firmer. Deflects less under cornering loads and thereby maintains alignment more precisely.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2290036

The product you are viewing cross references to these numbers

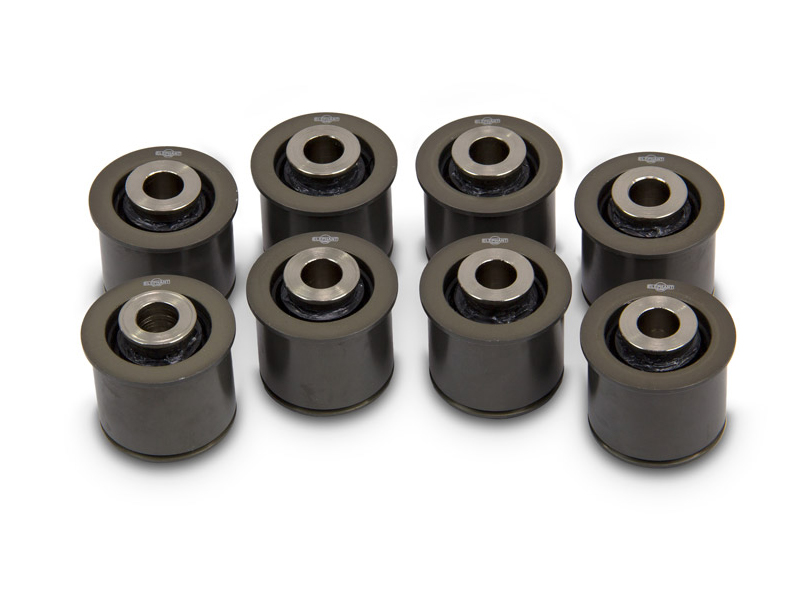

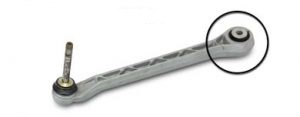

Rear control arm monoball kit. 1 kit, req'd per car.
Ball Joints.

Fits:
Porsche 993 1995-98

Complete kit for the rear 993 control arms. Includes weather-sealed monoball cartridge replacements for the bushings of the control arms and track control arm. Includes 8 cartridges.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

2260002
