Steering Track Rods


- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988>>
- Porsche 914 (1970-1976)
- Porsche 912E 4CYL 1976
1 kit required per car

Fits
Porsche 911 - 1969 to 1989
Porsche 930 turbo - 1975 to 1989
Porsche 914 - 1970 to 1976
Porsche 912 - 1976 to 1976
Porsche 944 - 1985 to 1991
Adjustable, Bolt-on and Weather Sealed
Fully adjustable adding from .5 to 1.25 inches of spacing in .125 inch increments.
Bump Steer Adjustable – Fully adjustable adding .5 to 1.25 inches of spacing in .125 inch increments. Yoke type spacer grips stock steering knuckle for added strength.
Rod End – Weather sealed precision rods ends included work with regular turbo tie rods. Rubber boots seal out dirt and and water for extended life.
Our purpose-made rod ends are extra long to ensure proper threaded engagement with standard turbo tie rods
Spindle Height – Suitable for spindle height ranging from stock up to 19mm.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
2110901
The product you are viewing cross references to these numbers





- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 914 (1970-1976)
- Porsche 912E 4CYL 1976
1 kit required per car

Fits
Porsche 911 - 1965 to 1989
Porsche 930 turbo - 1975 to 1989
Porsche 914 - 1970 to 1976
Porsche 912 - 1976 to 1976
Precision Steering Under Pressure
Our top-performing bump steer solution is super strong and provides the sharpest, most predictable steering response. It eliminates steering knuckle twist induced toe steer and can be used on raised spindles of any height.
Double steering knuckle – Holds tie rod end between two steering knuckles to eliminate knuckle flex regardless of bump steer spacer length.
Long bump steer spacers (required with raised spindles) place bending loads that twist stock steering knuckles. Twist causes undesired toe steer.
Second steering knuckle is welded to the strut body
Bump steer adjustable – allows massive bump steer adjustment range in .125 inch increments. Double shear mounting provides solid support for even the longest bump steer spacing.
Rod End – Weather sealed precision rods ends included work with regular turbo tie rods. Included boots to seal out dirt and and water for extended life.
Our purpose-made rod ends are extra long to ensure proper threaded engagement with standard turbo tie rods
Spindle height – Kits available for 19mm, 30mm, 40mm spindle height.
Kits are easily modified for use with essentially any spindle height.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
211090
The product you are viewing cross references to these numbers





For use with adjustable control arms

Full encapsulating weather/dust seals are an option with this kit to provide extra protection against the dirty driving conditions both under the car and behind the front wheels. These will work with all Rennline control arms and bump steer kits.
Sold in Pairs
Fits Rod end sizes Male: 1/2", 5/8", 3/4", 14mm, 16mm, 18mm
Female: 1/2", 5/8", 3/4", 14mm, 16mm, 18mm





- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 914 (1970-1976)
(set of 2)
Fits
Porsche 911/912/914 1965-1968
Extra Long With Tie-Rod Ends
Improve steering precision and feedback
Turbo tie rods improve feedback and steering precision by replacing the rubber tie rod bushings with ball socket ends. Originally equipped on the 911 turbo, they can be installed on the normal 911, 912, & 914.
We offer turbo tie rods in standard length for '69-'89 911 series cars, and a special extra-long version for '65-'68 911/912. The '65-'68 cars have a narrow steering rack which causes inadequate tie rod thread engagement without our extra long turbo tie rods.
The standard kits are complete with tie rods, spacing washers, and steering rack boots for both sides. We also offer the kits without the tie rod ends. Choose this option if you are using a tie rod end bump steer kit
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
7-93034703101
The product you are viewing cross references to these numbers





- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 914 (1970-1976)
(set of 2)

Fits
Porsche 911/912/914 1965-68
Extra Long WithOut Tie-Rod Ends
Improve steering precision and feedback
Turbo tie rods improve feedback and steering precision by replacing the rubber tie rod bushings with ball socket ends. Originally equipped on the 911 turbo, they can be installed on the normal 911, 912, & 914.
We offer turbo tie rods in standard length for '69-'89 911 series cars, and a special extra-long version for '65-'68 911/912. The '65-'68 cars have a narrow steering rack which causes inadequate tie rod thread engagement without our extra long turbo tie rods.
The standard kits are complete with tie rods, spacing washers, and steering rack boots for both sides. We also offer the kits without the tie rod ends. Choose this option if you are using a tie rod end bump steer kit
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
9-93034703101
The product you are viewing cross references to these numbers





- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 914 (1970-1976)

Fits
Porsche 911/912/930/914 1969-1989

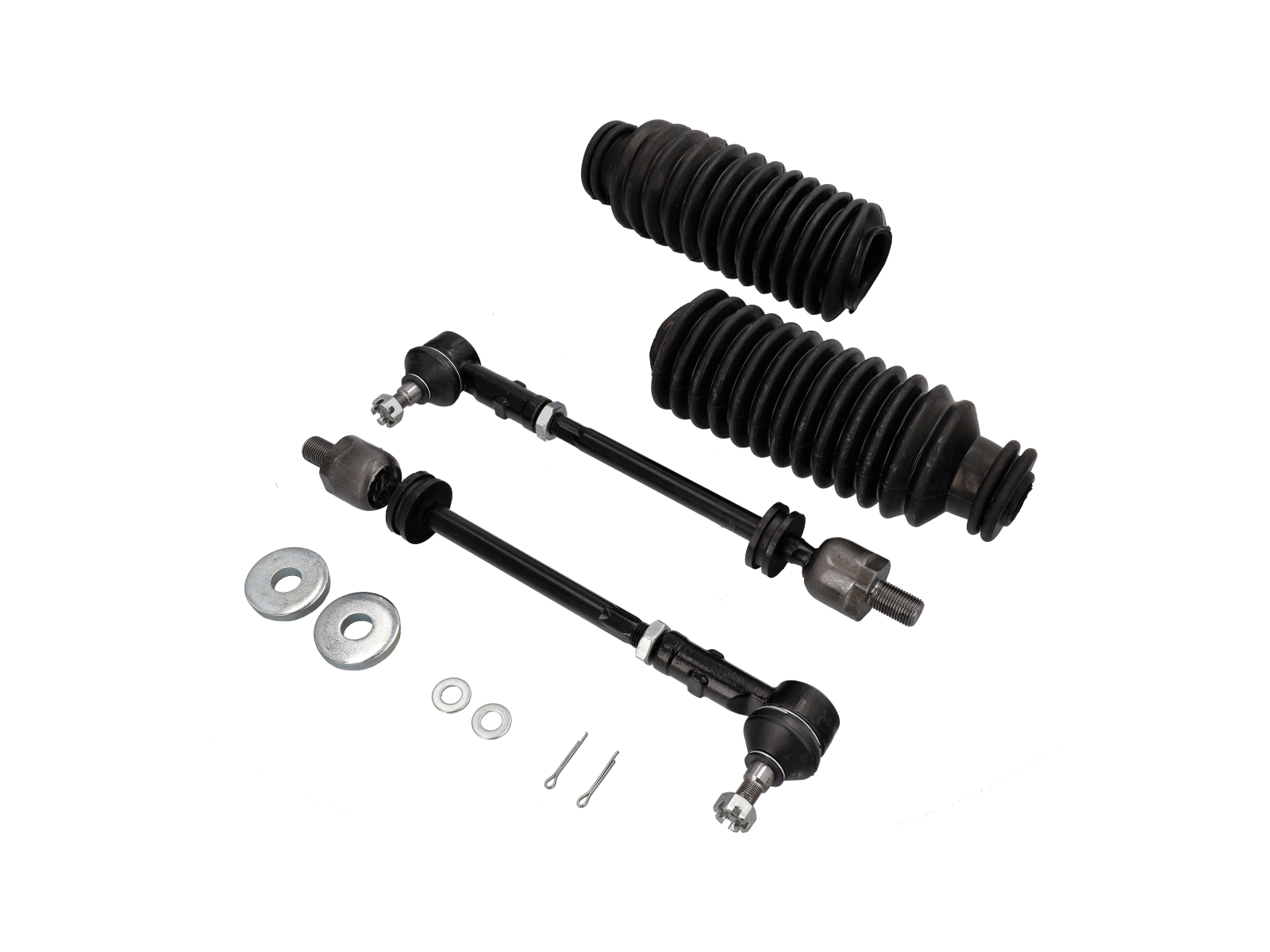

Std. Length With Tie-Rod Ends
Improve steering precision and feedback
Turbo tie rods improve feedback and steering precision by replacing the rubber tie rod bushings with ball socket ends. Originally equipped on the 911 turbo, they can be installed on the normal 911, 912, & 914.
We offer turbo tie rods in standard length for '69-'89 911 series cars, and a special extra-long version for '65-'68 911/912. The '65-'68 cars have a narrow steering rack which causes inadequate tie rod thread engagement without our extra long turbo tie rods.
The standard kits are complete with tie rods, spacing washers, and steering rack boots for both sides. We also offer the kits without the tie rod ends. Choose this option if you are using a tie rod end bump steer kit
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
2-93034703101
The product you are viewing cross references to these numbers





- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 914 (1970-1976)

Fits
Porsche 911/912/930/914 1969-1989
Standard Length WithOut Tie-Rod Ends
Improve steering precision and feedback
Turbo tie rods improve feedback and steering precision by replacing the rubber tie rod bushings with ball socket ends. Originally equipped on the 911 turbo, they can be installed on the normal 911, 912, & 914.
We offer turbo tie rods in standard length for '69-'89 911 series cars, and a special extra-long version for '65-'68 911/912. The '65-'68 cars have a narrow steering rack which causes inadequate tie rod thread engagement without our extra long turbo tie rods.
The standard kits are complete with tie rods, spacing washers, and steering rack boots for both sides. We also offer the kits without the tie rod ends. Choose this option if you are using a tie rod end bump steer kit
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
8-93034703101
The product you are viewing cross references to these numbers





- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 914 (1970-1976)
Price is for a kit which fits both left & right side.

Fits
Porsche 911 2.7/SC/3.2 1974-89
Porsche 911 TURBO (930) 3.0/3.3L 1975-89
Porsche 914
The original factory 911 1974-89 tie rods use rubber dampers which can make steering feel spongy, especially with age. Upgrading to 911 Turbo tie rods will give your car firmer and more responsive steering. Installation is a straight-forward process, and can typically be performed in an afternoon.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93034703101
The product you are viewing cross references to these numbers



Enhance Your Porsche Steering with Performance Steering Track Rod Arms: Technical Specifications and Benefits
Technical specifications of Performance Steering Track Rod Arms:
- Performance steering track rod arms, also known as tie rod arms, are crucial components in the steering system of a Porsche.
- They connect the steering rack to the steering knuckle or wheel hub, transmitting steering inputs and allowing for precise control of the vehicle.
- Performance track rod arms are specifically designed to improve steering response, stability, and overall handling characteristics.
- They are made from high-quality materials such as forged aluminum alloy or hardened steel for increased strength and durability.
- Performance steering track rod arms are available as aftermarket upgrades or standard replacements for Porsche models.
Benefits of upgrading or replacing Performance Steering Track Rod Arms for your Porsche:
Enhanced steering precision: Performance track rod arms offer improved rigidity and stiffness, resulting in more precise steering response and feedback.
Reduced play and improved stability: Upgrading to performance arms helps reduce steering play, ensuring a more direct and accurate connection between the steering rack and the wheels, resulting in increased stability and control.
Improved cornering ability: Performance track rod arms provide better control during cornering, minimizing understeer or oversteer tendencies and enhancing overall handling performance.
Increased durability: Performance arms are designed to withstand higher loads and provide increased durability compared to standard arms, ensuring long-lasting performance even under demanding driving conditions.
Optimal alignment adjustments: Performance track rod arms often offer adjustable features, allowing for precise alignment adjustments, which can optimize tire wear, enhance traction, and improve cornering stability.
At Design911, we specialize in providing the correct parts and professional advice for your Porsche. We offer a wide range of performance steering track rod arms specifically designed for Porsche models, including both aftermarket upgrades and OEM replacements. Our experienced team can assist you in selecting the appropriate track rod arms based on your Porsche model, year, and specific steering system requirements. We understand the importance of achieving optimal steering performance and handling characteristics, and we can guide you in choosing the best arms that suit your needs. With our expertise and commitment to customer satisfaction, we can help you enhance your Porsche's steering precision, stability, and overall driving experience. Contact us today to benefit from our comprehensive support and access high-quality parts tailored to your requirements.
