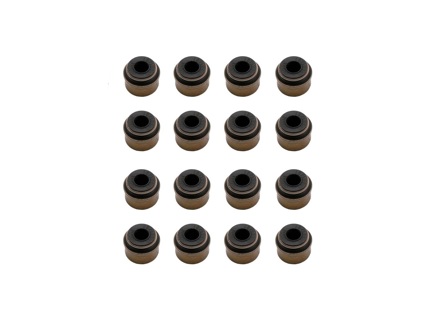

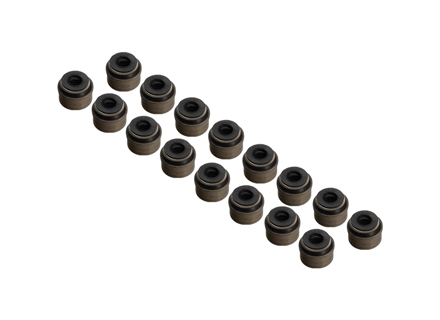

Valve stem seal kit. Porsche 9YA Cayenne / 971 Panamera

Victor-Reinz Reinzosil gasket maker valve cover oil sump sealant 300°C 70ml



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

703141410

The product you are viewing cross references to these numbers

Valve stem seal.
Sold each

Fits:
Porsche 957 Cayenne Diesel - 2007 to 2010 (inlet and exhaust 24 required)
Porsche 958 Cayenne Diesel 3.0ltr - 2010 to 2017 (inlet and exhaust 24 required)
Porsche 958 Cayenne S Hybrid 3.0ltr - 2010 to 2017 (inlet 12 required)
Porsche 958 Cayenne S Diesel 4.2ltr - 2017 to 2018 (inlet and exhaust 32 required)
Porsche 9YA Cayenne turbo / GTS V8 4.0ltr 2018 to 2023 (inlet 16 required)
Porsche 970.2 Panamera S E-Hybrid - 2014 to 2016 (inlet 12 required)
Porsche 970.2 Panamera Diesel - 2014 to 2016 (inlet 12 required)
Porsche 971.1 Panamera turbo 4.0ltr - 2017 to 2020 (inlet 16 required)
Porsche 971.1 Panamera turbo S E-Hybrid 4.0ltr - 2017 to 2020 (inlet 16 required)
Porsche 971.2 Panamera V8 4.0ltr - 2021 to 2023 (inlet 16 required)
Porsche 95B Macan Diesel - 2014 to 2018 (inlet 12 required)

Diagram ref no 12

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

95510511510

The product you are viewing cross references to these numbers

Hylomar Gasket 3400 is a modified anaerobic curing, flexible sealant designed to become a Formed in Place (FIP) Gasket when cured. The cured compound has good temperature resistance and high resistance to fretting. The cure is initiated when the compound is in contact with metal ions and in anaerobic conditions. The cure rate and final strength is dependent on the metals being joined and the temperature at which the component is used. The heat generated by a running engine will accelerate the cure.

Typical Applications
Hylomar Gasket 3400 can be used as a gasketing compound between machined surfaces. It is ideal for sealing between mating faces on engines and transmission components where resistance to temperature and vibration are essential.

INSTRUCTIONS FOR USE
Hylomar Gasket 3400 should be applied to clean and dry surfaces, free of contamination such as oil or grease. The compound may be dispensed by hand from cartridge, concertina pack, or via a screen printing system. Once applied the joint should be assembled as soon as practical. Any excess compound can be easily wiped off external surfaces with a clean cloth soaked in Acetone or other suitable solvents.

Typical Physical Properties:

UNCURED PRODUCT
Composition: Methyl-Methacrylate
Colour: Yellow
Viscosity @ 25°C / Brookfield Spindle 6 @ 2.5rpm: 100,000cps
Specific Gravity @ 25°C: 1.10 g/ml
Solvent Content:  None

Specific Gravity g/ml @ 25°C: 1.04
Flash Point: >100°C
Shelf Life: 1 Year @ 4° to 25°C

CURED PRODUCT
Handling Time: 40 minutes
Functional Cure Time: 4 – 6 hours
Full Cure Time : 24 – 72 hours

Shear Strength :  1.5 N/mm²
Mild Steel/Mild Steel BS 5350 Part C5
Aluminium/Aluminium BS 5350 Part C5

Temperature Range: -40° to 150°C
