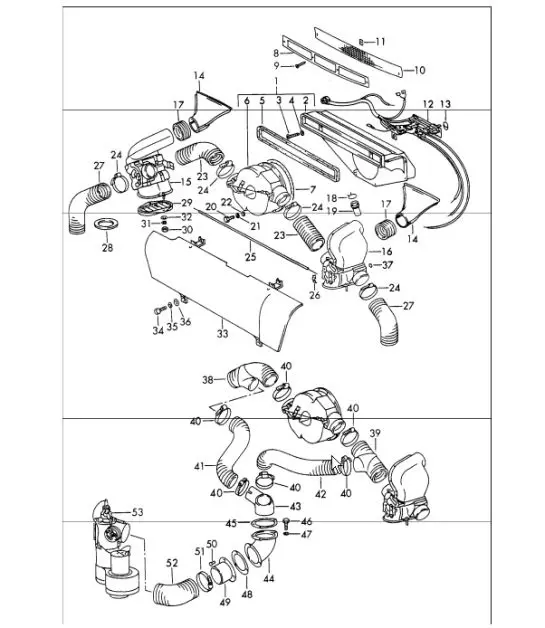

ventilation heatin 911 1969 onwards - PORSCHE
Klicken Sie auf die Bildnummern, um die Produktinformation zu sehen
813-15| Nummer | Teilenr. | Beschr. | Hinweis | Modell |
|---|---|---|---|---|
| 1 | 90157102132 | fresh air inlet box complete set | /LL | |
| 1 | 90157102232 | fresh air inlet box complete set | /RL | |
| 2 | 90157103032 | fresh air inlet box | /LL | |
| 2 | 90157103232 | fresh air inlet box | /RL | |
| 3 | N0141531 | oval-head screw M 5X40 DIN 7985 VERZ. | /LL | |
| 4 | 90002508001 | washer 5,3 DIN 125-ST VERZ. | /LL | |
| 5 | 90157132532 | sealing frame | ||
| 6 | 91157101800 | blower with engine | ||
| 7 | 90157192201 | sealing ring | ||
| - | 91157132032 | blower motor with fan | ||
| 8 | 9115594010070K | grille frame | ||
| 9 | 90014503600 | rais. counters. h. tap. s. B 3,5X13 DIN 7983 | ||
| 10 | 99355941100 | grille | ||
| 11 | 90155949120 | spacer | ||
| 12 | 91161311104 | control part | /LL | |
| 12 | 91161311204 | control switch | /RL | 911 T/E/S |
| - | 90063113290 | bulb 12 V / 1,2W | ||
| - | 91457190310 | rubber base | ||
| - | 90007401202 | hexagon-head bolt M 6X20 DIN 931-8.8 VERZ. | ||
| - | N01152427 | washer 6,4 DIN 125-ST VERZ. | ||
| - | 91457115110 | rubber sleeve for bowden cable | ||
| - | 9F0937609 | rubber sleeve for bowden cable | ||
| 13 | 90157191700 | knob black | ||
| 13 | 90157191800 | knob red | ||
| 14 | 90157204531 | heating nozzle | ||
| 15 | 91157105007 | control box | /R | |
| 16 | 91157104907 | control box | /L | |
| 17 | 90157134532 | hose piece $ 61 | ||
| 18 | 99951214502 | hose clamp | ||
| 19 | 90157132632 | connection piece | ||
| - | 90157106320 | water drain tube | /LL | |
| - | 90157106420 | water drain tube | /RL | 911 T/E/S 912 COUPE |
| 20 | 90007510502 | hexagon-head bolt M 5X10 DIN 933-8.8 VERZ. | ||
| 21 | 90002701101 | lock ring B 5 DIN 127 PHR | ||
| 22 | 90002508001 | washer 5,3 DIN 125 VERZ. | ||
| 23 | 91457212310 | air hose $ 61 | ||
| 24 | 99951234901 | hose clamp | ||
| 25 | 91157211401 | bowden control | ||
| 26 | 90157191900 | fastening clamp | ||
| 27 | 91457212310 | heater hose $ 61 | ||
| 28 | 90157291301 | gasket | ||
| 29 | 91157134801 | air distributor | ||
| 30 | 90006713701 | pan-head screw M 5X15 DIN 912-8 VERZ. | ||
| 31 | N0120053 | lock ring B 5 DIN 127 PHR | ||
| 32 | 90002508001 | washer 5,3 DIN 125-ST VERZ. | ||
| 33 | 91155106704 | lining for luggage compartment | ||
| 34 | 90001403802 | pan-head screw AM 6X12 DIN 84 VERZ. | ||
| 35 | 90002700403 | lock ring A 6 DIN 127 PHR | ||
| 36 | 90015100603 | washer 6,4 DIN 9021 VERZ. | ||
| 37 | 90157192100 | retainer | ||
| 38 | 90157206600 | air hose with connection piece for heater left-hand drive | /R | |
| 39 | 90157206500 | air hose with connection piece for heater left-hand drive | /L | |
| 40 | 99951234802 | hose clamp for heater left-hand drive | ||
| 41 | 90157264800 | hose for hot air for heater left-hand drive | /R | |
| 42 | 90157264700 | hose for hot air for heater left-hand drive | /L | |
| 43 | 90157205400 | distributing piece for heater left-hand drive | ||
| 44 | 90157205800 | connecting piece for heater left-hand drive | ||
| 45 | 90157252700 | sealing washer for heater left-hand drive | ||
| 46 | 90007521902 | hexagon-head bolt M 5X10 DIN 933-8G VE for heater left-hand driveRZ. | ||
| 47 | 90002508001 | washer 5,3 DIN 125 ST VERZ. for heater left-hand drive | ||
| 48 | 90157252600 | gasket for heater left-hand drive | ||
| 49 | 90157252100 | flap for heater left-hand drive | ||
| 50 | 90005501920 | buttonhead rivet 3X6 DIN 660 CU for heater left-hand drive | ||
| 51 | 99951215102 | hose clamp for heater left-hand drive | ||
| 52 | 90157264900 | hose $ 70 for heater left-hand drive |
