Wheel Hub / Carrier

Eccentric washer for alignment
for Porsche Boxster / Cayman / 911



Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

PAF007648

The product you are viewing cross references to these numbers

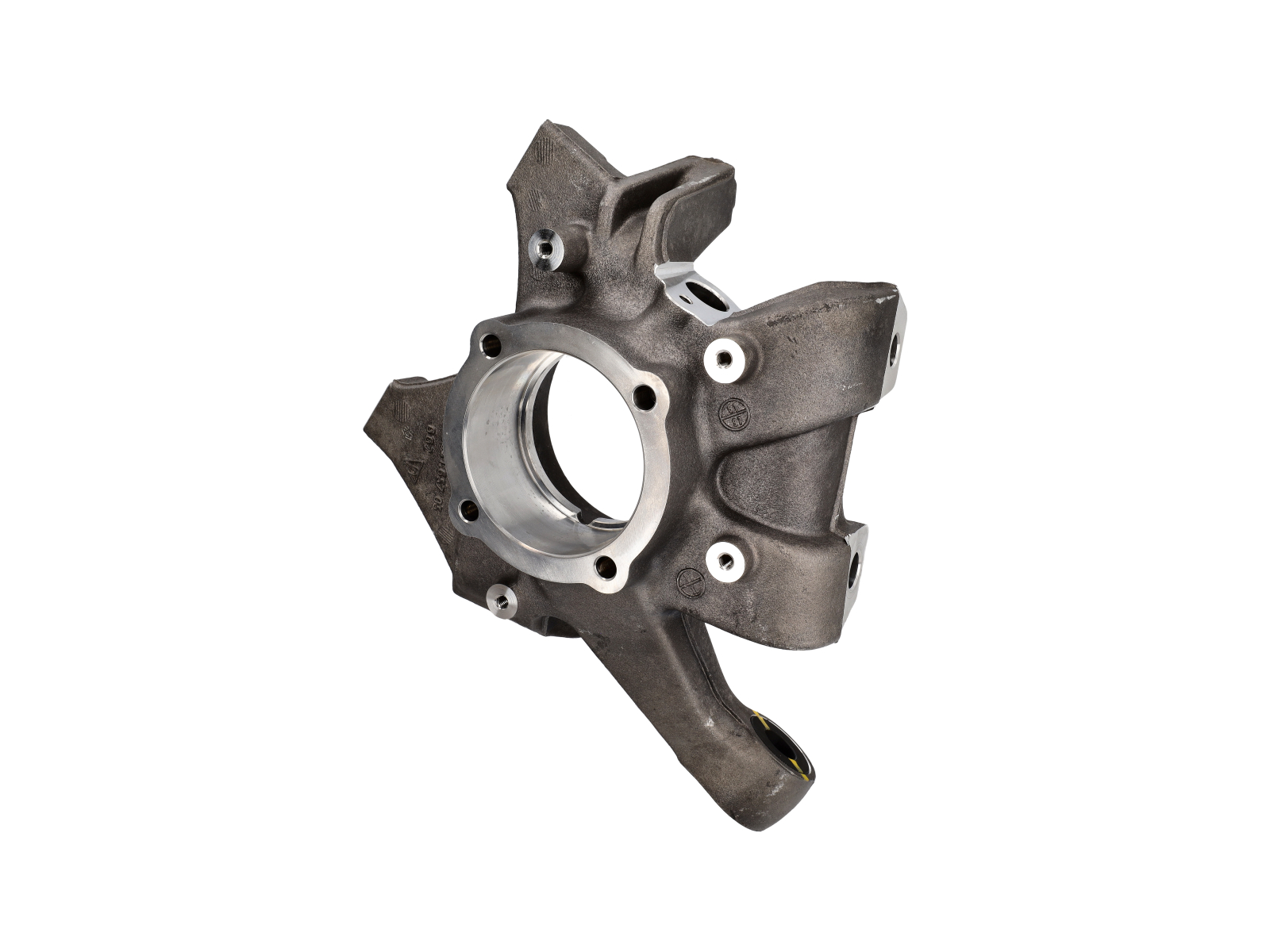

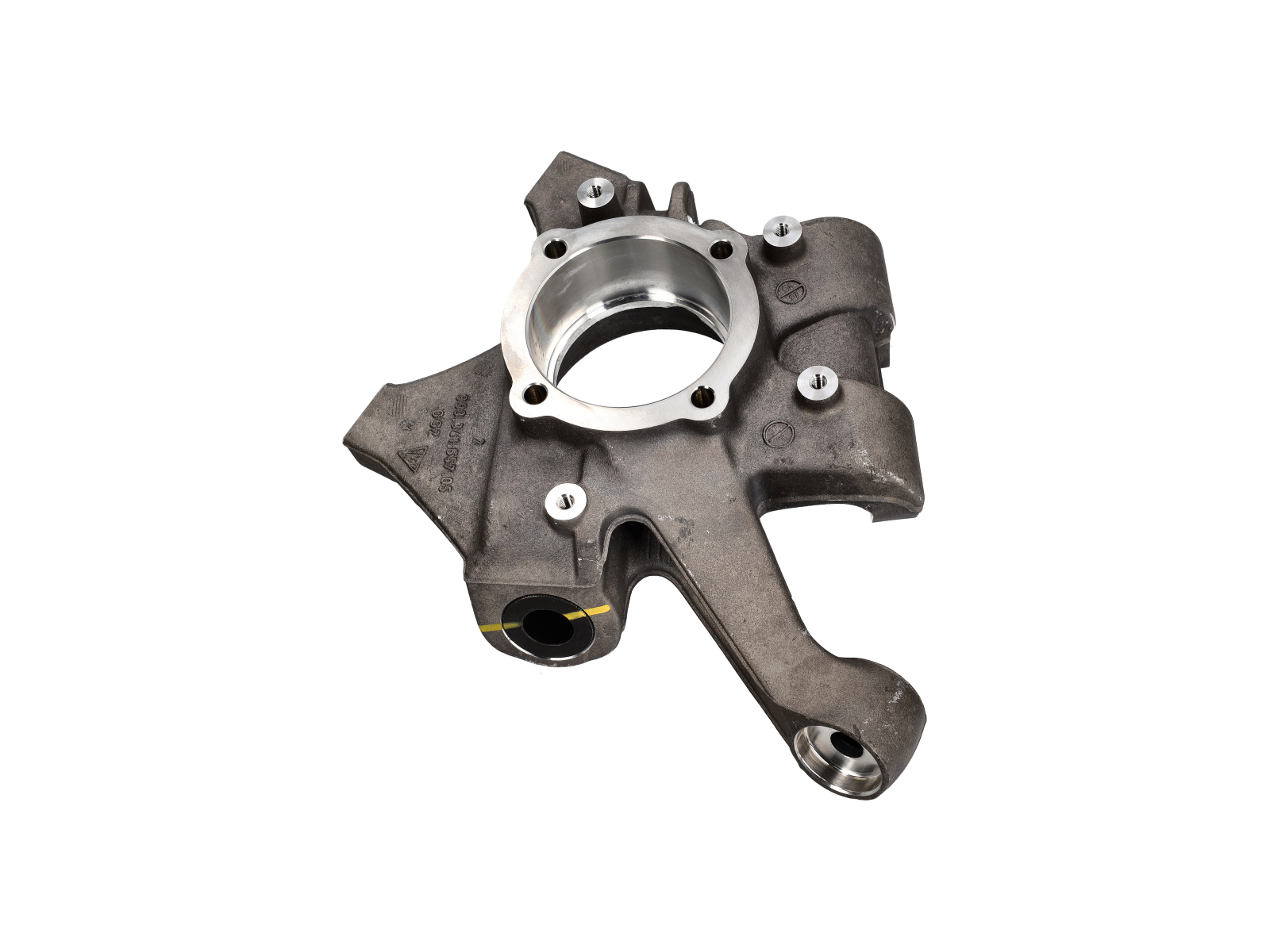

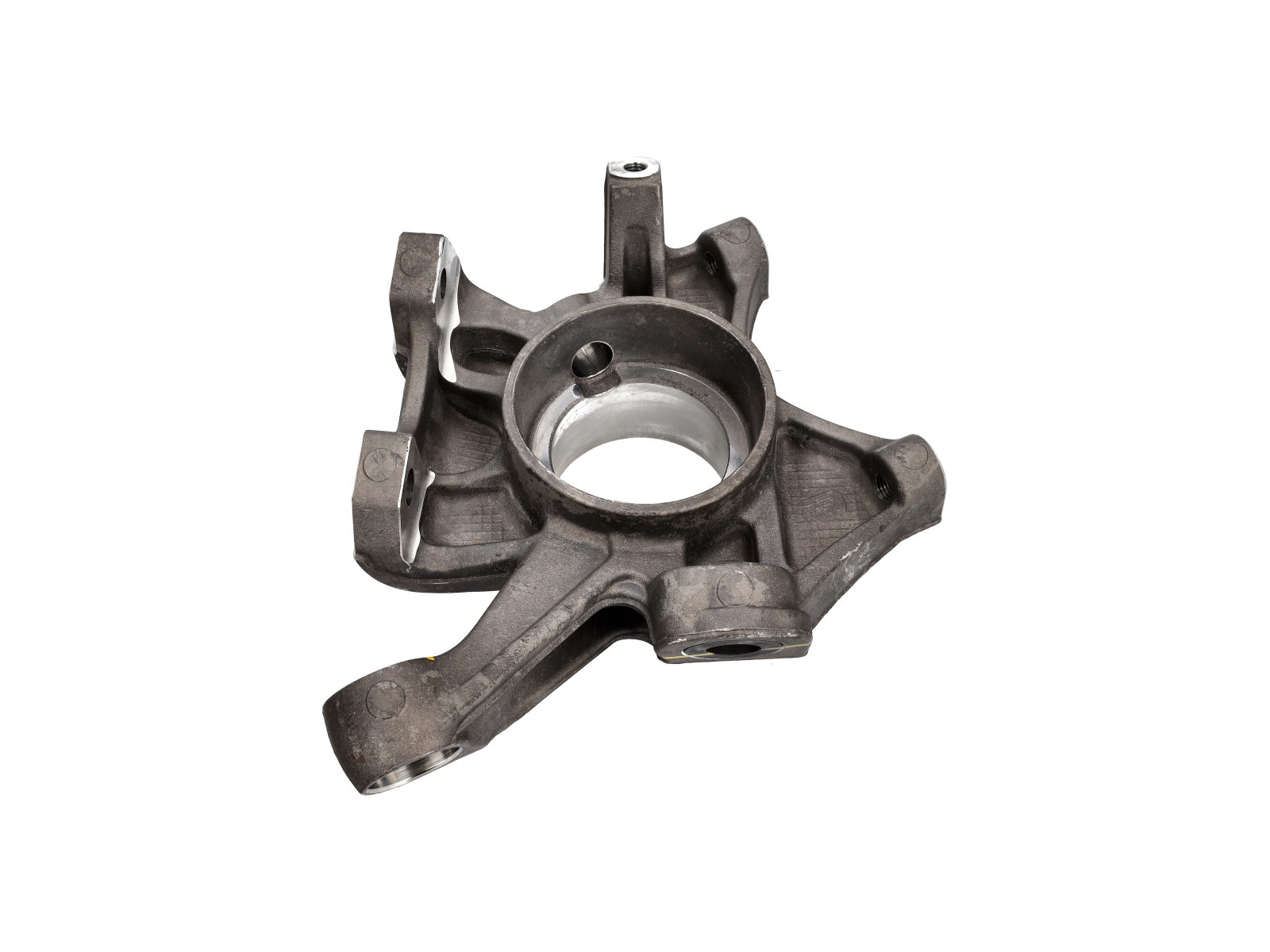

Front wheel carrier / hub assembly.

Fits:
Porsche 993 Carrera 1994-98
Porsche 993 Turbo 1995-98

NOTE: This part is not compatible with Carrera RS or GT2 models, as they require a different part number.

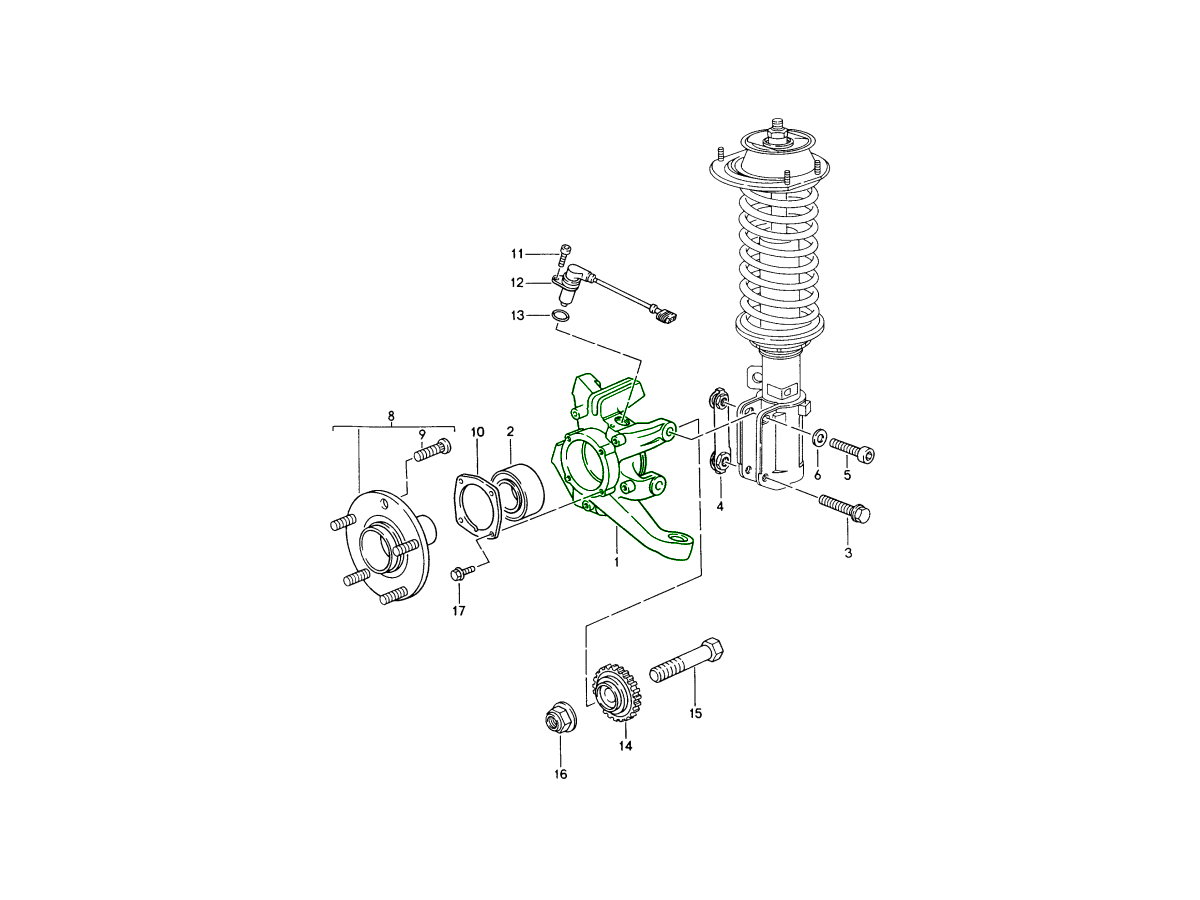

Diagram ref. 1.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99334115

The product you are viewing cross references to these numbers

Over the stud wheel hub cleaner set. Textar

Cleaning kit for corroded wheel studs & adjacent hub surfaces

Removes dirt & corrosion & prepares surfaces for correct torque application
Ideal for preparing wheels, hubs and brake discs or drums for re-assembly
Suitable for use with power drill or air impact wrench

Kit contains:

• Stud cleaner body including velcro pad
• Replacement velcro pads x 2
• Fine cleaning discs x 5
• Coarse cleaning discs x 5

Find out about Textar product verification here

Porsche Motorsports Style Center lock Conversion Package   4 sets Front & Rear



This package is to convert the entire 993.

Fits:
Porsche 993

Titanium wheel hub bullet nose stud set.
Set of 20 studs

The short studs are 57 mm long, with a 33 mm thread length on the wheel side.

The long studs are 74 mm long, with a 50 mm thread length on the wheel side.

These studs replace the wheel bolts

You will need to Purchase the Wheel Nuts Separately

Fits:
Porsche 911 (Not turbo)
Porsche 964
Porsche 993
Porsche 924S and turbo
Porsche 944
Porsche 968
Porsche 928

These studs are made from Ti-6AL-4V alloy for extreme strength, and excellent rust
and corrosion resistance. Significantly lighter and stronger than steel, Ti6Al4V is ideal for
rotating parts. The studs are also vacuum coated for increased hardness and wear
resistance, and a sensational aspect
The bullet nose further makes for faster wheel changes, and a great look.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

SL-WS-0

The product you are viewing cross references to these numbers

Titanium wheel hub stud set.
Set of 20 studs



The studs are 50 mm long, with a 33 mm thread length on the wheel side. Please measure original item before ordering

These studs replace the wheel bolts

You will need to Purchase the Wheel Nuts Separately

Fits:
Porsche 911 (Not turbo)
Porsche 964
Porsche 993
Porsche 924S and turbo
Porsche 944
Porsche 968
Porsche 928

These studs are made from Ti-6AL-4V alloy for extreme strength, and excellent rust
and corrosion resistance. Significantly lighter and stronger than steel, Ti6Al4V is ideal for
rotating parts. The studs are also vacuum coated for increased hardness and wear
resistance, and a sensational aspect

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

SL-WS-01

The product you are viewing cross references to these numbers

Titanium wheel nut.
Available in Black or Bronze

Set of 20 nuts.

Fits
Porsche 924 turbo
Porsche 944
Porsche 968
Porsche 928
Porsche 911
Porsche 964
Porsche 993
Porsche 914


These wheel nuts are made from Ti-6AL-4V alloy for extreme strength, excellent rust and
corrosion resistance. Ti6Al4V has one of the highest strength-to-weight ratios available, crucial
for rotating parts.
Our nuts are PVD coated for increased wear resistance and a terrific
appearance

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

SL-WN-0

The product you are viewing cross references to these numbers

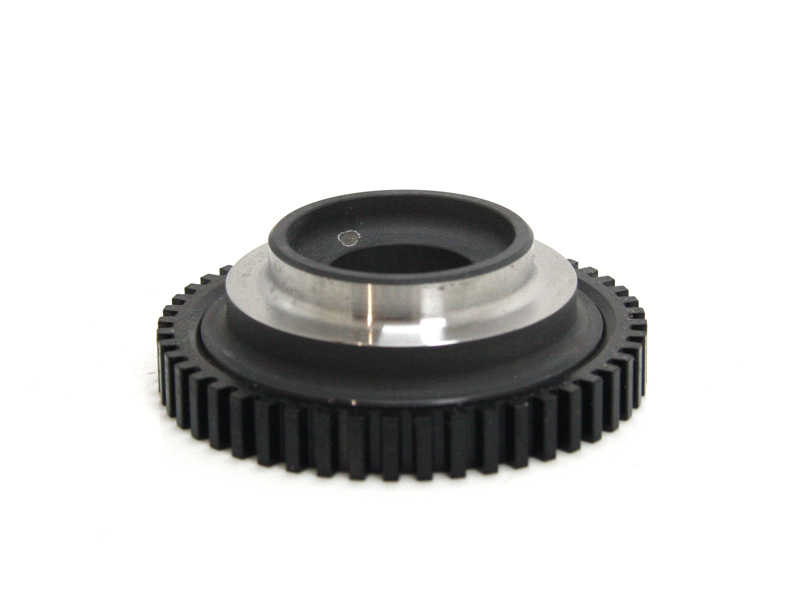

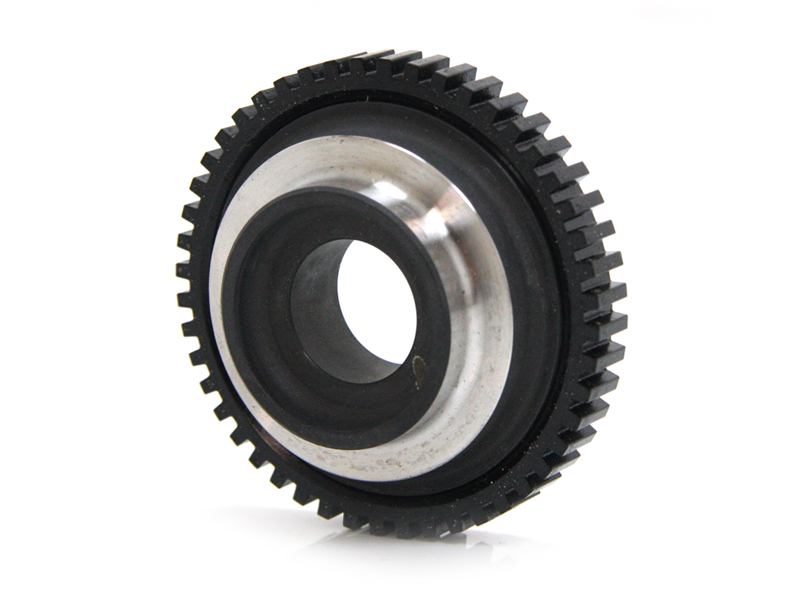

Toothed ring speed / ABS sensor - Front axle.

Fits:
Porsche 993 1994

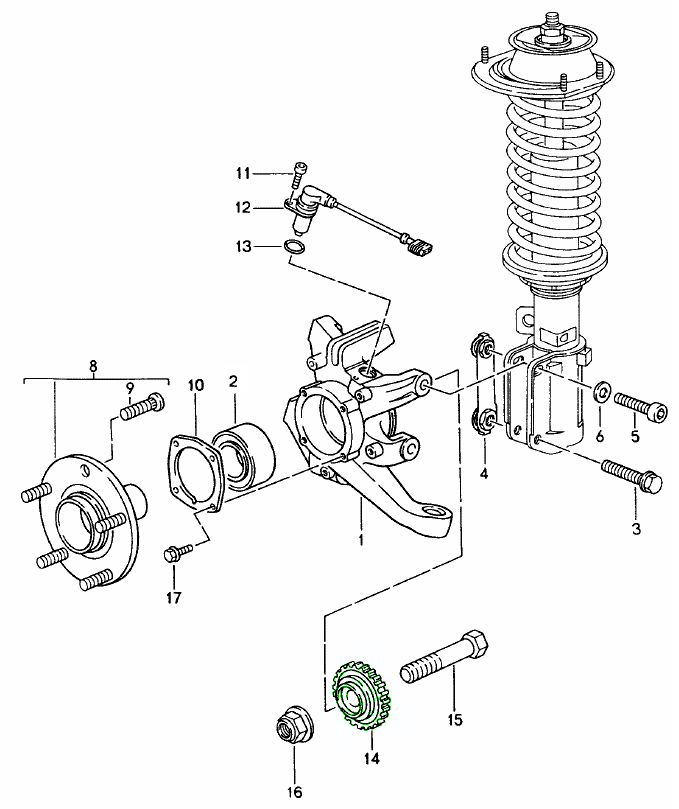

Diagram ref no 14

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99334115500

The product you are viewing cross references to these numbers

Elephant Racing 993 RS Uprights.



Fits:
Porsche 964 / 993 1989-98
Use With RS/GT2 Type Tie Rods

Special front uprights (wheel carriers) were equipped on the 993 RS and cup cars, correctly called RS uprights but sometimes called GT2 uprights or EVO uprights. The reason for RS uprights is to correct undesired geometry changes caused by running a lower ride height.

RS upright advantages include improved suspension travel, superior camber gain, and reduced bump steer. The result is superior performance and ride quality.

RS uprights are an awesome upgrade for any lowered 993 or 964 including C2, C4 and Turbo.

Available Now!

Elephant Racing designed RS uprights faithfully reproduce the factory RS geometry. They are made of aircraft grade 7075 aluminum billet for superior strength. They are a direct replacement for the factory 993 RS uprights.
They accept standard 993 front wheel bearings and cover plates. GT2 type tie rods are required.

993 RS Upright vs Standard Upright Differences. There are three basic differences between RS uprights and standard uprights:
• The wheel bearing has been moved up about 30mm relative to the ball joint
• The steering knuckle is relocated and has inverted mounting of the tie rod
• RS uprights are aluminium as are standard 993 uprights. 964 standard uprights are steel.


993 RS Upright Geometry Correction. Lowering a 993 with stock uprights causes several undesired geometry changes, all of which are corrected by the RS uprights.

RS uprights improve camber gain. The lower control arm angles up at the ball joint end, putting the suspension in a poor point on the camber curve. RS uprights angle the lower control arm back down, thus enhancing camber gain and ride quality.

RS uprights improve suspension travel. Lowering the car compresses the front strut and reduces available suspension travel. The result is premature bottoming out, poor handling and ride quality caused by contact with the bump stop – which creates an abrupt and unsettling rise in spring rate at that corner that unsettles the car. RS uprights put back suspension travel.

RS uprights reduce bump steer. Lowering the car moves the stock tie rod into an unfavourable position on the bump steer curve, make the car a handful to drive over uneven surfaces and requiring frequent adjustments at the steering wheel to maintain a steady trajectory. RS uprights relocate the tie rod end placing bump steer in a favourable position on the curve at lowered ride height.

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

239000

The product you are viewing cross references to these numbers

Wheel hub cleaning grinder head.

Aluminium bell with steel core and 12,5 mm (1/2“) seat for use on pneumatic impact screwdrivers.
Corrosion between the rim and the wheel hub is removed so torque values can no longer be distorted.
Complete with 1 cleaning disc

Find out about Textar product verification here

Wheel Hub Stud Titanium SET OF 20 +15mm Longer. Porsche 911 / 944 / 914 / 924 / 964 / 993 / 968



Fits:
Porsche 911 (not Turbo) 2.0-3.2 01/63-07/89
Porsche 914-6 2.0 11/69-12/73
Porsche 924 2.0-2.5 11/75-08/89
Porsche 944 2.5-3.0 06/81-07/91
Porsche 964 3.3-3.6 12/88-07/94
Porsche 968 3.0 06/91-11/95
Porsche 993 3.6-3.8 10/93-09/97

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99334167103TL

The product you are viewing cross references to these numbers

Wheel Hub Stud Titanium SET OF 20 Standard size. Porsche 911 / 944 / 914 / 924 / 964 / 993 / 968  (approx. 34mm thread length).



Fits:
Porsche 911 (not Turbo) 2.0-3.2 01/63-07/89
Porsche 914-6 2.0 11/69-12/73
Porsche 924 2.0-2.5 11/75-08/89
Porsche 944 2.5-3.0 06/81-07/91
Porsche 964 3.3-3.6 12/88-07/94
Porsche 968 3.0 06/91-11/95
Porsche 993 3.6-3.8 10/93-09/97

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99334167103TS

The product you are viewing cross references to these numbers

Wheel Hub Stud, Standard (approx. 34mm thread length).



Fits:
Porsche 911 (not Turbo) 2.0-3.2 01/63-07/89
Porsche 914-6 2.0 11/69-12/73
Porsche 924 2.0-2.5 11/75-08/89
Porsche 944 2.5-3.0 06/81-07/91
Porsche 964 3.3-3.6 12/88-07/94
Porsche 968 3.0 06/91-11/95
Porsche 993 3.6-3.8 10/93-09/97

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99333167104

The product you are viewing cross references to these numbers

Wheel hub stud, Standard (approx. 34mm thread length).



Fits:
Porsche 911 (not Turbo) 2.0-3.2 01/63-07/89
Porsche 914-6 2.0 11/69-12/73
Porsche 924 2.0-2.5 11/75-08/89
Porsche 944 2.5-3.0 06/81-07/91
Porsche 964 3.3-3.6 12/88-07/94
Porsche 968 3.0 06/91-11/95
Porsche 993 3.6-3.8 10/93-09/97

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99333167104

The product you are viewing cross references to these numbers

Replacement press in Wheel Hub Studs 72MM



Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1994-98
Porsche 944 1982-91
Porsche 968 1992-95
Porsche 928 1978-95
Porsche 924 1977-88

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

99334167170

The product you are viewing cross references to these numbers

Replacement press in Wheel Hub Studs
Diameter (RD):14.6mm
Height head (A):5.0mm
Height knurl (B):9.0mm
Head diameter (D1): 20mm



Fits:
Porsche 911 1965-89
Porsche 964 1989-94
Porsche 993 1994-98
Porsche 944 1982-91
Porsche 968 1992-95
Porsche 928 1978-95
Porsche 924 1977-88

Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

993341671

The product you are viewing cross references to these numbers
