Injectors
Fuel injector seal kit. Porsche 911 1974-83
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
- Porsche 928S2 4.7L 1984-86
Kit includes - 6 x fuel injector seal
Fits:
Porsche 911 - 1974 to 1983
for cars with K-Jetronic fuel injection (non turbo)
Diagram ref no 44
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99970142340KIT
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
Fuel injector seal kit. Porsche 911 1984-86 / 924S / 944
- Porsche 911 1984-1986 3.2L
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
- Porsche 928S2 4.7L 1984-86
Fits:
Porsche 911 Carrera 3.2L 1984-88
Porsche 924S 1986-88
Porsche 928S2 1985-86 Man Cars
Porsche 944 1982-91
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94411090100
The product you are viewing cross references to these numbers
Shop Securely
12 Month Warranty
Worldwide Delivery
Fuel injector seal kit. Porsche 911 1984-88 / 924S / 944
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
- Porsche 928S2 4.7L 1984-86
Fits:
Porsche 911 Carrera 3.2L 1984-88
Porsche 924S 1986-88
Porsche 928S2 1985-86 Man Cars
Porsche 944 1982-91
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94411090100
The product you are viewing cross references to these numbers
Shop Securely
12 Month Warranty
Worldwide Delivery
Fuel injector seal. Porsche 911 1974-83
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
- Porsche 928S2 4.7L 1984-86
Sold each - 6 required per car
Fits:
Porsche 911 - 1974 to 1983
for cars with K-Jetronic fuel injection (non turbo)
Diagram ref no 44
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99970142340
The product you are viewing cross references to these numbers
Shop Securely
12 Month Warranty
Worldwide Delivery

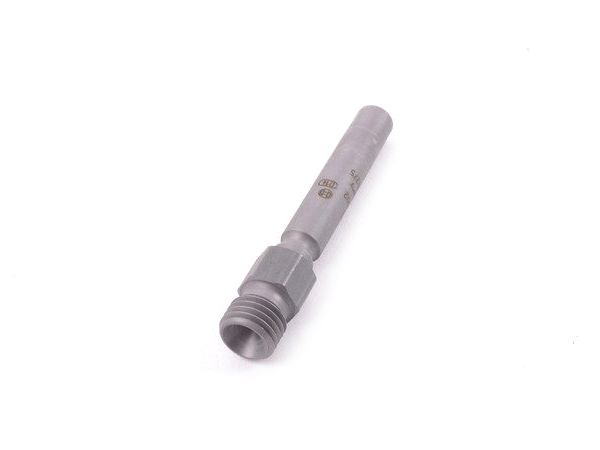

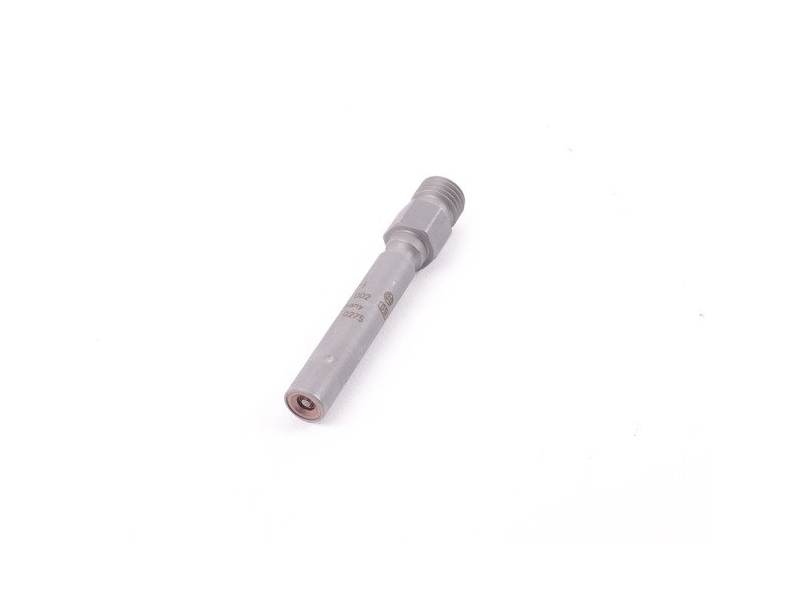

Fuel injector. Porsche 911 T-K 72-73
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
Fits:
Porsche 911 T-K 1972-73
6 per car. Price is for each.

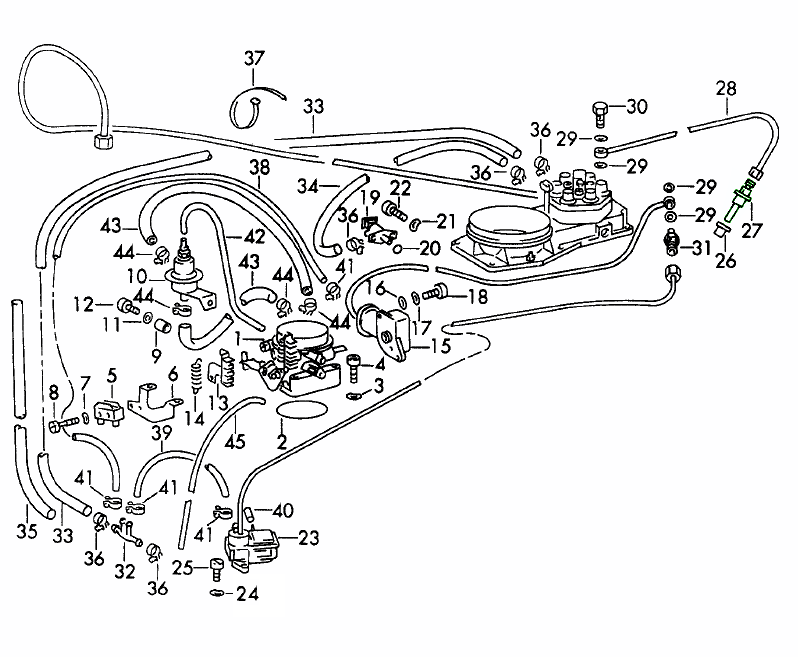

Click 'Zoom in' for large parts diagram.
Diagram ref no 27
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91111035501
The product you are viewing cross references to these numbers
Shop Securely
12 Month Warranty
Worldwide Delivery

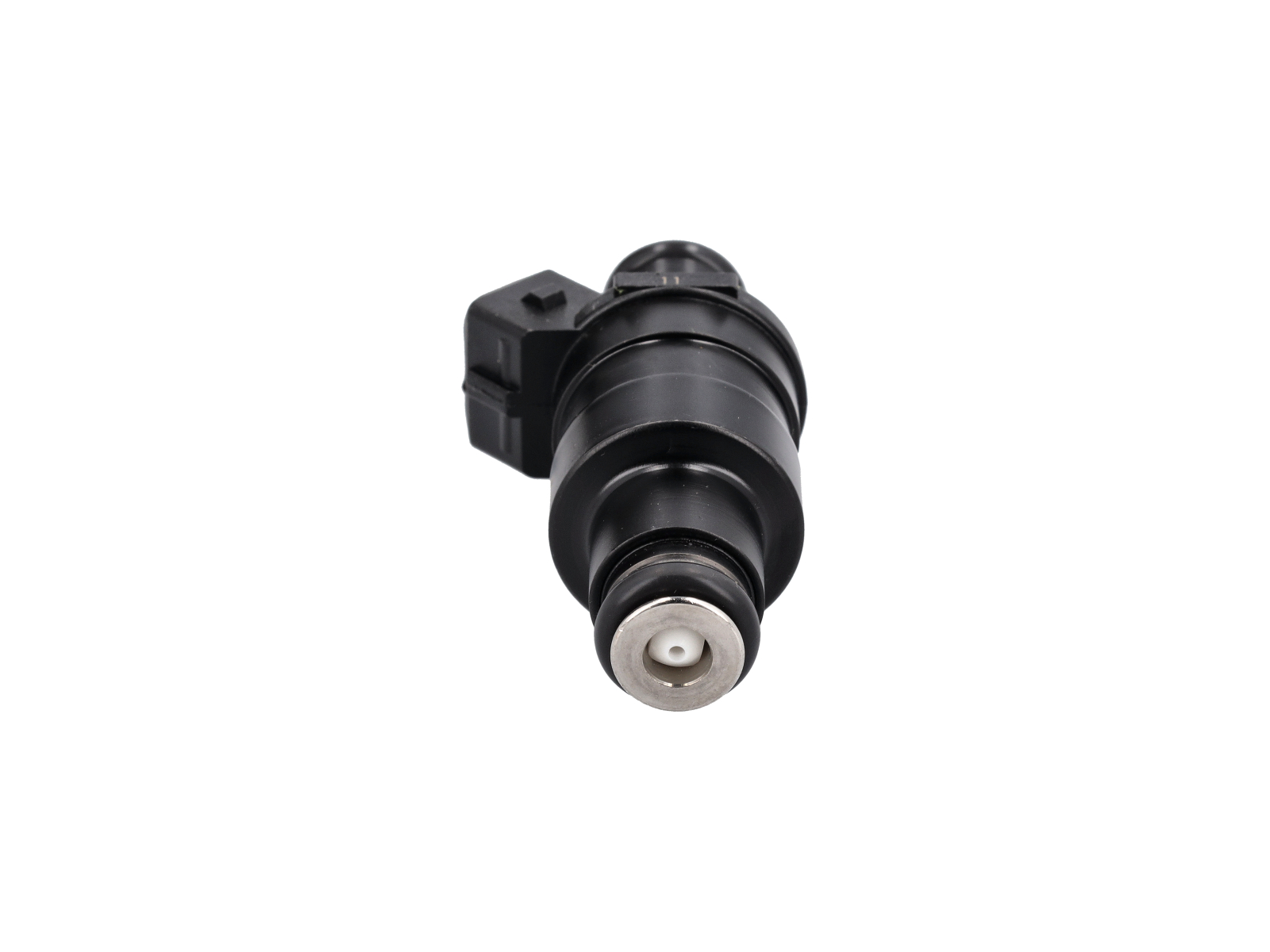

Fuel injector. Porsche 944 2.5L 8V 1982-85
- Porsche 944 2.5L 8V 1982-87
Bosch Ref: (0 280 150 201)
Fits:
Porsche 944 2.5L 8V 1982-85
4 per car. Price is for each.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94460611001
The product you are viewing cross references to these numbers
Shop Securely
12 Month Warranty
Worldwide Delivery

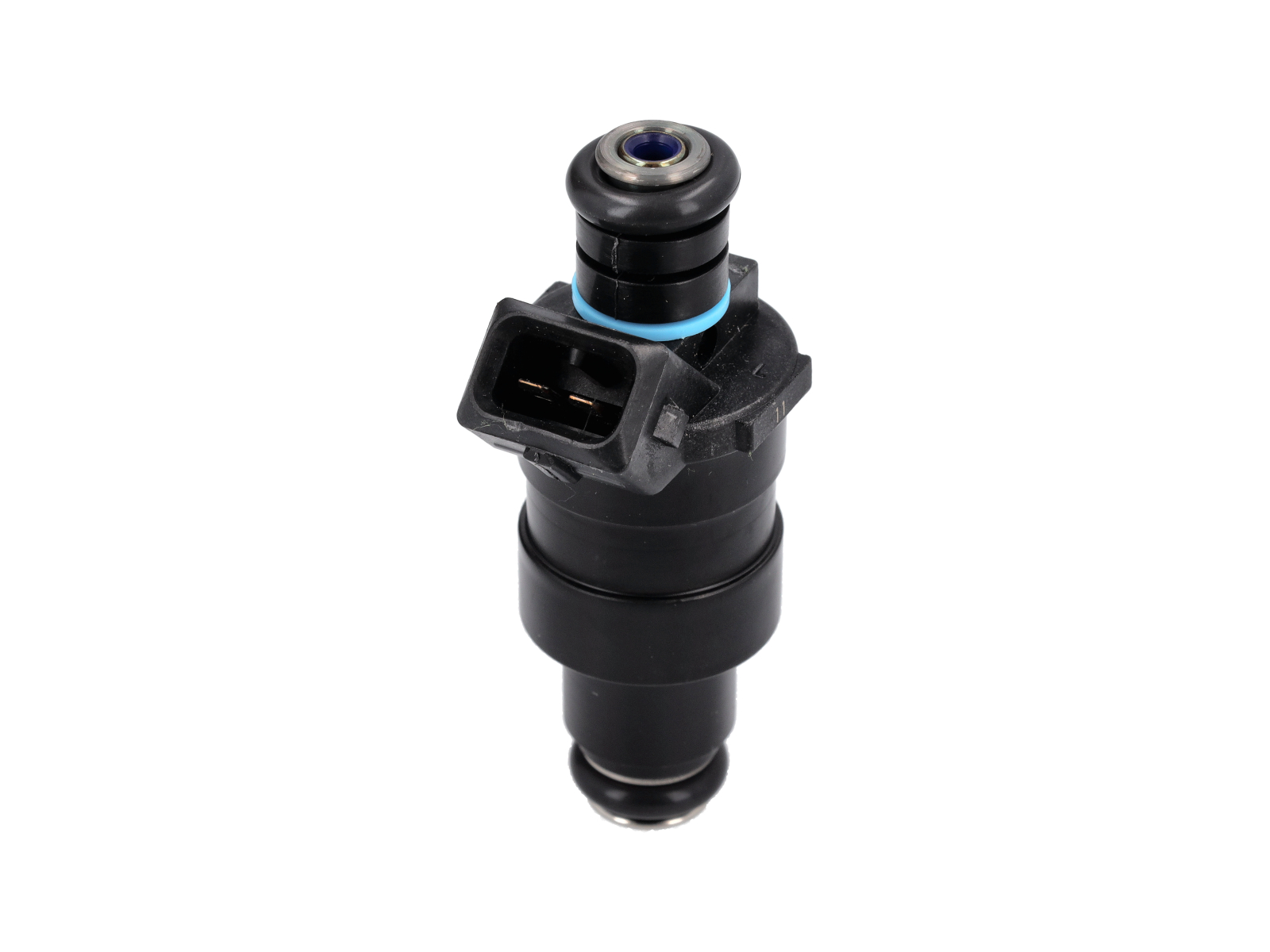

Fuel injector. Porsche 944 2.5L 8V 1982-85
- Porsche 944 2.5L 8V 1982-87
The injector 944 606 110 01 is made for the early Porsche 944 with the 2.5L 8-valve inline-4 engine (1982–85). The injectors deliver a fine, metered spray of fuel into the intake port (or manifold) synchronized with engine control signals (pulse width). The engine’s control module (DME) varies how long the injector is open (duty cycle) to control air/fuel ratio. required is 4 per car. Price is for each.
These injectors are part of the Bosch-style / early Porsche / Jetronic fuel injection system (common to many 4-cylinder Porsches). The 944 injector 944 606 110 01 is cross-referenced with Bosch part 0280150201.
Fits:
Porsche 944 2.5L 8V 1982-85
Common failure modes / issues
Clogging or partial occlusion
Deposits from fuel (e.g. varnish, gums, carbon) can accumulate on the injector nozzle or internal filter screens, restricting flow or altering spray pattern. This leads to inconsistent fuel delivery, lean condition on one cylinder, misfires, or rough idle.
Leaking (internal or external)
Injector may leak fuel when closed (i.e. dribble), due to worn needle/seat or weakened internal seals. That causes flooding, rich mixture, poor idle, or fuel smell. External leakage (o-rings degraded) can cause fuel to leak externally around injector, risking fire or vacuum leaks.
Electrical degradation
The coil windings inside can degrade (partial shorts, increased resistance, insulation breakdown) — leading to slow response, weak spray, or complete failure. Connector terminals or wiring may corrode, break, or have poor connection.
Wear / fatigue of internal moving parts
The needle, pintle, spring, and internal tolerances wear over time; that increases “dead time” (delay between signal and actual opening) and changes the effective flow versus command duty cycle. Over time, this causes imbalance between cylinders, mis-tuning, and drivability issues.
Imbalanced or mismatched injectors
Over time, injectors can drift in flow rate; if one injector flows slightly more or less than the others, cylinder fuel balance is upset. A matched set is ideal. When replacing only one injector, mismatch can worsen performance.
Aging seals / O-rings / insulator degradation
The rubber/plastic O-rings that seal the injector to the intake manifold may harden, crack or leak, causing vacuum leaks or fuel vapour escape. The body insulator or mounting flange may degrade, causing mechanical looseness.
Spray pattern deterioration
If the spray cone or atomization pattern is degraded (due to nozzle wear or damage), fuel may not vaporize correctly, leading to incomplete combustion, poorer fuel economy, or emissions issues.
Intermittent or total failure
In some cases, an injector might fail open (permanently on) or stuck (never opens). That leads to severe lean/rich condition or a dead cylinder.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94460611001
The product you are viewing cross references to these numbers
Shop Securely
12 Month Warranty
Worldwide Delivery

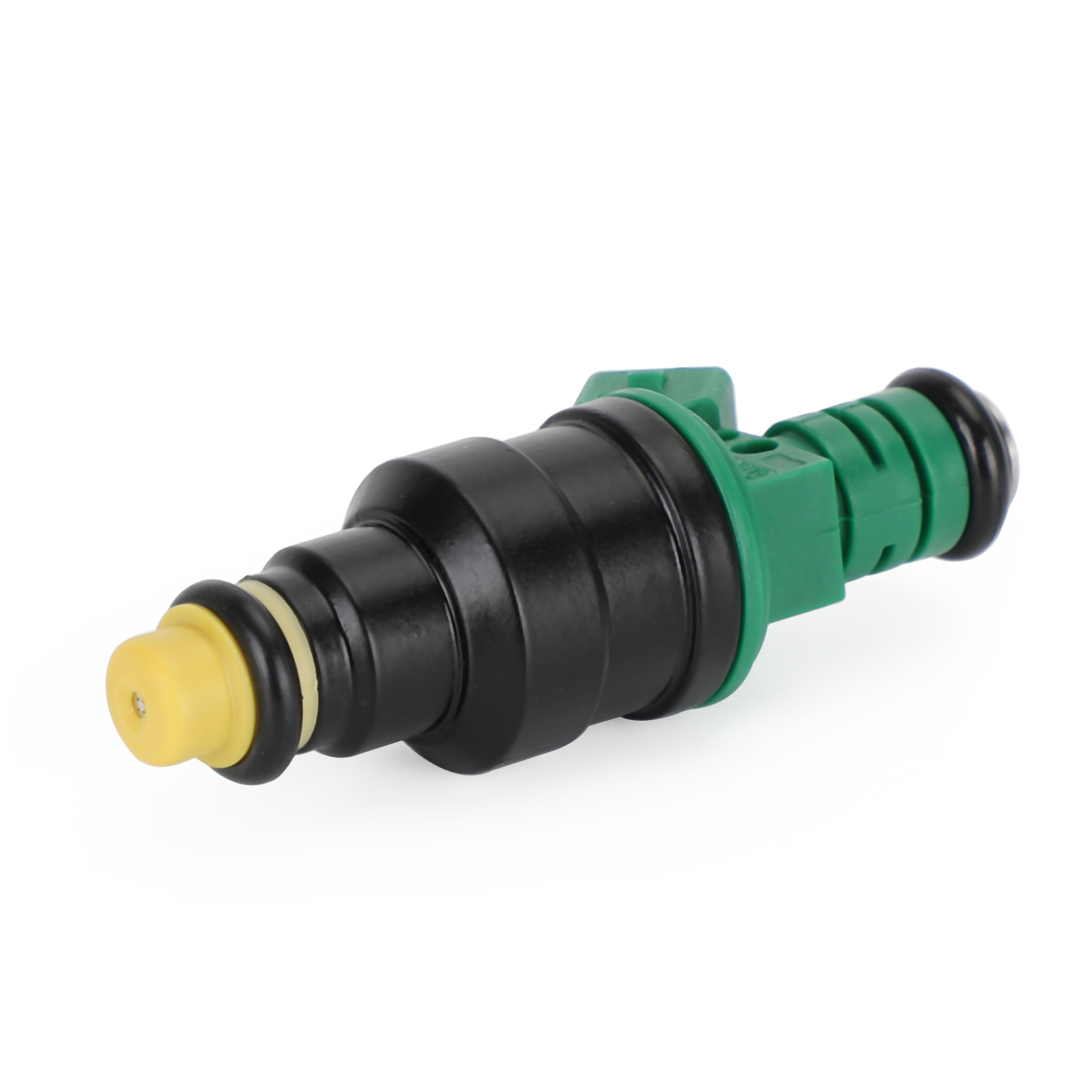

Fuel injector. Porsche 944 Turbo 2.5L 1985-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
4 per car. Price is for each.
Fits:
Porsche 944 Turbo 2.5 M44.52 1985-91
Bosch ref number: 0 280 150 803
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95160611000
The product you are viewing cross references to these numbers
Shop Securely
12 Month Warranty
Worldwide Delivery

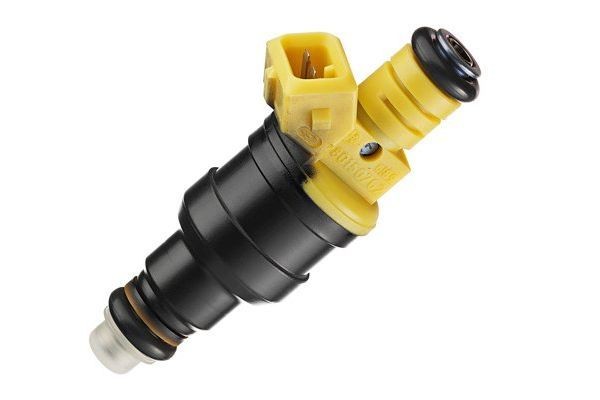

Fuel injector. Porsche 944S 16V 2.5L 1987-88
- Porsche 944S 2.5L 16V 1987-88
Fits:
Porsche 944S 16V 2.5 M44.40 1987-88
4 per car. Price is for each.
BOSCH ref number: 0280150811
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94460611201
The product you are viewing cross references to these numbers
Shop Securely
12 Month Warranty
Worldwide Delivery
Wiring harness fuel injectors. Porsche 924S / 944 / 944 turbo
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
Fits:
Porsche 924S - 1986 to 1988
Porsche 944 - 1982 to 1989
Porsche 944 turbo - 1986 to 1991
This Porsche 944 Injector Harness will replace your brittle and old connectors, terminals, wires and loom.
The fuel injector section of the factory harness connector has been exposed to three decades of high heat cycles and extreme environmental conditions. As a result, the wires and connectors become brittle and broken, which can cause problems with engine performance.
This OEM+ replacement harness with yellow labels will ensure a cleaner engine bay, using brand-new connectors and wires, and sealed boots.
The harness will be routed through the elephant's boot, down the main branch, and into the DME at the passenger's footwell. A full pinout and instruction manual will be provided with the harness.
- TXL Wires (Temperature Rating to +125 C)
- Polyethylene Terephthalate (PET) Loom (Temperature Rating to +125 C)
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94460611201
The product you are viewing cross references to these numbers
Shop Securely
12 Month Warranty
Worldwide Delivery
-
