Fuel Injection / Collection Rail

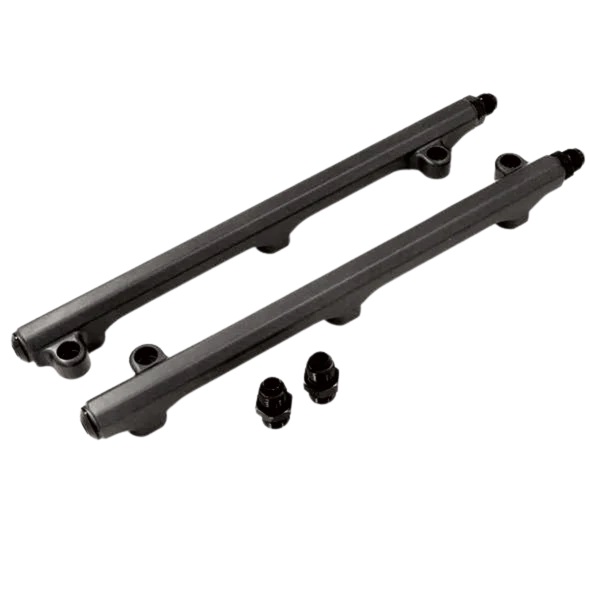

Billet aluminium fuel rail set. Porsche 911 3.2 Carrera
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Fits:
Porsche 911 3.2 Carrera - 1984 to 1989

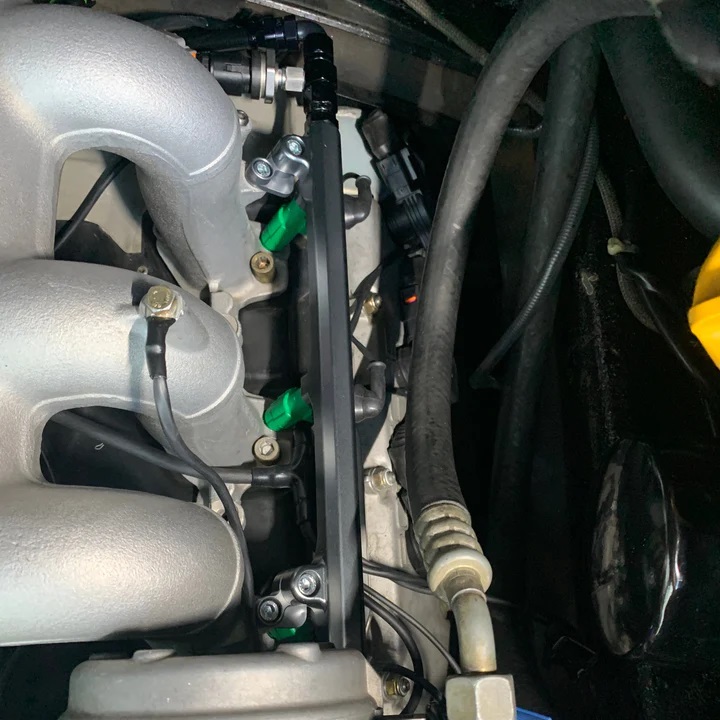

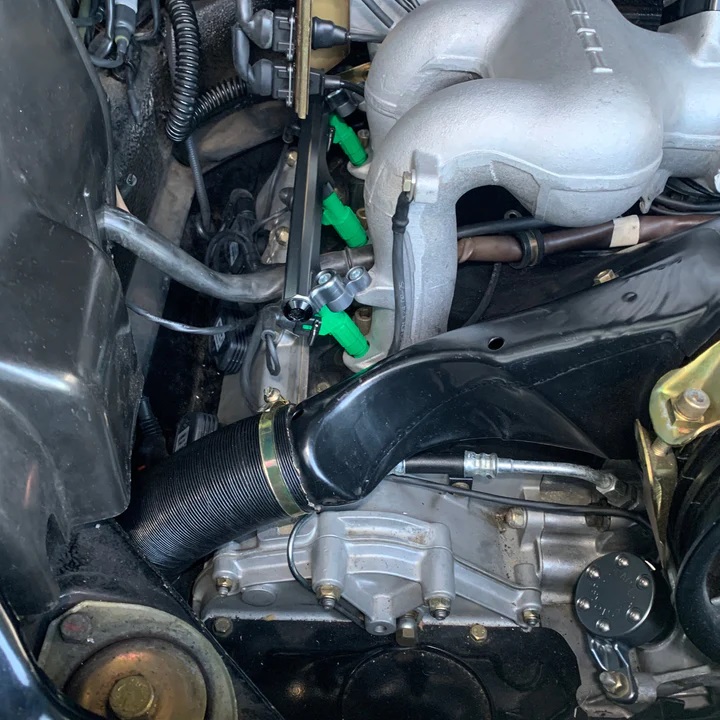

Our billet and anodised fuel rail kit bolts directly to the standard 3.2 intake manifold.
Using O ring fittings to the fuel rail, and AN 6 JIC fittings this allows for a very flexible choice of fuel hose arrangements.
Replicate the factory 964 system, or the 993 system, or really simplify and use a dead head system.
Rails are shipped with a combination of fittings or plugs.
This set makes it very easy to add fuel pressure sensing to the rails for those that want to tune, log or use protection strategies in your aftermarket ECU setup.
Check out our matching fuel pressure regulator to complete your fuel system today
Kit Includes:
- Fuel Rails x 2
- ORB to JIC Fittings x 4
- ORB Plugs x 2

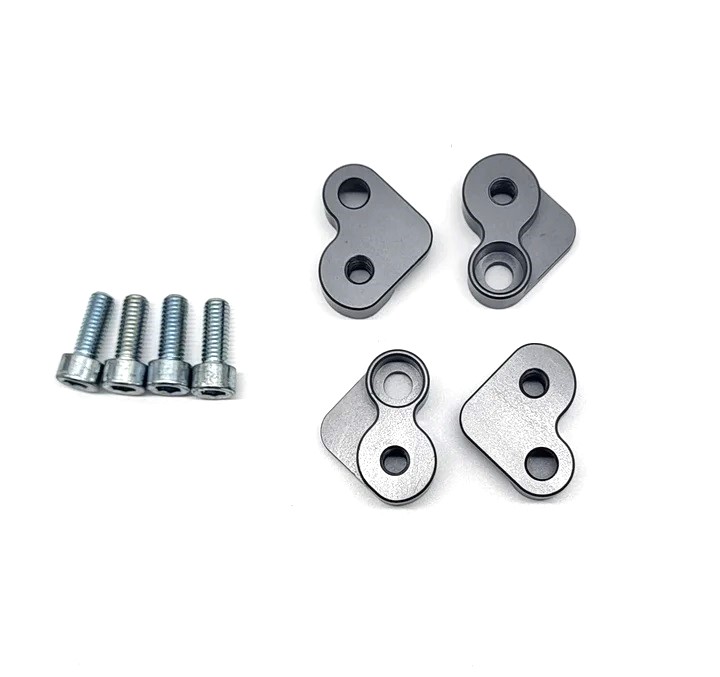

- Anodised support adapters x 2
- Screws to fix to factory intake adaptors
Please Note
Cars with factory air conditioning compressors will need to use the supplied plugs to close the rear end of the fuel rails, and opt for a common "dead head" fuel hose arrangement.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93011030704
The product you are viewing cross references to these numbers
Shop Securely
12 Month Warranty
Worldwide Delivery
Braided Fuel Hose (9.3mm ID, 15.3mm OD) - Sold by the Metre - for Porsche 911 Carrera & Turbo / 914 / 924 / 928
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 924 2.0L 1976-79
- Porsche 924 2.0L 1980-85
- Porsche 924 Turbo 2.0L 1979-81
- Porsche 924 Turbo 2.0L 1982-84
- Porsche 924 Carrera GT 2.0L 1981
- Porsche 924 Carrera GTS 2.0L 1982
- Porsche 928 4.5L 1978-82
- Porsche 928S 4.7L 1981-83
- Porsche 928S2 4.7L 1984-86
- Porsche 928S4 5.0L 1987-92
- Porsche 928GT 5.0L 1989-91
- Porsche 914 (1970-1976)
Braided Fuel Hose (Sold by the Metre) - 9.3mm Internal Diameter / 15.3mm Outer Diameter.
This high-quality braided fuel hose is designed for multiple uses within the fuel system of various vehicles. It offers extremely low fuel permeability, excellent heat resistance, and high flexibility, making it a reliable choice for demanding applications.
Fits:
Porsche 911 Carrera 1965-89
Porsche 911 Turbo (930) 1975-89
Porsche 914 1970-76
Porsche 924 1976-85
Porsche 928 1978-91
Comparable to Porsche part number(s): N0203591 & PCG020359A
Specifications:
Inner Diameter (ID): 9.3mm
Outer Diameter (OD): 15.3mm
Material: FPM/ECO/AR/ECO (Type 3E) – Compliant with DIN 73379-1
Complies With: EU End-of-Life Vehicles Directive
NOTE: This product is not suitable for use in fuel tanks, or for gear and/or engine oils. Always follow the manufacturer's specifications regarding operating temperatures, especially for high-performance engines exposed to extreme heat.
