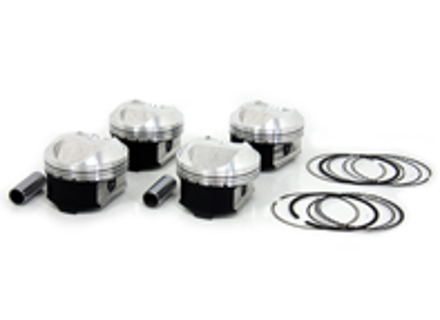

Wössner forged piston kit. Porsche 944 2.5 8v 1988-89 - K9476
K9476
Vehicle Group
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
Information
Wössner forged piston kit.
Fits:
Porsche 944 2.5 8v 1988-89
Suitable to use with Nikasil liners.
Specification
Technical information is sourced from Wössner's latest catalogue:
Part Number: K9476
Engine Type: - M44.09, M44.10,
OE Bore Size: 100.00mm
Bore Sizes Available:
- 100.00mm - 2478.71cc, Compression Ratio: 10.6:1
- 100.50mm - 2503.56cc, Compression Ratio: 10.7:1
- 101.00mm -2528.54cc, Compression Ratio: 10.79:1
Bore Size 100.00mm
Piston Size: 99.92mm
Over Size: 0mm
Displacement CC: 2478cc
Dome / Bowl Volume: -0.5cc
Wössner Comp Ratio: 10.6:1
Ring Part Number: 1000XPY
Bore Size 100.50mm
Piston Size: 100.42mm
Over Size: 0.5mm
Displacement CC: 2503cc
Dome / Bowl Volume: -0.5cc
Wössner Comp Ratio: 10.7:1
Ring Part Number: 1005XPY
Bore Size 101.00mm
Piston Size: 100.92mm
Over Size: 1mm
Displacement CC: 2528cc
Dome / Bowl Volume: -0.5cc
Wössner Comp Ratio: 10.79:1
Ring Part Number: 1010XPY
Standard
Stroke: 78.9mm
Dome/Bowl Volume: -
OE Comp. Ratio: 10.2:1
Comp. Height: 40.8mm
Valves Per Cylinder: 2
Cylinders: 4
Please CLICK HERE for Technical release – Piston / Con rod
orientation.
Wössner are regarded by Europe's leading motor sport engine builders as being the piston of choice when building an engine not only to perform, but to withstand the stresses and duress's of competition life. Wössner pistons feature a unique PTFE coating on the skirts and a grade of 4032 Alloy (T6) which allows the engine builder to run a closer piston to bore tolerance then he might do on another make of piston. This helps remove the slapping noise during cold start, common place among engines running forged pistons due to larger then OE bore clearances. The crowns of the pistons are also polished to better resist detonation on a high performance engine. Polishing allows a more even spread of heat inside the chamber which will help prevent "hot spots" on piston crowns. Price includes all piston rings and gudgeon pins.
Price shown is for complete engine set.
Fits:
Porsche 944 2.5 8v 1988-89
Suitable to use with Nikasil liners.
Specification
Technical information is sourced from Wössner's latest catalogue:
Part Number: K9476
Engine Type: - M44.09, M44.10,
OE Bore Size: 100.00mm
Bore Sizes Available:
- 100.00mm - 2478.71cc, Compression Ratio: 10.6:1
- 100.50mm - 2503.56cc, Compression Ratio: 10.7:1
- 101.00mm -2528.54cc, Compression Ratio: 10.79:1
Bore Size 100.00mm
Piston Size: 99.92mm
Over Size: 0mm
Displacement CC: 2478cc
Dome / Bowl Volume: -0.5cc
Wössner Comp Ratio: 10.6:1
Ring Part Number: 1000XPY
Bore Size 100.50mm
Piston Size: 100.42mm
Over Size: 0.5mm
Displacement CC: 2503cc
Dome / Bowl Volume: -0.5cc
Wössner Comp Ratio: 10.7:1
Ring Part Number: 1005XPY
Bore Size 101.00mm
Piston Size: 100.92mm
Over Size: 1mm
Displacement CC: 2528cc
Dome / Bowl Volume: -0.5cc
Wössner Comp Ratio: 10.79:1
Ring Part Number: 1010XPY
Standard
Stroke: 78.9mm
Dome/Bowl Volume: -
OE Comp. Ratio: 10.2:1
Comp. Height: 40.8mm
Valves Per Cylinder: 2
Cylinders: 4
Please CLICK HERE for Technical release – Piston / Con rod
orientation.
Wössner are regarded by Europe's leading motor sport engine builders as being the piston of choice when building an engine not only to perform, but to withstand the stresses and duress's of competition life. Wössner pistons feature a unique PTFE coating on the skirts and a grade of 4032 Alloy (T6) which allows the engine builder to run a closer piston to bore tolerance then he might do on another make of piston. This helps remove the slapping noise during cold start, common place among engines running forged pistons due to larger then OE bore clearances. The crowns of the pistons are also polished to better resist detonation on a high performance engine. Polishing allows a more even spread of heat inside the chamber which will help prevent "hot spots" on piston crowns. Price includes all piston rings and gudgeon pins.
Price shown is for complete engine set.
Prices from: €862.47
