- Porsche 9YA Cayenne S V6 2.9L Petrol (440Hp) 2018-23
- Porsche 971.1 Panamera 4S 2.9L Twin-Turbo V6 Sport Turismo 2017-20

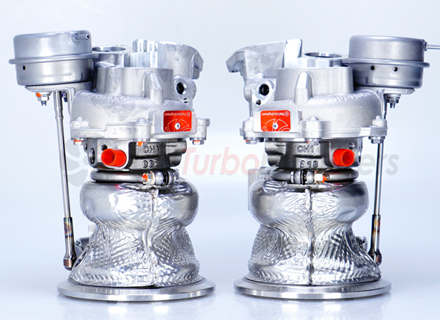

UPGRADE TURBOCHARGERS
Introducing Upgrade Turbochargers for the 2.9 TFSI fitted to Porsche models. The ultimate blend of power, fast response, and Plug&Play ease of fitment. Our first upgrade step utilizing the original turbochargers for greater flow and power courtesy of bigger billet inlet compressors & bigger exhaust turbines and cnc milled exhaust and compressor housings to accept the larger wheels.
Performance turbochargers are designed for 700PS but there are restriction on this car example the small single charge cooler, so power of around 600-650 ps on 99ron is to be expected (WAGNER upgrade intercooler is recommended). Upgrade downpipes, sport cats and full exhaust are recommended as upgrades to the turbo intakes and system for max performance.
Equilibrium
Precisely balancing our turbochargers is a key critical factor to become a TTE upgrade unit as longevity and performance are paramount. Good balance improves acoustics also. Subsequent great care is taken with all TTE turbochargers to achieving our balance standards. Firstly parts are balanced at slow speeds up to 2800RPM in multiple planes using our single parts machine, then components are assembled and then the CHRA are dynamically balanced, but this time depending on the application at up to 250,000 RPM in multiple planes using our in house VSR machine to acquire the ultimate equilibrium, to a standard far higher than OEM. Each turbocharger is supplied with a serial numbered balance test result document.
Product Highlights:
- Original BWTS turbochargers
- Original BWTS Actuators
- TTE Billet Milled larger compressor 7+7 BLADE 51mm inlet
- TTE 9 Blade High-Flow Turbine 47mm outlet
- Plug and Play installation
- 7pad thrust bearing
- 720+PS on 102ron proven (680 HP shared on 98 RON/ USA 93 Octane )
- Proven TheTurboEngineers quality
- Single parts finely balanced then components assembled and core high-speed VSR balanced
- Supplied with a balance test result document
- Software recalibration is required
- 1 YEAR TTE TROUBLE-FREE WARRANTY
- Made in Germany
Price shown is for a PAIR of turbochargers
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
TTE10426
The product you are viewing cross references to these numbers
- Porsche 9YA Cayenne E-Hybrid V6 3.0L V6 (340Hp) 2018-23
- Porsche 9YA Cayenne Coupe E-Hybrid V6 3.0L (340Hp) 2020-23
- Porsche 9YA.2 Cayenne E-Hybrid V6 3.0L (470Hp) 2023>>
- Porsche 9YA.2 Cayenne E-Hybrid Coupe V6 3.0L (470Hp) 2023>>
- Porsche 9YA.2 Cayenne S E-Hybrid V6 3.0L (519Hp) 2023>>
- Porsche 9YA.2 Cayenne S E-Hybrid Coupe V6 3.0L (519Hp) 2023>>
- Porsche 9YA.2 Cayenne GTS V8 4.0L Bi-Turbo Petrol 2023>>
- Porsche 9YA.2 Cayenne GTS Coupe V8 4.0L Bi-Turbo 2023>>
- Porsche 971.1 Panamera V6 3.0L 2WD (330 Hp) 2017-20
- Porsche 971.1 Panamera 4 V6 3.0L 4WD (330 Hp) 2017-20
- Porsche 971.1 Panamera 4 V6 3.0L 4WD Executive 2017-20
- Porsche 971.1 Panamera 4 3.0L Turbocharged V6 Sport Turismo 2017-20
- Porsche 971.1 Panamera 4S V6 3.0L 4WD (440 Hp) 2017-20
- Porsche 971.1 Panamera 4S V6 3.0L 4WD Executive 2017-20
- Porsche 95B.2 Macan S Petrol 3.0L V6 (354Bhp) 2019-21
Fits:
Porsche 95B.2 Macan S 3.0L Petrol 2019>>2021
Porsche 9YB Cayenne 3.0L Petrol E-Hybrid 2023>>
Porsche 9YB Cayenne S 3.0L Petrol E-Hybrid 2023>>
Porsche 971.1 Panamera 3.0L Petrol 2017>>2020
Cars With Engine Codes:
CXTA / CXT
Porsche 9YA Cayenne 3.0L Petrol E-Hybrid 2018>>2023
Cars With Engine Codes:
DCBE / DCB
Diagram Ref No 6
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
9A714573606
The product you are viewing cross references to these numbers
- Porsche 9YA Cayenne E-Hybrid V6 3.0L V6 (340Hp) 2018-23
- Porsche 9YA Cayenne Coupe E-Hybrid V6 3.0L (340Hp) 2020-23
- Porsche 9YA.2 Cayenne E-Hybrid V6 3.0L (470Hp) 2023>>
- Porsche 9YA.2 Cayenne E-Hybrid Coupe V6 3.0L (470Hp) 2023>>
- Porsche 9YA.2 Cayenne S E-Hybrid V6 3.0L (519Hp) 2023>>
- Porsche 9YA.2 Cayenne S E-Hybrid Coupe V6 3.0L (519Hp) 2023>>
- Porsche 9YA.2 Cayenne GTS V8 4.0L Bi-Turbo Petrol 2023>>
- Porsche 9YA.2 Cayenne GTS Coupe V8 4.0L Bi-Turbo 2023>>
- Porsche 971.1 Panamera V6 3.0L 2WD (330 Hp) 2017-20
- Porsche 971.1 Panamera 4 V6 3.0L 4WD (330 Hp) 2017-20
- Porsche 971.1 Panamera 4 V6 3.0L 4WD Executive 2017-20
- Porsche 971.1 Panamera 4 3.0L Turbocharged V6 Sport Turismo 2017-20
- Porsche 971.1 Panamera 4S V6 3.0L 4WD (440 Hp) 2017-20
- Porsche 971.1 Panamera 4S V6 3.0L 4WD Executive 2017-20
- Porsche 95B.2 Macan S Petrol 3.0L V6 (354Bhp) 2019-21
x1 Seal Included.
Fits:
Porsche 95B.2 Macan S 3.0L Petrol MKII 2019>>2021
Porsche 9YB Cayenne 3.0L Petrol E-Hybrid 2023>>
Porsche 9YB Cayenne S 3.0L Petrol E-Hybrid 2023>>
Porsche 971.1 Panamera 3.0L Petrol MKI 2017>>2021
Cars With Engine Codes:
CXTA / CXT
Porsche 9YA Cayenne 3.0L Petrol E-Hybrid 2018>>2023
Cars With Engine Codes:
DCBE / DCB
Diagram Ref No 1 (Diagram Ref No 2 Included)
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
9A714592001
The product you are viewing cross references to these numbers
.jpg){kind=link}
- Porsche 9YA.2 Cayenne E-Hybrid V6 3.0L (470Hp) 2023>>
- Porsche 9YA.2 Cayenne E-Hybrid Coupe V6 3.0L (470Hp) 2023>>
- Porsche 9YA.2 Cayenne S E-Hybrid V6 3.0L (519Hp) 2023>>
- Porsche 9YA.2 Cayenne S E-Hybrid Coupe V6 3.0L (519Hp) 2023>>
- Porsche 9YA.2 Cayenne GTS V8 4.0L Bi-Turbo Petrol 2023>>
- Porsche 9YA.2 Cayenne GTS Coupe V8 4.0L Bi-Turbo 2023>>
- Porsche 971.1 Panamera V6 3.0L 2WD (330 Hp) 2017-20
- Porsche 971.1 Panamera 4 V6 3.0L 4WD (330 Hp) 2017-20
- Porsche 971.1 Panamera 4 V6 3.0L 4WD Executive 2017-20
- Porsche 971.1 Panamera 4 3.0L Turbocharged V6 Sport Turismo 2017-20
- Porsche 971.1 Panamera 4S V6 3.0L 4WD (440 Hp) 2017-20
- Porsche 971.1 Panamera 4S V6 3.0L 4WD Executive 2017-20
- Porsche 95B.2 Macan S Petrol 3.0L V6 (354Bhp) 2019-21
x2 O-Rings Included.
Fits:
Porsche 95B.2 Macan S 3.0L Petrol MKII 2019>>2021
Porsche 9YB Cayenne 3.0L Petrol E-Hybrid 2023>>
Porsche 9YB Cayenne S 3.0L Petrol E-Hybrid 2023>>
Porsche 971.1 Panamera 3.0L Petrol MKI 2017>>2020
Cars With Engine Codes:
CXTA / CXT
Diagram Ref No 5 (Diagram Ref No 6 Included)
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
PAC145963
The product you are viewing cross references to these numbers
- Porsche 9YA Cayenne V6 3.0L Petrol (340Hp) 2018-23
- Porsche 9YA Cayenne Coupe V6 3.0L Petrol (340Hp) 2019-23
- Porsche 9YA Cayenne E-Hybrid V6 3.0L V6 (340Hp) 2018-23
- Porsche 9YA Cayenne Coupe E-Hybrid V6 3.0L (340Hp) 2020-23
- Porsche 9YA.2 Cayenne V6 3.0L Petrol (353Hp) 2023>>
- Porsche 9YA.2 Cayenne Coupe V6 3.0L (353Hp) 2023>>
- Porsche 9YA.2 Cayenne E-Hybrid V6 3.0L (470Hp) 2023>>
- Porsche 9YA.2 Cayenne E-Hybrid Coupe V6 3.0L (470Hp) 2023>>
- Porsche 9YA.2 Cayenne GTS V8 4.0L Bi-Turbo Petrol 2023>>
- Porsche 9YA.2 Cayenne GTS Coupe V8 4.0L Bi-Turbo 2023>>
Charge air coolers, often called intercoolers, are heat exchangers that cool the compressed intake air from the turbocharger before it enters the engine’s intake manifold. Turbos heat incoming air during compression; cooling that air increases density and oxygen content, which improves combustion efficiency, power output and reduces the risk of detonation. These coolers also help maintain consistent performance under load by managing intake temperatures.
Fits:
Porsche 9YA Cayenne V6 3.0L 2018 - 2024 (PR:T9I)
Porsche 9YA.2 Cayenne V6 3.0L 2023 >>
Diagram ref no 1 (Left) and 2 (Right)
These coolers are specified for Porsche Cayenne (9YA) models equipped with the 3.0 L turbocharged engine from approximately 2019 onward. They are positioned left and right in the charge-air circuit and are sold individually.
Applications
• Turbo system service: Replace damaged, cracked, or leaking charge air coolers due to wear or debris impact.
• Performance restoration: Restore intake charge cooling efficiency after boost system repairs.
• Diagnostics repair: Address symptoms such as reduced power, increased intake temps, or boost leaks
Intercoolers operate under high temperature and pressure. Using genuine Porsche OE coolers ensures the correct core density, fin design, and pressure handling, which helps maintain engine efficiency, boost response, and power delivery.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
PAB14580
The product you are viewing cross references to these numbers
