- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 914 (1970-1976)

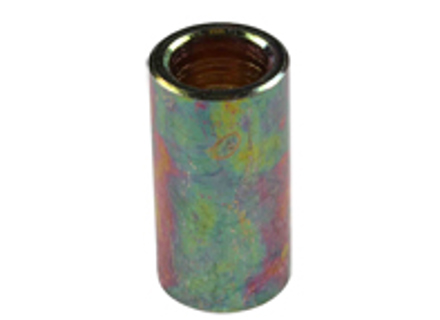

The OE Match Front Stabilizer Bar Drop Link Bushing Spacer Tube is a replacement metal spacer used within the front anti-roll bar drop link bushing assembly on classic Porsche 911, 912 and 914 models.
Fits:
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 914 (1970-1976)
Diagram Ref No 34
Positioned inside the drop link bush, the spacer tube helps maintain the correct distance and alignment of the mounting assembly when the fixing hardware is tightened. It prevents the rubber bush from being excessively compressed while providing a stable internal support for the anti-roll bar connection.
This small but important suspension component is ideal for replacing an original spacer that has become corroded, worn, distorted or lost during suspension refurbishment.
What This Product Does:
The front stabilizer bar, also known as the anti-roll bar, helps control body roll by transferring suspension forces between the left and right sides of the vehicle.
The drop links connect the stabilizer bar to the suspension, while the spacer tube sits within the drop link bushing and helps the mounting assembly operate correctly.
Its functions include:
- Supporting the front stabilizer bar drop link bush
- Maintaining the correct spacing within the mounting assembly
- Preventing excessive compression of the rubber bushing
- Helping keep the drop link correctly aligned
- Providing a solid surface for the mounting hardware to tighten against
- Helping the bush articulate correctly as the suspension moves
- Reducing unwanted movement within the anti-roll bar connection
- Supporting consistent and predictable suspension behaviour
Four spacer tubes are typically required per vehicle, with two used at each drop link.
Symptoms Of Wear Or Failure:
Spacer tubes are subjected to repeated suspension loads, vibration, moisture and road contamination. Over time, the original metal components can corrode or become damaged.
Possible signs that the spacer tube or associated drop link assembly requires attention include:
- Visible rust or heavy corrosion
- Pitting or loss of metal around the spacer
- Bent, crushed or distorted spacer tube
- Excessive play in the front anti-roll bar drop link
- Bushings appearing excessively compressed or deformed
- Loose stabilizer bar mounting hardware
- Knocking or clunking noises from the front suspension
- Rattling when driving over uneven road surfaces
- Increased or inconsistent body roll
- Less precise handling during cornering
- Uneven movement of the drop link assembly
- Damage found during anti-roll bar bush replacement or suspension restoration
Because several components work together in the drop link assembly, the rubber bushes, bolts, washers and drop links should also be inspected whenever the spacer tubes are replaced.
Why Replacement Matters:
- The spacer tube helps establish the correct clamping distance within the drop link bushing assembly. If it becomes badly corroded, crushed or distorted, the bush may no longer be held at the correct compression.
- Excessive bushing compression can restrict normal movement and accelerate rubber deterioration, while insufficient support can introduce unwanted clearance and movement into the anti-roll bar connection.
- Wear within the drop link assembly can lead to knocking noises and reduce the effectiveness of the stabilizer bar, which may contribute to increased body roll and less predictable handling.
- Replacing damaged spacer tubes helps restore the correct mounting geometry, supports proper bushing operation and ensures that the anti-roll bar can transfer suspension forces effectively.
- For classic Porsche suspension restoration, replacing corroded spacer tubes together with ageing drop link bushes is also a sensible way to restore the complete mounting assembly rather than reusing deteriorated original hardware.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
90134373700
The product you are viewing cross references to these numbers
- Porsche 924 2.0L 1980-85
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
Fits - Left or Right
Fits:
Porsche 924 2.0L 1980-85
Porsche 924S 1986-88
Porsche 944 2.5L 1982-85
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94434373
The product you are viewing cross references to these numbers
- Porsche 924 2.0L 1980-85
Bar size 23mm
Fits:
Porsche 924 2.0L 1979-85
Supersedes old part number 477411057K
Click 'Zoom in' for large parts diagram.
Diagram ref no 9.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
477411057P
The product you are viewing cross references to these numbers
- Porsche 924 2.0L 1976-79
- Porsche 924 2.0L 1980-85
- Porsche 924 Turbo 2.0L 1979-81
- Porsche 924 Turbo 2.0L 1982-84
- Porsche 924 Carrera GT 2.0L 1981
- Porsche 924 Carrera GTS 2.0L 1982
Fits inside drop link part numbers:
477411057F - 20mm
477411057G - 22mm
477411057N - 21.5mm
477411057K - 23mm
Replacing your car rubber suspension bushes with Polyurethane Suspension Bushes will give you:
- Better road holding
- Constant steering geometry
- Increased tyre life
- More responsive steering
- Longer service life of suspension components
Fits:
Porsche 924 1978-85
Fits Inside Diagram Ref No 6.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
SPF1169-
The product you are viewing cross references to these numbers
