- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005-08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
The OE Match Rear Stabilizer Bar Bush is a 19.2mm replacement rubber mounting bush for the rear stabilizer bar, also known as the anti-roll bar, on selected Porsche Boxster and Cayman models.
Price Is Each.
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005-08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08

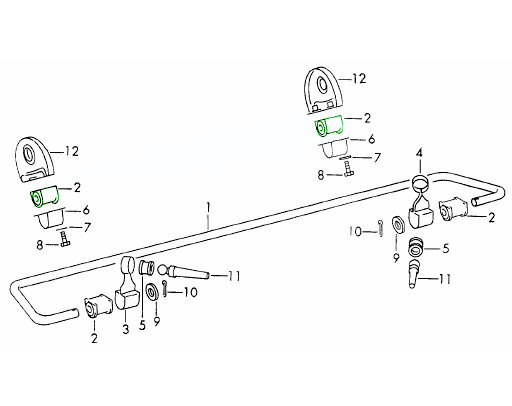

Diagram Ref No 2
Mounted between the rear anti-roll bar and its retaining brackets, the bush securely supports the stabilizer bar while still allowing the controlled rotational movement required as the suspension moves.
Over time, the original rubber bushes can harden, crack or develop excessive clearance around the stabilizer bar. Replacing worn bushes helps restore secure mounting, reduce suspension noise and improve the consistency of rear suspension response.
What This Product Does:
The rear stabilizer bar connects the suspension on the left and right sides of the vehicle and helps reduce body roll during cornering.
The stabilizer bar bushes hold the bar securely to the chassis while allowing it to twist as suspension loads change.
Their main functions include:
- Supporting the rear stabilizer bar
- Maintaining correct anti-roll bar positioning
- Allowing controlled rotational movement
- Helping reduce body roll during cornering
- Preventing excessive movement within the mounting brackets
- Isolating vibration and suspension noise
- Supporting predictable rear suspension behaviour
- Helping maintain consistent handling response
The bush itself does not increase the stiffness of the stabilizer bar. Instead, it ensures the bar is securely supported so it can operate as intended.
Symptoms Of Wear Or Failure:
Stabilizer bar bushes are continually subjected to suspension movement, road contamination, moisture and changes in temperature.
Common symptoms of worn rear anti-roll bar bushes include:
- Knocking or clunking from the rear suspension
- Rattling when driving over uneven roads
- Squeaking from the anti-roll bar mounting area
- Excessive movement of the stabilizer bar
- Visible cracking or splitting of the rubber
- Bush becoming hardened or distorted
- Enlarged or worn internal bore
- Reduced suspension precision
- Increased body movement during cornering
- Rear suspension feeling less controlled
- Stabilizer bar moving inside its mounting bracket
- Wear discovered during suspension inspection
Knocking noises can also be caused by worn drop links, control arms or other suspension components, so the complete rear suspension should be inspected.
Why Replacement Matters:
The stabilizer bar can only work effectively when it is securely mounted.
If the bushes become worn or compressed, the bar can move within its brackets before it begins transferring suspension load from one side of the vehicle to the other.
This unwanted movement can result in:
- Knocking and rattling noises
- Reduced anti-roll bar effectiveness
- Less precise handling
- Increased suspension movement
- Inconsistent cornering response
- Additional stress on related suspension components
Replacing worn bushes restores a tighter connection between the stabilizer bar and chassis, helping the anti-roll bar respond immediately as suspension loads change.
Fresh bushes can therefore improve both refinement and handling by reducing unwanted movement and restoring the original operating position of the stabilizer bar.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99633379228
The product you are viewing cross references to these numbers
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
Size: 18.7mm
Fits:
Porsche 986 Boxster 2.5L, 2.7L - Cars with standard suspension
Porsche 986S Boxster 3.2L 2003-04 - Please choose by size
Porsche 996 C2, C4, C4S 1998-05 - Please choose by size
Porsche 997 C2/C2S/C4/C4S 2005-08 - Please choose by size
Click 'Zoom in' for large parts diagram.
Diagram Ref No 2.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99633379224
The product you are viewing cross references to these numbers
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005-08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
Sold each
Fits:
Porsche 986 Boxster 2.5L / 2.7L / 3.2L 1997 - 2005 Cars with Sport Suspension - Please choose by size
Porsche 987.1 Boxster 2005 - 2008 Cars with Sport Suspension
Porsche 996 C2 / C4 / C4S 1998 - 2005 Cars with Sport Suspension - Please choose by size
Porsche 997.1 C2 / C2S / C4 / C4S 2005 - 2008 - Please choose by size
Diagram Ref No 2.
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 GT2 2001-05
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
Size: 20.9mm
Fits:
Porsche 996 C2/C4/C4S - Please choose by size
Porsche 996 GT2
Porsche 997 C2/C2S/C4/C4S MKI - Please choose by size
Click 'Zoom in' for large parts diagram.
Diagram Ref No 2.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99633379226
The product you are viewing cross references to these numbers
