Rear subframe bushing (complete set). Porsche 993 (all) - 99333105100
99333105100/2
Vehicle Group
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
Information

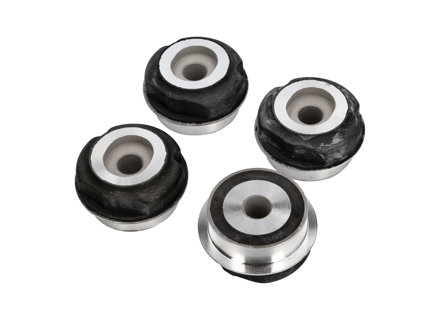

HD Rear subframe bushing. street version
Complete set (4 pcs). 2 sets needed for one car.
Fits:
Porsche 993 1995-98 all models
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99333105100
The product you are viewing cross references to these numbers
Complete set (4 pcs). 2 sets needed for one car.
Fits:
Porsche 993 1995-98 all models
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99333105100
99333105100
99333105200
99333105280
99333105180
The product you are viewing cross references to these numbers
£295.00
Now £280.25
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Related products
Solid subframe bushing set. Porsche 996 / 997
Code: 2290035
Vehicle Group
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche 997 Carrera 2 3.6L 2005>>
- Porsche 997 Carrera 2S 3.8L 2005>>
- Porsche 997 Carrera 4 3.6L 2005>>
- Porsche 997 Carrera 4S 3.8L 2005>>
- Porsche 997 TURBO 2007>>
- Porsche 997 GT3 2007>>
- Porsche 997 GT2 2007>>
- Porsche 997 MKII Carrera C2 3.6L 2009>>
- Porsche 997 MKII Carrera C4 3.6L 2009>>
- Porsche 997 MKII Carrera C2S 3.8L 2009>>
- Porsche 997 MKII Carrera C4S 3.8L 2009>>
- Porsche 997 MKII GT3 2010>>
- Porsche 997 MKII Turbo 2009>>
- Porsche 997 MKII GT2 RS 2011>>
Information
Solid subframe bushing set. 12 bushings in kit. 1 kit req'd per car.
Fits:
Porsche 996 / 997
Improved Handling and Precision
Our Rear Subframe Solid Bushing kit improves handling and precision by providing geometry correction for lowered cars and eliminating deflection. Porsche recognizes these performance benefits and uses a similar solid rear subframe mounting approach on the latest GT3 street and Cup racecars.
Replaces stock rubber bushings in the rear subframe of the Porsche 996 and 997 cars, raising the subframe into the chassis 6.5mm (.25 inch).
Geometry Correction
Lowering the 996/997 provides the benefits of lower center of gravity and improved appearance. Unfortunately lowering also causes the rear suspension members to angle down as the inner links drop with the chassis and the outer links remain at wheel upright height. This downward angle harms performance.
With the suspension members angling up towards the wheel the Roll Center is lowered which causes increased chassis lean, toe and camber curves are shifted and become less optimal, static toe and camber adjustments are shifted often exceeding the range of the stock adjusters.
Our kit raises the rear subframe .25 inches (6.5mm) to help reverse the negative effects of lowering. Suspension member angles are improved and performance is enhanced. Our upper bushing fits inside the subframe, eliminating the entire thickness of the upper rubber bushing for the greatest possible geometry correction achievable from bushings alone.
Eliminate Deflection
Stock rubber bushings compress and deform under heavy cornering, braking, and acceleration loads. The compliant rubber bushings allow the entire rear subframe shift about relative to the chassis. Rear camber and toe settings wander along with the subframe making the car less predictable, less stable in turns.
Our solid bushings replace the compliant rubber and do not deform under cornering loads, keeping the subframe in position and alignment true even under heavy cornering loads. The car becomes more predictable and easier to drive fast.
Build Quality
Each bushing consists of two pieces, an upper plug and lower puck. The plug is machined from solid aluminum with knurled edges for perfect fit.
Lower puck is machined from solid steel with zinc finish for protection.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
2290035
The product you are viewing cross references to these numbers
Fits:
Porsche 996 / 997
Improved Handling and Precision
Our Rear Subframe Solid Bushing kit improves handling and precision by providing geometry correction for lowered cars and eliminating deflection. Porsche recognizes these performance benefits and uses a similar solid rear subframe mounting approach on the latest GT3 street and Cup racecars.
Replaces stock rubber bushings in the rear subframe of the Porsche 996 and 997 cars, raising the subframe into the chassis 6.5mm (.25 inch).
Geometry Correction
Lowering the 996/997 provides the benefits of lower center of gravity and improved appearance. Unfortunately lowering also causes the rear suspension members to angle down as the inner links drop with the chassis and the outer links remain at wheel upright height. This downward angle harms performance.
With the suspension members angling up towards the wheel the Roll Center is lowered which causes increased chassis lean, toe and camber curves are shifted and become less optimal, static toe and camber adjustments are shifted often exceeding the range of the stock adjusters.
Our kit raises the rear subframe .25 inches (6.5mm) to help reverse the negative effects of lowering. Suspension member angles are improved and performance is enhanced. Our upper bushing fits inside the subframe, eliminating the entire thickness of the upper rubber bushing for the greatest possible geometry correction achievable from bushings alone.
Eliminate Deflection
Stock rubber bushings compress and deform under heavy cornering, braking, and acceleration loads. The compliant rubber bushings allow the entire rear subframe shift about relative to the chassis. Rear camber and toe settings wander along with the subframe making the car less predictable, less stable in turns.
Our solid bushings replace the compliant rubber and do not deform under cornering loads, keeping the subframe in position and alignment true even under heavy cornering loads. The car becomes more predictable and easier to drive fast.
Build Quality
Each bushing consists of two pieces, an upper plug and lower puck. The plug is machined from solid aluminum with knurled edges for perfect fit.
Lower puck is machined from solid steel with zinc finish for protection.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
2290035
2290035
99633105101
99633105201
99633105500
99633105600
99633105
99633105501
99633105502
99633305601
99633305602
99733105104
99733105105
99733105205
99733105204
The product you are viewing cross references to these numbers
£226.00
Now £214.70
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Rear axle side section. Porsche 997.1 / 997.2
Code: 99733105
Vehicle Group
- Porsche 997 Carrera 2 3.6L 2005>>
- Porsche 997 Carrera 2S 3.8L 2005>>
- Porsche 997 Carrera 4 3.6L 2005>>
- Porsche 997 Carrera 4S 3.8L 2005>>
- Porsche 997 TURBO 2007>>
- Porsche 997 GT2 2007>>
- Porsche 997 MKII Carrera C2 3.6L 2009>>
- Porsche 997 MKII Carrera C4 3.6L 2009>>
- Porsche 997 MKII Carrera C2S 3.8L 2009>>
- Porsche 997 MKII Carrera C4S 3.8L 2009>>
- Porsche 997 MKII Turbo 2009>>
- Porsche 997 MKII GT2 RS 2011>>
Information
Rear axle side section.
Fits:
Porsche 997.1 Carrera 2005-08
Porsche 997.2 Carrera 2009-12
Porsche 997.1 Turbo 2007-09
Porsche 997.2 Turbo 2010-13

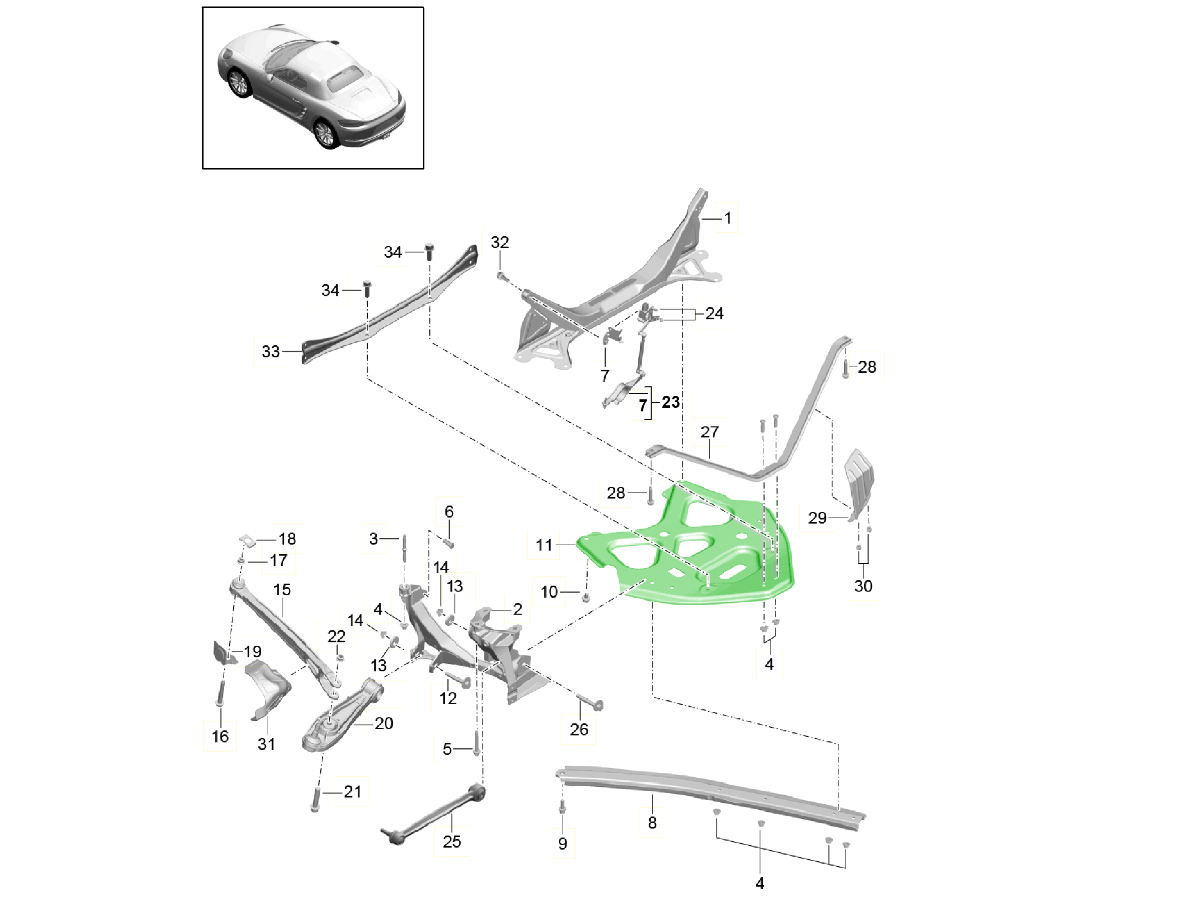

Click 'Zoom in' for large parts diagram.
Diagram ref no 1
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99733105
The product you are viewing cross references to these numbers
Fits:
Porsche 997.1 Carrera 2005-08
Porsche 997.2 Carrera 2009-12
Porsche 997.1 Turbo 2007-09
Porsche 997.2 Turbo 2010-13
Click 'Zoom in' for large parts diagram.
Diagram ref no 1
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99733105
99733105105
99733105104
99733105205
99733105204
The product you are viewing cross references to these numbers
Prices from: £2,256.57
Shop Securely
12 Month Warranty
Worldwide Delivery
Silent block set for rear axle sub frame. Porsche 996, 997
Code: 99633105XXX
Vehicle Group
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche 997 Carrera 2 3.6L 2005>>
- Porsche 997 Carrera 2S 3.8L 2005>>
- Porsche 997 Carrera 4 3.6L 2005>>
- Porsche 997 Carrera 4S 3.8L 2005>>
- Porsche 997 TURBO 2007>>
- Porsche 997 GT3 2007>>
- Porsche 997 GT2 2007>>
- Porsche 997 MKII Carrera C2 3.6L 2009>>
- Porsche 997 MKII Carrera C4 3.6L 2009>>
- Porsche 997 MKII Carrera C2S 3.8L 2009>>
- Porsche 997 MKII Carrera C4S 3.8L 2009>>
- Porsche 997 MKII GT3 2010>>
- Porsche 997 MKII Turbo 2009>>
- Porsche 997 MKII GT2 RS 2011>>
Information
Silent block set for rear axle sub frame. Porsche 996, 997
(Set of 3 bushings for one side) for Left and Right, 2 Sets required
Standard street version.
Fits:
Porsche 997
Porsche 996
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99633105XXX
99733105105
99733105205
99633105201
99633105101
99633105502
99633105602
99633129102
The product you are viewing cross references to these numbers
£235.00
Now £223.25
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
