Category Filter

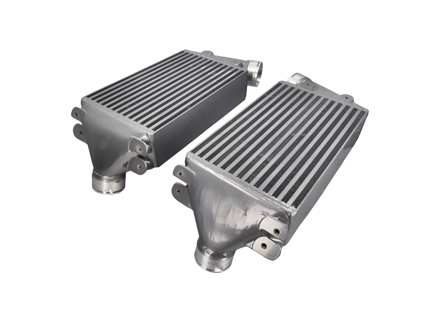

Radiator intercoolers for Porsche 996 Turbo - 99611063000
99611063000
Vehicle Group
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
Information
DesignTek introduces high performance Porsche 996 Turbo and 996 Turbo GT2 intercoolers.
The intercoolers control the side to side flow design that flows along it's 16inch length. This IC will be more than sufficient for any highly tuned 996TTs or GT2s cars to applications of up to 900hp. DesignTek Porsche intercoolers produces high-flow rate and dramatic temperature reduction which are mainly contributed by two key factors. Firstly, the great temperature reduction is accomplished by a 40% larger than stock sized intercooler cores in which each core has the capacity flow rate of 750 CFM. Secondly, which in our opinion is the most important element of an IC; the inlet/outlet end-tanks. Our end-tanks are optimized to greatly increase air flow and reduce pressure drop which yields to improved efficiency. External aluminium surfaces are preserved with silver/grey protective coating.
The specifications:
- Dimensions Core Thickness: 3.5"
- Core Volume vs. Stock: 40% larger
- Performance Efficiency: 85%
- Flow rate: 620 CFM / side
- Leak Tested: @ 30 PSI
- Pressure Drop: less than 1%
Fits:
Porsche 996 Turbo 2000-05
Porsche 996 GT2
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99611063000
The product you are viewing cross references to these numbers
The intercoolers control the side to side flow design that flows along it's 16inch length. This IC will be more than sufficient for any highly tuned 996TTs or GT2s cars to applications of up to 900hp. DesignTek Porsche intercoolers produces high-flow rate and dramatic temperature reduction which are mainly contributed by two key factors. Firstly, the great temperature reduction is accomplished by a 40% larger than stock sized intercooler cores in which each core has the capacity flow rate of 750 CFM. Secondly, which in our opinion is the most important element of an IC; the inlet/outlet end-tanks. Our end-tanks are optimized to greatly increase air flow and reduce pressure drop which yields to improved efficiency. External aluminium surfaces are preserved with silver/grey protective coating.
The specifications:
- Dimensions Core Thickness: 3.5"
- Core Volume vs. Stock: 40% larger
- Performance Efficiency: 85%
- Flow rate: 620 CFM / side
- Leak Tested: @ 30 PSI
- Pressure Drop: less than 1%
Fits:
Porsche 996 Turbo 2000-05
Porsche 996 GT2
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99611063000
99611063000
99611098971
99611064071
99611063971
99611099071
The product you are viewing cross references to these numbers
Price: €950.04
Orderable
Related products
Vehicle Group
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MK1 GT2 2007-09
Information
DesignTek Silicone Boost Pipes / Hoses
Porsche 997 Twin Turbo high performance silicone intake hose kit adds +15Bhp. Fits all Porsche 997TT models worldwide. These are super strong super durably heavy duty replacement hoses for the weakest link and "Achilles heel" in all Porsche 997 Turbo factory stock hoses. The factory 997 TT hoses and clamping systems work adequately on stock cars but once you modify the car and have more boost you need our heavy duty race quality silicone hose kit to eliminate the hoses from expanding.
Fits:
Porsche 997 Turbo
Porsche 997 GT2
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
3603300003
The product you are viewing cross references to these numbers
Porsche 997 Twin Turbo high performance silicone intake hose kit adds +15Bhp. Fits all Porsche 997TT models worldwide. These are super strong super durably heavy duty replacement hoses for the weakest link and "Achilles heel" in all Porsche 997 Turbo factory stock hoses. The factory 997 TT hoses and clamping systems work adequately on stock cars but once you modify the car and have more boost you need our heavy duty race quality silicone hose kit to eliminate the hoses from expanding.
Fits:
Porsche 997 Turbo
Porsche 997 GT2
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
3603300003
99711063101
99711063102
99711063001
99711063002
99711064403
99711064503
The product you are viewing cross references to these numbers
Price: €493.00
In stock
Vehicle Group
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MK1 GT2 2007-09
- Porsche 997 MKII Turbo 2010-13
- Porsche 997 MKII GT2 RS 2011-13
Information
Performance intercooler upgrade kit.
To Fit:
Porsche 911 997.1 Turbo 2007-2009 and GT2RS models
Porsche 911 997.2 GT2 RS model 2010 to 2012
Porsche 911 997.2 Turbo 2010 to 2012
A true performance upgrade intercooler kit for the 997.1 Turbo and GT2. This well thought out refined kit allows fitment of the larger later type 997.2 intercoolers onto the 997.1 model, and includes all the components and hardware necessary for a serious upgrade!
Significant advantages with Do88's Porsche Performance Intercooler Kit:
• Cooler air to your engine!
• High quality, high density UK made motorsport cores.
• 3D freeform designed cast end tanks.
• Custom designed carbon fibre ambient air guides.
• Comes with high quality silicone hoses and accessories for installation.
• See enlarged images for more information!
Do88: After our market research in the beginning of our intercooler development for the 997 generation 2 we understood that not many of the upgrade products on the market are really upgrades but more at the same level as the 997.2 standard intercoolers or sometimes even lower. For this reason we realised from the beginning we could not sacrifice anything to keep the cost down, we just had to do the best possible in the space available in the car!
First of all we carried out a lot of investigation and comparisons between different core types and at last really fell for a high density motorsport core which has great cooling efficiency as well as being light weight. With a great core in place we started to refine the end tank design which brought us to a decision to make cast end tanks as we could then control the air flow distribution over the core in a very precise way. This is very important as a good tank design will be beneficial for both pressure drop and cooling efficiency.
To be able to fit an intercooler with appropriate thickness for the job it was also necessary to design a new upper ambient air guide. This was designed in our 3D scanned environment from carbon fibre to ensure perfect fit to the vehicle integrated air guides and our intercooler. To achieve the best air flow distribution over the core we made intercooler end tanks with 70 mm (2 3/4 inch) connections which then made it necessary to designed custom silicone hoses for all positions.
The hoses are 3D designed with airflow in mind where we CFD tested each hose during development to ensure best possible flow rate of all parts! The hoses between turbocharger and intercooler are special silicone hoses that can withstand up to 240°C (464°F) continuous temperature! Another important aspect for cooling performance is to maximise all ambient cooling air available, to optimise this part we include air block rubber seals for all surfaces where the ambient air guides must seal properly.
With the way we have chosen to build our intercoolers the weight increase compared to the OEM ones is relatively small considering the size of our intercooler and that it's completely made of aluminium. Our intercooler weight is 5,85 kg (12,89 lb) per piece and the 997.2 OEM intercooler weights 3,30 kg (7,27 lb) per piece. It might sound like a big weight increase but not when you compare it to similar core sized intercoolers on the market!
Included in this kit:
• Performance intercoolers
• Carbon fibre air guides
• Silicone hoses
• Hose clamps
• Rubber seals
• Installation hardware
When it comes to performance our intercooler kit gives a great reduction of the intake temperature compared to the OEM 997.2 intercoolers! See enlarged diagrams where we show data from our AIM racelogger recorded at 5 full throttle accelerations done in an immediate sequence without any cool down between 40-260 km/h (25-162 mph) in a Stage 1 tuned Porsche 997.2 Turbo PDK. In all tests the car was driven in Sport Plus, automatic gear change and AC off. First we made 5 runs with the car equipped with OEM intercooler and y-pipe then we switched to do88 performance intercoolers and y-pipe and drove car for a while, then we made 5 runs exactly the same as with the OEM parts. The temperatures are significant lower with our intercoolers which is visible in the graph!
As well as lower intake temperature our big pack also flows better than the 997.2 original intercoolers! See enlarged image showing the air flow rates at different pressure drops in the graph where we compared our big pack to the original intercooler and Y-pipe in our own Superflow SF-1020 Probench to verify the final result!
From our five in a row full throttle accelerations between 40-260 km/h (25-162 mph) we have very accurate and consistent test data for the range 50-250 km/h (31-155 mph). When analyzing the numbers, we found that in average we cut down the acceleration time for 50-250 km/h (31-155 mph) by 3 seconds compared to the OEM intercooler and y-pipe! No software programming or adaption reset was done in between the tests.
Please select which Y-Pipe you intend to install this intercooler kit with from the options.
To Fit:
Porsche 911 997.1 Turbo 2007-2009 and GT2RS models
Porsche 911 997.2 GT2 RS model 2010 to 2012
Porsche 911 997.2 Turbo 2010 to 2012
A true performance upgrade intercooler kit for the 997.1 Turbo and GT2. This well thought out refined kit allows fitment of the larger later type 997.2 intercoolers onto the 997.1 model, and includes all the components and hardware necessary for a serious upgrade!
Significant advantages with Do88's Porsche Performance Intercooler Kit:
• Cooler air to your engine!
• High quality, high density UK made motorsport cores.
• 3D freeform designed cast end tanks.
• Custom designed carbon fibre ambient air guides.
• Comes with high quality silicone hoses and accessories for installation.
• See enlarged images for more information!
Do88: After our market research in the beginning of our intercooler development for the 997 generation 2 we understood that not many of the upgrade products on the market are really upgrades but more at the same level as the 997.2 standard intercoolers or sometimes even lower. For this reason we realised from the beginning we could not sacrifice anything to keep the cost down, we just had to do the best possible in the space available in the car!
First of all we carried out a lot of investigation and comparisons between different core types and at last really fell for a high density motorsport core which has great cooling efficiency as well as being light weight. With a great core in place we started to refine the end tank design which brought us to a decision to make cast end tanks as we could then control the air flow distribution over the core in a very precise way. This is very important as a good tank design will be beneficial for both pressure drop and cooling efficiency.
To be able to fit an intercooler with appropriate thickness for the job it was also necessary to design a new upper ambient air guide. This was designed in our 3D scanned environment from carbon fibre to ensure perfect fit to the vehicle integrated air guides and our intercooler. To achieve the best air flow distribution over the core we made intercooler end tanks with 70 mm (2 3/4 inch) connections which then made it necessary to designed custom silicone hoses for all positions.
The hoses are 3D designed with airflow in mind where we CFD tested each hose during development to ensure best possible flow rate of all parts! The hoses between turbocharger and intercooler are special silicone hoses that can withstand up to 240°C (464°F) continuous temperature! Another important aspect for cooling performance is to maximise all ambient cooling air available, to optimise this part we include air block rubber seals for all surfaces where the ambient air guides must seal properly.
With the way we have chosen to build our intercoolers the weight increase compared to the OEM ones is relatively small considering the size of our intercooler and that it's completely made of aluminium. Our intercooler weight is 5,85 kg (12,89 lb) per piece and the 997.2 OEM intercooler weights 3,30 kg (7,27 lb) per piece. It might sound like a big weight increase but not when you compare it to similar core sized intercoolers on the market!
Included in this kit:
• Performance intercoolers
• Carbon fibre air guides
• Silicone hoses
• Hose clamps
• Rubber seals
• Installation hardware
When it comes to performance our intercooler kit gives a great reduction of the intake temperature compared to the OEM 997.2 intercoolers! See enlarged diagrams where we show data from our AIM racelogger recorded at 5 full throttle accelerations done in an immediate sequence without any cool down between 40-260 km/h (25-162 mph) in a Stage 1 tuned Porsche 997.2 Turbo PDK. In all tests the car was driven in Sport Plus, automatic gear change and AC off. First we made 5 runs with the car equipped with OEM intercooler and y-pipe then we switched to do88 performance intercoolers and y-pipe and drove car for a while, then we made 5 runs exactly the same as with the OEM parts. The temperatures are significant lower with our intercoolers which is visible in the graph!
As well as lower intake temperature our big pack also flows better than the 997.2 original intercoolers! See enlarged image showing the air flow rates at different pressure drops in the graph where we compared our big pack to the original intercooler and Y-pipe in our own Superflow SF-1020 Probench to verify the final result!
From our five in a row full throttle accelerations between 40-260 km/h (25-162 mph) we have very accurate and consistent test data for the range 50-250 km/h (31-155 mph). When analyzing the numbers, we found that in average we cut down the acceleration time for 50-250 km/h (31-155 mph) by 3 seconds compared to the OEM intercooler and y-pipe! No software programming or adaption reset was done in between the tests.
Please select which Y-Pipe you intend to install this intercooler kit with from the options.
Prices from: €4,096.95
Vehicle Group
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MK1 GT2 2007-09
Information
Performance intercoolers & pressure hoses.
To Fits:
Porsche 911 997.1 Turbo and GT2. Fits both manual and auto 2007 to 2009 (phase 1)
Significant advantages with do88's Porsche Performance Intercoolers & Silicone Hoses:
• Equivalent OEM numbers, 997.110.639.00, 997.110.640.00 (ref only)
• Core Volume: 6825 cm³ (4821 cm³), do88 41% larger!
• Lower post Intercooler Air Temperature at same conditions: OEM 50°C (122°F), do88 34°C (93°F)
• See enlarged images for test data results!
These Intercoolers are constructed to deliver the best cooling efficiency during tough conditions. Exclusively manufactured in aluminium with continuous welds, they guarantees reliability and endurance when you really need it. The increased core volume improves cooling efficiency and lowers the intake air temperature. Do88 have undergone thorough testing under severe and continuous conditions to ensure the absolute best performance! These Intercoolers are immensely optimized to allow the maximum core size in the given space without compromising on easy drop-in-fitment. This is the undoubted choice for the inspired enthusiast or the race car driver demanding reliability at the limit.
This package is supplied with everything you need for fitment, including Silicone Hoses, Screws, Brackets and Clamps.
The Boost Pressure Hoses included in this Kit are Silicone reinforced 4 ply polyester fabric for optimum airflow, performance and reliability!
Please note: This is a special-order item, once ordered cannot be cancelled.
To Fits:
Porsche 911 997.1 Turbo and GT2. Fits both manual and auto 2007 to 2009 (phase 1)
Significant advantages with do88's Porsche Performance Intercoolers & Silicone Hoses:
• Equivalent OEM numbers, 997.110.639.00, 997.110.640.00 (ref only)
• Core Volume: 6825 cm³ (4821 cm³), do88 41% larger!
• Lower post Intercooler Air Temperature at same conditions: OEM 50°C (122°F), do88 34°C (93°F)
• See enlarged images for test data results!
These Intercoolers are constructed to deliver the best cooling efficiency during tough conditions. Exclusively manufactured in aluminium with continuous welds, they guarantees reliability and endurance when you really need it. The increased core volume improves cooling efficiency and lowers the intake air temperature. Do88 have undergone thorough testing under severe and continuous conditions to ensure the absolute best performance! These Intercoolers are immensely optimized to allow the maximum core size in the given space without compromising on easy drop-in-fitment. This is the undoubted choice for the inspired enthusiast or the race car driver demanding reliability at the limit.
This package is supplied with everything you need for fitment, including Silicone Hoses, Screws, Brackets and Clamps.
The Boost Pressure Hoses included in this Kit are Silicone reinforced 4 ply polyester fabric for optimum airflow, performance and reliability!
Please note: This is a special-order item, once ordered cannot be cancelled.
Prices from: €1,444.41
