- Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
- Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
- Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16

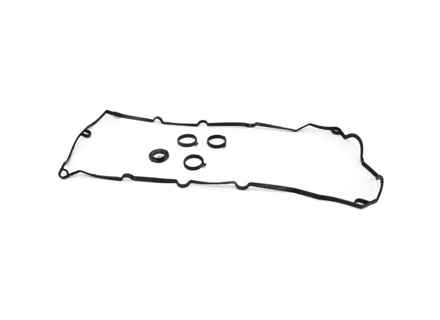

Porsche 970.1 / 970.2 Panamera 3.6 V6 Cam Cover Gasket Set
The cam cover gasket set for the Porsche
970.1 / 970.2 Panamera 3.6 V6 provides essential sealing between engine
components to prevent oil leaks and maintain engine performance. This complete
gasket kit includes:
- Cam cover gasket – Creates a reliable seal between the cam (valve) cover and the cylinder head, preventing oil from escaping the top of the engine.
- Spark plug tube seals x 3 – Seal the wells around the spark plugs, keeping oil out of spark plug areas to ensure consistent ignition and combustion.
-
Throttle control element seal –
Provides a secure seal for the throttle control assembly and prevents oil
contamination or vacuum leaks.
Fits:
- Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
- Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
- Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
Diagram ref no 3, 5 and 6
Together, these seals protect the engine from oil leakage and maintain proper internal pressure, contributing to smooth and dependable Panamera V6 operation.
Why These Seals Fail
Engine seals like cam cover gaskets and spark
plug tube seals are subjected to high temperatures, repeated thermal expansion
and long-term pressure. Over time, these conditions can cause:
- Hardening and cracking from prolonged heat exposure
- Deformation and compression set from repeated cycling
- Oil breakdown that accelerates material fatigue
- Loss of sealing effectiveness after high mileage or extended service intervals
On the Porsche Panamera 970.1/970.2 3.6 V6, these faults are common as the engine ages and accumulates mileage.
Why You May Need a Replacement
If your Panamera displays signs of oil pooling around the top of the engine, dark residue around the cam cover seams, or misfires caused by oil in the spark plug wells, worn seals are likely the cause.
Oil intrusion into spark plug wells can lead
to:
- Fouled spark plugs
- Poor engine performance and rough idle
- Reduced fuel efficiency
- Increased maintenance costs
Replacing the cam cover gasket set restores proper sealing and prevents secondary issues such as spark plug misfires, throttle issues, and premature ignition system wear.
Many owners choose to replace the gasket set during routine maintenance, such as spark plug or ignition coil service, to streamline labour and avoid repeated engine access later.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94610593500KIT
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
Fits:
Porsche 924S 1986-88
Porsche 944 2.5L 1982-88
Gasket set includes:
95110437402 - Head gasket
92810419312 - Valve stem seal x8
92811119312 - Exhaust Manifold to head gasket x4
94411113501 - Down pipe gasket x2
94410519903 - Camshaft housing gasket
94411016305 - Intake manifold gasket x4
92810619704 - Thermostat housing gasket
94410431106 - Coolant inlet housing gasket
92810518400 - Camshaft housing o-ring
99970160240 - Camshaft seal ring
99911328240 - Shaft sealing ring
92810518902 - Camshaft housing rear cork gasket
94410532100 - Gasket
90012314030 - Cam housing screw plug sealing ring
99970146840 - Throttle housing seal
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94410090100
The product you are viewing cross references to these numbers
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
Fits:
Porsche 924S
Porsche 944 / 944S / 944T
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94410090103
The product you are viewing cross references to these numbers
.jpg){kind=link}
- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944S2 3.0L 16V 1989-91
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91
- Porsche 944 Turbo S 2.5L 8V 1988
Fits:
Porsche 924S 1986-88
Porsche 944 1982-91
Click 'Zoom in' for large parts diagram.
Diagram ref no 22
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
92810619704
The product you are viewing cross references to these numbers
