- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
Fitment:
Porsche 986 Boxster / Boxster S 1997 – 2004
Porsche 987 Boxster / Boxster S 2005 – 2008
Porsche 987C Cayman / Cayman S 2006 – 2008
Porsche 996 (911) Carrera / Carrera 4S 1998 – 2004
Porsche 997 (911) Carrera / Carrera S / Carrera 4S 2005 – 2008
PATENT PENDING. MADE IN U.S.A.
More and more we hear about connecting rod bearings seizing or cylinders becoming scored and destroying Porsche M96 and M97 engines. This all has to do with poor lubrication on banking and high speed corners which can result in high engine oil temperature and oil pump starvation. Introducing our newest component, the backflow preventer (BFP).

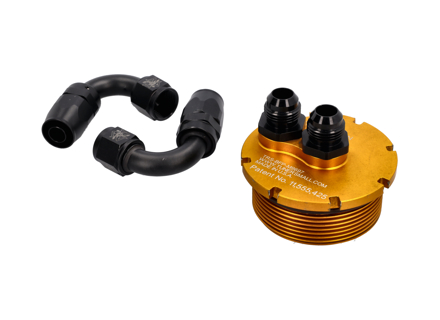

Our Remote Oil Filter Adapter Backflow Preventer (BFP) goes directly in place of the original factory oil filter canister allowing for ease of installation of lubrication & pressure accessories such as oil pressure compensator(s), external oil cooler(s) and a larger, metal oil filter element. Our (BFP) also eliminates restrictive filter size spin on oil filter adapters and sandwich plate options by combining the two into one component & integrating a backflow check valve. Two key benefits here is our (BFP) will provide a greater ground clearance allowing for a much larger remote mounted filter to be placed, which will provide a better oil filtration and flow for the engine assembly, as well as the ability to connect & install multiple oil lubrication & cooling accessories.
Some spin-on oil filter kits currently on the market go in place of the original filter canister area, eliminating the possibility of having multiple oil system accessories, forcing you to use either an oil cooler delete plate with external oil cooler, a spin on "sandwich adapter" in conjunction with the spin on filter adapter to connect an accessory OR nothing at all with simply a smaller filter. This will also create ground clearance issues having multiple components sandwiched together with the inclusion of the oil filter, especially on lowered vehicles. The only way to prevent a ground clearance issue on this setup is to use the smallest filter possible. If a spin on filter adapter & sandwich plate are used without the inclusion of a spin on oil filter, ground clearance will not be the issue at hand; the connection of multiple oil lubrication accessories becomes limited and the greater number of items to purchase increases to have the same oil kit solutions found with our (BFP) stage kits. A remote oil filter adapter and filter will still need to be placed. Save time and money with our (BFP).
A sandwich adapter combo with the spin-on oil filter will also require the use of an external oil check valve which has a maintenance life and will need to be replaced overtime. The (BFP)'s integrated check valve has a lifetime service life eliminating the need to replace a check valve.
Smaller filters are a lot more restrictive on their filtration and will have decreased service intervals. Compared to the original factory oil filter element and other smaller spin-on oil filters, the larger oil filter found on our (BFP) kits diminishes dry starts under cold cranking conditions due to its low restriction design & internal anti-drain back valve assuring immediate oil flow. The larger filter also has a greater burst pressure of up to 500psi designed to take pressure spikes in race engines that have higher oil pressure.
Simple. Easy. Reliable.
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
Models: Boxster, Cayman, 996 and 997 models (excludes GT3 and turbocharged models).
This kit is best used on track only vehicles as ground clearance will become an issue due to the extension.
Fits:
Porsche Boxster 986 / 987.1
Porsche 996 (excluding Turbo, GT2/GT3 models and cars with factory power upgrade – option code X51)
Porsche 997.1 (excluding Turbo and GT2/GT3 models)
Porsche Cayman 987.1
Scavenging and aeration in the oil pan have been identified as a problem in the 996, 997 and Boxster models that experience high G-forces on the racetrack. Motorsports 2 Quart Deep Sump Oil Pan Kit for all 986/996/987/997 Porsche's (excluding GT3, GT2 Turbo and DFI models). This deep sump kit is an extension added to the original oil pan, increasing oil capacity by 2 quarts, helping with oil starvation problems these vehicles commonly have.
Kit Includes:
- 2Quart Pan Extension
- Oil pickup spacer
- Extended Hexagon Head Bolts (x15)
- Aluminium spacers for baffle (x3)
- Stainless oil trap
Please order extra
1 x 703141410 Reinzosil Universal Sealing Compound
2 x 99710701600 Oil tubes
For Installation Instructions CLICK HERE
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
996107032XX
The product you are viewing cross references to these numbers
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MK1 GT3 2007-09
- Porsche 997 MK1 GT2 2007-09
- Porsche 997 MKII Carrera C2 3.6L 2009-12
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C2S 3.8L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
Hard Anodized Aluminum, with magnet, 18 x 1.5mm
Fits:
Porsche 996 1997-04
Porsche 997 2005-08
Porsche 986 Boxster 1997-04
Porsche 987 Boxster 2005-08
Porsche 987C Cayman 2005-08
A magnetic sump oil drain plug is a type of oil drain plug that contains a small magnet designed to attract and capture metallic particles that may be present in your engine's oil. While this type of drain plug is not exclusive to Porsche and can be used in various vehicles, it can provide several benefits, including:
Improved Engine Longevity: The magnet in the drain plug helps to capture tiny metal particles, such as iron, steel, or aluminum, that may circulate in the engine oil. Removing these particles can reduce wear and tear on engine components, potentially extending the engine's lifespan.
Enhanced Engine Performance: By reducing the presence of contaminants in the oil, a magnetic drain plug can help maintain the oil's lubricating properties, which is crucial for smooth engine operation. Clean oil can also contribute to improved fuel efficiency.
Early Detection of Problems: As the magnetic drain plug collects metallic debris, it can serve as an early warning system. By inspecting the drain plug during oil changes, you can get an idea of the engine's condition and detect any unusual wear or damage before it becomes a major issue.
Reduced Maintenance Costs: Regularly inspecting and cleaning a magnetic drain plug can prevent larger issues from developing over time. Addressing potential problems early can save you money on more extensive repairs down the road.
Peace of Mind: Knowing that you are taking steps to protect your engine from premature wear and tear can give you peace of mind as a vehicle owner. It's a relatively inexpensive and simple modification that can provide added assurance.
Easy Installation: Magnetic drain plugs are typically straightforward to install. They often replace the existing drain plug and require no special tools or modifications.
While magnetic drain plugs can offer these benefits, it's essential to remember that they are not a substitute for regular oil changes and proper maintenance. Regular oil changes with the appropriate oil and filter are still crucial for the health and longevity of your engine. Additionally, magnetic drain plugs may not capture all types of contaminants, so they should be seen as a supplementary measure rather than a comprehensive solution.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
90021900930
The product you are viewing cross references to these numbers
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche Boxster 987 2.7L 2005 -08/08
- Porsche Boxster 987 S 3.2/3.4L 2005-08/08
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08
- Porsche Cayman 2.7L 987C 2006-08
- Porsche Cayman S 3.4L 987C 2005-08
For Boxster 986, 987 and 996, 997 Non-Turbo Models through 2008
Scavenging and aeration in the oil pan have been identified as a problem in 996/997, Boxster, and Cayman models experiencing high G-forces on the racetrack. The R-9095 oil pan spacer provides a simple solution. This spacer increases sump capacity by half a quart, providing more reserve to ward off starvation. The R-9095 is approved by the Porsche Club of America for use in PCA club racing Stock and Prepared class cars. The R-9095 kit clears all factory options including the rear skid plate. Added oil capacities as well as increased oil pan surface area increase oil cooling and engine performance.
*Note: Oil pan and sump baffle are OEM parts and do not need to be purchased. Baffle spacer and pick-up tube spacer are included in this kit.
Material: 6061 T6 Aluminum Alloy
Finish: Clear Anodized
Weight: N/A
Models: Boxster, Boxster S, 996/997 models (excludes GT3 and turbocharged models) and Cayman through 2008.
Installation: For best results internal baffle passages should be modified. Modification instructions included in the kit.
Miscellaneous: Spacer adds .5 U.S. quarts to oil pan volume and improves internal baffling system. Extension bolts, baffle spacer and pick-up tube spacer included in the kit.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
R-9095
The product you are viewing cross references to these numbers
