- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 964 (911) RS 3.6L 1991-93
- Porsche 964 (911) RS 3.8L 1991-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
Fits:
Porsche 964 / 993 1989-98
Use With RS/GT2 Type Tie Rods

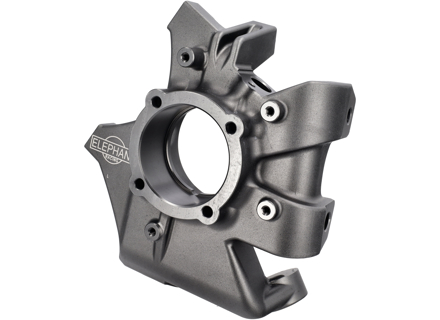

Special front uprights (wheel carriers) were equipped on the 993 RS and cup cars, correctly called RS uprights but sometimes called GT2 uprights or EVO uprights. The reason for RS uprights is to correct undesired geometry changes caused by running a lower ride height.
RS upright advantages include improved suspension travel, superior camber gain, and reduced bump steer. The result is superior performance and ride quality.
RS uprights are an awesome upgrade for any lowered 993 or 964 including C2, C4 and Turbo.
Available Now!
Elephant Racing designed RS uprights faithfully reproduce the factory RS geometry. They are made of aircraft grade 7075 aluminum billet for superior strength. They are a direct replacement for the factory 993 RS uprights.
They accept standard 993 front wheel bearings and cover plates. GT2 type tie rods are required.
993 RS Upright vs Standard Upright Differences. There are three basic differences between RS uprights and standard uprights:
• The wheel bearing has been moved up about 30mm relative to the ball joint
• The steering knuckle is relocated and has inverted mounting of the tie rod
• RS uprights are aluminium as are standard 993 uprights. 964 standard uprights are steel.
993 RS Upright Geometry Correction. Lowering a 993 with stock uprights causes several undesired geometry changes, all of which are corrected by the RS uprights.
RS uprights improve camber gain. The lower control arm angles up at the ball joint end, putting the suspension in a poor point on the camber curve. RS uprights angle the lower control arm back down, thus enhancing camber gain and ride quality.
RS uprights improve suspension travel. Lowering the car compresses the front strut and reduces available suspension travel. The result is premature bottoming out, poor handling and ride quality caused by contact with the bump stop – which creates an abrupt and unsettling rise in spring rate at that corner that unsettles the car. RS uprights put back suspension travel.
RS uprights reduce bump steer. Lowering the car moves the stock tie rod into an unfavourable position on the bump steer curve, make the car a handful to drive over uneven surfaces and requiring frequent adjustments at the steering wheel to maintain a steady trajectory. RS uprights relocate the tie rod end placing bump steer in a favourable position on the curve at lowered ride height.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
239000
The product you are viewing cross references to these numbers
for Porsche Boxster / Cayman / 911 / Panamera / Taycan
Sold each.
Fits:
Porsche 911 (993 / 996 / 997 / 991 / 992)
Porsche Boxster (986 / 987 / 981)
Porsche Cayman (987 / 981 / 718)
Porsche Panamera (970)
Porsche Taycan
Alignment eccentric washer, also referred to as a cam adjust arm or control arm adjust cam, is used in the rear suspension of certain Porsche 911, Boxster, Cayman and Panamera models.
Position on Vehicle: Rear suspension — at the rear control arm or track rod mounting point, typically used to adjust alignment of the wheel carrier, track bar or control arm.
Applications: Ideal for when original eccentric bolts or washers are worn, alignment cannot be set correctly, or when replacing control arms/track rods and correct alignment geometry is required.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
PAF007648
The product you are viewing cross references to these numbers
Cleaning kit for corroded wheel studs & adjacent hub surfaces
Removes dirt & corrosion & prepares surfaces for correct torque application
Ideal for preparing wheels, hubs and brake discs or drums for re-assembly
Suitable for use with power drill or air impact wrench
Kit contains:
- Stud cleaner body including velcro pad
- Replacement velcro pads x 2
- Fine cleaning discs x 5
- Coarse cleaning discs x 5
Find out about Textar product verification here
Aluminium bell with steel core and 12,5 mm (1/2“) seat for use on pneumatic impact screwdrivers.
Corrosion between the rim and the wheel hub is removed so torque values can no longer be distorted.
Complete with 1 cleaning disc
Find out about Textar product verification here
