- Porsche 958 Cayenne V6 3.0L Diesel 245HP 2010-17
- Porsche 958 Cayenne S V8 4.2L Diesel 382HP 2010-17
The AdBlue pump is responsible for drawing urea solution (AdBlue) from the tank and delivering it under pressure to the injector/nozzle. Because AdBlue is corrosive and operates in a harsh environment (with potential crystallization, heat, etc.), the pump internals (seals, diaphragms, valves, sensors) can degrade over time.
A repair kit for the AdBlue pump is a kit that contains internal components (e.g. seals, diaphragms, O-rings, valves, sometimes membrane or small internal parts) to refurbish an existing pump instead of replacing the full assembly. The idea is to renew the “wear items” inside the pump that tend to fail first.

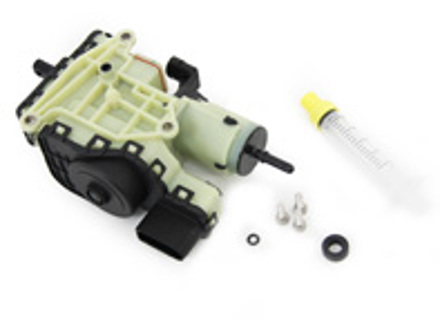

Product reference number 95811390300 is the repair set / kit corresponding to the AdBlue pump for certain Porsche Cayenne 958 (diesel) models.
Fits:
Porsche 958 Cayenne 3.0L Diesel 2011-18 *cars without activated carbon canister with SCR (option code: 1E9)
Porsche 958 Cayenne S 4.2L Diesel 2011-18 *EU6 plus exhaust concept (option code 7MM)
Why these repair kits are needed / when to replace
Pump failure or malfunction
The pump ceases to draw or deliver AdBlue solution properly.
Dosing errors (under or over dosing) cause emissions faults or “AdBlue system malfunction” warnings.
The ECU or emission control module detects that the pump can’t maintain required pressure.
Leaks / seal degradation
The internal seals, O-rings, membranes can degrade, harden, crack or leak from exposure to urea, heat cycles, crystallization, contamination.
Leaks may manifest as fluid loss, crystallized deposits, or detection of low AdBlue despite tank level being fine.
Clogging / contamination / crystallization
Urea solutions tend to crystallize if they dry or if concentration levels are off. Crystals can obstruct internal passages or damage internal parts.
Foreign particles or contamination in the fluid can damage valves, check components or rub against internal surfaces.
Wear / fatigue of internal moving parts
The pump generally has moving parts (diaphragms, pistons, valves) that wear or fatigue over time.
The dosing pump is cycled many times, so mechanical wear is expected after service life.
Electrical / sensor elements
Some pumps or kits may include or interface with sensors or pressure regulation elements; if those fail, the pump may be flagged even if mechanical parts are intact.
Click 'Zoom in' for large part diagram.
Diagram ref no 8
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95811390300
The product you are viewing cross references to these numbers
