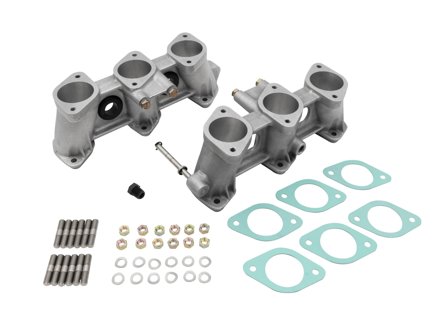

PMO induction inlet manifold set for 46mm carburettor. Porsche 911 3.0ltr with CIS injection - PM-O9
PM-O9
Vehicle Group
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
Information
PMO induction inlet manifold set for 46mm PMO carburettor.
Sold as a Pair
To be used with PMO Induction 46mm Carburettors
Please see the PMO vs OE Carb Overview
Please see the PMO vs OE Carb Overview
Fits
Porsche 911 3.0ltr with CIS injection
Small Port 3.0ltr cylinder Head
46x35mm CIS Manifolds
Carburettor Size - 46mm
Port Size - 35mm
Manifold Height - Standard
Head / Port Configuration - Continuous Injection System (CIS)
Large Port 3.0ltr cylinder Head
46x38mm CIS Manifolds
Carburettor Size - 46mm
Port Size - 38mm
Manifold Height - Standard
Head / Port Configuration - Continuous Injection System (CIS)
Ported 3.0ltr cylinder Head
46x40mm CIS Manifolds
Carburettor Size - 46mm
Port Size - 40mm
Manifold Height - Standard
Head / Port Configuration - Continuous Injection System (CIS)
For inlet manifold selection first determine the base engine’s year and displacement. The original fuel system on the engine type dictates the manifold
port shape and then it is a matter of matching the port size and carb size desired.
port shape and then it is a matter of matching the port size and carb size desired.
Prices from: £534.00
