PMO Induction 46mm carburettor kit, performance version. Porsche 911 3.2ltr through to 3.4ltr engine capacity - PM-O806-0
PM-O806-0
Vehicle Group
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
Information
PMO Induction 46mm Carburettor Kit - Performance Version
Fits
Porsche 911 - Air cooled engine with a capacity of 3.2ltr through to 3.4ltr

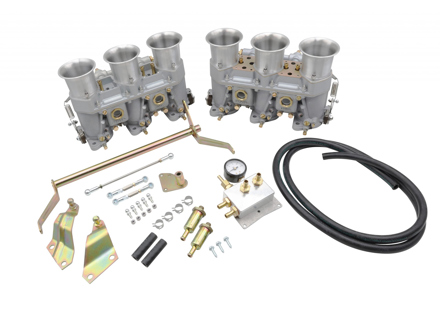

Kit Includes
Carburettors, linkage and fuel regulator
PMO Induction utilises aerospace quality castings, machining tolerances, IDF jetting and float technology that is based on Weber's most modern carburettor design.
The original 46mm Weber carburettors simply have the throttle plate enlarged, whereas PMO’s have the
entire throttle body enlarged from the top throat through the plate meaning the air flow capabilities of
PMO Induction’s carburettors are significantly improved over the equivalent size Weber.
PMO Induction use a one-piece, machined stainless steel throttle shaft, supported by large ball
bearings for a lifetime of smooth throttle action negating the Weber carburettors biggest problem as
Weber carbs suffered greatly with throttle shaft wear, air leaks, and binding over the years. Weber throttles also suffer from heat soak
that exacerbate the wear issues but this does not affect PMO Induction carburettors.
The PMO Induction carburettors have a sight glass float bowl to allow for accurate setting of fuel levels,
much more simple and efficient than the Weber IDA method that requires partial a carburettor disassembly.
The fuel inlet system is also greatly improved to provide significantly improved flow capacity and fuel delivery balance against
the banjo set-up on the Weber carbs, which are highly prone to leak and are capacity limited on high flow applications.
Specification:
Carburettor Size - 46mm
Choke - 40
Mains - 165
Air Corrector - 180
Em Tubes - F7t
Idle Jets - 60
Replacing worn or faulty Weber carburettors or looking for increased performance? Choose PMO Induction carburetors
Weber carburettors are a good product, but they were designed for mass production. PMO Induction carburetors are highly engineered and designed to exacting standards tht are not feasible in typical mass production.
This is why we feel that PMO Induction carburetors are a superior product.
Please see the PMO vs OE Carb Overview
Fits
Porsche 911 - Air cooled engine with a capacity of 3.2ltr through to 3.4ltr
Kit Includes
Carburettors, linkage and fuel regulator
PMO Induction utilises aerospace quality castings, machining tolerances, IDF jetting and float technology that is based on Weber's most modern carburettor design.
The original 46mm Weber carburettors simply have the throttle plate enlarged, whereas PMO’s have the
entire throttle body enlarged from the top throat through the plate meaning the air flow capabilities of
PMO Induction’s carburettors are significantly improved over the equivalent size Weber.
PMO Induction use a one-piece, machined stainless steel throttle shaft, supported by large ball
bearings for a lifetime of smooth throttle action negating the Weber carburettors biggest problem as
Weber carbs suffered greatly with throttle shaft wear, air leaks, and binding over the years. Weber throttles also suffer from heat soak
that exacerbate the wear issues but this does not affect PMO Induction carburettors.
The PMO Induction carburettors have a sight glass float bowl to allow for accurate setting of fuel levels,
much more simple and efficient than the Weber IDA method that requires partial a carburettor disassembly.
The fuel inlet system is also greatly improved to provide significantly improved flow capacity and fuel delivery balance against
the banjo set-up on the Weber carbs, which are highly prone to leak and are capacity limited on high flow applications.
Specification:
Carburettor Size - 46mm
Choke - 40
Mains - 165
Air Corrector - 180
Em Tubes - F7t
Idle Jets - 60
Float Check Valve - 0.5
Please Note
* The engine cc range in the listings is an approximation based on typical displacement requirements utilising standard (stock) ported cylinder heads and factory style cams.
Any carb sets / manifolds should always be matched to the head port size for the standard (stock) engines.
**Engines with enlarged ports, higher compression ratios, race camshafts, will require additional components for tuning beyond the standard kit
specifications
* The engine cc range in the listings is an approximation based on typical displacement requirements utilising standard (stock) ported cylinder heads and factory style cams.
Any carb sets / manifolds should always be matched to the head port size for the standard (stock) engines.
**Engines with enlarged ports, higher compression ratios, race camshafts, will require additional components for tuning beyond the standard kit
specifications
