Piston SET OF 6 (10.5 / 98 mm). Porsche 911 3.0 SC - XP5003
XP5003
Vehicle Group
- Porsche 911 1978-1983 3.0L / SC
Information

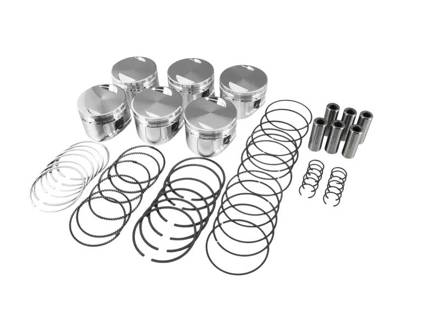

Piston SET OF 6 for Porsche 911 3.0 SC
Bore: 98 mm
Size / STD: 3 mm
Stroke: 70.4 mm
Rod C-C: 127.75 mm
Comp Height: 1.335 in
Comp Ratio: 10.5
Dome Height: 0.440
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 22 mm
Pin Length: 2.250
Pin Wall: 0.180
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5003
The product you are viewing cross references to these numbers
Bore: 98 mm
Size / STD: 3 mm
Stroke: 70.4 mm
Rod C-C: 127.75 mm
Comp Height: 1.335 in
Comp Ratio: 10.5
Dome Height: 0.440
Head CC: 90
VR Depths: .180/.135
Rings Thk: 1.0 X 1.2 X 2.8
Pin Diameter: 22 mm
Pin Length: 2.250
Pin Wall: 0.180
X series pistons are designed to fit the air cooled Porsche 911 engines including 3.0 Liter SC, 3.2 Liter Carrera, 3.6 Liter and 3.8 Liter RSR.
Manufactured from 2618 alloy, the pistons utilize a narrow pin boss forging and come with heavy duty pins for extra strength. Pistons include full 3-D under crown milling, normally only found on custom pistons, insuring the lightest possible piston. Each piston features anti-detonation grooves, accumulator grooves, double pin oil with broach, our wire lox system with installation tool and a set of CPN rings, consisting of gas nitride top ring with napier cut second.
X style forgings covers 4 bore sizes ranging from 95 MM, 98 mm, 100 MM and 102 MM. This complete package is the most modern available for the vintage 911 engine.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
XP5003
9010
The product you are viewing cross references to these numbers
Price: £1,120.59
Orderable
Shop Securely
12 Month Warranty
Worldwide Delivery
