- Porsche 964 (911) C2 1989-93

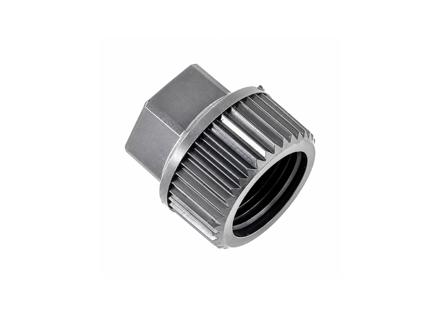

Union Nut for Brake Fluid Reservoir Pipes
Sold each – 2 required per car
The Brake Fluid Reservoir Pipe Union Nut is a replacement
fastening component for the brake hydraulic system of the Porsche 911 (964)
Carrera 2.
Fits:
- Porsche 964 (911) C2 1989-93
Diagram Ref No 6
Designed to secure the appropriate brake fluid reservoir pipe connection, it helps maintain a correctly assembled hydraulic system and prevent fluid leakage.
What Does It Do?
The union nut secures the relevant brake fluid pipe connection, helping maintain a reliable joint within the braking system.
Why Does It Fail?
Common causes include:
- Corrosion and age-related deterioration
- Damaged or stripped threads
- Overtightening during servicing
- Damage from incorrect tools
- Repeated removal and refitting
When Should It Be Replaced?
Replace if the nut is corroded, rounded, cracked or has damaged threads.
Inspection is recommended when repairing or replacing brake fluid reservoir pipes.
Checks & Installation
Inspect the mating fitting, pipe end and sealing surfaces for damage.
Use the correct replacement fitting and follow Porsche workshop procedures. After installation, check for leaks and bleed the braking system where required.
Key Features
- Replacement brake pipe union nut
- Suitable for applicable Porsche 964 Carrera 2 models
- Helps secure brake fluid reservoir pipe connections
- Replaces damaged or corroded fittings
- Suitable for brake hydraulic system repairs
Porsche 964 Carrera 2 Brake Fluid Reservoir & Hydraulic Pipe Parts
The Porsche 964 braking system relies on correctly fitted hydraulic pipes, unions and reservoir connections to maintain reliable operation.
Replacing worn or damaged union nuts helps restore secure pipe connections during brake system maintenance and restoration.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99912601241
The product you are viewing cross references to these numbers
Fits:
Porsche 911 1977-89
Porsche 911 (930) Turbo 1975-89
Porsche 924 1976-85
Porsche 924 S 1986-88
Porsche 928 1978-85
Porsche 944 1982-90
Porsche 968 1992-95
Click 'Zoom in' for large parts diagram.
Diagram ref no 23
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
251611243
The product you are viewing cross references to these numbers
DOT 4
Having an extremely high boiling point and lower viscosity than required, it meets and greatly exceeds regulatory standards. Also suitable for vehicles with ABS.
Vapour Lock formation
This sort of habit leaves room for the Vapour Lock, the formation of vapour bubbles due to boiling of the brake fluid that replace the normal fluid and are compressed, thereby sending the brake pedal to its fill stoke (spongy pedal). The origin is incident in the porosity of the tubes that make up the braking circuit, which in time draw moisture into the fluid, drastically reducing the boiling point. The result is a reduced braking efficiency.
Brembo Premium Brake Fluid
Brembo Premium brake fluids have a higher boiling point that exceeds the standard, thus offering superior resistance to the Vapour Lock and ensuring braking efficiency even at low temperatures. With high anti-corrosion properties and resistance to oxidation, Brembo brake fluid also allows for long-term unaltered chemical/physical characteristics of the fluid in operating circuit; therefore, preserving its integrity.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
L040
The product you are viewing cross references to these numbers
Brake fluid is one of the most important fluids in a car as without it, stopping the vehicle safely would be impossible. The Brake fluid transmits the force exerted by the driver on the brake pedal onto the wheel brake.
To ensure perfect operation of the brakes, the brake fluid must be changed regularly during inspection or maintenance and tested with the correct brake fluid tester.
Brake fluid should be changed every two years.
The higher the DOT class, the higher the boiling temperature and wet boiling point. Higher DOT classes tend to allow longer maintenance intervals. The DOT standards are based on the American FMVSS-116 standard of the Department of Transportation (DOT).
Boiling Point and Viscosity
Dry Boiling Point - describes the property of the sealed new brake fluid. In this state, the brake fluid is almost anhydrous (substance containing no water). The dry boiling point is usually between 240 and 280°C.
Wet Boiling Point - determines the property of the brake fluid at the end of its life cycle, at a water content of 3.5% the fluid should be replaced. This defined wet boiling point must not be undercut.
Viscosity - describes the flow rate of the brake fluid. The lower the viscosity, the faster the brake fluid flows through the brake system, and the faster the brake signals are transmitted.
Important Notes
• Brake fluid is poisonous and a hazardous waste.
• Be careful when changing. The fluid weakens paints and plastics.
• It must not come into contact with eyes or skin. Always rinse spilled liquid with water.
• Do not pour the liquid into drinking water or mix with used oil.
• The colour of the brake fluid reveals nothing about its quality.
• Brake fluid should be stored in its original packaging and in a dry, cool and well-ventilated place.
Find out about Textar product verification here
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95002
The product you are viewing cross references to these numbers
.jpg){kind=link}
.jpg){kind=link}
.jpg){kind=link}
Brake fluid DOT 4 LV (Low Viscosity) Textar.
Textar DOT 4 LV (Low Viscosity) is especially recommended for use in hydraulic brake and clutch systems of vehicles fitted with ESP, ABS and ASR with a high boiling point and outstanding performance at very low temperatures.
DOT 4 LV (Low Viscosity)
Dry Boiling Point ≥ 260° C
Wet Boiling Point ≥ 165° C
Viscosity at -40C < 750 mm2 /s
Brake fluid is one of the most important fluids in a car as without it, stopping the vehicle safely would be impossible. The Brake fluid transmits the force exerted by the driver on the brake pedal onto the wheel brake.
To ensure perfect operation of the brakes, the brake fluid must be changed regularly during inspection or maintenance and tested with the correct brake fluid tester.
Brake fluid should be changed every two years.
The higher the DOT class, the higher the boiling temperature and wet boiling point. Higher DOT classes tend to allow longer maintenance intervals. The DOT standards are based on the American FMVSS-116 standard of the Department of Transportation (DOT).
Boiling Point and Viscosity
Dry Boiling Point - describes the property of the sealed new brake fluid. In this state, the brake fluid is almost anhydrous (substance containing no water). The dry boiling point is usually between 240 and 280°C.
Wet Boiling Point - determines the property of the brake fluid at the end of its life cycle, at a water content of 3.5% the fluid should be replaced. This defined wet boiling point must not be undercut. <
Viscosity - describes the flow rate of the brake fluid. The lower the viscosity, the faster the brake fluid flows through the brake system, and the faster the brake signals are transmitted.
Important Notes
• Brake fluid is poisonous and a hazardous waste.
• Be careful when changing. The fluid weakens paints and plastics.
• It must not come into contact with eyes or skin. Always rinse spilled liquid with water.
• Do not pour the liquid into drinking water or mix with used oil.
• The colour of the brake fluid reveals nothing about its quality.
• Brake fluid should be stored in its original packaging and in a dry, cool and well-ventilated place.
Find out about Textar product verification here
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95006
The product you are viewing cross references to these numbers
