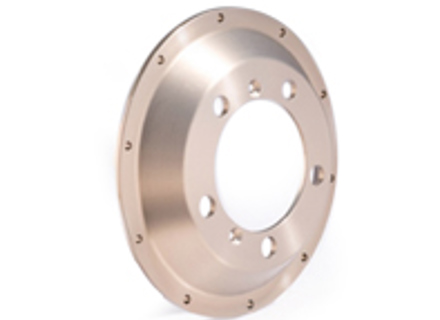

Pagid RBD racing rear brake disc mounting bell. Porsche 997 GT3 Cup - EB350120101
EB350120101
Vehicle Group
- Porsche 997 MK1 GT3 2007-09
- Porsche 997 MKII GT3 2010-11
Information
Pagid RBD racing rear brake disc mounting bell.
Sold individually - 2 required per car
For Race Track Use Only
Fits:
Porsche 997 GT3 Cup
Rear brake disc mounting bell only
Brake disc and bobbins purchased separately
Specification
Type - Mounting Bell
Hat Interface PCD - 12 x 208
Inside Diameter - 103mm
Axle - Rear
Stud bolt Circle - 5 x 130
Offset - 38.8mm
Face Thickness - 6.5mm
Pagid Racing's Mounting Bell provides the ideal solution for an uncompromising and highly efficient partnership between brake pad and brake disc.
Strict quality controls during a long development process result in a high performance racing brake disc, optimised for weight, cooling performance and crack resistance.
In conjunction with the brake pads, the products create a highly efficient brake team
Sold individually - 2 required per car
For Race Track Use Only
Fits:
Porsche 997 GT3 Cup
Rear brake disc mounting bell only
Brake disc and bobbins purchased separately
Specification
Type - Mounting Bell
Hat Interface PCD - 12 x 208
Inside Diameter - 103mm
Axle - Rear
Stud bolt Circle - 5 x 130
Offset - 38.8mm
Face Thickness - 6.5mm
Pagid Racing's Mounting Bell provides the ideal solution for an uncompromising and highly efficient partnership between brake pad and brake disc.
Strict quality controls during a long development process result in a high performance racing brake disc, optimised for weight, cooling performance and crack resistance.
In conjunction with the brake pads, the products create a highly efficient brake team
Price: €448.92
Orderable
Shop Securely
12 Month Warranty
Worldwide Delivery
