- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
- Porsche 997 MK1 Carrera 2 3.6L 2005-08
- Porsche 997 MK1 Carrera 2S 3.8L 2005-08
- Porsche 997 MK1 Carrera 4 3.6L 2005-08
- Porsche 997 MK1 Carrera 4S 3.8L 2005-08

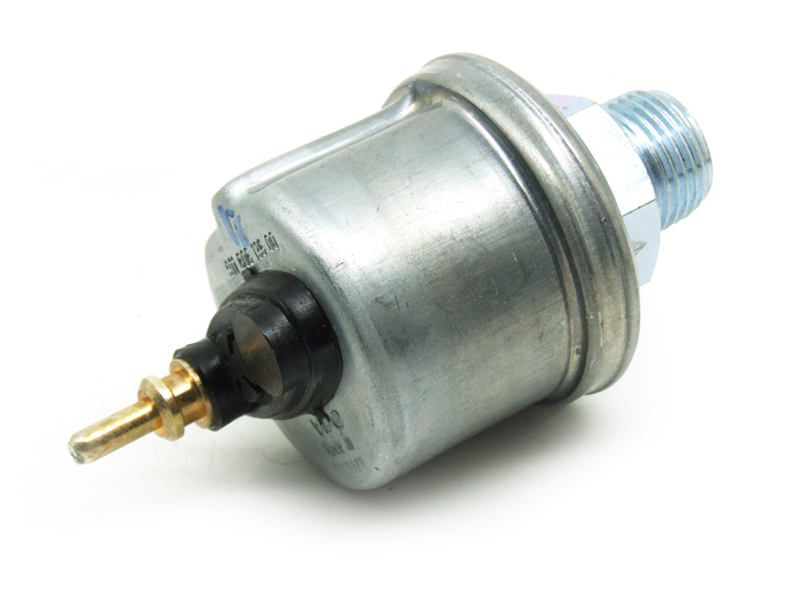

Engine oil pressure sender / switch
Mounted on the cylinder head, this component monitors pressure within the engine lubrication system and supplies the corresponding signal for the dashboard oil-pressure display and warning system.
Fits:
Porsche 996 Carrera 3.4L / 3.6L 1998 - 2005
Porsche 997 Carrera 3.6L / 3.8L 2005 - 2008

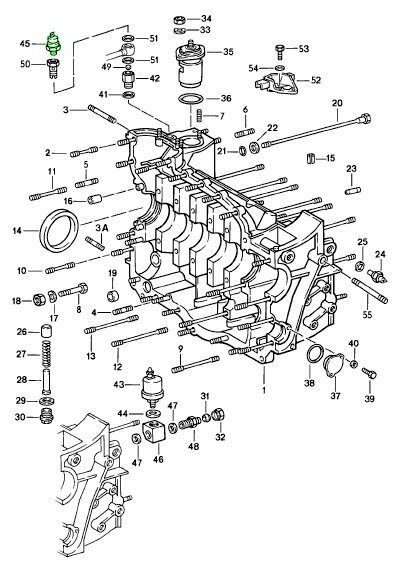

Diagram Ref No 32. (Cylinder Head)
Functions
- Monitors engine oil pressure
- Provides information to the dashboard pressure gauge
- Supports the low oil-pressure warning system
- Helps identify potentially unsafe lubrication conditions
Technical Details
- Brand: OE Match
- Porsche cross-reference: 99660620303
- Installation position: cylinder head
- Diagram location: cylinder head, reference number 32
Symptoms of Fault
- Oil-pressure gauge readings that fluctuate unexpectedly
- Gauge momentarily dropping to zero before recovering
- Warning light flickering at idle despite the correct oil level
- Pressure display remaining unusually high or low
- Intermittent readings associated with heat or vibration
- Oil seepage around the sender body or connection
Why Replacement Matters
A defective sender may produce inaccurate readings or false dashboard warnings. However, low oil pressure can also indicate a genuine lubrication fault, so the engine oil level and actual pressure should be checked before the sender is assumed to be the cause. A mechanical pressure test is the preferred method of confirming the engine's true oil pressure.
FAQs
- Does a flickering oil warning always mean the sender has failed?
No. Treat any oil-pressure warning as genuine until the oil level and actual pressure have been checked. - How can the sender be diagnosed?
Inspect the electrical connection and wiring, then compare the displayed reading with a mechanical oil-pressure gauge. - Should a leaking sender be replaced?
Yes. Seepage from the sender body or seal can worsen and allow oil to contaminate nearby components.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99660620303
The product you are viewing cross references to these numbers
- Porsche Boxster 987 MKII 2.9L 2009-12
- Porsche Boxster S 987 MKII 3.4L 2009-12
- Porsche Boxster 981 2.7L 2012-16
- Porsche Boxster 981 S / GTS 3.4L 2012-16
- Porsche 997 MKII Carrera C2 3.6L 2009-12
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C2S 3.8L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
- Porsche 997 MKII Turbo 2010-13
- Porsche 991.1 Carrera C2 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C2S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 Carrera C4 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C4S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 R 4.0L (500 Bhp) 2016
- Porsche 991.2 Carrera 2 3.0L (370 Bhp) 2016-19
- Porsche 991.2 Carrera 2S / GTS 3.0L (420/450 Bhp) 2016-19
- Porsche 991.2 Carrera 4 3.0L (370 Bhp) 2016-19
- Porsche 991.2 Carrera 4S / GTS 3.0L (420/450 Bhp) 2016-19
- Porsche 991.2 Cabriolet 2 3.0L (370 Bhp) 2016-19
- Porsche 991.2 Cabriolet 2S / GTS 3.0L (420/450 Bhp) 2016-19
- Porsche 991.2 Cabriolet 4 3.0L (370 Bhp) 2016-19
- Porsche 991.2 Cabriolet 4S / GTS 3.0L (420/450 Bhp) 2016-19
- Porsche 991.2 Targa 4 3.0L (370 Bhp) 2016-19
- Porsche 991.2 Targa 4S / GTS 3.0L (420/450 Bhp) 2016-19
- Porsche 991.2 GT3 4.0L (500 Bhp) / GT3 RS 4.0L (520 Bhp) 2017-19
- Porsche Cayman S / R 3.4L 987C MKII 2009-12
- Porsche Cayman 2.7L 981 2013-16
- Porsche Cayman S / GTS 3.4L 981 2013-16
- Porsche Cayman GT4 3.8L 2015-16

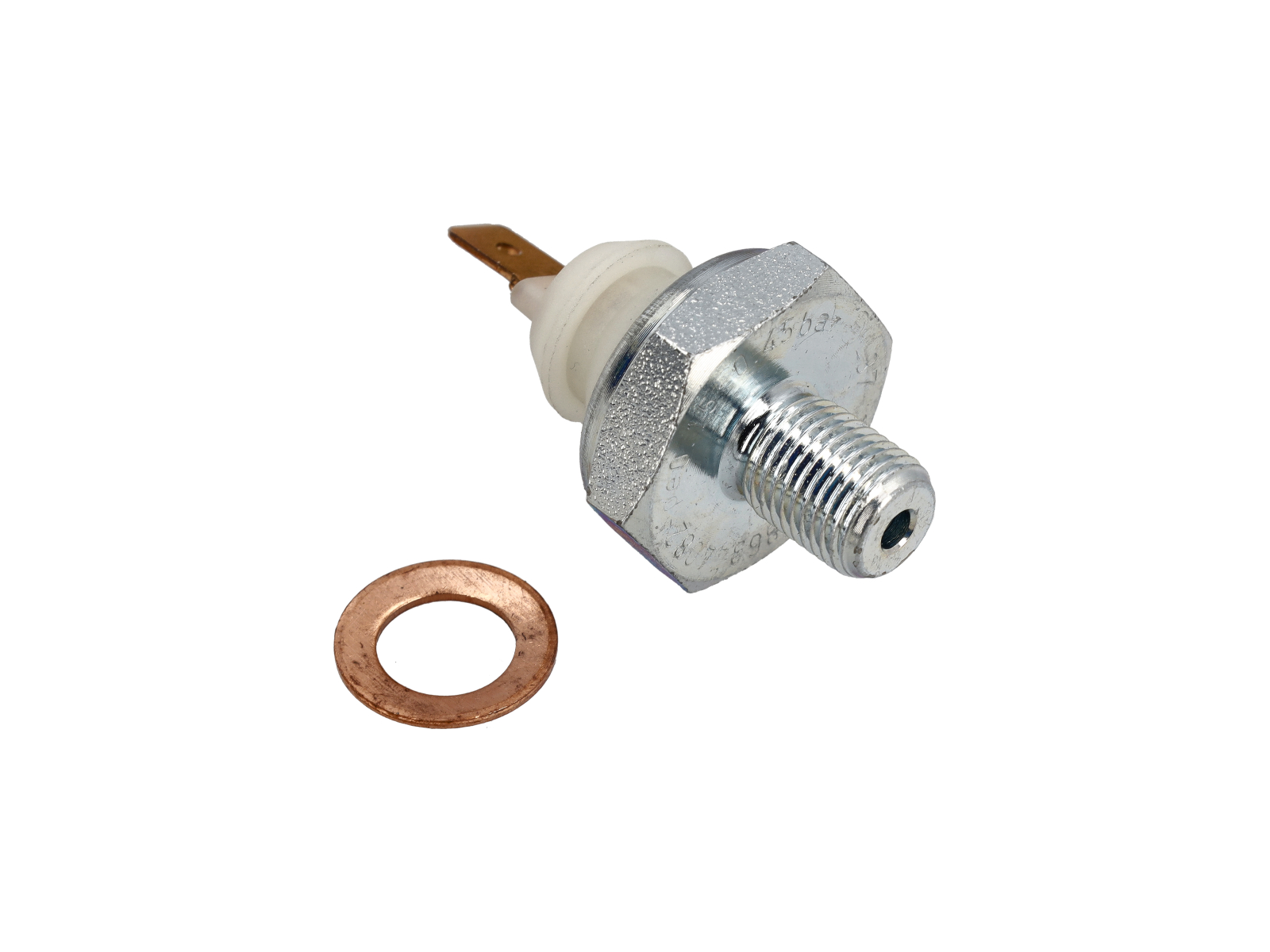

Sits on oil filter housing.
Fits:
Porsche 981 Boxster
Porsche 981C Cayman
Porsche 987.2 Boxster 2010-2012 (10bar)
Porsche 987C.2 Cayman 2010-2012 (10bar)
Porsche 997.2 Carrera
Porsche 997TT.2 Turbo
Porsche 991.1 Carrera
Porsche 991.2 Carrera
Porsche 991 R / GT3 / GT3 RS (on crankcase)
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94860621300
The product you are viewing cross references to these numbers
- Porsche Boxster 987 MKII 2.9L 2009-12
- Porsche Boxster S 987 MKII 3.4L 2009-12
- Porsche Boxster 981 2.7L 2012-16
- Porsche Boxster 981 S / GTS 3.4L 2012-16
- Porsche 997 MKII Carrera C2 3.6L 2009-12
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C2S 3.8L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
- Porsche 997 MKII Turbo 2010-13
- Porsche 991.1 Carrera C2 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C2S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 Carrera C4 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C4S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 R 4.0L (500 Bhp) 2016
- Porsche 991.2 Carrera 2 3.0L (370 Bhp) 2016-19
- Porsche 991.2 Carrera 2S / GTS 3.0L (420/450 Bhp) 2016-19
- Porsche 991.2 Carrera 4 3.0L (370 Bhp) 2016-19
- Porsche 991.2 Carrera 4S / GTS 3.0L (420/450 Bhp) 2016-19
- Porsche 991.2 Cabriolet 2 3.0L (370 Bhp) 2016-19
- Porsche 991.2 Cabriolet 2S / GTS 3.0L (420/450 Bhp) 2016-19
- Porsche 991.2 Cabriolet 4 3.0L (370 Bhp) 2016-19
- Porsche 991.2 Cabriolet 4S / GTS 3.0L (420/450 Bhp) 2016-19
- Porsche 991.2 Targa 4 3.0L (370 Bhp) 2016-19
- Porsche 991.2 Targa 4S / GTS 3.0L (420/450 Bhp) 2016-19
- Porsche 991.2 GT3 4.0L (500 Bhp) / GT3 RS 4.0L (520 Bhp) 2017-19
- Porsche Cayman S / R 3.4L 987C MKII 2009-12
- Porsche Cayman 2.7L 981 2013-16
- Porsche Cayman S / GTS 3.4L 981 2013-16
- Porsche Cayman GT4 3.8L 2015-16
Sits on oil filter housing.
Fits:
Porsche 981 Boxster
Porsche 981C Cayman
Porsche 987.2 Boxster 2010-2012 (10bar)
Porsche 987C.2 Cayman 2010-2012 (10bar)
Porsche 997.2 Carrera
Porsche 997TT.2 Turbo
Porsche 991.1 Carrera
Porsche 991.2 Carrera
Porsche 991 R / GT3 / GT3 RS (on crankcase)
