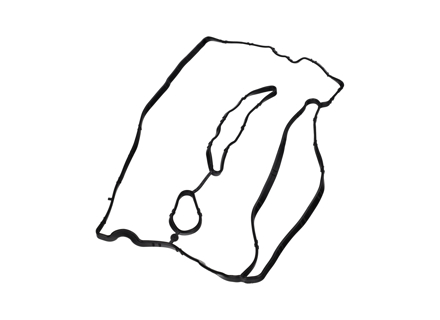

Engine Cam Cover Gasket. Porsche 997.2 / 981 Boxster / 981 Cayman / 991.1 - 9A110573
9A110573
Vehicle Group
- Porsche Boxster 987 MKII 2.9L 2009-12
- Porsche Boxster S 987 MKII 3.4L 2009-12
- Porsche Boxster 981 2.7L 2012-16
- Porsche Boxster 981 S / GTS 3.4L 2012-16
- Porsche 997 MKII Carrera C2 3.6L 2009-12
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C2S 3.8L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
- Porsche 997 MKII Turbo 2010-13
- Porsche 991.1 Carrera C2 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C2S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 Carrera C4 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C4S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 Turbo 3.8L (520 Bhp) 2014-16
- Porsche 991.1 Turbo S 3.8L (560 Bhp) 2014-16
- Porsche Cayman 2.9L 987C MKII 2009-12
- Porsche Cayman S / R 3.4L 987C MKII 2009-12
- Porsche Cayman 2.7L 981 2013-16
- Porsche Cayman S / GTS 3.4L 981 2013-16
- Porsche Cayman GT4 3.8L 2015-16
Information
Engine Cam Cover Gasket.
The OE Match Engine Cam Cover Gasket is a high-quality replacement engine sealing component designed to provide a secure, leak-free seal between the camshaft cover and cylinder head. Manufactured to OE specifications for fit, durability and sealing performance, these gaskets help prevent engine oil leaks while protecting critical valvetrain and camshaft components from contamination.
Fits:
Diagram Ref No 9
Constructed from premium heat-resistant gasket materials, the cam cover gaskets are engineered to withstand continuous exposure to engine oil, high operating temperatures, pressure fluctuations and vibration. They play a vital role in maintaining engine cleanliness, preserving lubrication efficiency and ensuring long-term engine reliability.
What This Product Does:
Symptoms Of Wear Or Failure:
Why Replacement Matters:
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
9A110573
The product you are viewing cross references to these numbers
The OE Match Engine Cam Cover Gasket is a high-quality replacement engine sealing component designed to provide a secure, leak-free seal between the camshaft cover and cylinder head. Manufactured to OE specifications for fit, durability and sealing performance, these gaskets help prevent engine oil leaks while protecting critical valvetrain and camshaft components from contamination.
Fits:
- Porsche Boxster 987 MKII 2.9L 2009-12
- Porsche Boxster S 987 MKII 3.4L 2009-12
- Porsche Boxster 981 2.7L 2012-16
- Porsche Boxster 981 S / GTS 3.4L 2012-16
- Porsche 997 MKII Carrera C2 3.6L 2009-12
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C2S 3.8L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
- Porsche 997 MKII Turbo 2010-13
- Porsche 991.1 Carrera C2 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C2S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 Carrera C4 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C4S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 Turbo 3.8L (520 Bhp) 2014-16
- Porsche 991.1 Turbo S 3.8L (560 Bhp) 2014-16
- Porsche Cayman 2.9L 987C MKII 2009-12
- Porsche Cayman S / R 3.4L 987C MKII 2009-12
- Porsche Cayman 2.7L 981 2013-16
- Porsche Cayman S / GTS 3.4L 981 2013-16
- Porsche Cayman GT4 3.8L 2015-16
Diagram Ref No 9
Constructed from premium heat-resistant gasket materials, the cam cover gaskets are engineered to withstand continuous exposure to engine oil, high operating temperatures, pressure fluctuations and vibration. They play a vital role in maintaining engine cleanliness, preserving lubrication efficiency and ensuring long-term engine reliability.
What This Product Does:
- Creates a secure seal between the cam cover and cylinder head.
- Prevents engine oil leaks from the valvetrain area.
- Helps maintain correct engine oil levels and lubrication.
- Protects camshaft and valvetrain components from contamination.
- Supports efficient engine operation and reliability.
- Helps maintain engine cleanliness.
- Contributes to long-term engine protection and performance.
Symptoms Of Wear Or Failure:
- Visible oil leaks around the cam cover.
- Oil residue on the cylinder head or surrounding engine components.
- Burning oil smell from oil contacting hot engine parts.
- Oil drips beneath the vehicle.
- Low engine oil levels between services.
- Smoke from the engine bay caused by oil leakage.
- Dirt accumulation around leaking gasket areas.
- Oil contamination of ignition components in certain applications.
- Increased engine bay contamination from leaking oil.
Why Replacement Matters:
- Cam cover gaskets operate in demanding conditions and are constantly exposed to engine heat, oil, vibration and thermal cycling. Over time, gasket materials can harden, shrink, crack or lose elasticity, reducing their ability to maintain an effective seal.
- A failing cam cover gasket can allow engine oil to escape from the cylinder head area, resulting in oil loss, contamination of surrounding components and reduced engine cleanliness. If left unresolved, ongoing oil leaks can contribute to reduced lubrication efficiency, increased engine wear and potential damage to nearby electrical or ignition system components.
- Replacing a worn cam cover gasket restores proper sealing, prevents oil leaks and helps maintain the integrity of the engine lubrication system. An OE Match replacement provides factory-style fitment, dependable sealing performance and long-term durability, ensuring reliable protection for your Porsche engine and valvetrain assembly.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
9A110573
9A110573103
9A110573102
9A110573203
9A110573202
The product you are viewing cross references to these numbers
Prices from: €20.48
Related products
Information
Victor-Reinz Reinzosil gasket maker valve cover oil sump sealant 300°C 70ml
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
703141410
The product you are viewing cross references to these numbers
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
703141410
703141410
PCG04330087
70-31414-10
The product you are viewing cross references to these numbers
Price: €6.44
In stock
Information
Hylomar Gasket 3400 is a modified anaerobic curing, flexible sealant designed to become a Formed in Place (FIP) Gasket when cured. The cured compound has good temperature resistance and high resistance to fretting. The cure is initiated when the compound is in contact with metal ions and in anaerobic conditions. The cure rate and final strength is dependent on the metals being joined and the temperature at which the component is used. The heat generated by a running engine will accelerate the cure.
Typical Applications
Hylomar Gasket 3400 can be used as a gasketing compound between machined surfaces. It is ideal for sealing between mating faces on engines and transmission components where resistance to temperature and vibration are essential.
INSTRUCTIONS FOR USE
Hylomar Gasket 3400 should be applied to clean and dry surfaces, free of contamination such as oil or grease. The compound may be dispensed by hand from cartridge, concertina pack, or via a screen printing system. Once applied the joint should be assembled as soon as practical. Any excess compound can be easily wiped off external surfaces with a clean cloth soaked in Acetone or other suitable solvents.
Typical Physical Properties:
UNCURED PRODUCT
Composition: Methyl-Methacrylate
Colour: Yellow
Viscosity @ 25°C / Brookfield Spindle 6 @ 2.5rpm: 100,000cps
Specific Gravity @ 25°C: 1.10 g/ml
Solvent Content: None
Typical Applications
Hylomar Gasket 3400 can be used as a gasketing compound between machined surfaces. It is ideal for sealing between mating faces on engines and transmission components where resistance to temperature and vibration are essential.
INSTRUCTIONS FOR USE
Hylomar Gasket 3400 should be applied to clean and dry surfaces, free of contamination such as oil or grease. The compound may be dispensed by hand from cartridge, concertina pack, or via a screen printing system. Once applied the joint should be assembled as soon as practical. Any excess compound can be easily wiped off external surfaces with a clean cloth soaked in Acetone or other suitable solvents.
Typical Physical Properties:
UNCURED PRODUCT
Composition: Methyl-Methacrylate
Colour: Yellow
Viscosity @ 25°C / Brookfield Spindle 6 @ 2.5rpm: 100,000cps
Specific Gravity @ 25°C: 1.10 g/ml
Solvent Content: None
Specific Gravity g/ml @ 25°C: 1.04
Flash Point: >100°C
Shelf Life: 1 Year @ 4° to 25°C
CURED PRODUCT
Handling Time: 40 minutes
Functional Cure Time: 4 – 6 hours
Full Cure Time : 24 – 72 hours
Shear Strength : 1.5 N/mm²
Mild Steel/Mild Steel BS 5350 Part C5
Aluminium/Aluminium BS 5350 Part C5
Temperature Range: -40° to 150°C
