Your Vehicle
Porsche // 993 (911) (1994-1998) // 993 (911) C2 1994-97
Enter your VAT number here and click Verify:
Your details have been verified. VAT number registered to:
,
.
Your order will now be zero rated for VAT purposes. We reserve the right to verify these details after your order request has been made and reinstate VAT if required.
Your VAT details were not recognised or were invalid. Your VAT number must be matched to your Billing Country as specified above. This is currently specified as . You do not need to enter the country code part of your VAT number as this has already been selected in your billing address details above.
The VAT number checking service is currently offline. Please supply your VAT details within the comments or special instructions field below and we will apply a VAT discount after placing your order request.
- Porsche Boxster 986 2.5L 1997-99
- Porsche Boxster 986 2.7L 1999-02
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster 986 2.7L 2003-04
- Porsche Boxster S 986 3.2L 2003-04
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
For Cars With 6-Speed Manual Gearbox ONLY!
Fits:
Porsche 986 Boxster 1997>>2004
Porsche 996 Carrera 2 / 4 1998>>2001
Diagram Ref No 11
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.

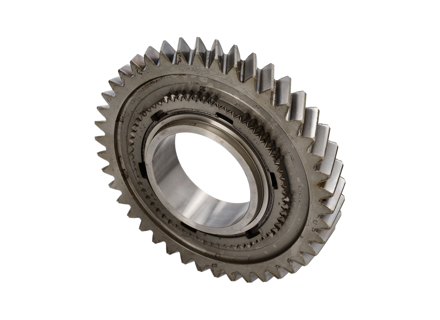

99630204100
The product you are viewing cross references to these numbers
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
Z = 42 : 11 1.gear
Z = 43 : 20 2.gear
Fits:
Porsche 993 C2 / C4 1994-98 (G5021 / G6421)
Click 'Zoom in' for large parts diagram.
Diagram ref no. 1
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99330290123
The product you are viewing cross references to these numbers
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
Fits:
Porsche 993 - 1994 to 1998
Available with different gear ratios - example - 10:31 (number of teeth on each gear) - 3.10:1 (gear ratio)
10:31 - 3.10:1
9:31 - 3.44:1
10:38 - 3.80:1
8:32 - 4.00:1
8.33 - 4.125:1
Diagram ref no 8
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95030291181
The product you are viewing cross references to these numbers
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) C4 1989-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MK1 GT3 / GT3 RS 2007-09
- Porsche 997 MK1 GT2 2007-09
- Porsche 997 MKII GT3 / GT3 RS 2010-11
- Porsche 997 MKII Turbo 2010-13
- Porsche 997 MKII GT2 RS 2011-13
Fits:
Porsche 964 Carrera 2/4 5-Speed Manual 1993>>1994
Porsche 993 Carrera 6-Speed Manual 1994>>1998
Porsche 996 Turbo / GT2 6-Speed Manual 2001>>2005
Porsche 996 GT3 MKI / MKII 6-Speed Manual 1999>>2005
Porsche 997.1 Turbo / GT2 MKI 6-Speed Manual 2007>>2009
Porsche 997.2 Turbo / GT2 RS MKII 6-Speed Manual 2010>>2013
Porsche 997 GT3 MKI / MKII 6-Speed Manual 2007>>2011
Diagram Ref No 54
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95030229607
The product you are viewing cross references to these numbers
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C4 1994-97
- Porsche 993 (911) RS 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 993 (911) C4S 1994-97
- Porsche 993 (911) TURBO 1994-96
- Porsche 993 (911) GT2 1994-97
- Porsche 993 (911) TURBO S 1994-97
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche 997 MK1 TURBO 2007-09
- Porsche 997 MK1 GT3 / GT3 RS 2007-09
- Porsche 997 MK1 GT2 2007-09
- Porsche 997 MKII GT3 / GT3 RS 2010-11
- Porsche 997 MKII GT2 RS 2011-13
Porsche guide sleeve assembly, comprising a synchronising hub and operating sleeve, for the specified 993, 996 and 997 manual transmissions. Gear-pair allocation depends on the gearbox: the diagrams identify both 3rd/4th-gear and 5th/6th-gear positions.
Fits
- Porsche 993 Carrera G50.20/21, 1995 onwards
Supplied variants: 993 (911) C2 1994–97; 993 (911) C2S 1994–97. - Porsche 993 Carrera 4 G64.20/21, 1995 onwards
Supplied variants: 993 (911) C4 1994–97; 993 (911) C4S 1994–97. - Porsche 993 Carrera RS G50.31/32/33, 1994–98
Supplied variant: 993 (911) RS 1994–97. - Porsche 993 Turbo G64.51, 1994–98
Supplied variants: 993 (911) TURBO 1994–96; 993 (911) TURBO S 1994–97. - 993 (911) GT2 1994–97.
- Porsche 996 Turbo and Turbo X50 G96.50, 2001–05 — 5th/6th gear
Supplied model coverage: 996 TURBO 2000–05. - Porsche 996 GT2 G96.88, 2001–05 — 5th/6th gear
- Porsche 996 GT3-1 G96.90, 2000–01; G96.93, 2001; G96.96, 2004–05 — 5th/6th gear
Supplied variants: 996 GT3 MKI 1999–02; 996 GT3 MKII 2003>>; 996 GT3 RS 2003–04. - Porsche 997.1 Turbo GT2 G97.88, 2008–09, and 997.1 GT2 RS G97.88, 2011 — 5th/6th gear
Supplied variants: 997 MK1 TURBO 2007–09; 997 MK1 GT2 2007–09. - Porsche 997 GT3 G97.90, up to 2009 — 5th/6th gear
Supplied variants: 997 MK1 GT3 / GT3 RS 2007–09. - Porsche 997 GT3 / GT3 RS G97.90/92, 2010 onwards — 5th/6th gear
Supplied variants: 997 MKII GT3 / GT3 RS 2010–11. - Porsche 997.2 GT2 RS G97.88, 2011 — 5th/6th gear
Supplied model coverage: 997 MKII GT2 RS 2011–13; the corresponding diagram also uses G9788.
Confirm the vehicle's model, production year, engine, gearbox designation and transmission serial number before ordering. The model-year listings do not replace the gearbox-specific restrictions.
What This Product Does
Within the manual transmission, this assembly connects gear selection with the synchronising mechanism. Movement of the sleeve allows the selected gear to couple to its shaft; matching the sleeve to the correct transmission and gear position is essential.
Functions
- Provides the hub and sliding sleeve used for gear engagement.
- Works with the associated synchroniser components during selection.
- Serves the gear pair identified for each applicable gearbox.
Technical Details
- Porsche identification number: 95030402123.
- Diagram terminology: guide sleeve; synchronising hub and operating sleeve assembly.
- Specified 993 3rd/4th-gear version: internal dimension 33.66 mm.
- 993 transmission serial-number restrictions: G50.20 1 002694 >>; G50.20 2 002174 >>; G50.21 1 005073 >>; G50.21 2 003095 >>. Associated production remark: 95-95-95-95-.
- The 993 diagram also identifies a 5th/6th-gear position. Later listed 996 and 997 diagrams identify this component for 5th/6th gear.
- Recorded diagram quantity: 1 for each applicable position; this is not a statement of package contents.
Symptoms of Fault
Possible indications include resistance when selecting the relevant gears, a crunch during shifts, unreliable engagement or jumping out of gear. Inspection may reveal scoring, looseness or damaged engagement surfaces. Metallic particles in gearbox oil suggest internal deterioration but do not identify this sleeve alone as the cause.
Why Replacement Matters
Renewal is appropriate when inspection confirms damage or wear affecting engagement. During dismantling, assess adjacent gear teeth, synchroniser rings, springs, engagement pieces and bearings. Check the clutch, selector linkage and lubricant specification as well, since faults elsewhere can resemble a sleeve problem.
FAQs
Which gear pair uses this assembly?
The relevant 993 entry specifies 3rd/4th gear, while another 993 position and the listed later transmissions specify 5th/6th gear. Match the diagram position and transmission serial restrictions.
Does a difficult shift prove sleeve failure?
No. Diagnosis should distinguish internal wear from clutch, linkage and lubrication problems before parts are selected.
What should be checked during installation?
A gearbox specialist should examine the neighbouring synchroniser hardware, bearings and gears, then follow the applicable assembly procedures.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95030402123
The product you are viewing cross references to these numbers
