JE Piston Set. Porsche 996 turbo / 997 turbo 3.6L (9.4:1) - 362143
362143
Vehicle Group
- Porsche 996 TURBO 2000-05
- Porsche 996 GT2 2001-05
- Porsche 997 TURBO 2007>>
Information

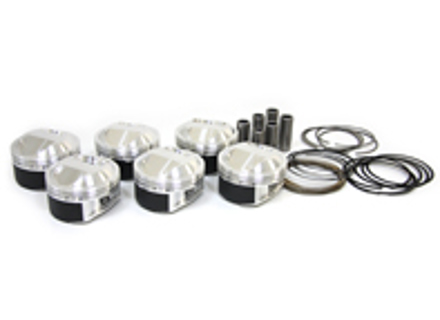

JE piston - Set of 6
Fits:
Porsche 996 3.6L Turbo M96.70
Porsche 996 3.6L GT2 M96.70
Porsche 997 3.6L Turbo M97.70
Piston Material: 2618
Forged Bore: 3.937 (100.0mm)
Oversize: STD
Stroke: 76.4mm
Rod length: 5.0" (127.0mm)
Dome CC's: -.25.5
Comp Dist: 1.303" (33.1mm)
C/R: 9.4:1
Ring package designed for: 0.97, 1.2, 2.0mm
Piston Avg Weight: 430 grams
Designed for 911 engines compatible with a Nickel Ceramic bore, these pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined and all new applications include skirt coating and 3D undercrown milling. Piston clearances designed for aluminium cylinders, steel/iron cylinders may require additional clearance.
• Accumulator Grooves
• Skirt Coating
• 3D Lightweight Undercrown Milling
• Pin fitting and wire locks
• 9310 high carbon alloy or tool steel wrist pins
• Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
362143
The product you are viewing cross references to these numbers
Forged from 2618 Aluminium Alloy
Fits:
Porsche 996 3.6L Turbo M96.70
Porsche 996 3.6L GT2 M96.70
Porsche 997 3.6L Turbo M97.70
Piston Material: 2618
Forged Bore: 3.937 (100.0mm)
Oversize: STD
Stroke: 76.4mm
Rod length: 5.0" (127.0mm)
Dome CC's: -.25.5
Comp Dist: 1.303" (33.1mm)
C/R: 9.4:1
Ring package designed for: 0.97, 1.2, 2.0mm
Piston Avg Weight: 430 grams
Designed for 911 engines compatible with a Nickel Ceramic bore, these pistons are machined from forged 2618 alloy for greater strength. The valve pockets are machined to accommodate high lift cams, and accept the stock stroke and rod length. The ring grooves are precision CNC machined and all new applications include skirt coating and 3D undercrown milling. Piston clearances designed for aluminium cylinders, steel/iron cylinders may require additional clearance.
2618 Aluminium Alloy
Pistons manufactured from 2618 wrought aluminium alloy are designed for racing and very demanding applications. These environments necessitate the higher strength 2618 aluminium alloy. When exposed to heat, 2618 aluminium alloy expands 15% more than 4032 aluminium alloy therefore the initial piston to cylinder wall needs to be 15% greater. This difference is most noticeable during cold start. When running at operating temperature both 2618 and 4032 pistons have approximately the same clearances.
• Accumulator Grooves
• Skirt Coating
• 3D Lightweight Undercrown Milling
• Pin fitting and wire locks
• 9310 high carbon alloy or tool steel wrist pins
• Rings Included
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
362143
99610313174
99610391574
The product you are viewing cross references to these numbers
