IMS Double row bearing Direct Oil Feed (DOF) Intermediate Shaft Retrofit Kit for 997 Carrera - IMSDOF9972
IMSDOF9972
Vehicle Group
- Porsche 997 Carrera 2 3.6L 2005>>
- Porsche 997 Carrera 2S 3.8L 2005>>
- Porsche 997 Carrera 4 3.6L 2005>>
- Porsche 997 Carrera 4S 3.8L 2005>>
Information
IMS KIT DOUBLE ROW STEEL BEARING
Before ordering, it is necessary to identify which bearing size you need. There are two types of bearings (Single row and Double row) used in these engines. This kit comes with DOUBLE row bearing.
Fits:
Porsche 997 Carrera 2005-2008

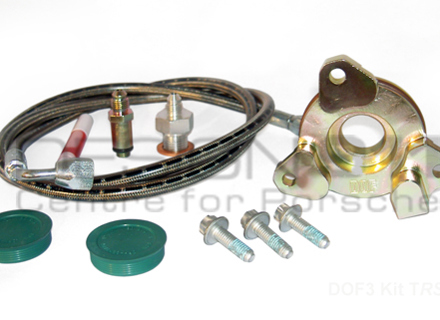

Kit Includes:
Patented DOF Flange with anti-rust zinc plating
3 micro-encapsulated Porsche bolts
Spacer for double-row bearing
Engine oil port adapter with crush ring
Cam Plug
3,000psi hydraulic hose
Fitting for hose
Thread locker
Installation instructions
The direct oil feed (DOF) solution uses a patent pending custom made Intermediate Shaft Flange that utilizes a direct oil feed to the original Intermediate Shaft Bearing. It uses an adapted pressure fed oil line from a positive oil pressure feed on the cylinder head directly to an opening in the custom Intermediate Shaft Flange. This feeds fresh oil directly to the open end of the IMS bearing (after removing the seal to expose the ball bearings on the IMS bearing). By using a positive oil feed from the engine's cylinder head valve cover, there will always be a consistent flow of oil directed to the open end of the intermediate shaft bearing.
This is a cost effective way to help protect against a possible IMS bearing failure, using the original bearing. The system, however can also be used when replacing the bearing with a new SKF steel ball bearing for added insurance with a new, zero mile bearing.
For Installation Instructions CLICK HERE
Before ordering, it is necessary to identify which bearing size you need. There are two types of bearings (Single row and Double row) used in these engines. This kit comes with DOUBLE row bearing.
Fits:
Porsche 997 Carrera 2005-2008
Kit Includes:
Patented DOF Flange with anti-rust zinc plating
3 micro-encapsulated Porsche bolts
Spacer for double-row bearing
Engine oil port adapter with crush ring
Cam Plug
3,000psi hydraulic hose
Fitting for hose
Thread locker
Installation instructions
The direct oil feed (DOF) solution uses a patent pending custom made Intermediate Shaft Flange that utilizes a direct oil feed to the original Intermediate Shaft Bearing. It uses an adapted pressure fed oil line from a positive oil pressure feed on the cylinder head directly to an opening in the custom Intermediate Shaft Flange. This feeds fresh oil directly to the open end of the IMS bearing (after removing the seal to expose the ball bearings on the IMS bearing). By using a positive oil feed from the engine's cylinder head valve cover, there will always be a consistent flow of oil directed to the open end of the intermediate shaft bearing.
This is a cost effective way to help protect against a possible IMS bearing failure, using the original bearing. The system, however can also be used when replacing the bearing with a new SKF steel ball bearing for added insurance with a new, zero mile bearing.
For Installation Instructions CLICK HERE
About kit
This kit is comprised of the following items:
1 x Direct oil feed installation kit for M97 engines 2005-2008 (99710599701
1 x Double row IMS bearing for DOF (99610599644
€982.80
Now €933.66
