Ignition distributor TUNE+ Bluetooth. Porsche 912 / 914 / 356 - 123TB4RV
123TB4RV
Vehicle Group
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 356 1950-55
- Porsche 356A 1955-59
- Porsche 356B 1959-63
- Porsche 356C 1963-65
- Porsche 914 (1970-1976)
Information

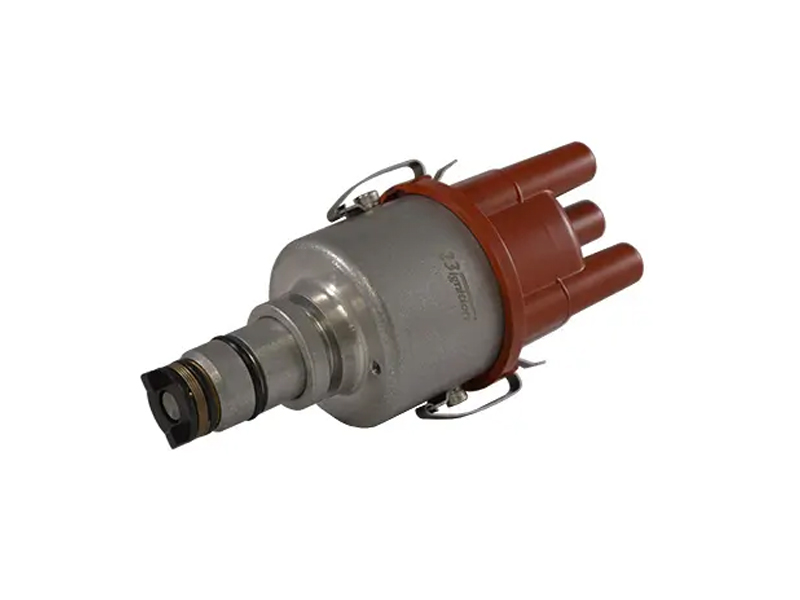

Ignition distributor TUNE+ Bluetooth
Improve the performance of your classic car with this highly reliable electronic ignition distributor with Bluetooth.
This Bluetooth Electronic Ignition Distributor is designed for Porsche 912 / 914 / 356

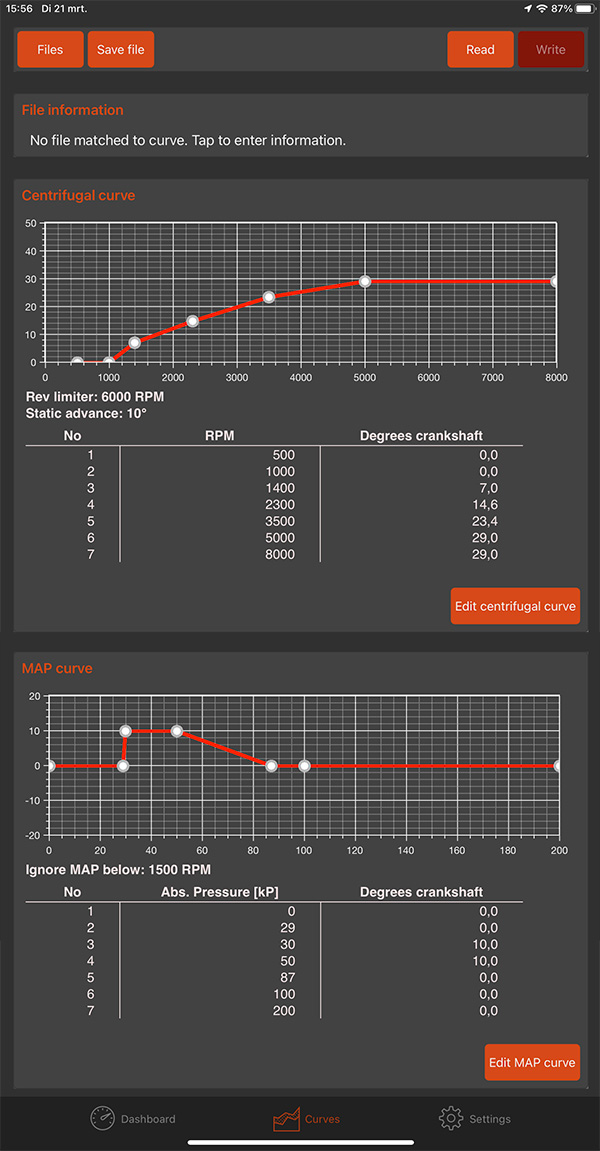

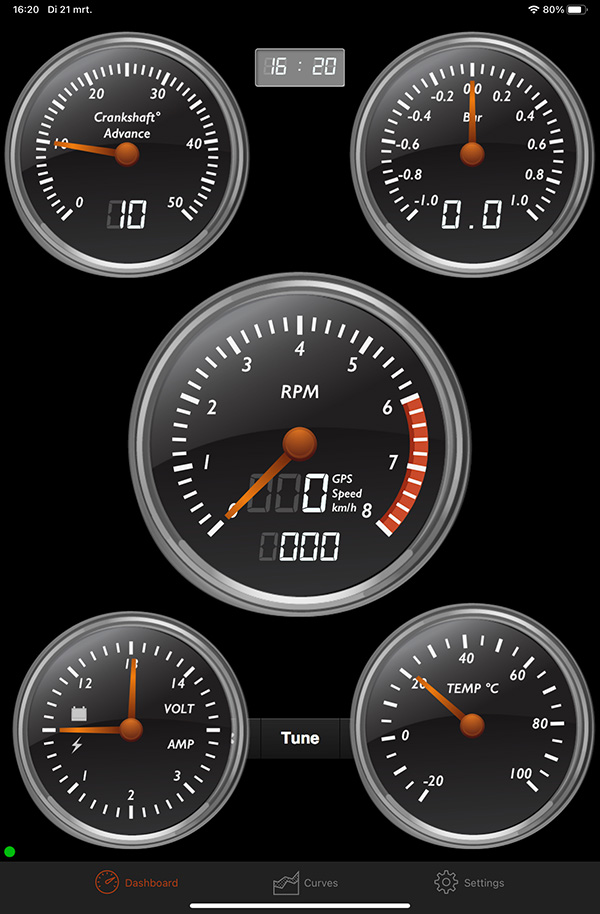

123ignition is proud to announce the first fully programmable Bluetooth ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.
Main features: REV-counter, Antitheft system by a PIN code, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.
Cylinders: 4
Model: Tune+
Operating voltage: 4-15V
Positive earth supported: Yes

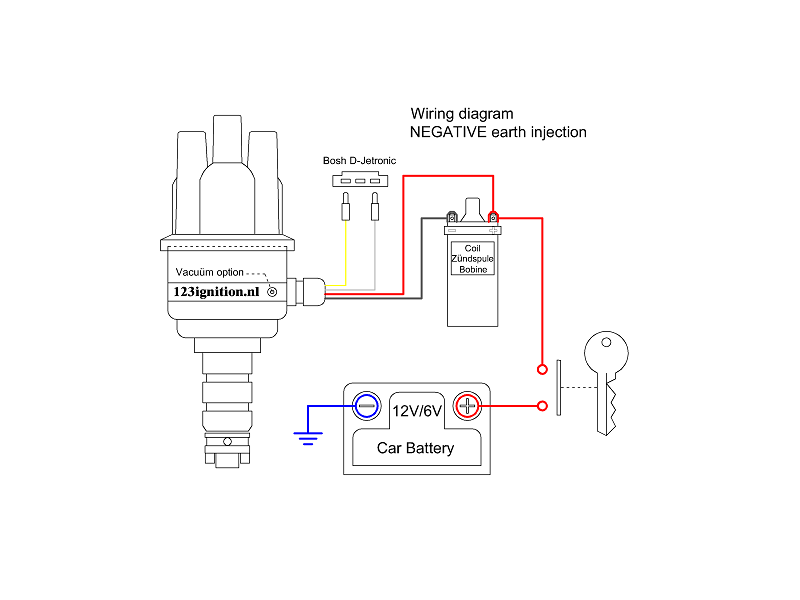

Wires: Black: coil ‘-‘ | Blue: battery negative | Red: ignition key (battery 6V / 12V)
Vacuum: Yes
Rotation direction: CW & CCW
IE (D-jetronic support): No
RPM range: 500-10.000 RPM
Brand: Porsche
Environmental temperature: -30 – 100 °C
Cap type: Straight
Dwell: Constant current - fully automatic adaptive dwell
Coil charging time-out: After 1 second, coil current is turned off
Spark balancing: <0.5 degrees
Maximum advance: 40 degrees crankshaft
Tune+-4-R-V-PORSCHE = Tune+ stands for connection with bluetooth
Tune+-4-R-V-PORSCHE = 4 stands for the numbers of cylinders
Tune+-4-R-V-PORSCHE = R stands for Straight distributor cap
Tune+-4-R-V-PORSCHE = V stands for vacuum advance
Tune+-4-R-V-PORSCHE = PORSCHE stands for the 123ignition type
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
123TB4RV
The product you are viewing cross references to these numbers
Improve the performance of your classic car with this highly reliable electronic ignition distributor with Bluetooth.
This Bluetooth Electronic Ignition Distributor is designed for Porsche 912 / 914 / 356
123ignition is proud to announce the first fully programmable Bluetooth ignition! Control your 123\TUNE+ with your iOS/Android smartphone or tablet. The App makes it possible to adjust the ignition curve and shows an electronic dashboard.
Main features: REV-counter, Antitheft system by a PIN code, Real time tuning, Vacuum advance, Boost retard, Soft REV-limiter, etc.
Cylinders: 4
Model: Tune+
Operating voltage: 4-15V
Positive earth supported: Yes
Wires: Black: coil ‘-‘ | Blue: battery negative | Red: ignition key (battery 6V / 12V)
Vacuum: Yes
Rotation direction: CW & CCW
IE (D-jetronic support): No
RPM range: 500-10.000 RPM
Brand: Porsche
Environmental temperature: -30 – 100 °C
Cap type: Straight
Dwell: Constant current - fully automatic adaptive dwell
Coil charging time-out: After 1 second, coil current is turned off
Spark balancing: <0.5 degrees
Maximum advance: 40 degrees crankshaft
Tune+-4-R-V-PORSCHE = Tune+ stands for connection with bluetooth
Tune+-4-R-V-PORSCHE = 4 stands for the numbers of cylinders
Tune+-4-R-V-PORSCHE = R stands for Straight distributor cap
Tune+-4-R-V-PORSCHE = V stands for vacuum advance
Tune+-4-R-V-PORSCHE = PORSCHE stands for the 123ignition type
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
123TB4RV
36902210
61660220100
61660220102
61660220104
616602201FX
The product you are viewing cross references to these numbers
Price: £348.00
Orderable
