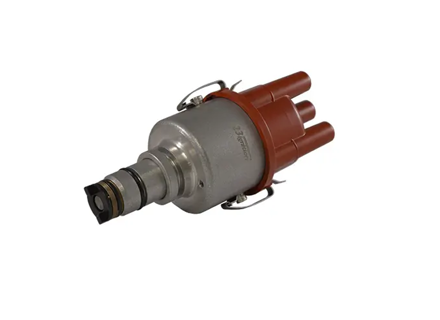

Ignition distributor SWITCH, with vacuum. Porsche 912 / 914 / 356 with D-jetronic injection system - 123SW4RVIE
123SW4RVIE
Vehicle Group
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 356 1950-55
- Porsche 356A 1955-59
- Porsche 356B 1959-63
- Porsche 356C 1963-65
- Porsche 914 (1970-1976)
Information
Ignition distributor SWITCH,
with vacuum
Improve the performance of your classic car with this highly reliable electronic ignition distributor.
This Electronic Ignition Distributor is designed for Porsche 912 / 914 / 356 with D-jetronic injection system
NOTE: This unit offers Bosch D-Jetronic fuel injection support
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the curve table for available advance curves.
Cylinders: 4
Model: Switch
Operating voltage: 4-15V
Positive earth supported: Yes
Wires: Black: coil ‘-‘ | Red: ignition key (battery 6V / 12V) | White & yellow: D-Jetronic signals
Vacuum: YES
Rotation direction: CW & CCW
IE (D-jetronic support): Yes
RPM range: 500-10.000 RPM
Brand: Porsche
Environmental temperature: -30 – 100 °C
Cap type: Straight
Dwell: Constant current - fully automatic adaptive dwell
Coil charging time-out: After 1 second, coil current is turned off
Spark balancing: <0.5 degrees
Maximum advance: 40 degrees crankshaft
Porsche-4-R-V-IE = Porsche stands for the 123ignition type
Porsche-4-R-V-IE = 4 stands for the number of cylinders
Porsche-4-R-V-IE = R stands for straight distributor cap
Porsche-4-R-V-IE = V stands for vacuum advance
Porsche-4-R-V-IE = IE stands for D-Jetronic
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
123SW4RVIE
The product you are viewing cross references to these numbers
Improve the performance of your classic car with this highly reliable electronic ignition distributor.
This Electronic Ignition Distributor is designed for Porsche 912 / 914 / 356 with D-jetronic injection system
NOTE: This unit offers Bosch D-Jetronic fuel injection support
The unit offers a maximum total of 16 advance-curves to be selected by the end-user.
Please take a look in the curve table for available advance curves.
Cylinders: 4
Model: Switch
Operating voltage: 4-15V
Positive earth supported: Yes
Wires: Black: coil ‘-‘ | Red: ignition key (battery 6V / 12V) | White & yellow: D-Jetronic signals
Vacuum: YES
Rotation direction: CW & CCW
IE (D-jetronic support): Yes
RPM range: 500-10.000 RPM
Brand: Porsche
Environmental temperature: -30 – 100 °C
Cap type: Straight
Dwell: Constant current - fully automatic adaptive dwell
Coil charging time-out: After 1 second, coil current is turned off
Spark balancing: <0.5 degrees
Maximum advance: 40 degrees crankshaft
Porsche-4-R-V-IE = Porsche stands for the 123ignition type
Porsche-4-R-V-IE = 4 stands for the number of cylinders
Porsche-4-R-V-IE = R stands for straight distributor cap
Porsche-4-R-V-IE = V stands for vacuum advance
Porsche-4-R-V-IE = IE stands for D-Jetronic
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
123SW4RVIE
36902210
61660220100
61660220102
61660220104
616602201FX
The product you are viewing cross references to these numbers
Price: €348.67
