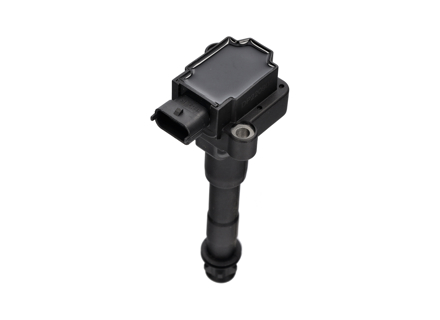

The 99760210405 is the individual coil module used on the Porsche M96 and M97 M-series engines in many 986/996/987/early 997 cars. Normally should be replaced as a set of six coils (one per cylinder)
Why these coils should be replaced
Age / thermal breakdown: coils are exposed to heat cycles and can develop internal insulation breakdown or hairline cracks in the housing. Over time this causes weak or leaking high voltage and intermittent sparks.
Misfire symptoms: a failing coil will cause single-cylinder misfires (P030x codes), rough idle, reduced power, increased fuel consumption and catalytic converter heating/damage if left. These are the most common reasons owners replace coils.
Carbon tracking / cracking: visible cracks or carbon tracking on the coil boot can provide a leakage path for spark, reducing performance and causing intermittent faults.
Connector / wiring issues: corroded or loose coil connectors can mimic coil failures; inspect connectors when replacing coils.
Fits:
Porsche 996 3.6L Inc C2 / C4 / C4S
Porsche 986 Boxster 2.7L / 3.2L 2003>>
Porsche 996 GT3 MKI
Porsche 996 GT3 MKII
Porsche 996 Turbo
Porsche 987 Boxster 2.7L / 3.2L
Porsche 987C Cayman 2.7L / 3.4L
Porsche 997 3.6L, 3.8L / 997 GT3
Common issues reported in practice
- One or more cylinders misfire when the engine is hot but behave quite normally when cold (typical of internal coil failure or heat-sensitive cracks).
- Cracked coil housings on Boxster/996 cars, owners often replace the entire set for reliability.
- After a spark plug change, misfires appear because weakened coils can fail once higher-voltage plugs are installed; this is a frequently reported pattern.
How to diagnose (practical steps)
- Read codes: P0300 / P0301–P0306 point to misfires; note which cylinder is affected.
- Swap test: swap the suspected coil with another cylinder’s coil — if the misfire follows the coil, the coil is bad. (Common, quick field test used by owners.)
- Measure resistance: check primary and secondary coil resistances at ~20°C and compare to the ranges above.
- Visual inspection: look for cracks, carbon tracking, oil ingress, or damaged boots/connectors.
- Oscilloscope / HV probe: for deeper diagnosis a scope or HV probe can show spark energy, but most DIY diagnostics use swap + resistance checks.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99760210405
The product you are viewing cross references to these numbers
- Porsche Boxster 987 MKII 2.9L 2009-12
- Porsche Boxster S 987 MKII 3.4L 2009-12
- Porsche Boxster 981 2.7L 2012-16
- Porsche Boxster 981 S / GTS 3.4L 2012-16
- Porsche Boxster 981 Spyder 3.8L 2016
- Porsche 997 MKII Carrera C2 3.6L 2009-12
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C2S 3.8L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
- Porsche 997 MKII GT3 / GT3 RS 2010-11
- Porsche 997 MKII Turbo 2010-13
- Porsche 991.1 Carrera C2 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C2S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 Carrera C4 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C4S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 Turbo 3.8L (520 Bhp) 2014-16
- Porsche 991.1 Turbo S 3.8L (560 Bhp) 2014-16
- Porsche 991.1 R 4.0L (500 Bhp) 2016
- Porsche 991.1 GT3 3.8L (475 Bhp) 2014-16
- Porsche 991.1 GT3 RS 4.0L (500 Bhp) 2015-16
- Porsche 991.2 Turbo Coupe 3.8L (540 Bhp) 2016-19
- Porsche 991.2 Turbo S Coupe 3.8L (580 Bhp) 2016-19
- Porsche 991.2 Turbo Cabriolet 3.8L (540 Bhp) 2016-19
- Porsche 991.2 Turbo S Cabriolet 3.8L (580 Bhp) 2016-19
- Porsche 991.2 GT3 4.0L (500 Bhp) / GT3 RS 4.0L (520 Bhp) 2017-19
- Porsche Cayman 2.9L 987C MKII 2009-12
- Porsche Cayman S / R 3.4L 987C MKII 2009-12
- Porsche Cayman 2.7L 981 2013-16
- Porsche Cayman S / GTS 3.4L 981 2013-16
- Porsche Cayman GT4 3.8L 2015-16
Genuine Porsche ignition coil, part number 9A160210408, for selected Porsche 997.2, 991, 987.2 and 981 models. This direct-ignition component supplies the high-voltage energy required by the spark plug in each cylinder.
Fits:
Porsche 997.2 Carrera 2009-12
Porsche 997.2 Turbo / Turbo S 2010-13
Porsche 997.2 GT3 2010-13
Porsche 991.1 Carrera 2012-16
Porsche 991 Turbo 2014-20
Porsche 991 GT3 2014-20
Porsche 987.2 Boxster 2009-12
Porsche 987C.2 Cayman 2009-12
Porsche 987C Cayman R MA1.21
Porsche 981 Boxster 2012-16
Porsche 981 Boxster Spyder 2016
Porsche 981C Cayman 2014-16
What This Product Does
The ignition coil transforms the vehicle electrical system's low voltage into a high-voltage pulse. This allows the spark plug to ignite the compressed air and fuel mixture at the correct point in the combustion cycle.
Functions
- Generates the high voltage needed by the spark plug
- Supports consistent ignition within its assigned cylinder
- Helps maintain smooth starting, idling and acceleration
- Forms part of the engine's direct-ignition system
Technical Details
- Genuine Porsche ignition coil
- Porsche part number: 9A160210408
- Supplied individually
- Six ignition coils are required per six-cylinder engine
- Supersedes Porsche references 9A160210401, 9A160210402 and 9A160210403
Symptoms of Fault
- Intermittent or persistent engine misfiresRough idle or hesitation during acceleration
- Difficult starting, particularly when the engine is hot
- Reduced engine power or limp modeI
- lluminated engine warning light
- Misfire or ignition-coil circuit fault codes
- Poor fuel economy caused by incomplete combustion.
Why Replacement Matters
Heat, vibration and electrical stress can gradually weaken the internal insulation of an ignition coil. Replacing a confirmed faulty unit helps restore dependable spark delivery and reduces the risk of continued misfiring. Check the spark plug, connector, wiring and engine earths during diagnosis, as faults in these areas can produce similar symptoms or place additional strain on the coil.
OE Reference
- 9A160210408- 9A160210401
- 9A160210402
- 9A160210403
FAQs
Can an ignition coil fail only when hot?Yes. Heat can expose deterioration within the insulation or electrical connections, causing an intermittent misfire after the engine warms up.
Should a coil be replaced using only a fault code?
A fault code identifies the affected circuit or cylinder but should be supported by checks of the spark plug, connector, wiring, supply voltage and earth connection.
Should the spark plugs also be inspected?
Yes. Worn, damaged or incorrectly specified spark plugs can increase the electrical load placed on an ignition coil.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
9A160210408
The product you are viewing cross references to these numbers
- Porsche Boxster 987 MKII 2.9L 2009-12
- Porsche Boxster S 987 MKII 3.4L 2009-12
- Porsche Boxster 981 2.7L 2012-16
- Porsche Boxster 981 S / GTS 3.4L 2012-16
- Porsche 997 MKII Carrera C2 3.6L 2009-12
- Porsche 997 MKII Carrera C4 3.6L 2009-12
- Porsche 997 MKII Carrera C2S 3.8L 2009-12
- Porsche 997 MKII Carrera C4S 3.8L 2009-12
- Porsche 997 MKII GT3 / GT3 RS 2010-11
- Porsche 997 MKII Turbo 2010-13
- Porsche 991.1 Carrera C2 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C2S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 Carrera C4 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C4S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 Turbo 3.8L (520 Bhp) 2014-16
- Porsche 991.1 Turbo S 3.8L (560 Bhp) 2014-16
- Porsche 991.1 GT3 3.8L (475 Bhp) 2014-16
- Porsche 991.1 GT3 RS 4.0L (500 Bhp) 2015-16
- Porsche Cayman 2.9L 987C MKII 2009-12
- Porsche Cayman S / R 3.4L 987C MKII 2009-12
- Porsche Cayman 2.7L 981 2013-16
- Porsche Cayman S / GTS 3.4L 981 2013-16
Porsche Ref: 9A160210407
Fits:
Porsche 997.2 Carrera 2009-12
Porsche 997.2 Turbo / Turbo S 2010-13
Porsche 997.2 GT3 2010-13
Porsche 991.1 Carrera 2012-16
Porsche 991 Turbo 2014-20
Porsche 991 GT3 2014-20
Porsche 987.2 Boxster 2009-12
Porsche 987C.2 Cayman 2009-12
Porsche 987C Cayman R MA1.21
Porsche 981 Boxster 2012-16
Porsche 981C Cayman 2014-16
This product supersedes Porsche's old part numbers:
- 9A160210401
- 9A160210402
- 9A160210403
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
SERVICEPACK997
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
- Porsche Boxster 981 2.7L 2012-16
- Porsche Boxster 981 S / GTS 3.4L 2012-16
- Porsche Boxster 981 Spyder 3.8L 2016
- Porsche 991.1 Carrera C2 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C2S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 Carrera C4 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C4S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche Cayman 2.7L 981 2013-16
- Porsche Cayman S / GTS 3.4L 981 2013-16
- Porsche Cayman GT4 3.8L 2015-16
x6 Required Per Engine.
Price Is For Each.
Fits:
Porsche 991.1 Carrera MKI 2012>>2016
Porsche 981 Boxster 2012>>2016
Porsche 981 Boxster Spyder 2016>>2016
Porsche 981 Cayman 2014>>2016
Porsche 981 Cayman GT4 2016>>2016
Diagram Ref No 2
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99917015190
The product you are viewing cross references to these numbers
- Porsche Boxster 981 2.7L 2012-16
- Porsche Boxster 981 S / GTS 3.4L 2012-16
- Porsche Boxster 981 Spyder 3.8L 2016
- Porsche 991.1 Carrera C2 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C2S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche 991.1 Carrera C4 3.4L (350 Bhp) 2012-16
- Porsche 991.1 Carrera C4S / GTS 3.8L (400/430 Bhp) 2012-16
- Porsche Cayman 2.7L 981 2013-16
- Porsche Cayman S / GTS 3.4L 981 2013-16
- Porsche Cayman GT4 3.8L 2015-16
The Bosch spark plug set (pack of 6) is a complete ignition service kit engineered for Porsche flat-six engines found in the 991.1 Carrera series and 981 Boxster/Cayman models. This set includes all six spark plugs required for a full engine replacement, ensuring even combustion and consistent ignition performance across every cylinder.
PACK OF 6
Fits:
Porsche 991.1 Carrera 2 / 2S / GTS 2012 - 2016
Porsche 991.1 Carrera 4 / 4S / GTS 2012 - 2016
Porsche 981 Boxster 2012 - 2016
Porsche 981SP Boxster Spyder 2016
Porsche 981C Cayman 2013 - 2016
Porsche 981C Cayman GT4 2016
Spark plugs are essential components of the ignition system, responsible for generating the electrical spark that ignites the air-fuel mixture within the combustion chamber. Correct specification spark plugs help maintain smooth idle, reliable cold starts, responsive throttle performance, efficient fuel combustion, and controlled emissions. Over time, spark plugs wear or become fouled, which can lead to misfires, reduced engine power, rough running, or increased fuel consumption.
Manufactured by Bosch, a world-renowned original equipment supplier to Porsche, these spark plugs are engineered to OEM specifications with the proper heat range and electrode design required by modern flat-six engines. Durable construction and precise manufacturing help deliver stable ignition performance, long service life, and dependable operation under both daily and spirited driving conditions. Ideal for routine servicing, preventative maintenance, or restoring peak performance.
