- Porsche 9YA Cayenne GTS V8 4.0L Petrol (460Hp) 2020-23
- Porsche 9YA Cayenne Coupe GTS V8 4.0L Petrol (460Hp) 2021-23
- Porsche 9YA Cayenne Turbo V8 4.0L Petrol (550Hp) 2020-23
- Porsche 9YA Cayenne Coupe Turbo V8 4.0L Petrol (550Hp) 2019-23
- Porsche 9YA Cayenne Turbo S E-Hybrid V8 4.0L (550Hp) 2019-23
- Porsche 9YA Cayenne Coupe Turbo S E-Hybrid V8 4.0L (550Hp) 2020-23
- Porsche 9YA Cayenne Coupe Turbo GT V8 4.0L (640Hp) 2021-23
Fits:
Porsche 9YA Cayenne 4.0ltr V8 turbo / turbo S - 2018 Onwards
Porsche 9YA Cayenne 4.0ltr V8 GTS - 2018 Onwards

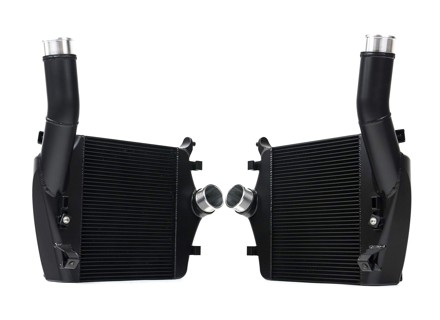

The Cayenne turbo / GTS 4.0ltr Intercoolers have been meticulously designed and engineered to fit exactly like the OEM units they replace. Utilising all factory mounting points, the installation is straightforward with a “drop-in fit” design. No cutting or modifications are required and there is no need for aftermarket shrouds or hoses. All mating OEM components can be reused and reinstalled.
The Thermal Dispersion Black finish is used to aid further the cooling efficiency of these Intercoolers and they are then sent to a special aerospace company where this special ceramic coating is applied. This unique coating rapidly disperses heat away from the intercoolers at an increased rate of about 15% compared to non-coated parts. In addition, this special coating gives the intercoolers a durable OEM stealth look behind the open front bumper air inlets.
CSF has integrated the charge pipe into the design of the top end tank with an aluminum welded pipe replacing the factory bolt-on plastic part which is sealed with an inner O-Ring. It has been stated that the OEM O-Rings may be a factory design flaw as these can fail. This failure causes boost leaks and triggers a check engine light which is quite surprising on such a new vehicle. These O-Rings have been known to already started showing signs of failure with only a few thousand miles on the odometer.
As with CSF’s other products the new Cayenne turbo / GTS Intercoolers feature 100% TIG-welded machined billet aluminum end tanks. This is a very important upgrade compared to the OEM crimped plastic composite end tanks and this feature is not only aesthetically pleasing, but is also stronger offering longevity and durability on high-performance vehicles. The CNC machined billet end tanks are ready to withstand increased boost pressures from bolt-on modifications, higher performance tunes, as well as upgraded turbochargers.
- Eliminates Heat Soak and Lower Intake Air Temperatures (IAT) for Maximum Performance in High-Performance and Race ConditionsFormula-1 Performance Grade Cores by PWR (2-Row Cores features Rolled Tubes w/ Inner Fins)
- CNC Machined Billet End Tanks
- 100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability
- Made in the USA at PWR North America
- Integrated 1/8th NPT Port with plug on lower outlet tank for Water-Methanol Injection
- OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components
- Finished in CSF’s Thermal Dispersion Cerakote (CSF #8211)
- Raw Finish with no coating for the “show” look or custom finishes available upon request (CSF #8211R)
- True Plug-and-Play “Drop-in Fit” Installation Requires Absolutely No Modifications
- R&D and Performance Testing by Pacific German & VF Engineering
- 1-Piece Welded Charge Pipe vs OEM Bolt-On Pipe w/ O-Ring (known failure point)
OEM Part Numbers:
PAB145803B / PAB145804B
PAB145803E / PAB145804D
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
8211
The product you are viewing cross references to these numbers
- Porsche 955 Cayenne S 4.5L V8 2003-06
- Porsche 955 Cayenne Turbo 4.5L 2003-06
- Porsche 955 Cayenne Turbo S 4.5L 2006>>
Fits:
Porsche 9PA Cayenne (955) S / Turbo / Turbo S 4.5L 2003>>2006
Cars With Engine Codes:
4850
Diagram Ref No 10
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
90092601640
The product you are viewing cross references to these numbers
