Forged JE piston and liner kit 103mm, 24mm pin. Porsche 914/ VW Type 4 - VW103T4JE
VW103T4JE
Vehicle Group
- Porsche 914 (1970-1976)
Information

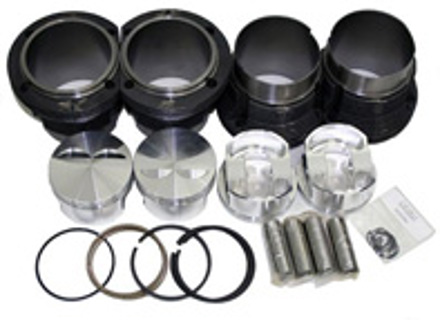

This is a new set of Type 4 103mm flat top JE Pistons and cylinders.
JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. The Big Bore Cylinders are honed in house to exact tolerances. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins giving you the option to Build 2.3L and bigger Engines. This is a Machine in kit you will need to open both the Heads and Case to install them.
Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2365cc with 71mm crank
Stroke: 71 to 78mm
Cylinders: Cast Iron
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm
Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings
JE Forgings are made from 2618 Aluminium, They have a 0 offset with extra material under the top for the valve pockets. The Big Bore Cylinders are honed in house to exact tolerances. This set comes with a 34.6mm Compression Height and the 24mm Pin. The slightly smaller compression height allows you to easily build small stroked engines 71 to 78mm with the Standard length rods that have the 24mm pins giving you the option to Build 2.3L and bigger Engines. This is a Machine in kit you will need to open both the Heads and Case to install them.
Engine Type : Porsche 914, VW Type 4, Bus or Sandrail.
Engine size: 2365cc with 71mm crank
Stroke: 71 to 78mm
Cylinders: Cast Iron
Pistons: Forged JE
Compression Height: 34.60mm
Pin: 24mm
Set includes: 4 pistons, 4 cylinders, 4 pins and a set of rings
