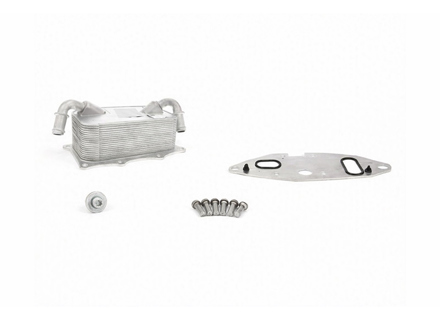

- Porsche 958 Cayenne S V6 3.0L Hybrid (380Hp) 2010-17
- Porsche 970.1 Panamera S Hybrid V6 3.0L 2011-13
- Porsche 970.2 Panamera S E-Hybrid V6 3.0L (416Hp) 2014-16
Fits:
Porsche 958 Cayenne 3.0L Hybrid 2011-18
Porsche 970 Panamera 3.0L Hybrid 2012-16
Click 'Zoom in' for large parts diagram.
Diagram ref no 11 , 12 , 13
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
95810727101
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
Fits:
Porsche 911 SC / 3.2L 1974-89
Diagram Ref No 12A
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93020711107
The product you are viewing cross references to these numbers
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
Front Radiator Engine Oil Cooler "Snake Type"
Restore efficient oil temperature control to your classic
air-cooled Porsche with this OE Match Front Radiator Engine Oil Cooler. Better known as the Snake Type Oil Cooler
or Trombone Oil Cooler, this OE-quality replacement is designed to match
the original equipment fitted to Porsche 911 models.
Fits:
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
Positioned within the front right-hand wheel arch, the Trombone Oil Cooler forms an integral part of Porsche's legendary dry sump lubrication system. Its distinctive looped tube design increases the surface area exposed to airflow, allowing engine oil to dissipate heat before returning to the oil tank. Although simple in construction compared to later finned radiator-style coolers, the Trombone Oil Cooler proved to be an effective and reliable solution for controlling engine oil temperatures in early impact bumper 911s and first-generation 930 turbos.
Manufactured to OE Match specifications, this replacement offers factory-correct fitment, dependable performance and excellent durability, making it the ideal choice for restorations, preventative maintenance and originality-focused repairs.
What Does the Snake Type (Trombone) Oil Cooler Do?
Unlike water-cooled engines, air-cooled Porsche engines rely
heavily on engine oil to remove heat as well as lubricate internal components.
The front-mounted Trombone Oil Cooler helps to:
- Reduce engine oil temperatures.
- Improve heat dissipation during sustained driving.
- Maintain stable oil viscosity.
- Protect pistons, bearings and internal engine components.
- Improve engine reliability during hot weather and spirited driving.
- Extend engine life by maintaining consistent operating temperatures.
By cooling the oil before it returns to the engine, the Trombone Oil Cooler plays a vital role in preserving the health of your classic flat-six engine.
Why Do Trombone Oil Coolers Need Replacing?
After decades of service, the original oil cooler may suffer
from:
- External corrosion caused by moisture and road salt.
- Stone damage from debris entering the wheel arch.
- Impact damage.
- Internal contamination.
- Fatigue cracks or pinhole leaks.
- Damage caused during previous repairs.
- Reduced cooling efficiency due to age.
Even a minor oil leak can lead to falling oil pressure and increased engine temperatures, making timely replacement essential.
Symptoms of a Failing Oil Cooler
Common warning signs include:
- Engine oil leaks around the front wheel arch.
- Oil residue on the cooling loop.
- Rising engine oil temperatures.
- Burning oil smell after driving.
- Visible corrosion or physical damage.
- Reduced cooling performance.
- Falling oil level without obvious engine leaks.
Any evidence of oil leakage should be investigated immediately to prevent costly engine damage.
When Should the Oil Cooler Be Replaced?
Replacement is recommended when:
- Oil leaks develop.
- The cooling loop becomes corroded or damaged.
- Accident damage has occurred.
- Restoring a classic Porsche to factory condition.
- Replacing front oil pipes or oil lines.
- Carrying out a complete engine rebuild or lubrication system overhaul.
Replacing ageing oil cooling components helps maintain optimum lubrication and protects your engine for years to come.
Why Choose an OE Match Oil Cooler?
Our OE Match Snake Type Oil Cooler has been manufactured to faithfully reproduce the original Porsche component.
Benefits include:
- Authentic Snake Type (Trombone) configuration.
- OE-quality construction and fitment.
- Precision-formed cooling loop.
- Excellent oil flow characteristics.
- Corrosion-resistant finish.
- Straightforward installation using factory mounting points.
- Perfect for restoration and maintenance projects.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
91120705001
The product you are viewing cross references to these numbers
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)
This OEM washer is used in the radiator and oil cooler mounting points on 911 models from the early 1980s onward to help secure cooling system hardware with correct clamping force and long-term durability.
Sold individually
Fits:
Porsche 911 1980>>
Diagram Ref No 13C
The Porsche Genuine OE Radiator/Oil Cooler Mount Washer 90002500703 is a small but essential fastener component used in the cooling system of classic 911 models (1980 onward). Its correct dimensions, material, and quality help ensure radiator and oil cooler mounts remain secure under thermal, vibration, and road loads — preserving efficient engine cooling and long-term reliability.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
90002500703
The product you are viewing cross references to these numbers
- Porsche 911 1974-1977 2.7L / 1976-77 3.0 Carrera
- Porsche 911 1978-1983 3.0L / SC
Fits:
Porsche 911 1974-79
Click 'Zoom in' for large parts diagram.
Diagram ref no 18, 19, 20, 21, 22, 23, 24**, 25, 27, 28, 29, 30, 32, 33 and 34.
#24** the part is no longer available, so this is not included in this kit
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
OILCOOLERKIT02
The product you are viewing cross references to these numbers
This kit is comprised of the following items:
