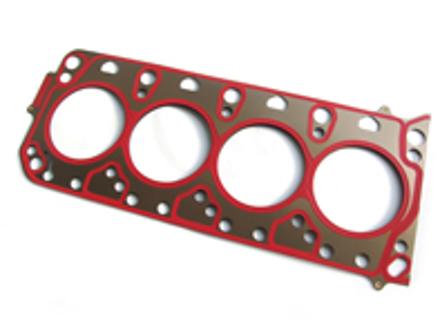

Engine head gasket. Porsche 957/958 Cayenne / 970 Panamera - 94810417
94810417
Vehicle Group
- Porsche Cayenne S/GTS 4.8L 2007>>
- Porsche Cayenne Turbo / Turbo S 4.8L 2007>>
- Porsche Cayenne S V8 4.8L Petrol 400HP
- Porsche Cayenne S V8 4.2L Diesel 382HP
- Porsche Cayenne GTS V8 4.8L Petrol 400HP
- Porsche Cayenne Turbo V8 4.8L Petrol 500HP
- Porsche Cayenne Turbo S V8 4.8L Petrol 550HP
- Porsche Panamera S V8 4.8L
- Porsche Panamera 4S V8 4.8L
- Porsche Panamera GTS V8 4.8L
- Porsche Panamera Turbo V8 4.8L
- Porsche Panamera Turbo S V8 4.8L
- Porsche Panamera GTS V8 4.8L 4WD (440Hp)
- Porsche Panamera Turbo V8 4.8L (520Hp)
- Porsche Panamera Turbo V8 Executive
- Porsche Panamera Turbo S V8 4.8L
Information
Engine head gasket - cylinder 1-4 or 5-8.
1 per engine.
Fits:
Porsche 957 Cayenne S / GTS / TURBO 4.8L 2008-10
Porsche 958 Cayenne S / GTS / TURBO 4.8L 2011>>
Porsche 970 Panamera S / GTS / TURBO 4.8L 2010>>
This product supersedes Porsche's old part numbers:
- 94810417304 (1-4 Cyl.) / 94810417404 (5-8 Cyl.)
Click 'Zoom in' for large parts diagram.
Diagram ref no 34
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94810417
The product you are viewing cross references to these numbers
1 per engine.
Fits:
Porsche 957 Cayenne S / GTS / TURBO 4.8L 2008-10
Porsche 958 Cayenne S / GTS / TURBO 4.8L 2011>>
Porsche 970 Panamera S / GTS / TURBO 4.8L 2010>>
This product supersedes Porsche's old part numbers:
- 94810417304 (1-4 Cyl.) / 94810417404 (5-8 Cyl.)
Click 'Zoom in' for large parts diagram.
Diagram ref no 34
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
94810417
94810417405
94810417404
94810417305
94810417304
354.514
354.524
The product you are viewing cross references to these numbers
Prices from: £128.23
Shop Securely
12 Month Warranty
Worldwide Delivery
Related products
Victor-Reinz Reinzosil gasket maker valve cover oil sump sealant 300°C 70ml
Code: 703141410
Information
Victor-Reinz Reinzosil gasket maker valve cover oil sump sealant 300°C 70ml
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
703141410
The product you are viewing cross references to these numbers
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
703141410
703141410
PCG04330087
70-31414-10
The product you are viewing cross references to these numbers
£5.95
Now £5.65
Arriving soon
Shop Securely
12 Month Warranty
Worldwide Delivery
Hylomar Anaerobic Gasket Compound - 300ml cartridge
Code: F/HG3400H/300M
Information
Hylomar Gasket 3400 is a modified anaerobic curing, flexible sealant designed to become a Formed in Place (FIP) Gasket when cured. The cured compound has good temperature resistance and high resistance to fretting. The cure is initiated when the compound is in contact with metal ions and in anaerobic conditions. The cure rate and final strength is dependent on the metals being joined and the temperature at which the component is used. The heat generated by a running engine will accelerate the cure.
Typical Applications
Hylomar Gasket 3400 can be used as a gasketing compound between machined surfaces. It is ideal for sealing between mating faces on engines and transmission components where resistance to temperature and vibration are essential.
INSTRUCTIONS FOR USE
Hylomar Gasket 3400 should be applied to clean and dry surfaces, free of contamination such as oil or grease. The compound may be dispensed by hand from cartridge, concertina pack, or via a screen printing system. Once applied the joint should be assembled as soon as practical. Any excess compound can be easily wiped off external surfaces with a clean cloth soaked in Acetone or other suitable solvents.
Typical Physical Properties:
UNCURED PRODUCT
Composition: Methyl-Methacrylate
Colour: Yellow
Viscosity @ 25°C / Brookfield Spindle 6 @ 2.5rpm: 100,000cps
Specific Gravity @ 25°C: 1.10 g/ml
Solvent Content: None
Typical Applications
Hylomar Gasket 3400 can be used as a gasketing compound between machined surfaces. It is ideal for sealing between mating faces on engines and transmission components where resistance to temperature and vibration are essential.
INSTRUCTIONS FOR USE
Hylomar Gasket 3400 should be applied to clean and dry surfaces, free of contamination such as oil or grease. The compound may be dispensed by hand from cartridge, concertina pack, or via a screen printing system. Once applied the joint should be assembled as soon as practical. Any excess compound can be easily wiped off external surfaces with a clean cloth soaked in Acetone or other suitable solvents.
Typical Physical Properties:
UNCURED PRODUCT
Composition: Methyl-Methacrylate
Colour: Yellow
Viscosity @ 25°C / Brookfield Spindle 6 @ 2.5rpm: 100,000cps
Specific Gravity @ 25°C: 1.10 g/ml
Solvent Content: None
Specific Gravity g/ml @ 25°C: 1.04
Flash Point: >100°C
Shelf Life: 1 Year @ 4° to 25°C
CURED PRODUCT
Handling Time: 40 minutes
Functional Cure Time: 4 – 6 hours
Full Cure Time : 24 – 72 hours
Shear Strength : 1.5 N/mm²
Mild Steel/Mild Steel BS 5350 Part C5
Aluminium/Aluminium BS 5350 Part C5
Temperature Range: -40° to 150°C
