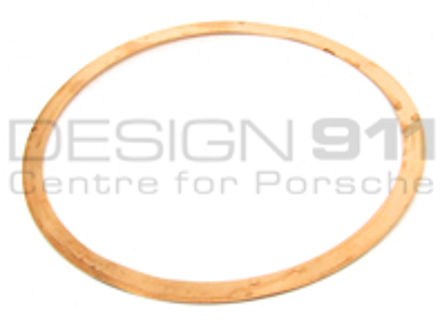

Cylinder Head Copper Base Gasket 0.50mm. Porsche 911 - 90110419102
90110419102
Vehicle Group
- Porsche 911 1965-1968 2.0L / 912 SWB (F)
- Porsche 911 1968-1973 2.2L / 2.4L / 2.7L RS LWB (F)
Information
Cylinder Head Copper Base Gasket 0.50mm.
Fits:
Porsche 911 1965-73
Click 'Zoom in' for large parts diagram.
Diagram ref no 26
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
90110419102
The product you are viewing cross references to these numbers
Fits:
Porsche 911 1965-73
Click 'Zoom in' for large parts diagram.
Diagram ref no 26
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
90110419102
90110419102
The product you are viewing cross references to these numbers
Price: £5.38
Orderable
Related products
Vehicle Group
- Porsche 911 1978-1989 3.3L Turbo (930)
Information
Engine piston and cylinder.
Fits:
Porsche 930 Turbo 3.3L 1978-89
Cylinder is Nikasil coated
Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.
This set should only be fitted by engine builders or tuners as other parts may be required.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
PCG5039890
The product you are viewing cross references to these numbers
Fits:
Porsche 930 Turbo 3.3L 1978-89
Cylinder is Nikasil coated
Please note: These pistons will need to be purchased as 6 pcs. Singles are not available. Price displayed is for each piston.
This set should only be fitted by engine builders or tuners as other parts may be required.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
PCG5039890
PCG5039890
93010396905
5039890
The product you are viewing cross references to these numbers
Price: £450.00
In stock
Vehicle Group
- Porsche 911 1978-1989 3.3L Turbo (930)
- Porsche 964 (911) TURBO 3.3L 1991-93
Information
Gudgeon / Piston Pin Circlip 23x15.
Fits:
Porsche 911 Turbo 1978-89
Porsche 964 Turbo 3.3L 1991-92
Click 'Zoom in' for large parts diagram.
Diagram ref no 3.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
90090801900
The product you are viewing cross references to these numbers
Fits:
Porsche 911 Turbo 1978-89
Porsche 964 Turbo 3.3L 1991-92
Click 'Zoom in' for large parts diagram.
Diagram ref no 3.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
90090801900
90090801900
The product you are viewing cross references to these numbers
Price: £3.55
Orderable
Vehicle Group
- Porsche 911 1978-1989 3.3L Turbo (930)
Information
Wössner forged piston kit.
Fits
Porsche 930 3.3 12v Turbo 1977-89
Suitable to use with Nikasil liners.
Specification
Technical information is sourced from Wössner's latest catalogue:
Part Number: K9290
Engine Type: M30.66 / M30.B6
OE Bore Size: 97.00mm
Bore Sizes Available:
- 97.00mm - 3298.81cc, Compression Ratio: 7:1
- 98.00mm - 3366.00cc, Compression Ratio: 7:1
Bore Size 97.00mm
Piston Size: 96.95mm – K9290DA
Over Size: 0mm
Displacement CC: 3298cc
Dome / Bowl Volume: 4.2cc
Wössner Comp Ratio: 7:1
Ring Part Number: 970XTY
Bore Size 98.00mm
Piston Size: 97.95mm – K9290D100
Over Size: 1mm
Displacement CC: 3366cc
Dome / Bowl Volume: 4.2cc
Wössner Comp Ratio: 7:1
Ring Part Number: 980XTY
Standard
Stroke: 74.40mm
Dome/Bowl Volume: 4.2cc
OE Comp. Ratio: 7.0:1
Comp. Height: 32.8mm
Valves Per Cylinder: 2
Cylinders: 6
Please CLICK HERE for Technical release – Piston / Con rod
orientation.
Wössner are regarded by Europe's leading motor sport engine builders as being the piston of choice when building an engine not only to perform, but to withstand the stresses and duress's of competition life. Wössner pistons feature a unique PTFE coating on the skirts and a grade of 4032 Alloy (T6) which allows the engine builder to run a closer piston to bore tolerance then he might do on another make of piston. This helps remove the slapping noise during cold start, common place among engines running forged pistons due to larger then OE bore clearances. The crowns of the pistons are also polished to better resist detonation on a high performance engine. Polishing allows a more even spread of heat inside the chamber which will help prevent "hot spots" on piston crowns. Price includes all piston rings and gudgeon pins.
Price shown is for complete engine set.
Fits
Porsche 930 3.3 12v Turbo 1977-89
Suitable to use with Nikasil liners.
Specification
Technical information is sourced from Wössner's latest catalogue:
Part Number: K9290
Engine Type: M30.66 / M30.B6
OE Bore Size: 97.00mm
Bore Sizes Available:
- 97.00mm - 3298.81cc, Compression Ratio: 7:1
- 98.00mm - 3366.00cc, Compression Ratio: 7:1
Bore Size 97.00mm
Piston Size: 96.95mm – K9290DA
Over Size: 0mm
Displacement CC: 3298cc
Dome / Bowl Volume: 4.2cc
Wössner Comp Ratio: 7:1
Ring Part Number: 970XTY
Bore Size 98.00mm
Piston Size: 97.95mm – K9290D100
Over Size: 1mm
Displacement CC: 3366cc
Dome / Bowl Volume: 4.2cc
Wössner Comp Ratio: 7:1
Ring Part Number: 980XTY
Standard
Stroke: 74.40mm
Dome/Bowl Volume: 4.2cc
OE Comp. Ratio: 7.0:1
Comp. Height: 32.8mm
Valves Per Cylinder: 2
Cylinders: 6
Please CLICK HERE for Technical release – Piston / Con rod
orientation.
Wössner are regarded by Europe's leading motor sport engine builders as being the piston of choice when building an engine not only to perform, but to withstand the stresses and duress's of competition life. Wössner pistons feature a unique PTFE coating on the skirts and a grade of 4032 Alloy (T6) which allows the engine builder to run a closer piston to bore tolerance then he might do on another make of piston. This helps remove the slapping noise during cold start, common place among engines running forged pistons due to larger then OE bore clearances. The crowns of the pistons are also polished to better resist detonation on a high performance engine. Polishing allows a more even spread of heat inside the chamber which will help prevent "hot spots" on piston crowns. Price includes all piston rings and gudgeon pins.
Price shown is for complete engine set.
Prices from: £1,226.60
