- Porsche 911 1975-1977 3.0L Turbo (930)
- Porsche 911 1978-1989 3.3L Turbo (930)

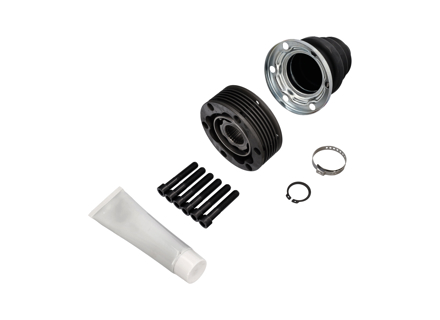

OE Match CV joint kit for Porsche 911 Turbo (930) and the specified 911 Carrera M491 applications. This constant velocity joint has 28 wheel-side internal teeth and a supplied seal diameter specification of 108 mm.
Fits
- Porsche 911 TURBO (930) 3.0L 1975-77
- Porsche 911 TURBO (930) 3.3L 1978-89
- Porsche 911 Carrera M491, 1984–86
What This Product Does
The joint carries rotational drive through the axle while accommodating changes in driveshaft angle as the suspension moves. It forms part of the connection between the transmission and the driven wheel, allowing articulation without interrupting torque transfer.
Functions
- Transfers torque through the driveshaft assembly.
- Accommodates angular movement during suspension travel.
- Maintains uniform rotational speed through the articulated connection.
Technical Details
- Part reference: 93033203400.
- Wheel-side internal tooth count: 28.
- Seal diameter, as specified in the supplied product data: 108 mm.
- 1984–86 diagram applications: TURBO G30.34/35 and CARRERA M491 G15.69/70.
- Each supplied diagram records four joints in the vehicle assembly; this does not specify the quantity included in this kit.
Symptoms of Fault
- Clicking or knocking from a worn joint.
- Vibration when accelerating.
- Clunking as drive is taken up.
- Escaped grease around a damaged boot.
- Excessive movement found during inspection.
Why Replacement Matters
A damaged boot can let lubricant escape and contamination enter, accelerating joint wear. Renewing a confirmed worn joint addresses the affected connection without necessarily replacing a serviceable driveshaft. Inspect the remaining joints, boots, splines and fixings during the repair rather than assuming every driveline noise has the same cause.
FAQs
Will replacing only the boot be sufficient?
A boot repair may be appropriate if inspection confirms that the joint remains lubricated, undamaged and free from abnormal noise or wear.
Which grease should be used?
Use CV-joint grease of the specification and quantity required by the applicable fitting instructions.
Are boots and fitting hardware included?
The supplied information does not confirm individual kit contents. Establish which boots, clips, seals and fasteners are required before starting the repair.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
93033203400
The product you are viewing cross references to these numbers
- Porsche Boxster S 986 3.2L 1999-02
- Porsche Boxster S 986 3.2L 2003-04
- Porsche 911 1984-1986 3.2L
- Porsche 911 1987-1989 3.2L G50
- Porsche 964 (911) C2 1989-93
- Porsche 964 (911) TURBO 3.3L 1991-93
- Porsche 964 (911) TURBO 3.6L 1991-93
- Porsche 993 (911) C2 1994-97
- Porsche 993 (911) C2S 1994-97
- Porsche 996 C2 3.4L 1997-08/01
- Porsche 996 C4 3.4L 1997-08/01
- Porsche 996 C2 3.6L 09/01-2005
- Porsche 996 C4 3.6L 09/01-2005
- Porsche 996 C4S 3.6L 09/01-2005
Fits:
Porsche 911 3.2L 84-89
Porsche 965 (964 TURBO)
Porsche 964 C2 INNER MAN / TIP
Porsche 993 C2 INNER MAN / TIP
Porsche 986 S 3.2L INNER ONLY
Porsche 996 3.4L INNER REAR LEFT OR RIGHT
Porsche 996 3.6L INNER REAR LEFT OR RIGHT
The CV joint (Constant Velocity Joint) is located at each end of the axle assembly and is most often used on front wheel drive cars. A 2wd vehicle will have 2 axles with 4 CV joints and boots. A 4wd will typically have twice as many as the 2wd. The CV joint allows the wheels of the vehicle to turn while still being able to put power to the wheels.
The most notable indicator of a worn out CV joint is the loud clicking noise you hear when you turn the steering wheel.
