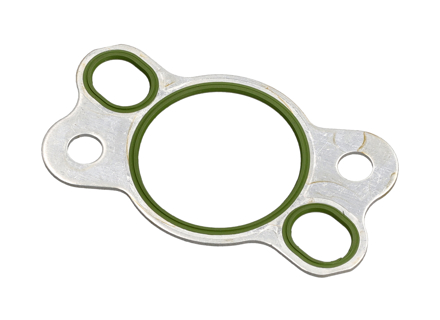

Chain case tensioner lid gasket. Porsche 996 GT3 / 997 Turbo / 997 GT3 - 99610517270
99610517270/1
Vehicle Group
- Porsche 996 GT3 MKI 1999-02
- Porsche 996 GT3 MKII 2003>>
- Porsche 996 GT3 RS 2003-04
- Porsche 997 TURBO 2007>>
- Porsche 997 GT3 2007>>
- Porsche 997 GT2 2007>>
- Porsche 997 MKII GT3 2010>>
- Porsche 997 MKII Turbo 2009>>
- Porsche 997 MKII GT2 RS 2011>>
Information
Chain case tensioner lid gasket. Sold each.
Fits:
Porsche 996 GT3 2000-05
Porsche 997 Turbo 2007-09
Porsche 997 GT2 RS 2011
Porsche 997 GT3 / GT3 RS 2007-11
Click 'Zoom in' for large parts diagram.
Diagram ref no 9
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610517270
The product you are viewing cross references to these numbers
Fits:
Porsche 996 GT3 2000-05
Porsche 997 Turbo 2007-09
Porsche 997 GT2 RS 2011
Porsche 997 GT3 / GT3 RS 2007-11
Click 'Zoom in' for large parts diagram.
Diagram ref no 9
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
99610517270
99610517270
234.320
The product you are viewing cross references to these numbers
£15.00
Now £14.25
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Related products
Victor-Reinz Reinzosil gasket maker valve cover oil sump sealant 300°C 70ml
Code: 703141410
Information
Victor-Reinz Reinzosil gasket maker valve cover oil sump sealant 300°C 70ml
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
703141410
The product you are viewing cross references to these numbers
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
703141410
703141410
PCG04330087
70-31414-10
The product you are viewing cross references to these numbers
£5.95
Now £5.65
In stock
Shop Securely
12 Month Warranty
Worldwide Delivery
Hylomar Anaerobic Gasket Compound - 300ml cartridge
Code: F/HG3400H/300M
Information
Hylomar Gasket 3400 is a modified anaerobic curing, flexible sealant designed to become a Formed in Place (FIP) Gasket when cured. The cured compound has good temperature resistance and high resistance to fretting. The cure is initiated when the compound is in contact with metal ions and in anaerobic conditions. The cure rate and final strength is dependent on the metals being joined and the temperature at which the component is used. The heat generated by a running engine will accelerate the cure.
Typical Applications
Hylomar Gasket 3400 can be used as a gasketing compound between machined surfaces. It is ideal for sealing between mating faces on engines and transmission components where resistance to temperature and vibration are essential.
INSTRUCTIONS FOR USE
Hylomar Gasket 3400 should be applied to clean and dry surfaces, free of contamination such as oil or grease. The compound may be dispensed by hand from cartridge, concertina pack, or via a screen printing system. Once applied the joint should be assembled as soon as practical. Any excess compound can be easily wiped off external surfaces with a clean cloth soaked in Acetone or other suitable solvents.
Typical Physical Properties:
UNCURED PRODUCT
Composition: Methyl-Methacrylate
Colour: Yellow
Viscosity @ 25°C / Brookfield Spindle 6 @ 2.5rpm: 100,000cps
Specific Gravity @ 25°C: 1.10 g/ml
Solvent Content: None
Typical Applications
Hylomar Gasket 3400 can be used as a gasketing compound between machined surfaces. It is ideal for sealing between mating faces on engines and transmission components where resistance to temperature and vibration are essential.
INSTRUCTIONS FOR USE
Hylomar Gasket 3400 should be applied to clean and dry surfaces, free of contamination such as oil or grease. The compound may be dispensed by hand from cartridge, concertina pack, or via a screen printing system. Once applied the joint should be assembled as soon as practical. Any excess compound can be easily wiped off external surfaces with a clean cloth soaked in Acetone or other suitable solvents.
Typical Physical Properties:
UNCURED PRODUCT
Composition: Methyl-Methacrylate
Colour: Yellow
Viscosity @ 25°C / Brookfield Spindle 6 @ 2.5rpm: 100,000cps
Specific Gravity @ 25°C: 1.10 g/ml
Solvent Content: None
Specific Gravity g/ml @ 25°C: 1.04
Flash Point: >100°C
Shelf Life: 1 Year @ 4° to 25°C
CURED PRODUCT
Handling Time: 40 minutes
Functional Cure Time: 4 – 6 hours
Full Cure Time : 24 – 72 hours
Shear Strength : 1.5 N/mm²
Mild Steel/Mild Steel BS 5350 Part C5
Aluminium/Aluminium BS 5350 Part C5
Temperature Range: -40° to 150°C
Price: £51.00
