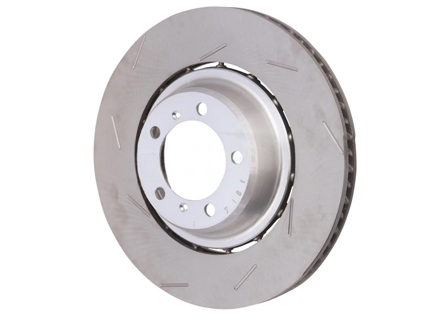

Brake disc rotor REAR, Lightweight slotted, 380x30mm. Porsche 971 Panamera (OE Part No. 971615601G / 971615602G) - 97161560
97161560
Vehicle Group
- Porsche 971.1 Panamera Turbo V8 4.0L 4WD (550 Hp) 2017-20
- Porsche 971.1 Panamera Turbo V8 4.0L 4WD Executive 2017-20
- Porsche 971.1 Panamera Turbo 4.0L Twin-Turbo V8 Sport Turismo 2017-20
- Porsche 971.1 Panamera Turbo S E-Hybrid V8 4.0L 4WD 2017-20
- Porsche 971.1 Panamera Turbo S E-Hybrid V8 4.0L 4WD Executive 2017-20
Information
SHW Performance Rear Slotted Light Weight brake disc rotor.
Brake Disc Diameter Ø: 380 mm
Brake Disc Thickness: 30 mm
Brake Disc Type: internally vented, two-part brake disc, Slotted
Porsche 971.1 Panamera 2017-21 - REAR
*** For cars with Short Wheel Base
(I1KC) For cars with 20-inch rear brake disc, brake caliper painted Red,
(2EG) For cars with 20-inch rear brake disc, brake caliper painted Red, NAR
Please note: Brake disc rotors are priced each.
SHW PERFORMANCE, one of the world's leading brake disc manufacturers supplying directly to OEM, with product featured as standard equipment on many of today's new performance vehicles.
THE ONLY TRUE REPLACEMENT.
NOTHING LESS THAN A TRUE FACTORY EQUIVALENT
SHW PERFORMANCE produces both one and two piece, ventilated disc brake rotors to cover a wide range of vehicle applications.The vehicle application automatically dictates which style, composition and type of disc brake rotor is available, as SHW only offer a genuine direct replacement for the factory supplied disc.For lesser performance orientated vehicles, a ventilated monoblock disc brake rotor produced from cast iron will more than suffice. For vehicles placing greater demand on the needed stopping power, a lightweight, composite, fully floating two-piece design is often preferred (the style of which is referred commonly as a peg or pin drive system).
PERFORMANCE UNDER PRESSURE.
CONSISTENT RELIABILITY AND PERFORMANCE UNDER THE MOST DEMANDING OF CONDITIONS
Quality is a key ingredient from which to guarantee long term repeated reliability. SHW products are built to carry the high expectations required by exacting OEM standards and exceed them where possible.
PATENTED DESIGN PIN-DRIVE SYSTEM.
FROM WEIGHT REDUCTION TO IMPROVED COOLING, DISCOVER THE BENEFITS OF THE SHW PIN-DRIVE BRAKE ROTOR SYSTEM
Innovation, sustainability, added value. Welcome to SHW's patented Pin-Drive system, a substantial step forward in the future of braking.
SHW's Pin-Drive system carries many benefits when compared to conventional methods of disc brake rotor design. So, what is 'Pin-Drive' and why is it advantageous over a one-piece disc brake rotor?
The Pin-Drive system is a two piece fully floating disc brake rotor. The friction ring is connected to the central aluminium rotor bell by means of stainless steel pins which are cast into the assembly during the manufacturing process. The purpose behind the design is to offer a range of advantages:
- Up to 5.5lbs of weight reduction (rotating and unsprung weight) per disc compared to Monoblock.
- Reduced thermal strain thanks to the friction ring having more freedom to expand and contract.
- Low brake fading properties.
- Improved durability.
- Enhanced brake comfort thanks to optimised thermal conditions.
- Optimal curved vane design that maintains structural strength while improving noise dampening.
UNPARALLELED COOLING ADVANTAGES.
MAINTAIN OPTIMUM BRAKING PERFORMANCE FOR LONGER WITH IMPROVED COOLING PROPERTIES.
As well as a reduction in unsprung weight and improved braking characteristics, SHW's Pin-Drive design also prides itself on offering unbeatable cooling advantages, just one of the reasons why it has become the first choice for many OEM's.
Unlike other brake manufacturers, SHW developed a PATENTED improvement of the disc construction by offsetting the pin connection of the friction ring to the aluminium disc bell away from the center to the edge, which results in huge cooling gains.
By offsetting the pin connection of the friction ring to the aluminium bell the cooling channels running centrally through the rotor see a huge increase in accessibility and cooler air flow. This advantageous design offers up to a 50% cooling advantage gain when compared to traditional designs.
Allowing a greater flow of air, heat generated on the surface of the friction ring (via the brake pads clamping down under braking) is carried away faster and more efficiently, dramatically reducing inner core and surface temperatures across the complete disc brake rotor. In addition, due to the unique patented design, further weight savings are achieved thanks to a shallow aluminium disc bell.
THE IMPORTANCE OF AIR FLOW.
WHEN AIR FLOW IS PARAMOUNT TO PERFORMANCE. THE LOWER THE OPERATING TEMPERATURES, THE HIGHER THE PERFORMANCE.
The cold air is traditionally fed via air ducts located either in the front bumper, or channeled through pathways on the underside of the vehicles under tray. As the cold air enters the rear of the disc bell, it passes through vanes between the two brake rotor faces. The cooler air helps to reduce temperatures from the very core of the brake disc by collecting heat and carrying it outwards, away from the brake disc assembly and eventually venting back out into the passing air flow found circulating the inner wheel.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
97161560
The product you are viewing cross references to these numbers
Brake Disc Diameter Ø: 380 mm
Brake Disc Thickness: 30 mm
Brake Disc Type: internally vented, two-part brake disc, Slotted
Porsche 971.1 Panamera 2017-21 - REAR
*** For cars with Short Wheel Base
(I1KC) For cars with 20-inch rear brake disc, brake caliper painted Red,
(2EG) For cars with 20-inch rear brake disc, brake caliper painted Red, NAR
Please note: Brake disc rotors are priced each.
SHW PERFORMANCE, one of the world's leading brake disc manufacturers supplying directly to OEM, with product featured as standard equipment on many of today's new performance vehicles.
THE ONLY TRUE REPLACEMENT.
NOTHING LESS THAN A TRUE FACTORY EQUIVALENT
SHW PERFORMANCE produces both one and two piece, ventilated disc brake rotors to cover a wide range of vehicle applications.The vehicle application automatically dictates which style, composition and type of disc brake rotor is available, as SHW only offer a genuine direct replacement for the factory supplied disc.For lesser performance orientated vehicles, a ventilated monoblock disc brake rotor produced from cast iron will more than suffice. For vehicles placing greater demand on the needed stopping power, a lightweight, composite, fully floating two-piece design is often preferred (the style of which is referred commonly as a peg or pin drive system).
PERFORMANCE UNDER PRESSURE.
CONSISTENT RELIABILITY AND PERFORMANCE UNDER THE MOST DEMANDING OF CONDITIONS
Quality is a key ingredient from which to guarantee long term repeated reliability. SHW products are built to carry the high expectations required by exacting OEM standards and exceed them where possible.
PATENTED DESIGN PIN-DRIVE SYSTEM.
FROM WEIGHT REDUCTION TO IMPROVED COOLING, DISCOVER THE BENEFITS OF THE SHW PIN-DRIVE BRAKE ROTOR SYSTEM
Innovation, sustainability, added value. Welcome to SHW's patented Pin-Drive system, a substantial step forward in the future of braking.
SHW's Pin-Drive system carries many benefits when compared to conventional methods of disc brake rotor design. So, what is 'Pin-Drive' and why is it advantageous over a one-piece disc brake rotor?
The Pin-Drive system is a two piece fully floating disc brake rotor. The friction ring is connected to the central aluminium rotor bell by means of stainless steel pins which are cast into the assembly during the manufacturing process. The purpose behind the design is to offer a range of advantages:
- Up to 5.5lbs of weight reduction (rotating and unsprung weight) per disc compared to Monoblock.
- Reduced thermal strain thanks to the friction ring having more freedom to expand and contract.
- Low brake fading properties.
- Improved durability.
- Enhanced brake comfort thanks to optimised thermal conditions.
- Optimal curved vane design that maintains structural strength while improving noise dampening.
UNPARALLELED COOLING ADVANTAGES.
MAINTAIN OPTIMUM BRAKING PERFORMANCE FOR LONGER WITH IMPROVED COOLING PROPERTIES.
As well as a reduction in unsprung weight and improved braking characteristics, SHW's Pin-Drive design also prides itself on offering unbeatable cooling advantages, just one of the reasons why it has become the first choice for many OEM's.
Unlike other brake manufacturers, SHW developed a PATENTED improvement of the disc construction by offsetting the pin connection of the friction ring to the aluminium disc bell away from the center to the edge, which results in huge cooling gains.
By offsetting the pin connection of the friction ring to the aluminium bell the cooling channels running centrally through the rotor see a huge increase in accessibility and cooler air flow. This advantageous design offers up to a 50% cooling advantage gain when compared to traditional designs.
Allowing a greater flow of air, heat generated on the surface of the friction ring (via the brake pads clamping down under braking) is carried away faster and more efficiently, dramatically reducing inner core and surface temperatures across the complete disc brake rotor. In addition, due to the unique patented design, further weight savings are achieved thanks to a shallow aluminium disc bell.
THE IMPORTANCE OF AIR FLOW.
WHEN AIR FLOW IS PARAMOUNT TO PERFORMANCE. THE LOWER THE OPERATING TEMPERATURES, THE HIGHER THE PERFORMANCE.
The cold air is traditionally fed via air ducts located either in the front bumper, or channeled through pathways on the underside of the vehicles under tray. As the cold air enters the rear of the disc bell, it passes through vanes between the two brake rotor faces. The cooler air helps to reduce temperatures from the very core of the brake disc by collecting heat and carrying it outwards, away from the brake disc assembly and eventually venting back out into the passing air flow found circulating the inner wheel.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
97161560
971615601G
971615602G
The product you are viewing cross references to these numbers
Prices from: £485.00
Related products
Vehicle Group
- Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- Porsche 970.1 Panamera Turbo V8 4.8L 2009-13
- Porsche 970.1 Panamera Turbo S V8 4.8L 2009-13
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 4.8L (520Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 Executive 2014-16
- Porsche 970.2 Panamera Turbo S V8 4.8L 2014-16
Information
SHW Performance Front slotted 2-part Light Weight brake disc rotor.
Brake Dis Diameter Ø: 390 mm
Brake Disc Thickness: 38,0 mm
Brake Disc Type: internally vented, slotted, two-part brake disc
Porsche 970 Panamera TURBO / TURBO S 4.8L V8 2010-16
Porsche 970 Panamera GTS 4.8L V8 2010-16
Cars with standard steel discs.
Please note: Brake disc rotors are priced each.
SHW PERFORMANCE, one of the world's leading brake disc manufacturers supplying directly to OEM, with product featured as standard equipment on many of today's new performance vehicles.
THE ONLY TRUE REPLACEMENT.
NOTHING LESS THAN A TRUE FACTORY EQUIVALENT
SHW PERFORMANCE produces both one and two piece, ventilated disc brake rotors to cover a wide range of vehicle applications.The vehicle application automatically dictates which style, composition and type of disc brake rotor is available, as SHW only offer a genuine direct replacement for the factory supplied disc.For lesser performance orientated vehicles, a ventilated monoblock disc brake rotor produced from cast iron will more than suffice. For vehicles placing greater demand on the needed stopping power, a lightweight, composite, fully floating two-piece design is often preferred (the style of which is referred commonly as a peg or pin drive system).
PERFORMANCE UNDER PRESSURE.
CONSISTENT RELIABILITY AND PERFORMANCE UNDER THE MOST DEMANDING OF CONDITIONS
Quality is a key ingredient from which to guarantee long term repeated reliability. SHW products are built to carry the high expectations required by exacting OEM standards and exceed them where possible.
PATENTED DESIGN PIN-DRIVE SYSTEM.
FROM WEIGHT REDUCTION TO IMPROVED COOLING, DISCOVER THE BENEFITS OF THE SHW PIN-DRIVE BRAKE ROTOR SYSTEM
Innovation, sustainability, added value. Welcome to SHW's patented Pin-Drive system, a substantial step forward in the future of braking.
SHW's Pin-Drive system carries many benefits when compared to conventional methods of disc brake rotor design. So, what is 'Pin-Drive' and why is it advantageous over a one-piece disc brake rotor?
The Pin-Drive system is a two piece fully floating disc brake rotor. The friction ring is connected to the central aluminium rotor bell by means of stainless steel pins which are cast into the assembly during the manufacturing process. The purpose behind the design is to offer a range of advantages:
- Up to 5.5lbs of weight reduction (rotating and unsprung weight) per disc compared to Monoblock.
- Reduced thermal strain thanks to the friction ring having more freedom to expand and contract.
- Low brake fading properties.
- Improved durability.
- Enhanced brake comfort thanks to optimised thermal conditions.
- Optimal curved vane design that maintains structural strength while improving noise dampening.
UNPARALLELED COOLING ADVANTAGES.
MAINTAIN OPTIMUM BRAKING PERFORMANCE FOR LONGER WITH IMPROVED COOLING PROPERTIES.
As well as a reduction in unsprung weight and improved braking characteristics, SHW's Pin-Drive design also prides itself on offering unbeatable cooling advantages, just one of the reasons why it has become the first choice for many OEM's.
Unlike other brake manufacturers, SHW developed a PATENTED improvement of the disc construction by offsetting the pin connection of the friction ring to the aluminium disc bell away from the center to the edge, which results in huge cooling gains.
By offsetting the pin connection of the friction ring to the aluminium bell the cooling channels running centrally through the rotor see a huge increase in accessibility and cooler air flow. This advantageous design offers up to a 50% cooling advantage gain when compared to traditional designs.
Allowing a greater flow of air, heat generated on the surface of the friction ring (via the brake pads clamping down under braking) is carried away faster and more efficiently, dramatically reducing inner core and surface temperatures across the complete disc brake rotor. In addition, due to the unique patented design, further weight savings are achieved thanks to a shallow aluminium disc bell.
THE IMPORTANCE OF AIR FLOW. WHEN AIR FLOW IS PARAMOUNT TO PERFORMANCE. THE LOWER THE OPERATING TEMPERATURES, THE HIGHER THE PERFORMANCE. The cold air is traditionally fed via air ducts located either in the front bumper, or channeled through pathways on the underside of the vehicles under tray. As the cold air enters the rear of the disc bell, it passes through vanes between the two brake rotor faces. The cooler air helps to reduce temperatures from the very core of the brake disc by collecting heat and carrying it outwards, away from the brake disc assembly and eventually venting back out into the passing air flow found circulating the inner wheel.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
29861530
The product you are viewing cross references to these numbers
Brake Dis Diameter Ø: 390 mm
Brake Disc Thickness: 38,0 mm
Brake Disc Type: internally vented, slotted, two-part brake disc
Porsche 970 Panamera TURBO / TURBO S 4.8L V8 2010-16
Porsche 970 Panamera GTS 4.8L V8 2010-16
Cars with standard steel discs.
Please note: Brake disc rotors are priced each.
SHW PERFORMANCE, one of the world's leading brake disc manufacturers supplying directly to OEM, with product featured as standard equipment on many of today's new performance vehicles.
THE ONLY TRUE REPLACEMENT.
NOTHING LESS THAN A TRUE FACTORY EQUIVALENT
SHW PERFORMANCE produces both one and two piece, ventilated disc brake rotors to cover a wide range of vehicle applications.The vehicle application automatically dictates which style, composition and type of disc brake rotor is available, as SHW only offer a genuine direct replacement for the factory supplied disc.For lesser performance orientated vehicles, a ventilated monoblock disc brake rotor produced from cast iron will more than suffice. For vehicles placing greater demand on the needed stopping power, a lightweight, composite, fully floating two-piece design is often preferred (the style of which is referred commonly as a peg or pin drive system).
PERFORMANCE UNDER PRESSURE.
CONSISTENT RELIABILITY AND PERFORMANCE UNDER THE MOST DEMANDING OF CONDITIONS
Quality is a key ingredient from which to guarantee long term repeated reliability. SHW products are built to carry the high expectations required by exacting OEM standards and exceed them where possible.
PATENTED DESIGN PIN-DRIVE SYSTEM.
FROM WEIGHT REDUCTION TO IMPROVED COOLING, DISCOVER THE BENEFITS OF THE SHW PIN-DRIVE BRAKE ROTOR SYSTEM
Innovation, sustainability, added value. Welcome to SHW's patented Pin-Drive system, a substantial step forward in the future of braking.
SHW's Pin-Drive system carries many benefits when compared to conventional methods of disc brake rotor design. So, what is 'Pin-Drive' and why is it advantageous over a one-piece disc brake rotor?
The Pin-Drive system is a two piece fully floating disc brake rotor. The friction ring is connected to the central aluminium rotor bell by means of stainless steel pins which are cast into the assembly during the manufacturing process. The purpose behind the design is to offer a range of advantages:
- Up to 5.5lbs of weight reduction (rotating and unsprung weight) per disc compared to Monoblock.
- Reduced thermal strain thanks to the friction ring having more freedom to expand and contract.
- Low brake fading properties.
- Improved durability.
- Enhanced brake comfort thanks to optimised thermal conditions.
- Optimal curved vane design that maintains structural strength while improving noise dampening.
UNPARALLELED COOLING ADVANTAGES.
MAINTAIN OPTIMUM BRAKING PERFORMANCE FOR LONGER WITH IMPROVED COOLING PROPERTIES.
As well as a reduction in unsprung weight and improved braking characteristics, SHW's Pin-Drive design also prides itself on offering unbeatable cooling advantages, just one of the reasons why it has become the first choice for many OEM's.
Unlike other brake manufacturers, SHW developed a PATENTED improvement of the disc construction by offsetting the pin connection of the friction ring to the aluminium disc bell away from the center to the edge, which results in huge cooling gains.
By offsetting the pin connection of the friction ring to the aluminium bell the cooling channels running centrally through the rotor see a huge increase in accessibility and cooler air flow. This advantageous design offers up to a 50% cooling advantage gain when compared to traditional designs.
Allowing a greater flow of air, heat generated on the surface of the friction ring (via the brake pads clamping down under braking) is carried away faster and more efficiently, dramatically reducing inner core and surface temperatures across the complete disc brake rotor. In addition, due to the unique patented design, further weight savings are achieved thanks to a shallow aluminium disc bell.
THE IMPORTANCE OF AIR FLOW. WHEN AIR FLOW IS PARAMOUNT TO PERFORMANCE. THE LOWER THE OPERATING TEMPERATURES, THE HIGHER THE PERFORMANCE. The cold air is traditionally fed via air ducts located either in the front bumper, or channeled through pathways on the underside of the vehicles under tray. As the cold air enters the rear of the disc bell, it passes through vanes between the two brake rotor faces. The cooler air helps to reduce temperatures from the very core of the brake disc by collecting heat and carrying it outwards, away from the brake disc assembly and eventually venting back out into the passing air flow found circulating the inner wheel.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
29861530
97035140500
97035140600
298615301C
298615302C
205953C
205952C
The product you are viewing cross references to these numbers
Prices from: £467.00
Vehicle Group
- Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
- Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- Porsche 970.1 Panamera S V8 4.8L 2009-13
- Porsche 970.1 Panamera 4S V8 4.8L 2009-13
- Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- Porsche 970.1 Panamera Diesel V6 3.0L 2011-13
- Porsche 970.1 Panamera S Hybrid V6 3.0L 2011-13
- Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
- Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD (420Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD Executive 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD (420Hp) 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD Executive 2014-16
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- Porsche 970.2 Panamera Diesel V6 3.0L (250Hp) 2014-16
- Porsche 970.2 Panamera S E-Hybrid V6 3.0L (416Hp) 2014-16
- Porsche 971.1 Panamera 4S V6 3.0L 4WD (440 Hp) 2017-20
- Porsche 971.1 Panamera 4S V6 3.0L 4WD Executive 2017-20
- Porsche 971.1 Panamera 4S Diesel V8 4.0L 4WD (422 Hp) 2017-18
Information
SHW Performance REAR slotted monoblock brake disc rotor.
Brake Dis Diameter Ø: 330 mm
Brake Disc Thickness: 28,0 mm
Brake Disc Type: internally vented, slotted
Porsche 970 Panamera 3.0L DIESEL V6 2WD - REAR
Porsche 970 Panamera 3.0L HYBRID V6 2WD - REAR
Porsche 970 Panamera 3.6L V6 2WD - REAR
Porsche 970 Panamera 4 3.6L V6 4WD - REAR
Porsche 970 Panamera S 4.8L V8 - REAR
Porsche 970 Panamera 4S 4.8L V8 - REAR
Porsche 971 Panamera S 2017>> - REAR
(I2EE) For cars with 18inch brake disc, brake caliper in anodised Silver
(I2EJ) For cars with 18inch brake disc, Silver brake caliper (NAR)
This product supersedes Porsche's old part numbers:
97035240300 (LEFT) / 97035240400 (RIGHT)
298615601A (LEFT) / 298615602A (RIGHT)
Please note: Brake disc rotors are priced each.
SHW PERFORMANCE, one of the world's leading brake disc manufacturers supplying directly to OEM, with product featured as standard equipment on many of today's new performance vehicles.
THE ONLY TRUE REPLACEMENT.
NOTHING LESS THAN A TRUE FACTORY EQUIVALENT
SHW PERFORMANCE produces both one and two piece, ventilated disc brake rotors to cover a wide range of vehicle applications.The vehicle application automatically dictates which style, composition and type of disc brake rotor is available, as SHW only offer a genuine direct replacement for the factory supplied disc.For lesser performance orientated vehicles, a ventilated monoblock disc brake rotor produced from cast iron will more than suffice. For vehicles placing greater demand on the needed stopping power, a lightweight, composite, fully floating two-piece design is often preferred (the style of which is referred commonly as a peg or pin drive system).
PERFORMANCE UNDER PRESSURE.
CONSISTENT RELIABILITY AND PERFORMANCE UNDER THE MOST DEMANDING OF CONDITIONS
Quality is a key ingredient from which to guarantee long term repeated reliability. SHW products are built to carry the high expectations required by exacting OEM standards and exceed them where possible.
PATENTED DESIGN PIN-DRIVE SYSTEM.
FROM WEIGHT REDUCTION TO IMPROVED COOLING, DISCOVER THE BENEFITS OF THE SHW PIN-DRIVE BRAKE ROTOR SYSTEM
Innovation, sustainability, added value. Welcome to SHW's patented Pin-Drive system, a substantial step forward in the future of braking.
SHW's Pin-Drive system carries many benefits when compared to conventional methods of disc brake rotor design. So, what is 'Pin-Drive' and why is it advantageous over a one-piece disc brake rotor?
The Pin-Drive system is a two piece fully floating disc brake rotor. The friction ring is connected to the central aluminium rotor bell by means of stainless steel pins which are cast into the assembly during the manufacturing process. The purpose behind the design is to offer a range of advantages:
- Up to 5.5lbs of weight reduction (rotating and unsprung weight) per disc compared to Monoblock.
- Reduced thermal strain thanks to the friction ring having more freedom to expand and contract.
- Low brake fading properties.
- Improved durability.
- Enhanced brake comfort thanks to optimised thermal conditions.
- Optimal curved vane design that maintains structural strength while improving noise dampening.
UNPARALLELED COOLING ADVANTAGES.
MAINTAIN OPTIMUM BRAKING PERFORMANCE FOR LONGER WITH IMPROVED COOLING PROPERTIES.
As well as a reduction in unsprung weight and improved braking characteristics, SHW's Pin-Drive design also prides itself on offering unbeatable cooling advantages, just one of the reasons why it has become the first choice for many OEM's.
Unlike other brake manufacturers, SHW developed a PATENTED improvement of the disc construction by offsetting the pin connection of the friction ring to the aluminium disc bell away from the center to the edge, which results in huge cooling gains.
By offsetting the pin connection of the friction ring to the aluminium bell the cooling channels running centrally through the rotor see a huge increase in accessibility and cooler air flow. This advantageous design offers up to a 50% cooling advantage gain when compared to traditional designs.
Allowing a greater flow of air, heat generated on the surface of the friction ring (via the brake pads clamping down under braking) is carried away faster and more efficiently, dramatically reducing inner core and surface temperatures across the complete disc brake rotor. In addition, due to the unique patented design, further weight savings are achieved thanks to a shallow aluminium disc bell.
THE IMPORTANCE OF AIR FLOW. WHEN AIR FLOW IS PARAMOUNT TO PERFORMANCE. THE LOWER THE OPERATING TEMPERATURES, THE HIGHER THE PERFORMANCE. The cold air is traditionally fed via air ducts located either in the front bumper, or channeled through pathways on the underside of the vehicles under tray. As the cold air enters the rear of the disc bell, it passes through vanes between the two brake rotor faces. The cooler air helps to reduce temperatures from the very core of the brake disc by collecting heat and carrying it outwards, away from the brake disc assembly and eventually venting back out into the passing air flow found circulating the inner wheel.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
97161560
The product you are viewing cross references to these numbers
Brake Dis Diameter Ø: 330 mm
Brake Disc Thickness: 28,0 mm
Brake Disc Type: internally vented, slotted
Porsche 970 Panamera 3.0L DIESEL V6 2WD - REAR
Porsche 970 Panamera 3.0L HYBRID V6 2WD - REAR
Porsche 970 Panamera 3.6L V6 2WD - REAR
Porsche 970 Panamera 4 3.6L V6 4WD - REAR
Porsche 970 Panamera S 4.8L V8 - REAR
Porsche 970 Panamera 4S 4.8L V8 - REAR
Porsche 971 Panamera S 2017>> - REAR
(I2EE) For cars with 18inch brake disc, brake caliper in anodised Silver
(I2EJ) For cars with 18inch brake disc, Silver brake caliper (NAR)
This product supersedes Porsche's old part numbers:
97035240300 (LEFT) / 97035240400 (RIGHT)
298615601A (LEFT) / 298615602A (RIGHT)
Please note: Brake disc rotors are priced each.
SHW PERFORMANCE, one of the world's leading brake disc manufacturers supplying directly to OEM, with product featured as standard equipment on many of today's new performance vehicles.
THE ONLY TRUE REPLACEMENT.
NOTHING LESS THAN A TRUE FACTORY EQUIVALENT
SHW PERFORMANCE produces both one and two piece, ventilated disc brake rotors to cover a wide range of vehicle applications.The vehicle application automatically dictates which style, composition and type of disc brake rotor is available, as SHW only offer a genuine direct replacement for the factory supplied disc.For lesser performance orientated vehicles, a ventilated monoblock disc brake rotor produced from cast iron will more than suffice. For vehicles placing greater demand on the needed stopping power, a lightweight, composite, fully floating two-piece design is often preferred (the style of which is referred commonly as a peg or pin drive system).
PERFORMANCE UNDER PRESSURE.
CONSISTENT RELIABILITY AND PERFORMANCE UNDER THE MOST DEMANDING OF CONDITIONS
Quality is a key ingredient from which to guarantee long term repeated reliability. SHW products are built to carry the high expectations required by exacting OEM standards and exceed them where possible.
PATENTED DESIGN PIN-DRIVE SYSTEM.
FROM WEIGHT REDUCTION TO IMPROVED COOLING, DISCOVER THE BENEFITS OF THE SHW PIN-DRIVE BRAKE ROTOR SYSTEM
Innovation, sustainability, added value. Welcome to SHW's patented Pin-Drive system, a substantial step forward in the future of braking.
SHW's Pin-Drive system carries many benefits when compared to conventional methods of disc brake rotor design. So, what is 'Pin-Drive' and why is it advantageous over a one-piece disc brake rotor?
The Pin-Drive system is a two piece fully floating disc brake rotor. The friction ring is connected to the central aluminium rotor bell by means of stainless steel pins which are cast into the assembly during the manufacturing process. The purpose behind the design is to offer a range of advantages:
- Up to 5.5lbs of weight reduction (rotating and unsprung weight) per disc compared to Monoblock.
- Reduced thermal strain thanks to the friction ring having more freedom to expand and contract.
- Low brake fading properties.
- Improved durability.
- Enhanced brake comfort thanks to optimised thermal conditions.
- Optimal curved vane design that maintains structural strength while improving noise dampening.
UNPARALLELED COOLING ADVANTAGES.
MAINTAIN OPTIMUM BRAKING PERFORMANCE FOR LONGER WITH IMPROVED COOLING PROPERTIES.
As well as a reduction in unsprung weight and improved braking characteristics, SHW's Pin-Drive design also prides itself on offering unbeatable cooling advantages, just one of the reasons why it has become the first choice for many OEM's.
Unlike other brake manufacturers, SHW developed a PATENTED improvement of the disc construction by offsetting the pin connection of the friction ring to the aluminium disc bell away from the center to the edge, which results in huge cooling gains.
By offsetting the pin connection of the friction ring to the aluminium bell the cooling channels running centrally through the rotor see a huge increase in accessibility and cooler air flow. This advantageous design offers up to a 50% cooling advantage gain when compared to traditional designs.
Allowing a greater flow of air, heat generated on the surface of the friction ring (via the brake pads clamping down under braking) is carried away faster and more efficiently, dramatically reducing inner core and surface temperatures across the complete disc brake rotor. In addition, due to the unique patented design, further weight savings are achieved thanks to a shallow aluminium disc bell.
THE IMPORTANCE OF AIR FLOW. WHEN AIR FLOW IS PARAMOUNT TO PERFORMANCE. THE LOWER THE OPERATING TEMPERATURES, THE HIGHER THE PERFORMANCE. The cold air is traditionally fed via air ducts located either in the front bumper, or channeled through pathways on the underside of the vehicles under tray. As the cold air enters the rear of the disc bell, it passes through vanes between the two brake rotor faces. The cooler air helps to reduce temperatures from the very core of the brake disc by collecting heat and carrying it outwards, away from the brake disc assembly and eventually venting back out into the passing air flow found circulating the inner wheel.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
97161560
97035240300
97035240400
298615601A
298615602A
971615601P
971615602P
The product you are viewing cross references to these numbers
Prices from: £157.00
Vehicle Group
- Porsche 970.1 Panamera Turbo V8 4.8L 2009-13
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- Porsche 970.2 Panamera Turbo V8 4.8L (520Hp) 2014-16
Information
SHW Performance REAR slotted monoblock brake disc rotor.
Brake Dis Diameter Ø: 350 mm
Brake Disc Thickness: 28,0 mm
Brake Disc Type: internally vented, slotted
Not for cars with ceramic brake (PCCB)
Porsche 970.1 Panamera 4 GTS >>2013 - REAR
Porsche 970.2 Panamera GTS 2014-16 - REAR
Porsche 970.1 Turbo >>2013 (not for Turbo power kit X80, not for Turbo S) - REAR
Porsche 970.2 Turbo 2014-16 (not for Turbo S) - REAR
Please note: Brake disc rotors are priced each.
SHW PERFORMANCE, one of the world's leading brake disc manufacturers supplying directly to OEM, with product featured as standard equipment on many of today's new performance vehicles.
THE ONLY TRUE REPLACEMENT.
NOTHING LESS THAN A TRUE FACTORY EQUIVALENT
SHW PERFORMANCE produces both one and two piece, ventilated disc brake rotors to cover a wide range of vehicle applications.The vehicle application automatically dictates which style, composition and type of disc brake rotor is available, as SHW only offer a genuine direct replacement for the factory supplied disc.For lesser performance orientated vehicles, a ventilated monoblock disc brake rotor produced from cast iron will more than suffice. For vehicles placing greater demand on the needed stopping power, a lightweight, composite, fully floating two-piece design is often preferred (the style of which is referred commonly as a peg or pin drive system).
PERFORMANCE UNDER PRESSURE.
CONSISTENT RELIABILITY AND PERFORMANCE UNDER THE MOST DEMANDING OF CONDITIONS
Quality is a key ingredient from which to guarantee long term repeated reliability. SHW products are built to carry the high expectations required by exacting OEM standards and exceed them where possible.
PATENTED DESIGN PIN-DRIVE SYSTEM.
FROM WEIGHT REDUCTION TO IMPROVED COOLING, DISCOVER THE BENEFITS OF THE SHW PIN-DRIVE BRAKE ROTOR SYSTEM
Innovation, sustainability, added value. Welcome to SHW's patented Pin-Drive system, a substantial step forward in the future of braking.
SHW's Pin-Drive system carries many benefits when compared to conventional methods of disc brake rotor design. So, what is 'Pin-Drive' and why is it advantageous over a one-piece disc brake rotor?
The Pin-Drive system is a two piece fully floating disc brake rotor. The friction ring is connected to the central aluminium rotor bell by means of stainless steel pins which are cast into the assembly during the manufacturing process. The purpose behind the design is to offer a range of advantages:
- Up to 5.5lbs of weight reduction (rotating and unsprung weight) per disc compared to Monoblock.
- Reduced thermal strain thanks to the friction ring having more freedom to expand and contract.
- Low brake fading properties.
- Improved durability.
- Enhanced brake comfort thanks to optimised thermal conditions.
- Optimal curved vane design that maintains structural strength while improving noise dampening.
UNPARALLELED COOLING ADVANTAGES.
MAINTAIN OPTIMUM BRAKING PERFORMANCE FOR LONGER WITH IMPROVED COOLING PROPERTIES.
As well as a reduction in unsprung weight and improved braking characteristics, SHW's Pin-Drive design also prides itself on offering unbeatable cooling advantages, just one of the reasons why it has become the first choice for many OEM's.
Unlike other brake manufacturers, SHW developed a PATENTED improvement of the disc construction by offsetting the pin connection of the friction ring to the aluminium disc bell away from the center to the edge, which results in huge cooling gains.
By offsetting the pin connection of the friction ring to the aluminium bell the cooling channels running centrally through the rotor see a huge increase in accessibility and cooler air flow. This advantageous design offers up to a 50% cooling advantage gain when compared to traditional designs.
Allowing a greater flow of air, heat generated on the surface of the friction ring (via the brake pads clamping down under braking) is carried away faster and more efficiently, dramatically reducing inner core and surface temperatures across the complete disc brake rotor. In addition, due to the unique patented design, further weight savings are achieved thanks to a shallow aluminium disc bell.
THE IMPORTANCE OF AIR FLOW. WHEN AIR FLOW IS PARAMOUNT TO PERFORMANCE. THE LOWER THE OPERATING TEMPERATURES, THE HIGHER THE PERFORMANCE. The cold air is traditionally fed via air ducts located either in the front bumper, or channeled through pathways on the underside of the vehicles under tray. As the cold air enters the rear of the disc bell, it passes through vanes between the two brake rotor faces. The cooler air helps to reduce temperatures from the very core of the brake disc by collecting heat and carrying it outwards, away from the brake disc assembly and eventually venting back out into the passing air flow found circulating the inner wheel.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
29861560
The product you are viewing cross references to these numbers
Brake Dis Diameter Ø: 350 mm
Brake Disc Thickness: 28,0 mm
Brake Disc Type: internally vented, slotted
Not for cars with ceramic brake (PCCB)
Porsche 970.1 Panamera 4 GTS >>2013 - REAR
Porsche 970.2 Panamera GTS 2014-16 - REAR
Porsche 970.1 Turbo >>2013 (not for Turbo power kit X80, not for Turbo S) - REAR
Porsche 970.2 Turbo 2014-16 (not for Turbo S) - REAR
Please note: Brake disc rotors are priced each.
SHW PERFORMANCE, one of the world's leading brake disc manufacturers supplying directly to OEM, with product featured as standard equipment on many of today's new performance vehicles.
THE ONLY TRUE REPLACEMENT.
NOTHING LESS THAN A TRUE FACTORY EQUIVALENT
SHW PERFORMANCE produces both one and two piece, ventilated disc brake rotors to cover a wide range of vehicle applications.The vehicle application automatically dictates which style, composition and type of disc brake rotor is available, as SHW only offer a genuine direct replacement for the factory supplied disc.For lesser performance orientated vehicles, a ventilated monoblock disc brake rotor produced from cast iron will more than suffice. For vehicles placing greater demand on the needed stopping power, a lightweight, composite, fully floating two-piece design is often preferred (the style of which is referred commonly as a peg or pin drive system).
PERFORMANCE UNDER PRESSURE.
CONSISTENT RELIABILITY AND PERFORMANCE UNDER THE MOST DEMANDING OF CONDITIONS
Quality is a key ingredient from which to guarantee long term repeated reliability. SHW products are built to carry the high expectations required by exacting OEM standards and exceed them where possible.
PATENTED DESIGN PIN-DRIVE SYSTEM.
FROM WEIGHT REDUCTION TO IMPROVED COOLING, DISCOVER THE BENEFITS OF THE SHW PIN-DRIVE BRAKE ROTOR SYSTEM
Innovation, sustainability, added value. Welcome to SHW's patented Pin-Drive system, a substantial step forward in the future of braking.
SHW's Pin-Drive system carries many benefits when compared to conventional methods of disc brake rotor design. So, what is 'Pin-Drive' and why is it advantageous over a one-piece disc brake rotor?
The Pin-Drive system is a two piece fully floating disc brake rotor. The friction ring is connected to the central aluminium rotor bell by means of stainless steel pins which are cast into the assembly during the manufacturing process. The purpose behind the design is to offer a range of advantages:
- Up to 5.5lbs of weight reduction (rotating and unsprung weight) per disc compared to Monoblock.
- Reduced thermal strain thanks to the friction ring having more freedom to expand and contract.
- Low brake fading properties.
- Improved durability.
- Enhanced brake comfort thanks to optimised thermal conditions.
- Optimal curved vane design that maintains structural strength while improving noise dampening.
UNPARALLELED COOLING ADVANTAGES.
MAINTAIN OPTIMUM BRAKING PERFORMANCE FOR LONGER WITH IMPROVED COOLING PROPERTIES.
As well as a reduction in unsprung weight and improved braking characteristics, SHW's Pin-Drive design also prides itself on offering unbeatable cooling advantages, just one of the reasons why it has become the first choice for many OEM's.
Unlike other brake manufacturers, SHW developed a PATENTED improvement of the disc construction by offsetting the pin connection of the friction ring to the aluminium disc bell away from the center to the edge, which results in huge cooling gains.
By offsetting the pin connection of the friction ring to the aluminium bell the cooling channels running centrally through the rotor see a huge increase in accessibility and cooler air flow. This advantageous design offers up to a 50% cooling advantage gain when compared to traditional designs.
Allowing a greater flow of air, heat generated on the surface of the friction ring (via the brake pads clamping down under braking) is carried away faster and more efficiently, dramatically reducing inner core and surface temperatures across the complete disc brake rotor. In addition, due to the unique patented design, further weight savings are achieved thanks to a shallow aluminium disc bell.
THE IMPORTANCE OF AIR FLOW. WHEN AIR FLOW IS PARAMOUNT TO PERFORMANCE. THE LOWER THE OPERATING TEMPERATURES, THE HIGHER THE PERFORMANCE. The cold air is traditionally fed via air ducts located either in the front bumper, or channeled through pathways on the underside of the vehicles under tray. As the cold air enters the rear of the disc bell, it passes through vanes between the two brake rotor faces. The cooler air helps to reduce temperatures from the very core of the brake disc by collecting heat and carrying it outwards, away from the brake disc assembly and eventually venting back out into the passing air flow found circulating the inner wheel.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
29861560
97035240500
97035240600
298615601B
298615602B
The product you are viewing cross references to these numbers
Prices from: £185.00
Vehicle Group
- Porsche 970.1 Panamera V6 3.6L 2WD 2009-13
- Porsche 970.1 Panamera 4 V6 3.6L 4WD 2009-13
- Porsche 970.1 Panamera S V8 4.8L 2009-13
- Porsche 970.1 Panamera 4S V8 4.8L 2009-13
- Porsche 970.1 Panamera GTS V8 4.8L 2011-13
- Porsche 970.1 Panamera Diesel V6 3.0L 2011-13
- Porsche 970.1 Panamera S Hybrid V6 3.0L 2011-13
- Porsche 970.2 Panamera V6 3.6L 2WD (310Hp) 2014-16
- Porsche 970.2 Panamera 4 V6 3.6L 4WD (310Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD (420Hp) 2014-16
- Porsche 970.2 Panamera S V6 Turbo 3.0L 2WD Executive 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD (420Hp) 2014-16
- Porsche 970.2 Panamera 4S V6 Turbo 3.0L 4WD Executive 2014-16
- Porsche 970.2 Panamera GTS V8 4.8L 4WD (440Hp) 2014-16
- Porsche 970.2 Panamera Diesel V6 3.0L (250Hp) 2014-16
- Porsche 970.2 Panamera S E-Hybrid V6 3.0L (416Hp) 2014-16
Information
SHW Performance FRONT slotted monoblock brake disc rotor.
Brake Dis Diameter Ø: 360 mm
Brake Disc Thickness: 26,0 mm
Brake Disc Type: internally vented, slotted
Porsche 970 Panamera 3.6L V6 2WD
Porsche 970 Panamera 4 3.6L V6 4WD
Porsche 970 Panamera S 4.8L V8
Porsche 970 Panamera 4S 4.8L V8
Porsche 970 Panamera GTS 4.8L V8
Porsche 970 Panamera 3.0L Diesel
Porsche 970 Panamera 3.0L Hybrid
Not for cars with Ceramic brake (PCCB)
Not for Special model : Panamera 4 GTS
This product supersedes Porsche's old part numbers:
- 97035140300 (LEFT) / 97035140400 (RIGHT
Please note: Brake disc rotors are priced each.
SHW PERFORMANCE, one of the world's leading brake disc manufacturers supplying directly to OEM, with product featured as standard equipment on many of today's new performance vehicles.
THE ONLY TRUE REPLACEMENT.
NOTHING LESS THAN A TRUE FACTORY EQUIVALENT
SHW PERFORMANCE produces both one and two piece, ventilated disc brake rotors to cover a wide range of vehicle applications.The vehicle application automatically dictates which style, composition and type of disc brake rotor is available, as SHW only offer a genuine direct replacement for the factory supplied disc.For lesser performance orientated vehicles, a ventilated monoblock disc brake rotor produced from cast iron will more than suffice. For vehicles placing greater demand on the needed stopping power, a lightweight, composite, fully floating two-piece design is often preferred (the style of which is referred commonly as a peg or pin drive system).
PERFORMANCE UNDER PRESSURE.
CONSISTENT RELIABILITY AND PERFORMANCE UNDER THE MOST DEMANDING OF CONDITIONS
Quality is a key ingredient from which to guarantee long term repeated reliability. SHW products are built to carry the high expectations required by exacting OEM standards and exceed them where possible.
PATENTED DESIGN PIN-DRIVE SYSTEM.
FROM WEIGHT REDUCTION TO IMPROVED COOLING, DISCOVER THE BENEFITS OF THE SHW PIN-DRIVE BRAKE ROTOR SYSTEM
Innovation, sustainability, added value. Welcome to SHW's patented Pin-Drive system, a substantial step forward in the future of braking.
SHW's Pin-Drive system carries many benefits when compared to conventional methods of disc brake rotor design. So, what is 'Pin-Drive' and why is it advantageous over a one-piece disc brake rotor?
The Pin-Drive system is a two piece fully floating disc brake rotor. The friction ring is connected to the central aluminium rotor bell by means of stainless steel pins which are cast into the assembly during the manufacturing process. The purpose behind the design is to offer a range of advantages:
- Up to 5.5lbs of weight reduction (rotating and unsprung weight) per disc compared to Monoblock.
- Reduced thermal strain thanks to the friction ring having more freedom to expand and contract.
- Low brake fading properties.
- Improved durability.
- Enhanced brake comfort thanks to optimised thermal conditions.
- Optimal curved vane design that maintains structural strength while improving noise dampening.
UNPARALLELED COOLING ADVANTAGES.
MAINTAIN OPTIMUM BRAKING PERFORMANCE FOR LONGER WITH IMPROVED COOLING PROPERTIES.
As well as a reduction in unsprung weight and improved braking characteristics, SHW's Pin-Drive design also prides itself on offering unbeatable cooling advantages, just one of the reasons why it has become the first choice for many OEM's.
Unlike other brake manufacturers, SHW developed a PATENTED improvement of the disc construction by offsetting the pin connection of the friction ring to the aluminium disc bell away from the center to the edge, which results in huge cooling gains.
By offsetting the pin connection of the friction ring to the aluminium bell the cooling channels running centrally through the rotor see a huge increase in accessibility and cooler air flow. This advantageous design offers up to a 50% cooling advantage gain when compared to traditional designs.
Allowing a greater flow of air, heat generated on the surface of the friction ring (via the brake pads clamping down under braking) is carried away faster and more efficiently, dramatically reducing inner core and surface temperatures across the complete disc brake rotor. In addition, due to the unique patented design, further weight savings are achieved thanks to a shallow aluminium disc bell.
THE IMPORTANCE OF AIR FLOW.
WHEN AIR FLOW IS PARAMOUNT TO PERFORMANCE. THE LOWER THE OPERATING TEMPERATURES, THE HIGHER THE PERFORMANCE.
The cold air is traditionally fed via air ducts located either in the front bumper, or channeled through pathways on the underside of the vehicles under tray. As the cold air enters the rear of the disc bell, it passes through vanes between the two brake rotor faces. The cooler air helps to reduce temperatures from the very core of the brake disc by collecting heat and carrying it outwards, away from the brake disc assembly and eventually venting back out into the passing air flow found circulating the inner wheel.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
29861530
The product you are viewing cross references to these numbers
Brake Dis Diameter Ø: 360 mm
Brake Disc Thickness: 26,0 mm
Brake Disc Type: internally vented, slotted
Porsche 970 Panamera 3.6L V6 2WD
Porsche 970 Panamera 4 3.6L V6 4WD
Porsche 970 Panamera S 4.8L V8
Porsche 970 Panamera 4S 4.8L V8
Porsche 970 Panamera GTS 4.8L V8
Porsche 970 Panamera 3.0L Diesel
Porsche 970 Panamera 3.0L Hybrid
Not for cars with Ceramic brake (PCCB)
Not for Special model : Panamera 4 GTS
This product supersedes Porsche's old part numbers:
- 97035140300 (LEFT) / 97035140400 (RIGHT
Please note: Brake disc rotors are priced each.
SHW PERFORMANCE, one of the world's leading brake disc manufacturers supplying directly to OEM, with product featured as standard equipment on many of today's new performance vehicles.
THE ONLY TRUE REPLACEMENT.
NOTHING LESS THAN A TRUE FACTORY EQUIVALENT
SHW PERFORMANCE produces both one and two piece, ventilated disc brake rotors to cover a wide range of vehicle applications.The vehicle application automatically dictates which style, composition and type of disc brake rotor is available, as SHW only offer a genuine direct replacement for the factory supplied disc.For lesser performance orientated vehicles, a ventilated monoblock disc brake rotor produced from cast iron will more than suffice. For vehicles placing greater demand on the needed stopping power, a lightweight, composite, fully floating two-piece design is often preferred (the style of which is referred commonly as a peg or pin drive system).
PERFORMANCE UNDER PRESSURE.
CONSISTENT RELIABILITY AND PERFORMANCE UNDER THE MOST DEMANDING OF CONDITIONS
Quality is a key ingredient from which to guarantee long term repeated reliability. SHW products are built to carry the high expectations required by exacting OEM standards and exceed them where possible.
PATENTED DESIGN PIN-DRIVE SYSTEM.
FROM WEIGHT REDUCTION TO IMPROVED COOLING, DISCOVER THE BENEFITS OF THE SHW PIN-DRIVE BRAKE ROTOR SYSTEM
Innovation, sustainability, added value. Welcome to SHW's patented Pin-Drive system, a substantial step forward in the future of braking.
SHW's Pin-Drive system carries many benefits when compared to conventional methods of disc brake rotor design. So, what is 'Pin-Drive' and why is it advantageous over a one-piece disc brake rotor?
The Pin-Drive system is a two piece fully floating disc brake rotor. The friction ring is connected to the central aluminium rotor bell by means of stainless steel pins which are cast into the assembly during the manufacturing process. The purpose behind the design is to offer a range of advantages:
- Up to 5.5lbs of weight reduction (rotating and unsprung weight) per disc compared to Monoblock.
- Reduced thermal strain thanks to the friction ring having more freedom to expand and contract.
- Low brake fading properties.
- Improved durability.
- Enhanced brake comfort thanks to optimised thermal conditions.
- Optimal curved vane design that maintains structural strength while improving noise dampening.
UNPARALLELED COOLING ADVANTAGES.
MAINTAIN OPTIMUM BRAKING PERFORMANCE FOR LONGER WITH IMPROVED COOLING PROPERTIES.
As well as a reduction in unsprung weight and improved braking characteristics, SHW's Pin-Drive design also prides itself on offering unbeatable cooling advantages, just one of the reasons why it has become the first choice for many OEM's.
Unlike other brake manufacturers, SHW developed a PATENTED improvement of the disc construction by offsetting the pin connection of the friction ring to the aluminium disc bell away from the center to the edge, which results in huge cooling gains.
By offsetting the pin connection of the friction ring to the aluminium bell the cooling channels running centrally through the rotor see a huge increase in accessibility and cooler air flow. This advantageous design offers up to a 50% cooling advantage gain when compared to traditional designs.
Allowing a greater flow of air, heat generated on the surface of the friction ring (via the brake pads clamping down under braking) is carried away faster and more efficiently, dramatically reducing inner core and surface temperatures across the complete disc brake rotor. In addition, due to the unique patented design, further weight savings are achieved thanks to a shallow aluminium disc bell.
THE IMPORTANCE OF AIR FLOW.
WHEN AIR FLOW IS PARAMOUNT TO PERFORMANCE. THE LOWER THE OPERATING TEMPERATURES, THE HIGHER THE PERFORMANCE.
The cold air is traditionally fed via air ducts located either in the front bumper, or channeled through pathways on the underside of the vehicles under tray. As the cold air enters the rear of the disc bell, it passes through vanes between the two brake rotor faces. The cooler air helps to reduce temperatures from the very core of the brake disc by collecting heat and carrying it outwards, away from the brake disc assembly and eventually venting back out into the passing air flow found circulating the inner wheel.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
29861530
97035140300
97035140400
97035140301
97035140401
298615301B
298615302B
The product you are viewing cross references to these numbers
Prices from: £205.00
