Brake disc rotor 380x30mm inc brake pads & sensors Porsche 992.1 Carrera GTS / Turbo - BRAKEKIT992TT.F.SHW
BRAKEKIT992TT.F.SHW
Vehicle Group
- Porsche 992.1 Carrera 2S / GTS 3.0L 2019-24
- Porsche 992.1 Carrera 4S / GTS 3.0L 2019-24
- Porsche 992.1 Carrera 2S / GTS Cabriolet 3.0L 2019-24
- Porsche 992.1 Carrera 4S / GTS Cabriolet 3.0L 2019-24
- Porsche 992.1 Targa 4S / GTS 3.0L 2020-24
- Porsche 992.1 Turbo 3.8L 2020-24
- Porsche 992.1 Turbo Cabriolet 3.8L 2020-24
Information
Brake disc rotor 380x30mm inc brake pads & sensors Porsche 992.1 Carrera GTS / Turbo
Brake Disc Ø: 380mm
Brake Disc Thickness: 30 mm,
Brake Disc Type: internally vented, two-part brake disc, Drilled
For Option Codes: 2EB / 2ET
Porsche 992.1 Carrera GTS
Porsche 992.1 Carrera 4 GTS
Porsche 992.1 Turbo
SHW PERFORMANCE, one of the world's leading brake disc manufacturers supplying directly to OEM, with product featured as standard equipment on many of today's new performance vehicles.
THE ONLY TRUE REPLACEMENT.
NOTHING LESS THAN A TRUE FACTORY EQUIVALENT
SHW PERFORMANCE produces both one and two piece, ventilated disc brake rotors to cover a wide range of vehicle applications.The vehicle application automatically dictates which style, composition and type of disc brake rotor is available, as SHW only offer a genuine direct replacement for the factory supplied disc.For lesser performance orientated vehicles, a ventilated monoblock disc brake rotor produced from cast iron will more than suffice. For vehicles placing greater demand on the needed stopping power, a lightweight, composite, fully floating two-piece design is often preferred (the style of which is referred commonly as a peg or pin drive system).
PERFORMANCE UNDER PRESSURE.
CONSISTENT RELIABILITY AND PERFORMANCE UNDER THE MOST DEMANDING OF CONDITIONS
Quality is a key ingredient from which to guarantee long term repeated reliability. SHW products are built to carry the high expectations required by exacting OEM standards and exceed them where possible.
PATENTED DESIGN PIN-DRIVE SYSTEM.
FROM WEIGHT REDUCTION TO IMPROVED COOLING, DISCOVER THE BENEFITS OF THE SHW PIN-DRIVE BRAKE ROTOR SYSTEM
Innovation, sustainability, added value. Welcome to SHW's patented Pin-Drive system, a substantial step forward in the future of braking.
SHW's Pin-Drive system carries many benefits when compared to conventional methods of disc brake rotor design. So, what is 'Pin-Drive' and why is it advantageous over a one-piece disc brake rotor?
The Pin-Drive system is a two piece fully floating disc brake rotor. The friction ring is connected to the central aluminium rotor bell by means of stainless steel pins which are cast into the assembly during the manufacturing process. The purpose behind the design is to offer a range of advantages:
- Up to 5.5lbs of weight reduction (rotating and unsprung weight) per disc compared to Monoblock.
- Reduced thermal strain thanks to the friction ring having more freedom to expand and contract.
- Low brake fading properties.
- Improved durability.
- Enhanced brake comfort thanks to optimised thermal conditions.
- Optimal curved vane design that maintains structural strength while improving noise dampening.
UNPARALLELED COOLING ADVANTAGES.
MAINTAIN OPTIMUM BRAKING PERFORMANCE FOR LONGER WITH IMPROVED COOLING PROPERTIES.
As well as a reduction in unsprung weight and improved braking characteristics, SHW's Pin-Drive design also prides itself on offering unbeatable cooling advantages, just one of the reasons why it has become the first choice for many OEM's.
Unlike other brake manufacturers, SHW developed a PATENTED improvement of the disc construction by offsetting the pin connection of the friction ring to the aluminium disc bell away from the center to the edge, which results in huge cooling gains.
By offsetting the pin connection of the friction ring to the aluminium bell the cooling channels running centrally through the rotor see a huge increase in accessibility and cooler air flow. This advantageous design offers up to a 50% cooling advantage gain when compared to traditional designs.
Allowing a greater flow of air, heat generated on the surface of the friction ring (via the brake pads clamping down under braking) is carried away faster and more efficiently, dramatically reducing inner core and surface temperatures across the complete disc brake rotor. In addition, due to the unique patented design, further weight savings are achieved thanks to a shallow aluminium disc bell.
THE IMPORTANCE OF AIR FLOW. WHEN AIR FLOW IS PARAMOUNT TO PERFORMANCE. THE LOWER THE OPERATING TEMPERATURES, THE HIGHER THE PERFORMANCE. The cold air is traditionally fed via air ducts located either in the front bumper, or channeled through pathways on the underside of the vehicles under tray. As the cold air enters the rear of the disc bell, it passes through vanes between the two brake rotor faces. The cooler air helps to reduce temperatures from the very core of the brake disc by collecting heat and carrying it outwards, away from the brake disc assembly and eventually venting back out into the passing air flow found circulating the inner wheel.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
BRAKEKIT992TT.F.SHW
The product you are viewing cross references to these numbers
Brake Disc Ø: 380mm
Brake Disc Thickness: 30 mm,
Brake Disc Type: internally vented, two-part brake disc, Drilled
For Option Codes: 2EB / 2ET
Porsche 992.1 Carrera GTS
Porsche 992.1 Carrera 4 GTS
Porsche 992.1 Turbo
SHW PERFORMANCE, one of the world's leading brake disc manufacturers supplying directly to OEM, with product featured as standard equipment on many of today's new performance vehicles.
THE ONLY TRUE REPLACEMENT.
NOTHING LESS THAN A TRUE FACTORY EQUIVALENT
SHW PERFORMANCE produces both one and two piece, ventilated disc brake rotors to cover a wide range of vehicle applications.The vehicle application automatically dictates which style, composition and type of disc brake rotor is available, as SHW only offer a genuine direct replacement for the factory supplied disc.For lesser performance orientated vehicles, a ventilated monoblock disc brake rotor produced from cast iron will more than suffice. For vehicles placing greater demand on the needed stopping power, a lightweight, composite, fully floating two-piece design is often preferred (the style of which is referred commonly as a peg or pin drive system).
PERFORMANCE UNDER PRESSURE.
CONSISTENT RELIABILITY AND PERFORMANCE UNDER THE MOST DEMANDING OF CONDITIONS
Quality is a key ingredient from which to guarantee long term repeated reliability. SHW products are built to carry the high expectations required by exacting OEM standards and exceed them where possible.
PATENTED DESIGN PIN-DRIVE SYSTEM.
FROM WEIGHT REDUCTION TO IMPROVED COOLING, DISCOVER THE BENEFITS OF THE SHW PIN-DRIVE BRAKE ROTOR SYSTEM
Innovation, sustainability, added value. Welcome to SHW's patented Pin-Drive system, a substantial step forward in the future of braking.
SHW's Pin-Drive system carries many benefits when compared to conventional methods of disc brake rotor design. So, what is 'Pin-Drive' and why is it advantageous over a one-piece disc brake rotor?
The Pin-Drive system is a two piece fully floating disc brake rotor. The friction ring is connected to the central aluminium rotor bell by means of stainless steel pins which are cast into the assembly during the manufacturing process. The purpose behind the design is to offer a range of advantages:
- Up to 5.5lbs of weight reduction (rotating and unsprung weight) per disc compared to Monoblock.
- Reduced thermal strain thanks to the friction ring having more freedom to expand and contract.
- Low brake fading properties.
- Improved durability.
- Enhanced brake comfort thanks to optimised thermal conditions.
- Optimal curved vane design that maintains structural strength while improving noise dampening.
UNPARALLELED COOLING ADVANTAGES.
MAINTAIN OPTIMUM BRAKING PERFORMANCE FOR LONGER WITH IMPROVED COOLING PROPERTIES.
As well as a reduction in unsprung weight and improved braking characteristics, SHW's Pin-Drive design also prides itself on offering unbeatable cooling advantages, just one of the reasons why it has become the first choice for many OEM's.
Unlike other brake manufacturers, SHW developed a PATENTED improvement of the disc construction by offsetting the pin connection of the friction ring to the aluminium disc bell away from the center to the edge, which results in huge cooling gains.
By offsetting the pin connection of the friction ring to the aluminium bell the cooling channels running centrally through the rotor see a huge increase in accessibility and cooler air flow. This advantageous design offers up to a 50% cooling advantage gain when compared to traditional designs.
Allowing a greater flow of air, heat generated on the surface of the friction ring (via the brake pads clamping down under braking) is carried away faster and more efficiently, dramatically reducing inner core and surface temperatures across the complete disc brake rotor. In addition, due to the unique patented design, further weight savings are achieved thanks to a shallow aluminium disc bell.
THE IMPORTANCE OF AIR FLOW. WHEN AIR FLOW IS PARAMOUNT TO PERFORMANCE. THE LOWER THE OPERATING TEMPERATURES, THE HIGHER THE PERFORMANCE. The cold air is traditionally fed via air ducts located either in the front bumper, or channeled through pathways on the underside of the vehicles under tray. As the cold air enters the rear of the disc bell, it passes through vanes between the two brake rotor faces. The cooler air helps to reduce temperatures from the very core of the brake disc by collecting heat and carrying it outwards, away from the brake disc assembly and eventually venting back out into the passing air flow found circulating the inner wheel.
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
BRAKEKIT992TT.F.SHW
992615601H
992615602H
992698451D
971698995B
99135295100
971698995A
The product you are viewing cross references to these numbers
About kit

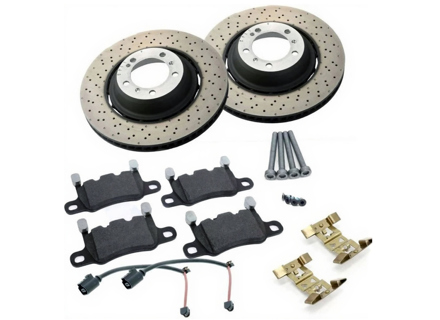

This kit is comprised of the following items:
1 x Brake disc rotor Rear, Light Weight drilled, 380x30mm. Porsche 992.1 Carrera GTS / Turbo (992615601HSHW
1 x Brake disc rotor Rear, Light Weight drilled, 380x30mm. Porsche 992.1 Carrera GTS / Turbo (992615602HSHW
1 x Brake pads Rear Porsche 991 S 3.8L, 991.2 3.0L , 991.2 S 3.0L (99135294904ABS
2 x Brake caliper retainer spring, REAR. Porsche 9YA Cayenne 2018>> (971698995B
4 x Brake Disc Mounting Screw. Porsche Various Models (N10456004
4 x Brake caliper mounting bolt rear. Porsche 9YA Cayenne / 991 turbo (PAF911837
2 x Brake pad wear sensor Rear. Porsche 992.1 / 992 turbo (9P1907637C
Price: €1,895.98
Orderable
Related products
Vehicle Group
- Porsche 957 Cayenne 3.0L Diesel 2007-10
- Porsche 957 Cayenne 3.6L 2007-10
- Porsche 957 Cayenne S/GTS 4.8L 2007-10
Information
Rear brake pads and brake disc package. Porsche Cayenne 957
Porsche Cayenne 957 V8 3.6L (REAR)
Porsche Cayenne 957 V8 4.8L (REAR)
Porsche Cayenne 957 3.0L Diesel (REAR)
This package includes Brake Disc Made in Germany.
Standard Replacement
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
BRAKEKIT957S.R.BRE
The product you are viewing cross references to these numbers
Porsche Cayenne 957 V8 3.6L (REAR)
Porsche Cayenne 957 V8 4.8L (REAR)
Porsche Cayenne 957 3.0L Diesel (REAR)
This package includes Brake Disc Made in Germany.
Standard Replacement
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
BRAKEKIT957S.R.BRE
95535240131
95535293906
95535293902
95535293903
95561236532
95561236531
95535240131BRE
95535293906BRE
The product you are viewing cross references to these numbers
About kit
This kit is comprised of the following items:
2 x Brake disc rotor, Rear. Porsche Cayenne 955 / 957 / 958 (95535240131BRE
1 x Brake pads, Rear. Porsche 955 / 957 Cayenne (95535293906BRE
2 x Brake pad wear sensor. Porsche 955 Cayenne (95561236532/1
Price: €235.78
In stock
Vehicle Group
- Porsche 955 Cayenne 3.2L V6 2003-06
- Porsche 957 Cayenne 3.0L Diesel 2007-10
- Porsche 957 Cayenne 3.6L 2007-10
Information
High grade replacement brake disc.
SET OF 4 BRAKE DISC - Front and Rear
Fits:
Porsche Cayenne (955) V6 3.2L MKI
Porsche Cayenne (957) V6 3.6L MKII
Porsche Cayenne (957) 3.0L DIESEL MKII
For cars with 430mm/17" disc and BLACK calipers
*option code: I1LK
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
BRAKEDISCKIT03
The product you are viewing cross references to these numbers
SET OF 4 BRAKE DISC - Front and Rear
Fits:
Porsche Cayenne (955) V6 3.2L MKI
Porsche Cayenne (957) V6 3.6L MKII
Porsche Cayenne (957) 3.0L DIESEL MKII
For cars with 430mm/17" disc and BLACK calipers
*option code: I1LK
Related reference numbers
Related, superseded, cross reference or alternative numbers for comparison.
BRAKEDISCKIT03
95535140141
95535140241
955.35.1401.41
955.351.402.41
95535240131
95535140141BRE
95535140241BRE
95535240131BRE
The product you are viewing cross references to these numbers
About kit
This kit is comprised of the following items:
1 x Brake disc rotor, Front. Porsche 955 Cayenne (OE No 95535140141 & 95535140241) (95535140X41BRE
2 x Brake disc rotor, Rear. Porsche Cayenne 955 / 957 / 958 (95535240131BRE
Price: €219.24
In stock
