- Porsche 924S 2.5L 1986-87
- Porsche 924S 2.5L 1988
- Porsche 944 2.5L 8V 1982-87
- Porsche 944 2.7L 8V 1988-89
- Porsche 944S 2.5L 16V 1987-88
- Porsche 944 Turbo 2.5L 8V 1985-88
- Porsche 944 Turbo 2.5L 8V 1989-91

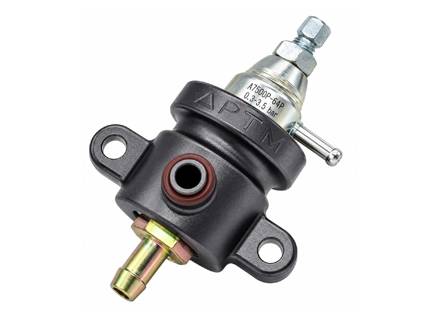

Adjustable direct-mount fuel pressure regulator by Adapt Motorsport. It fits the factory fuel rail and provides a 2.0–5.0 bar adjustment range for application-specific pressure settings.
Fits
- Porsche 944 naturally aspirated 1982–85 with M44.02 or M44.04 engines, replacing 94411019801 when adjusted to 2.5 bar
- Porsche 944 naturally aspirated 1985/2–88 with M44.05–10 engines, replacing 94411019803 when adjusted to 2.5 bar
- Porsche 944 Turbo 1986–89 with M44.51, or M44.52 up to engine number 47K 02563, replacing 94411019803 when adjusted to 2.5 bar
- Porsche 924S 1986–88, replacing 94411019803 when adjusted to 2.5 bar
- Porsche 944 naturally aspirated 1988 with M44.40 engine, replacing 94411019804 when adjusted to 3.8 bar
- Porsche 944S with M44.11 up to engine number 46K 02979, or M44.12 up to engine number 46K 61255, 1987–88, replacing 94411019804 when adjusted to 3.8 bar
- Porsche 944 S2 applications, subject to verification of the regulator and hose arrangement already installed
Not directly
suitable for the 944 Turbo M44.52 from engine number 47K 02564 onwards when
fitted with the threaded lower connection used by regulators 944 110 198 05,
944 110 198 06, Bosch 0 280 160 286 or Bosch 0 280 160 287. Installation
requires conversion of the threaded return line to a plain hose and suitable
hose clip.
Check fitment for your specific vehicle (model, year, engine) before ordering. Regulators and hoses may have been changed during earlier repairs, so compare the connection type with the component currently fitted.
What This Product Does
The regulator controls fuel pressure within the injection system. Its adjustable design allows the required operating pressure to be set for the applicable factory system or a compatible tuned installation.
Functions
- Mounts directly to the factory fuel rail using an O-ring connection
- Provides adjustable fuel pressure from 2.0 to 5.0 bar
- Connects to the return hose through an 8 mm barb outlet
- Allows increased fuel pressure where required by a compatible 944 Turbo tuning chip
- Supports straightforward replacement of specified Bosch and Porsche regulators
Technical Details
- Adjustment range: 2.0–5.0 bar
- Fuel return connection: 8 mm hose barb
- Fuel-rail connection: direct O-ring fitting
- Supplied with regulator body, adjustable regulator, outlet fitting, cap screws and lock washers
- Tested by Adapt Motorsport with Bosch 044 fuel pumps; the maximum supported flow rate has not been established
- The regulator is not supplied pre-set and must be adjusted on the vehicle using a suitable fuel-pressure gauge and fuel-rail adaptor
Symptoms of Fault
- Fuel leakage around the original regulator
- Running problems caused by regulator failure
- Difficulty obtaining the required fuel pressure during engine tuning
Why Replacement Matters
Many original regulators fitted to these models are now several decades old and may leak or cease to regulate correctly. Replacement restores an adjustable pressure-control point while retaining a direct connection to the applicable factory fuel rail. Final pressure must be measured and set after installation to match the vehicle and engine specification.
OE Reference
- Porsche 944 110 198 01
- Porsche 944 110 198 03
- Porsche 944 110 198 04
- Bosch 0 280 160 214
- Bosch 0 280 160 227
- Bosch 0 280 160 263
FAQs
- Is the regulator supplied at the correct pressure?
No. It must be measured and adjusted on the vehicle after installation. - What equipment is needed for setup?
A suitable fuel-pressure gauge and fittings for connection to the factory fuel rail are required. - Can it be used with a Bosch 044 fuel pump?
Adapt Motorsport has tested the regulator with Bosch 044 pumps, although the upper fuel-flow limit has not been determined. - Will it replace every 944 Turbo regulator?
No. Later M44.52 installations with a threaded lower regulator port require modification of the return-line connection.
