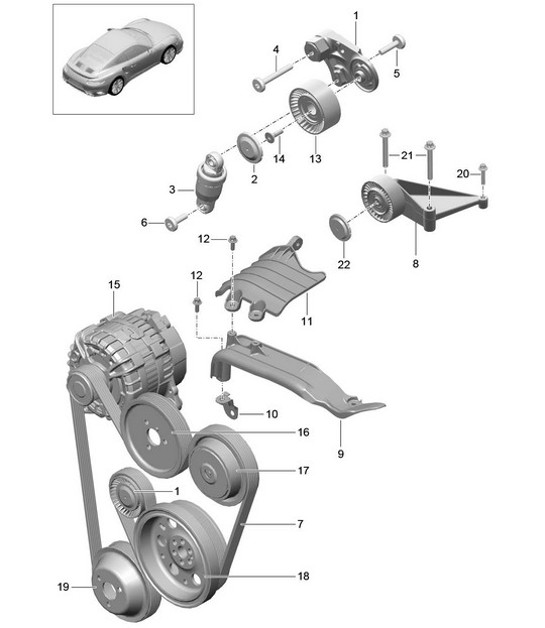

Ammortizzatore tendicinghia / cinghia trapezoidale 991 Turbo / GT2 RS 2014-20 - PORSCHE
Fai clic sui numeri delle immagini per visualizzare le info del prodotto
101-010| N. (numero) | N. componente | Desc | Nota | Modello |
|---|---|---|---|---|
| 1 | 0PB903308 | leva Rullo tenditore usa anche: 9A1 102 212 00 999 073 579 01 948 102 839 00 | A171 | |
| 1 | 0PB903308 | leva Rullo tenditore usa anche: 9A1 102 212 00 999 073 579 01 948 102 839 00 | DABA,DAB, DBCA,DBC, DBCB,DHNA | |
| 2 | 94810283900 | Cappuccio protettivo | ||
| 3 | 0PB903317 | tenditore idraulico | ||
| 4 | 9A700803500 | Bullone a testa piatta con cava esagonale | M 8 X 60 | |
| 5 | PAF008362 | Vite torx M8X33 | A171 | |
| 5 | PAF008362 | Bullone a testa cava esagonale | M 8 X 33 | DABA,DAB, DBCA,DBC, DBCB,DHNA |
| 6 | PAF008361 | Vite torx M8X26 | ||
| 7 | 0PB903137E | cinghia trapezoidale | A171,DABA, DAB,DBCA, DBC,DBCB+ PR:352 | |
| 7 | 0PB903137A | cinghia trapezoidale | A171,DABA, DAB,DBCA, DBC,DBCB+ PR:475 | |
| 7 | 0PB903137C | cinghia trapezoidale | DHNA+ PR:475 | |
| 8 | 0PB145172 | Consolle con: rullo cingolo | A171,DABA, DAB,DBCA, DBC,DBCB+ PR:475 | |
| 8 | 0PB145172 | Consolle con: rullo cingolo | DHNA+ PR:475 | |
| 9 | 9A110229001 | Copertina | ||
| 10 | 9A110229500 | Staffa | A171,DABA, DAB,DBCA, DBC,DBCB | |
| 10 | 0PB145515 | Staffa | DHNA | |
| 11 | 0PB145295A | Copertina | ||
| 12 | 9A700812500 | Vite torx M6X16 | ||
| 13 | 9A110221200 | Rullo tenditore | ||
| 14 | PAF008343 | HD rotondo. vite M 10 X 30 | ||
| 15 | - | Alternatore vedi illustrazione: 902-005 | ||
| 16 | - | Pompa a puleggia vedi illustrazione:402-060 | ||
| 17 | - | Compressore a puleggia vedi illustrazione:813-015 | ||
| 18 | - | Puleggia albero motore vedi illustrazione:102-000 | ||
| 19 | - | Pompa del liquido di raffreddamento a puleggia vedi illustrazione:105-000 | ||
| 20 | PAF008128 | Vite torx M6 X 30 | ||
| 21 | 90038509101 | Vite a testa esagonale M8 X 60 | ||
| 22 | 03G145291 | Cappuccio protettivo | PR:475 |
