Calefacción / Línea de alimentación / Línea de retorno (Modelo: PR:D9J,D9K,D9L) Cayenne 9PA (955) 2003-06 - PORSCHE

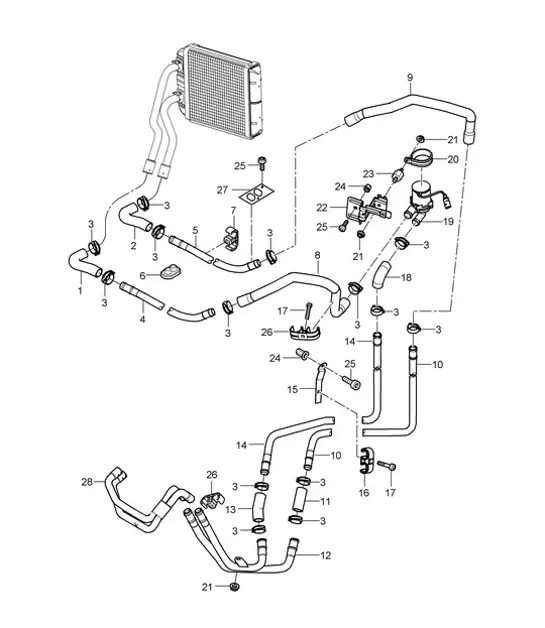

Haga clic sobre los números de la imagen para ver la información del producto

N.º (número) | N.º de pieza | descripción | Nota | Modelo |
---|---|---|---|---|
- | - | Calefacción Linea de alimentación Linea de retorno Válida desde: F9P6LA 01563>> F9P6LA 41357>> F9P6LA 80631>> | PR:D9J: PR:D9K PR:D9L | |
1 | 95557298200 | Manguera del calentador | lhd | PR:D9J,L0L |
1 | 95557258100 | Manguera del calentador | lhd | PR:D9K,D9L,L0L |
1 | 95557258101 | Manguera del calentador Intercambiador de calor | rhd | PR:D9J,D9K,D9L PR:L0R |
2 | 95557298100 | Manguera del calentador | lhd | PR:D9J,L0L |
2 | 95557298300 | Manguera del calentador | lhd | PR:D9K,D9L,L0L |
2 | 95557258100 | Manguera del calentador Intercambiador de calor | rhd | PR:D9J,D9K,D9L PR:L0R |
3 | 99951265809 | Abrazadera de la manguera | B 27 X 12 | |
4 | 95557292508 | Conducto de aire caliente | lhd | PR:D9J,L0L |
4 | 95557268003 | Conducto de aire caliente | rhd | PR:D9J,L0R |
4 | 95557268202 | Conducto de aire caliente | lhd | PR:D9K,D9L,L0L |
4 | 95557268203 | Conducto de aire caliente Intercambiador de calor | rhd | PR:D9K,D9L,L0R |
5 | 95557292604 | Conducto de aire caliente | lhd | PR:D9J,L0L |
5 | 95557268103 | Conducto de aire caliente | rhd | PR:D9J,L0R |
5 | 95557268302 | Conducto de aire caliente | lhd | PR:D9K,D9L,L0L |
5 | 95557268303 | Conducto de aire caliente Intercambiador de calor | rhd | PR:D9K,D9L,L0R |
6 | 95557278101 | Ojal | PR:D9J | |
6 | 95557278100 | Ojal | PR:D9K,D9L | |
7 | 95557205503 | Acortar | rhd | PR:D9J,L0R |
7 | 95557214500 | Acortar Conducto de aire caliente | rhd | PR:D9K,D9L,L0R |
8 | 95557278405 | Manguera del calentador | PR:D9K,D9L | |
9 | 95557299400 | Manguera del calentador | PR:D9K,D9L | |
10 | 95557292630 | Conducto de aire caliente | PR:D9K,D9L | |
11 | 95557278400 | Manguera del calentador | PR:D9K,D9L | |
12 | 95557269802 | tubo calefactor | PR:D9K,D9L | |
13 | 95557258900 | Manguera del calentador | ||
14 | 95557292510 | Conducto de aire caliente | PR:D9K,D9L | |
15 | 95557282301 | Apoyo tubo calefactor | ||
16 | 95557205501 | Acortar | ||
17 | N10620901 | Tornillo de cabeza plana | M6 X 30 | |
18 | 95557279105 | Manguera del calentador Bomba de agua | PR:D9K,D9L | |
19 | 95557215006 | Bomba de agua | PR:D9K,D9L | |
20 | N90942301 | Acortar | 48 X 15 | PR:D9K,D9L |
21 | 90037701001 | Tuerca hexagonal | M 6 | PR:D9K,D9L |
22 | 95557254501 | Apoyo Bomba de agua | ||
23 | 95557256700 | Tope de goma | ||
24 | 99950010901 | Tuerca remachable | M6 | |
25 | N10451404 | Tornillo de cabeza de lente | M6 X 16 | |
26 | 95557205503 | Acortar | ||
27 | 95557275800 | Tira de sellado Conducto de aire caliente Alojamiento de rueda | ||
28 | - | Manguera de agua Motor Ver ilustraciones: 105-25, 105-27 |
