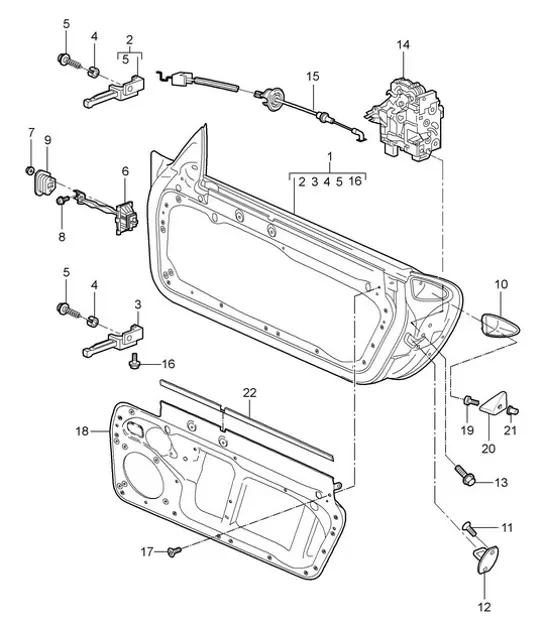

Carcasa de puerta / Piezas de instalación / Cerradura de puerta 987C.1 Cayman 2006-08 - PORSCHE
Haga clic sobre los números de la imagen para ver la información del producto

N.º (número) | N.º de pieza | descripción | Nota | Modelo |
---|---|---|---|---|
1 | 99753101106GRV | Marco de puerta - imprimado también uso: | left | |
- | 00004330532 | sellador | ||
1 | 99753101206GRV | Marco de puerta - imprimado también uso: | right | |
- | 00004330532 | sellador | ||
2 | 99753132101 | Bisagra | left | |
2 | 99753132201 | Bisagra | right | |
3 | 99753131901 | Bisagra | left | |
3 | 99753132001 | Bisagra | right | |
4 | 99653183100 | Manga | ||
5 | 90006729101 | Perno con arandela M 8 X 16 | ||
6 | 997537151023 | Cierre de puerta | ||
7 | 99908421203 | Tuerca hexagonal M 6 | ||
8 | 99907313801 | perno de cabeza redonda plana M 8 X 25 | ||
9 | 99653775100 | Sello | ||
10 | 9975373310101C | Soporte Negro satinado | ||
10 | 9975373320101C | Soporte Negro satinado | ||
11 | PAF910174 | enchufe multipunto avellanado perno de cabeza M 8 X 22 | ||
12 | PAB837767 | Huelguista | ||
13 | WHT000439 | perno de cabeza redonda plana M 8 X 20 | ||
14 | 3D1837015 | Cerradura de la puerta | left lhd | PR:098 |
14 | 3D1837016 | Cerradura de la puerta | right lhd | PR:098 |
14 | 3D2837015 | Cerradura de la puerta | left rhd | PR:099 |
14 | 3D2837016 | Cerradura de la puerta | right rhd | PR:099 |
15 | 99753731901 | Cable Bowden | ||
16 | PAF008485 | Perno hexagonal M 6 X 12 Microautobloqueo | ||
17 | 99907333309 | relleno hd. perno M6 X 16 | ||
18 | 98753720103 | Panel interior | left | |
18 | 98753720203 | Puerta del panel interior | right | |
19 | 90011907200 | Perno de cabeza hueca M8 X 16 | ||
20 | 99753733302G2X | Soporte preparado | left | |
20 | 99753733402G2X | Soporte preparado parte lateral | right | |
21 | 99950012102 | tuerca remachada M8 / 0,8 - 3 | ||
- | 99955117240 | Correa forro 25 x 1,3 x 730 para panel interior |
