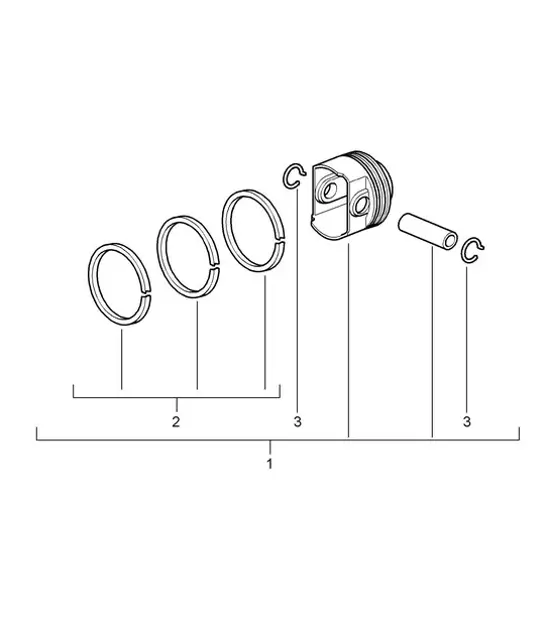

Pistón-9720, 9721, 9722-987C.1 Cayman 2.7L/3.4L 2006-08 - PORSCHE
Haga clic sobre los números de la imagen para ver la información del producto
102-005| N.º (número) | N.º de pieza | descripción | Nota | Modelo |
|---|---|---|---|---|
| 1 | 98710305113 | pistón completo Rango de tolerancia X Identificación: >> >> - 524-530G | 9721,9722 | |
| 1 | 98710305114 | pistón completo Rango de tolerancia X Identificación: >> >> + 530 - 536G | 9721,9722 | |
| 1 | 98710307103 | pistón completo Rango de tolerancia X Identificación: >> >> - 462 - 468G | 9720 | |
| 1 | 98710307104 | pistón completo Rango de tolerancia X Identificación: >> >> + 468 - 474G Ya no use la pieza aquí | 9720 | |
| 1 | 98710397100 | 1 juego de pistones Pistón de contenido Rango de tolerancia X Sólo por conjuntos | 9720 | |
| 2 | 98710305302 | 1 juego: anillos de pistón | 9721,9722 | |
| 2 | 99610307300 | 1 juego: anillos de pistón | 9720 | |
| 3 | 99610314103 | Anillo de seguridad |
