tiptronic atf cooler and atf lines 993 CARRERA A50.04/05 1994-98 - PORSCHE

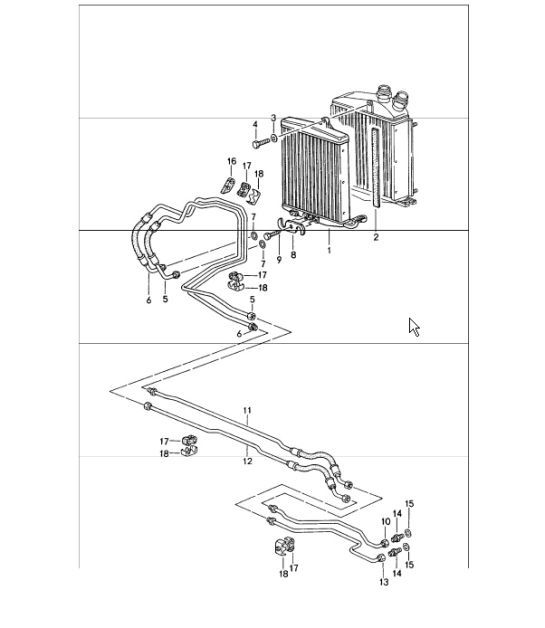

Haga clic sobre los números de la imagen para ver la información del producto
360-00| N.º (número) | N.º de pieza | descripción | Nota | Modelo |
|---|---|---|---|---|
| 1 | 94330702710 | transmission oil cooler | ||
| 2 | 00004320488 | sealing strap roll with 10 meters 9 X 3 - 260 MM | ||
| 3 | 90015100603 | washer A 6,4 | ||
| 4 | 90007501603 | hexagon-head bolt M 6 X 22 | ||
| 5 | 99330707300 | oil pipe | ||
| 6 | 99330707400 | oil pipe | ||
| 7 | 90033103140 | o-ring 11,8 X 1,8 | ||
| 8 | 99330714300 | latch | ||
| 9 | 90037803001 | hexagon-head bolt M 6 X 20 | ||
| 10 | 99330708100 | oil pipe | ||
| 11 | 99330707200 | oil pipe | ||
| 12 | 99330707500 | oil pipe | ||
| 13 | 99330708600 | oil pipe | ||
| 14 | 99910513302 | connection piece M 14 X 1,5 | ||
| 15 | 90012300730 | sealing ring A14 X 18 | ||
| 16 | 99330714500 | gasket | ||
| 17 | 92834752700 | rubber mounting | ||
| 18 | 92834755500 | clamp |
