Porsche
Diagrams
992 (911) MK1 2019-2024
992.1 Carrera 2 Cabriolet 3.0L 2019-24
Rear Axle
Suspension / Air spring (PR:1BK) Cayenne 92A (958) 2015>>
Enter valid search criteria before proceeding with the request
➜
501-000
Rear axle / Wheel carrier / Wheel hub (PR:1PA, 1PD, 1PJ, A8C, A8F) 992.1 Carrera 2019 - 2024
501-005
Rear axle / Cross member (PR:K5T, K8C, K8K) 992.1 Carrera 2019 - 2024
501-010
Rear axle / Wishbone (PR:0N1 - Standard rear axle) 992.1 Carrera 2019 - 2024
501-015
Rear axle / Wishbone / Rear axle steering (PR:0N5 - Standard rear axle) 992.1 Carrera 2019 - 2024
501-025
Anti-roll bar / Coupling rod (PR:1X1, 1X2, A8C, A8F, 1BH, 1BV, 1P0, G1F, G1G, G1L, G1M, GH1, GH2, GH3, K5T, K8K) 992.1 Carrera 2019 - 2024 TARGA / CABRIOLET
501-030
Anti-roll bar / Coupling rod (PR:1X1, A8C, 1BH, 1P0, GH1, K8K) 992.1 Carrera 2019 - 2024 Cabriolet
501-050
Anti-roll bar / Coupling rod - PDCC - (PR:1P7 - Anti-roll bar, active body control
(pdcc)) 992.1 Carrera 2019 - 2024
501-100
Drive shaft (PR:G1F, G1G, G1L, G1M) 992.1 Carrera 2019 - 2024
502-000
Suspension strut complete / Shock absorbers / Individual part 992.1 Carrera 2019 - 2024
502-010
Shock absorber (spring cyl.) / Individual part (PR:1BV, E0W) 992.1 Carrera 2019 - 2024
➜

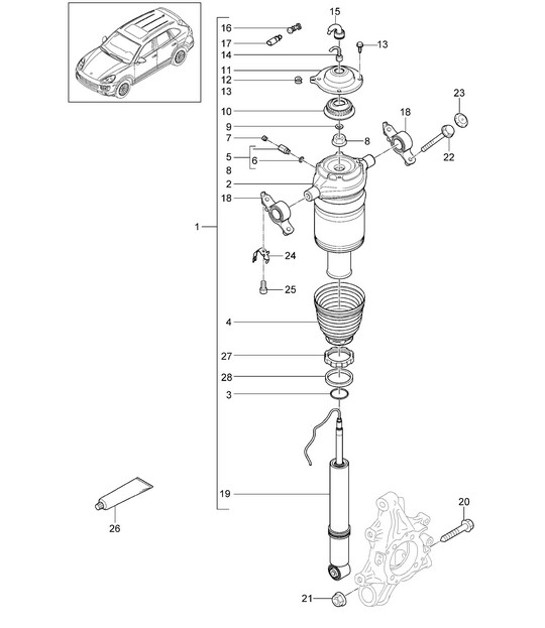

Suspension / Air spring (PR:1BK) Cayenne 92A (958) 2015>> - PORSCHE
Click the image numbers to view product info
SKU: 95835801951, suspension strut (complete),SKU: 95835802051, suspension strut (complete),SKU: 95835801932, suspension strut (complete),SKU: 95835802032, suspension strut (complete),SKU: 95835801942, suspension strut (complete),SKU: 95835802042, suspension strut (complete)
SKU: 95835850318, air spring,SKU: 95835850418, air spring,SKU: 95835850330, air spring,SKU: 95835850430, air spring,SKU: 95835850340, air spring,SKU: 95835850440, air spring
SKU: 95834304500, seal ring
SKU: 95834350511, bellows
SKU: 95835872000, valve
SKU: 95535872200, seal ring
SKU: 95535854100, push-on connector
SKU: WHT004925, hexagon collar nut self-locking
SKU: 97034360500, o-ring
SKU: 95834301820, shock absorber bearing
SKU: 95835808710, cap
SKU: 95833380002, cable clip
SKU: N10127707, hex collared bolt
SKU: 95833386901, cable guide
SKU: 95833387304, cable support sleeve
SKU: 95834387800, grommet connector
SKU: 1J0973802, flat connector housing withcontact locking mechanism
SKU: 95833333100, support damper,SKU: 95833333200, support damper
SKU: 95833333100, support damper,SKU: 95833333200, support damper
SKU: 958513029B, shock absorbers,SKU: 958513029A, shock absorbers
SKU: WHT005461, hexagon bolt
SKU: PAF104029, hexagon nut
SKU: WHT003791, hex collared bolt m10 x 1.5 x 115,SKU: WHT003792, hex collared bolt m10 x 1.5 x 160
SKU: 95833318300, bungs
SKU: 95833324701, bracket connector,SKU: 95833324801, bracket connector
SKU: N01474011, socket head bolt withhexagon socket head
SKU: 00004330501, grease syntheso glep 1 tube
SKU: 95834306000, securing ring
SKU: 95834325300, thrust ring
+
−
↺
502-007
