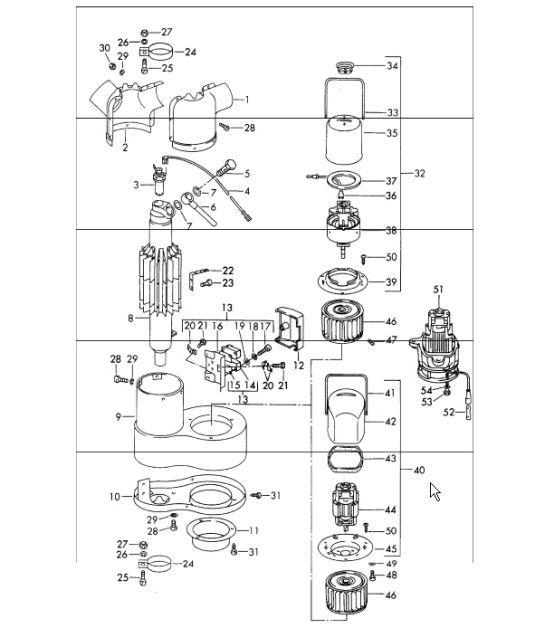

single parts heater - WEBASTO - UPTO F >> 030 8069, F >> 035 5414, F >> 046 2711, F >> 050 0419 and F >> 055 0271 for 911 /S and 912 upto 1968 - PORSCHE
Click the image numbers to view product info
SKU: 90157295200, heated air distribution side
SKU: 90157295100, heated air distribution side
SKU: 90157293100, spark plug 129 g
SKU: 90157293200, ground strap
SKU: 90157293300, banjo bolt
SKU: 90157293400, connecting piece
SKU: N0138492, sealing ring a 14x18 din 7603 cu,SKU: 90012302900, sealing ring c 14x18 din 7603st
SKU: N0138492, sealing ring a 14x18 din 7603 cu,SKU: 90012302900, sealing ring c 14x18 din 7603st
SKU: 90157295600, heating tube complete
SKU: 90157295500, housing complete
SKU: 90157295300, housing cover complete
SKU: 90157295400, connecting piece
SKU: 90157293500, protection cap complete
SKU: 90157297500, plate complete
SKU: 90157297500, plate complete
SKU: 90157293600, micro-changeover switch
SKU: 90157294000, insulator
SKU: 90157293700, plate
SKU: 90001407102, pan-head screw am 3x15 din 84-5s verz.
SKU: 99902900100, lock ring $ 3
SKU: 99902900100, lock ring $ 3
SKU: 90002500103, washer 3,2 din 125-st
SKU: 90157293800, flat plug
SKU: 90157293800, flat plug
SKU: 90007510102, hexagon-head bolt m 4x6 sz din 933-8g verz.
SKU: 90007510102, hexagon-head bolt m 4x6 sz din 933-8g verz.
SKU: 90157293900, thermo bi-metal switch
SKU: 90001400210, pan-head screw am 4x6 din 84 ms
SKU: 90157295000, pipe clamp
SKU: 90157295000, pipe clamp
SKU: 90001407002, pan-head screw am 5x18 din 84-5s verz.
SKU: 90001407002, pan-head screw am 5x18 din 84-5s verz.
SKU: 99902900300, lock ring $ 5
SKU: 99902900300, lock ring $ 5
SKU: 90007609101, hexagon nut m 5 din 934-6s verz.
SKU: 90007609101, hexagon nut m 5 din 934-6s verz.
SKU: 90001400202, pan-head screw am 4x6 din 84-5s verz.
SKU: 90001400202, pan-head screw am 4x6 din 84-5s verz.
SKU: 90001400202, pan-head screw am 4x6 din 84-5s verz.
SKU: 99902900200, lock ring $ 4
SKU: 99902900200, lock ring $ 4
SKU: 99902900200, lock ring $ 4
SKU: N011004G, hexagon nut m 4 din 934-6s verz.
SKU: N0139103, screw b 3,5x6,5 din 7974 verz.
SKU: N0139103, screw b 3,5x6,5 din 7974 verz.
SKU: 90157294101, electric motor - bosch -,SKU: 90157294602, electric motor - bosch - without picture nr.36,SKU: 90157294101, blower motor - bosch -12 volt,SKU: 90157294101, blower motor - aeg -12 volt,SKU: 90157294101, blower motor - aeg -12 volt until device nr. 98
SKU: 90157294101, electric motor - bosch -,SKU: 90157294101, blower motor - bosch -12 volt,SKU: 90157294101, blower motor - aeg -12 volt,SKU: 90157294101, blower motor - aeg -12 volt until device nr. 98
SKU: 90157294101, electric motor - bosch -,SKU: 90157294101, blower motor - bosch -12 volt,SKU: 90157294101, blower motor - aeg -12 volt,SKU: 90157294101, blower motor - aeg -12 volt until device nr. 98
SKU: 90157294101, electric motor - bosch -,SKU: 90157294101, blower motor - bosch -12 volt,SKU: 90157294101, blower motor - aeg -12 volt,SKU: 90157294101, blower motor - aeg -12 volt until device nr. 98,SKU: 90157294700, electric motor - aeg - 12 volt from device nr. 99
SKU: 90157294200, clamp,SKU: 90157294200, clamp until device nr.98
SKU: 90157294200, clamp,SKU: 90157294200, clamp until device nr.98,SKU: 90157294300, clamp from device nr.99
SKU: 90157297600, edge protection
SKU: 90157294402, protection cap
SKU: 90157293201, ground strap
SKU: 90157294501, gasket
SKU: 90157294801, engine carrier
SKU: 90157294400, protection cap until device nr. 98,SKU: 90157294401, protection cap from device nr. 99
SKU: 90157294500, gasket,SKU: 90157296900, gasket
SKU: 90157294800, engine carrier
SKU: 90157294900, fan
SKU: 90157294900, fan
SKU: 90024400100, threaded pin m 4x0,5x8 din 916
SKU: 90001406902, pan-head screw am 3x8 din 84-5s verz.
SKU: 90014100902, half-round screw b 2,9x6,5 din 7974 verz.
SKU: 90014100902, half-round screw b 2,9x6,5 din 7974 verz.
SKU: 90157251330, pump 12 volt
SKU: 90157295700, push-on connector
SKU: 90007510202, hexagon-head bolt m 4x35 din 933-8g verz.
SKU: 90002701101, lock ring b 4 din 127 bost.
+
−
↺
813-25
