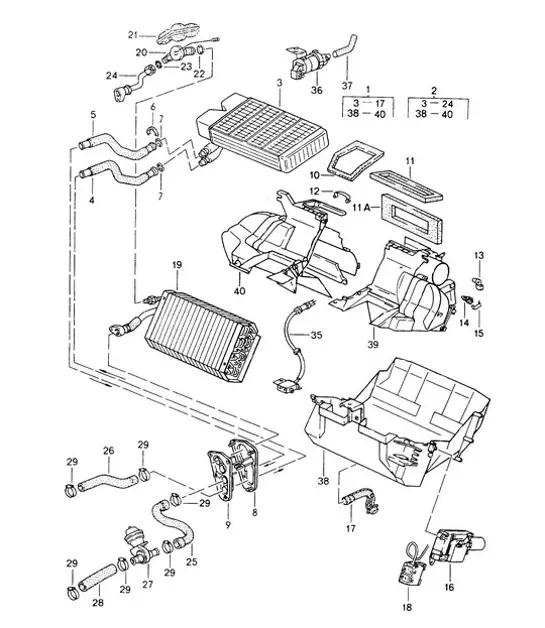

Heizung / Klimaanlage 968 1992-95 - PORSCHE
Klicken Sie auf die Bildnummern, um die Produktinformation zu sehen
813-000| Nummer | Teilenr. | Beschr. | Hinweis | Modell |
|---|---|---|---|---|
| 1 | 94457202003 | Heizung | ||
| 2 | 94457302004 | Heizung | -92 | M573 |
| 2 | 94457302005 | Heizung | 93- | M573 |
| 3 | 94457213000 | Wärmetauscher | ||
| 4 | 94457218400 | Wasserschlauch | Return | |
| 5 | 94457218500 | Wasserschlauch | Supply | |
| 6 | 94457228700 | Ausschneiden | ||
| 7 | 94457218800 | O-Ring | ||
| 8 | 94457226200 | Montageplatte | ||
| 9 | 94457226400 | Dichtung | ||
| 9 | 94457326400 | Dichtung | M573 | |
| 10 | 94457220100 | Dichtung | LEFT | |
| 10 | 94457220200 | Dichtung | RIGHT | |
| 11 | 94457216201 | Dichtung | ||
| 11A | 94457216202 | Dichtung | ||
| 12 | 94457221500 | Federklemme | ||
| 13 | 94457231300 | Lager | ||
| 14 | 94457231400 | Lager | ||
| 15 | 94457221700 | Federklemme | ||
| 16 | 94462411900 | Elektromotor Defrosterklappe Fußraumklappe 60 Grad | ||
| 16 | 94462412000 | Elektromotor Temperatur-Mischklappe 98 Grad | ||
| 17 | 94457222100 | Wasserablaufschlauch | ||
| 18 | 94465922101 | Temperatursensor | M573 | |
| 19 | 94457321103 | Verdampfer | -92 | M573 |
| 19 | 94457321102 | Verdampfer | 93- | M573 |
| 20 | 94457320100 | Expansionsventil | -92 | M573 |
| 20 | 94457320101 | Expansionsventil | 93- | M573 |
| 21 | 477820447B | Isolator | M573 | |
| 22 | 94457321500 | O-Ring | -92 | M573 |
| 22 | 94457321700 | O-Ring | 93- | M573 |
| 23 | 94457321600 | O-Ring | -92 | M573 |
| 23 | 94457321800 | O-Ring | 93- | M573 |
| 24 | 94457321300 | Kältemittelleitung | -92 | M573 |
| 24 | 94457321301 | Kältemittelleitung | 93- | M573 |
| 25 | 94457258702 | Wasserschlauch | Supply | |
| 26 | 94457258900 | Wasserschlauch | Return | |
| 27 | 92857457304 | Scheibenventil | ||
| 28 | 94457238501 | Heizungsschlauch | ||
| 29 | 99951234600 | Schlauchschelle SGT 16-25 | ||
| 35 | PCG65312100 | Temperatursensor Reparatursatz ohne Steckergehäuse | ||
| - | 477971909 | Gummimanschette | ||
| 36 | 91162406501 | Innenraumsensor | ||
| 37 | 94457252900 | Schlauch Innenraumsensor | ||
| 38 | 94457213501 | Gehäuse Unterteil | ||
| 39 | 94457212101 | Gehäuse | LEFT | |
| 40 | 94457212201 | Gehäuse | RIGHT |
