Andere Diagramme
901-00
engine electrics - 1 - for 993 CARRERA/4 M64.05/06/21/22 and 993 CARRERA RS M64.20 1994-98
901-01
engine electrics 993 TURBO M64.60 1995-98
901-02
engine electrics - 2 - for 993 CARRERA/4 M64.05/06/21/22 and 993 CARRERA RS M64.20 1994-98
901-03
control units 993 1994-98
901-05
central electrical system, engine compartment 993 1994-98
902-00
central electrical system 993 1994-98
902-05
battery, wiring harnesses, starter, generator 993 1994-98
902-10
wiring harnesses: passenger compartment FRONT, luggage compartment 993 1994-98
902-15
wiring harnesses: luggage compartment lamp, sunroof, convertible top control, driver's door, passenger's door, direction indicator light, anti-lock brake system for 993 1994-98
902-20
wiring harnesses: rear end engine - dme - for 993 1994-98
903-00
fanfare horn 993 1994-98
903-04
interior lights: luggage compartment lamp, engine compartment lamp 993 1994-98
903-05
cover, switch, centre console 993 1994-98
903-06
switch 993 1994-98
903-10
steering column switch 993 1994-98
904-00
windscreen wiper system 993 1994-98
904-05
rear window wiper 993 COUPE 1994-98
904-06
rear window wiper 993 TARGA 1994-98
904-10
windscreen washer system 993 1994-98
904-20
headlight washer system 993 M288 1994-98
905-00
headlamp fog headlamp direction, indicator light direction, indicator light 993 1994-98
905-05
combined lights rear 993 1994-98
905-10
additional brake light 993 M602 1994-98
906-00
instruments 993 1994-98
907-00
cruise control 993 M454 (Automatic speed control) 1994-98
911-00
radio booster for 993 TURBO F >>99TS3 71089 UPTO 1995
911-01
radio booster 993 TURBO F 99TS3 71090>> 1996 ONWARDS
911-05
loudspeaker 993 1994-98
911-10
preparation for telephone 993 M611/614 and 993 M615 1994-98

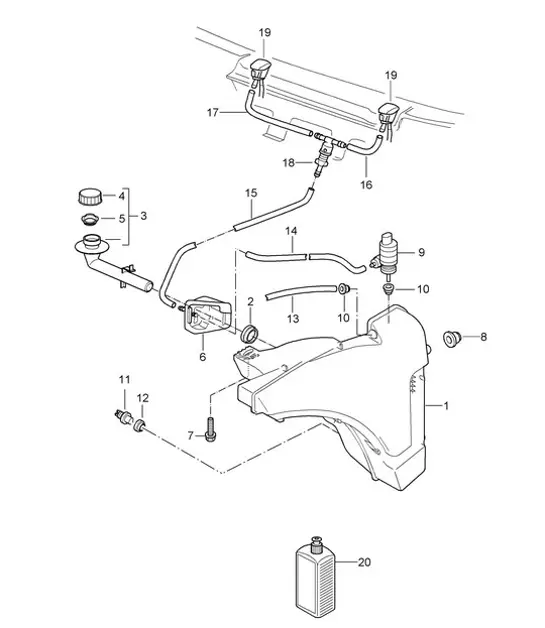

Scheibenwaschanlage 987C.1 Cayman 2006-08 - PORSCHE
Klicken Sie auf die Bildnummern, um die Produktinformation zu sehen
904-010| Nummer | Teilenr. | Beschr. | Hinweis | Modell |
|---|---|---|---|---|
| 1 | 99752870101 | Wasser reservoir | PR:288 | |
| 1 | 99752870100 | Wasser reservoir | ||
| 2 | 99652871100 | Siegel | ||
| 3 | 99752860500 | Kraftstoffeinfüllstutzen | ||
| 4 | 99652860700 | Abdeckung | ||
| 5 | 99752862100 | Sieb | ||
| 6 | 99652861501 | Konsole | ||
| - | 99913709140 | Anschlussverschraubung Reparaturmaterial für Konsole 996.528.615.01 | ||
| 7 | 90037815401 | Sechskantschraube AM 8 X 35 SB | ||
| 8 | 9A7007543 | Tülle | ||
| 9 | PAB955651 | Pumpe für Scheibenwaschanlage | ||
| 10 | 431955465B | Dichtungsring | ||
| 11 | 95562810500 | Wasserstandsschalter | ||
| 12 | 95552872100 | Siegel | ||
| 13 | 99918134740 | Entlüftungsleitung 273 MM | ||
| 14 | 99918181540 | Schlauch 5,0 x 2,5 | shorten to: 375 MM | |
| 15 | 99918181540 | Schlauch 5,0 x 2,5 | shorten to: 650 MM | |
| 16 | 99918181540 | Schlauch 5,0 x 2,5 | shorten to: 97 MM | |
| 17 | 99918181540 | Schlauch 5,0 x 2,5 | shorten to: 347 MM | |
| 18 | 99913700540 | T-Stück | ||
| 19 | 99762807700 | Jet D - MJ 2008>> - MJ 2008 | ||
| 20 | 00004400204 | Fensterreinigungslösung | 250 ML Summer |
